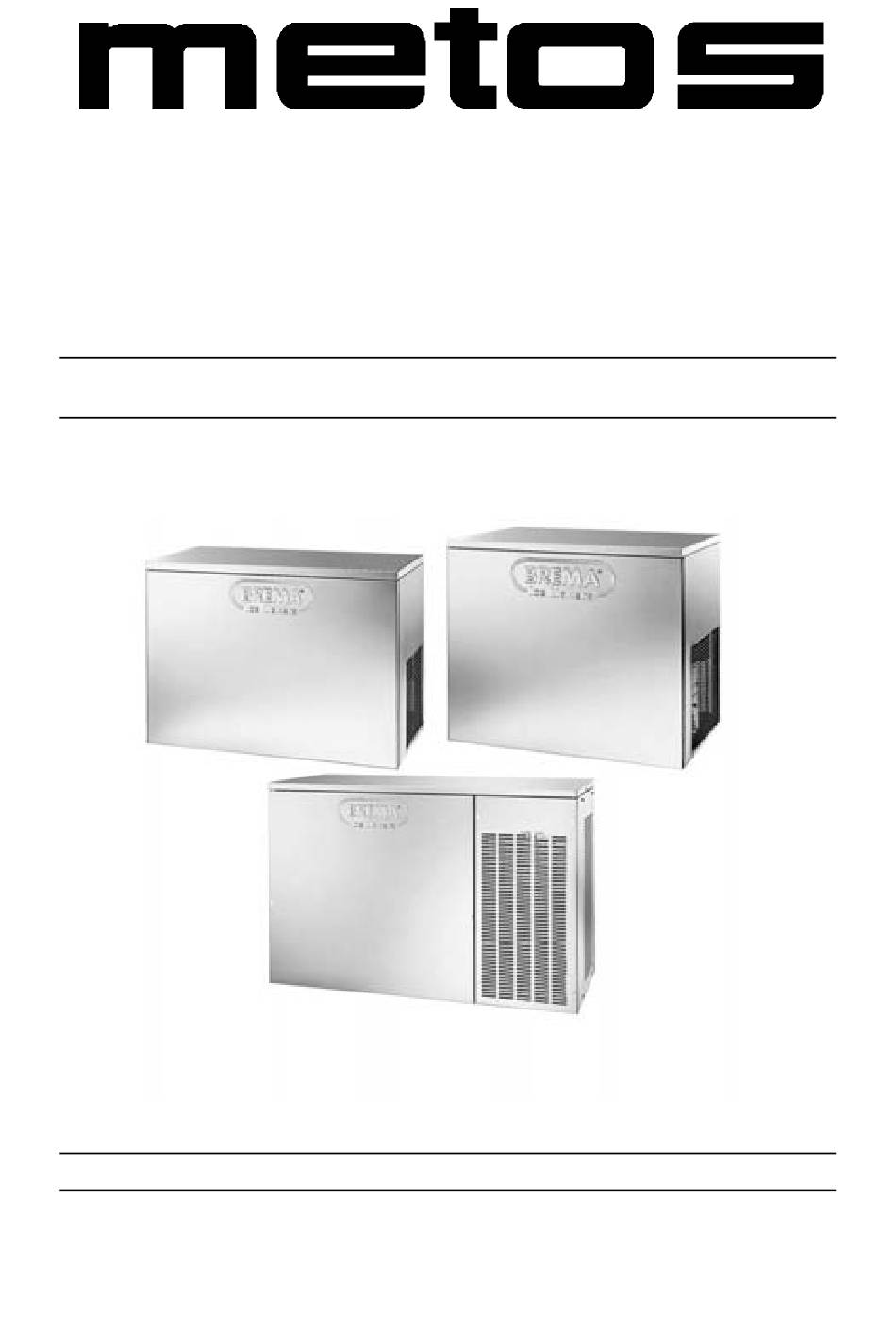

- Page 1 ICE CUBE MAKER WITHOUT BIN AIR-CONDENSED WATER-CONDENSED TYPE: C80, C150, C300 Installation and Operation Manual S/N: Rev.: 2.4...
- Page 3 Dear Customer, Congratulations on deciding to choose a Metos appliance for your kitchen activities. You made an excellent choice. We will do our best to make you a satisfied Metos customer like thousands of customers we have around the world.
- Page 4 17.9.2007 Rev. 2.4...
-
Page 5: Table Of Contents
17.9.2007 Rev. 1. General ......................1 1.1 Symbols used in the manual ..................1 1.2 Symbols used on the appliance ..................1 1.3 Checking the relation of the appliance and the manual ..........1 2. Safety instructions ..................2 2.1 Safe use .......................... 2 2.1.1 Modifications ...................... - Page 6 17.9.2007 Rev. 7. Technical specifications ................15...
-
Page 7: General
17.9.2007 Rev. 2.4 General 1. General Carefully read the instructions in this manual as they contain important information re- garding proper, efficient and safe installation, use and maintenance of the appliance. Keep this manual in a safe place for eventual use by other operators of the appliance. The installation of this appliance must be carried out in accordance with the manufactur- er’s instructions and following local regulations. -
Page 8: Safety Instructions
17.9.2007 Rev. 2.4 Safety instructions 2. Safety instructions 2.1 Safe use To guarantee the efficiency of the automatic ice cube maker equipped and to ensure its proper operation, it is essential to adhere to the directions provided by the manufacturer and to make sure that any maintenance work is carried out exclusively by professionally qualified staff. -
Page 9: Functional Description
17.9.2007 Rev. 2.4 Functional description 3. Functional description 3.1 General In making ice cube only cold, pure drinking water, should be used. Because ice cubes are mainly used for cooling of beverages for internal use, shall the quality of water used in making ice cube be considered as important as the pureness and good storage of any other food products. -
Page 10: Use Instructions
17.9.2007 Rev. 2.4 Use instructions 4. Use instructions 4.1 Use In making ice cubes, only cold, clean drinking water, should be used. Because ice cubes are mainly used for cooling of beverages for internal use, shall the quality of water used in making ice cubes be considered as important as the pureness and good storage of any other food products. -
Page 11: Layup
17.9.2007 Rev. 2.4 Use instructions 4.2.2 Layup If you do not intend using the automatic ice cube maker for a certain period of time, pro- ceed as follows: • Unplug the power cable from the socket. • Shut off the water supply by turning off the tap provided during installation. •... -
Page 12: Installation
17.9.2007 Rev. 2.4 Installation 5. Installation 5.1 General The automatic ice cube maker is delivered attached to a special wooden pallet and pro- tected with cardboard packaging. Installation must be carried out exclusively by qualified and authorized staff, in compliance with current national standards and following the manufacturer’s instructions. -
Page 13: Unpacking
17.9.2007 Rev. 2.4 Installation 5.5 Unpacking Remove the cardboard packaging by cutting the straps that hold it in place; then slide it off from the top. Once you have removed the packaging, make sure that the automatic ice cube maker is in perfectly good condition. -
Page 14: Placing Of Appliance
17.9.2007 Rev. 2.4 Installation 5.8 Placing of appliance Power supply socket Water tap Water supply pipe Water outlet pipe 5.9 Connection to power supply mains The electrical wiring system scheme is attached inside of the rear panel of the ice cube maker. -
Page 15: Connection To Water Mains
17.9.2007 Rev. 2.4 Installation Make sure to unroll the power supply cable to its entire length and check that it is not squeezed in any way. 5.10 Connection to water mains The automatic ice cube maker is designed solely for producing ice cubes and must be fed exclusively with cold water for human consumption (drinking water). -
Page 16: Distance Of Other Fixtures
17.9.2007 Rev. 2.4 Installation Insert the special seals in the two threaded ring nuts of the water charge pipe with witch the automatic ice cube maker come supplied (see fig. below) Without exerting excessive force in order not to risk cracking the unions, firmly tighten a threaded ring nut on the out- let of the solenoid valve located in the back of the ice cube maker. -
Page 17: Troubleshooting
17.9.2007 Rev. 2.4 Troubleshooting 6. Troubleshooting Should the appliance fail to produce ice, before calling on the Authorized Technical Serv- ice Centre, first check carefully that: • The water supply tap provided in the istallation phase is open (see fig.). •... - Page 18 17.9.2007 Rev. 2.4 Troubleshooting MALFUNCTION Possible cause Operation Ice cube maker does not function Appliance does not function Check power supply Thermostat in the container does not func. Change the thermostat Safety thermostat of the condenser does Change the thermostat not function.
- Page 19 17.9.2007 Rev. 2.4 Troubleshooting Ice cube production reduces The condenser or the air filter is obstructed Clean the condenser or the filter The water does not exit from the ice con- Drain water hose is throttled/blocked tainer Not enough liquid Find leakage, fix it, vacuumize and fill up The warm gas valve leaks Fix or renew the valve...
- Page 20 17.9.2007 Rev. 2.4 Troubleshooting...
- Page 21 Electric diagram 24126 rev2 (valid from 2004.07.22) Electric diagram 24127 Electric diagram 24127 rev3 (valid from 2004.07.22) Electric diagram 24128 Electric diagram 24128 rev5 (Valid from 20040722) Electric diagram 24129/3 Electric diagram 24130 Installation drawing C80 Installation drawings C150 Installation drawing C300 Marine foot...
- Page 22 Electric diagram 24126 rev2 (valid from 2004.07.22)
- Page 23 Electric diagram 24127...
- Page 24 Electric diagram 24127 rev3 (valid from 2004.07.22)
- Page 25 Electric diagram 24128...
- Page 26 Electric diagram 24128 rev5 (Valid from 20040722)
- Page 27 Electric diagram 24129/3...
- Page 28 Electric diagram 24130...
- Page 29 17.9.2007 Rev. 2.4 Technical specifications Installation drawing C80 C 80 862 mm 69 mm 226 mm 127 mm 213 mm 125 mm 284 mm Water OUT, diam. 24mm Water IN, diam. 3/4” Power cable...
- Page 30 17.9.2007 Rev. 2.4 Technical specifications Installation drawings C150 C 150 862 m m 69 mm 297 mm 126 mm 284 mm 140 mm 355 mm Water OUT, diam. 24mm Water IN, diam. 3/4” Power cable...
- Page 31 17.9.2007 Rev. 2.4 Technical specifications Installation drawing C300 C 300 1250 mm 29 mm 73 mm 39 mm 582 mm 1222 mm 748 mm Water OUT, diam. 24mm Water IN, diam. 3/4” Power cable...
- Page 32 17.9.2007 Rev. 2.4 Technical specifications Marine foot Installation of marine foot: New marine foot...
- Page 33 48 kg Weight gross 92 kg Weight gross 128 kg Weight gross 178 kg Rerfrigerant R404A 510g Rerfrigerant R404A 350g Rerfrigerant R404A 1300g Rerfrigerant R404A 1050g A=AIR-CONDENSED, W=WATER-CONDENSED 80=C80, 150=C150, 300=C300 A=3/N/PE∼400/230V 50Hz, B=∼250V 16A 50Hz, H=3/PE∼230V 50Hz, I=3/PE∼220V 60Hz...
