Seagate ST625211CF Installation Manual

ST1 Series Installation Guide
ST650211CF, ST650211FX, ST625211CF, and ST625211FX
CompactFlash Interface Disc Drives
Publication Number: 100325579, Rev. C, May 2005
The easiest way to install your ST1 Series drive
Many of today's consumer products, like cameras, notebook computers,
MP3 players, printers and more have been designed to make it possible for
the end user to use compact flash interface devices. Your Seagate ST1
Series drive is designed for such use. Refer to your product's user manual
for the location of the compact flash media compartment and the specific
instructions regarding insertion and removal of removable media devices
like the ST650211CF and ST625211CF models. Your product's manufac-
turer's support website will have the most up-to-date information. Read and
follow all instructions regarding the proper steps to be taken when using
your Seagate ST1 Series disc drive.
The Seagate ST1 Series Flex interface disc drive models, ST650211FX
and ST625211FX, are designed for embedded installation, or as a fixed
storage solution. Follow the installation instructions provided on this
instruction sheet. Your product's manufacturer's support website will have
the most up-to-date information on installing and removing storage devices.
Read and follow all instructions regarding the proper steps to be taken
when using your Seagate ST1 Series disc drive. It is important to follow the
handling precautions and electrostatic discharge protection information
below when handling any electronic device. It is always a good idea to back
up all your data before installing any new hardware in your computer.
Handling precautions/electrostatic discharge protection
• ST1 Series disc drives are fragile. Do not drop or jar the drive. Handle
the drive only by the edges or by the finger grip area shown in Figure 1.
Keep the device in the packaging until you are ready to install it and
between uses to minimize handling damage.
• It may be necessary to turn off the power to the host product during
installation. Refer to your product's user manual for details regarding
installation and removal of media devices.
• Do not disassemble the drive. Doing so voids the warranty.
See the warranty information on page 2.
• Do not expose the drive to extreme temperatures or humidity conditions.
• Do not apply pressure, write on, or attach labels to the top or bottom of
the drive.
• Do not cover or otherwise obstruct the breather hole on the top of the
drive. (See Figure 2 and Figure 3)
• Keep the drive away from strong magnetic fields to avoid data loss.

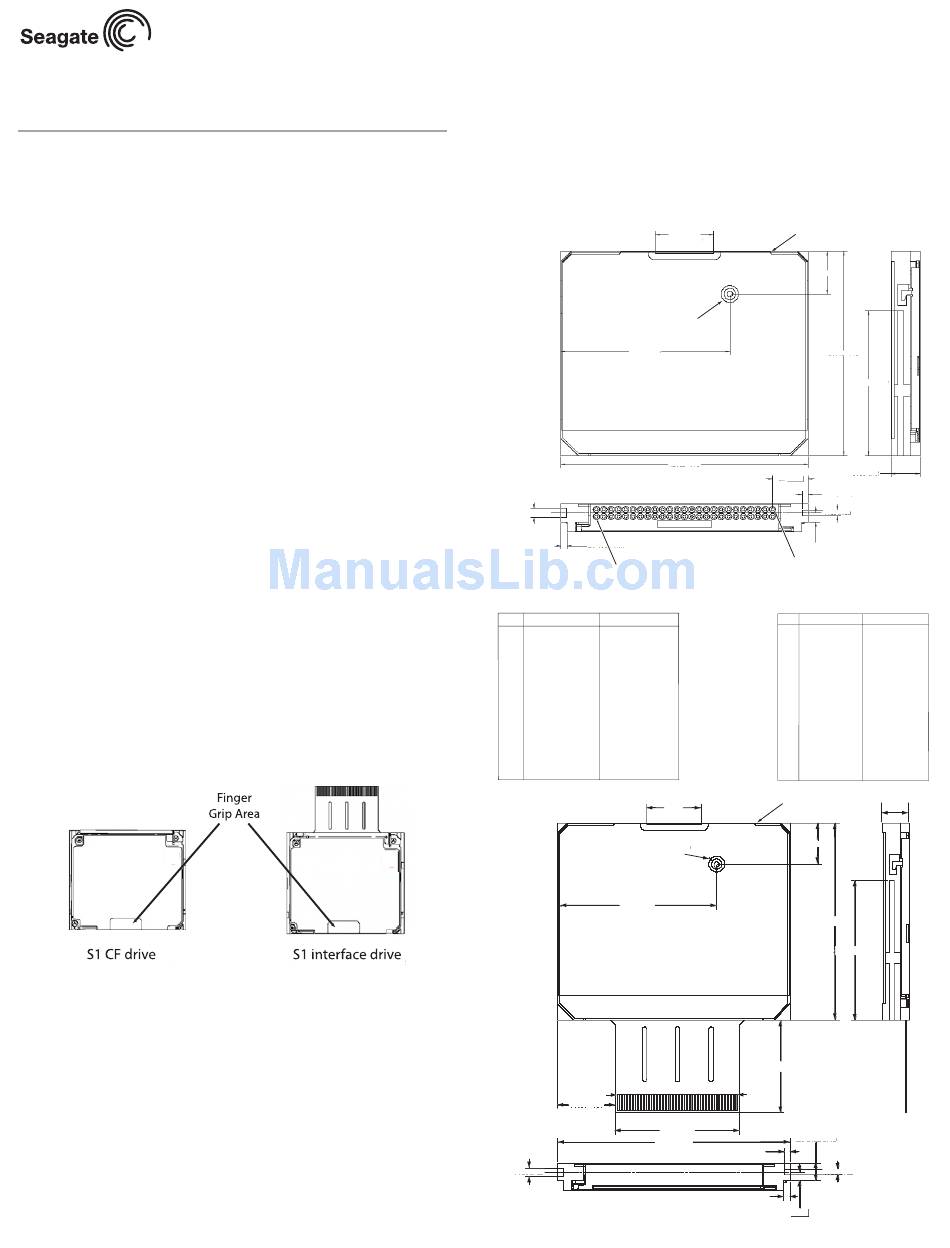

ST1 Series - Finger grip areas
Figure 1

Drive characteristics

Formatted capacity
Total number of sectors*
Cache size
Formatted capacity
Total number of sectors*
Cache size
*One sector equals 512 bytes.
Note. The Seagate ST1 Series CompactFlash disc drive is compatible
with the CF+ and CompactFlash Specification 2.0.
Note. The Seagate ST1 Series Flex interface disc drive is compatible with
the ATA version 7.
ST650211CF ST625211CF
5.0 Gbytes 2.5 Gbytes
9,767,520 4,883,760
2 Mbytes 2 Mbytes
ST650211FX ST625211FX
5.0 Gbytes 2.5 Gbytes
9,767,520 4,883,760
2 Mbytes 2 Mbytes
Installing your ST1 Series CompactFlash model disc drive
Each product, which utilizes CompactFlash storage devices, has its own
unique removable media compartment. Refer to the product's user manual
to locate the media compartment and for instructions on removing and
installing media devices.
Warning. It may be necessary to turn off the product. Refer to your prod-
uct's operator manual for cautions, warnings and recommenda-
tions on the installation and removal of media devices.
Note. This drive is designed for a product that supplies interface signals
and +3.3V power through the compact flash connector. Refer to
your consumer products manual to determine if your Seagate ST1
Series disc drive is compatible. See Figure 2 for drive dimensions.
FINGER GRIP
Breather Hole
Do not cover
E
Bottom View
Bottom
H
L
Pin 1
ST1 Series - CF+ dimensions—end, top, and side views.
Figure 2
CF Dimension Table
Inches Millimeters
A 0.197 ± .004 5.00 ± .10
B 1.433 ± .006 36.40 ± .15
C 1.685 ± .004 42.80 ± .10
D 1.015 ± .003 2x 25.78 ± .07
E 1.152 ± .010 29.25 ± .25
F 0.299 ± .010 7.61 ± .25
G 0.394 min 10.00 min
H 0.063 ± .002 1.60 ± .05
J 0.040 ± .003 2x 1.01 ± .07
K 0.039 ± .002 1.00 ± .05
L 0.039 ± .004 2x 1.00 min
M 0.065 ± .004 1.65 ± .10
N 0.243 ± .004 2x 6.16 ± .10
G
FINGER GRIP
Breather Hole
Do not cover
E
Bottom View
Pin 45
S
P
C
Bottom
H
Top
ST1 Series - FX dimensions—end, top, and side views
Figure 3
Recommended case
temp. measurement location
G
F
B
C
N
J
K
Top
M
Pin 50
FX Dimension Table
Inches
A 0.197 ± .004
B 1.433 ± .006
C 1.685 ± .004
D 1.015 ± .003
E 1.152 ± .010
F 0.299 ± .010
G 0.394 min
H 0.063 ± .002
J 0.040 ± .003
K 0.039 ± .002
L 0.039 ± .004
M 0.065 ± .004
P 0.906 ± .003
R 0.669 ± .020
S 0.414 ± .020
T 0.130 ± .004
Recommended case
temp. measurement location
F
B
D
R
Pin 1
T
J
K
L
M
D
A
Millimeters
5.00 ± .10
36.40 ± .15
42.80 ± .10
2x 25.78 ± .07
29.25 ± .25
7.61 ± .25
10.00 min
1.60 ± .05
2x 1.01 ± .07
1.00 ± .05
2x 1.00 min
1.65 ± .10
23.00 ± .07
17.00 ± .50
10.51 ± .50
2X 3.30 ± .10
A
