Page 1: Instruction Manual

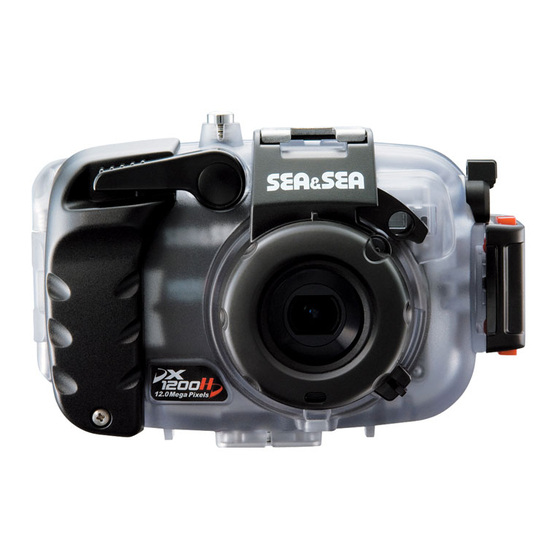

06138 UNDERWATER DIGITAL CAMERA HOUSING DX-1200HD 取扱説明書 Instruction Manual... -
Page 2: Table Of Contents
Introduction Thank you for purchasing SEA&SEA products. Please read this instruction manual carefully prior to using your underwater housing. Only with a thorough understanding of this manual’s content will you be able to use the housing correctly. After reading the manual, please be sure to keep it in a place where you can easily come back to it at any time. -
Page 3: Safety Precautions
Safety Precautions For safe handling of the product, please read the following precautions carefully before use. Failure to heed the precautions listed below could result in serious consequences. To prevent injury or damage to yourself and/or others, please observe the precautions as they contain highly important information related to personal and product safety. - Page 4 Safety Precautions Avoid strong shocks/impacts or excess stress to prevent malfunction, damage or ● breakdown. Make sure that the product has been securely mounted to other products in order to prevent injury, fall or missing. Do not rest heavy weight on the product. It might deform the outer casing, ●...
-
Page 5: Accessories
Accessories Before using this model, check to make sure that all accessories are present. DX-1200HD Sillicon Grease O-ring Maintenance Manual ● DX-1200HD Instruction Manual （this manual） ● LCD Monitor Hood O-ring remover Hand Strap Desiccant Pack (Silica Gel) -
Page 6: Identification Of Parts
Identification of Parts Accessory shoe Flash window Power button Shutter lever Diffuser lever Buckle Lens Lens protector Retractable cable socket lever OK / MENU button / ISH button Zoom lever LCD monitor hood holder Mode button Hand strap hook Playback / Flash button button Exposure... -
Page 7: Opening The Rear Cover
Opening the Rear Cover Push the red buckle lock buttons together to unlock, and pull the buckle all the way towards back to lift the rear cover from the front case Pull the rear cover to open CAUTION Before opening the rear cover, make sure that the housing is completely dry ●... -
Page 8: Installing The 1200Hd Camera
Installing the 1200HD Camera Turn off the power of the 1200HD camera and place it as shown in figure Make sure that there is no dust or scratches on the O- ring / O-ring contact surface before closing the rear cover. Take the hand strap out, press the rear cover, and then put the buckle over the front case... -
Page 9: Operation
Operation Power button Use the power button to turn ON / OFF the 1200HD camera. Shutter lever Depress the shutter lever to press the shutter button of the 1200HD camera. Zoom lever The Tele/Wide Switch of the 1200HD camera is operated by turning the zoom lever toward the left (for wide-angle) or right (for tele-photo). -
Page 10: Lcd Monitor Hood
Operation LCD Monitor Hood Put the LCD monitor hood string through the rear cover eyelet as shown Mount the LCD monitor hood to the holder CAUTION Please be careful not to get the strap of ● the LCD monitor hood caught in the rear cover when closing. -
Page 12: Lens Protector
Operation Lens Protector The lens protector should be removed when using an optional accessory such as a conversion lens. Removing the lens protector from the housing Pull out and push up the left side (A) of the lens protector Ａ Mounting Align the three points (a, b and c) as shown and press the lens protector into position... -
Page 13: Desiccant Pack (Silica Gel
Operation Desiccant Pack (Sillica Gel) A substantial difference between the external (water) and the internal (camera and air) temperatures sometimes result in dewfall on the inside surface of the housing lens. This phenomenon typically happens when the camera becomes hot due to long and consecutive use. To mitigate the effect of the dew, use the desiccant pack (included in the product package) as follows;... -
Page 14: Attaching The Optional Accessories
Attaching the Optional Accessories This product accepts SEA&SEA optional accessories. By using this product in combination with those accessories, you will be able to try various shooting techniques. Lenses, strobes and other accessories have different depth rating. Check the ● depth rating for each before use. -
Page 15: Accessory Shoe
Attaching the Optional Accessories Accessory shoe SEA&SEA strobes / lights can be mounted to the accessory shoe by using optional Mini Shoe Arm (#29511) or Hot Shoe Arm (#29501). CAUTION The max. weight of an accessory that can be mounted to the accessory shoe ●... -
Page 16: Maintenance And Storage
Maintenance and Storage CAUTION Never use chemicals, cosmetics, any petroleum solvents such as paint thinner, ● or neutral detergent on the product. They may deform and damage the product. After each use in salt water, make sure it is ● watertight, then soak it sufficiently in fresh water and rinse with running water. -
Page 17: Specifications
Specifications Compatible camera 1200HD Controls Construction Depth rating Dimensions Weight Accessories * The specifications and appearance are subject to change without notice. Power button, Shutter lever, Flashlight diffuser lever, Retractable Cable Socket Lever、Zoom lever, Mode button、Playback button, Exposure compensation / Delete button, OK / MENU button, ... - Page 18 シーアンドシー・サンパック株式会社 〒332-0016 埼玉県川口市幸町3-2-20 TEL.048-256-2251 カスタマーサービスセンター TEL.048-255-8512 http://www.seaandsea.co.jp SEA&SEA SUNPAK Co., Ltd. 3-2-20, Saiwai-cho, Kawaguchi-shi, Saitama, Japan 332-0016 TEL. +81-48-256-2251 World Customer Service Center TEL. +81-48-255-8512 http://www.seaandsea.jp 0745-Z-01...
