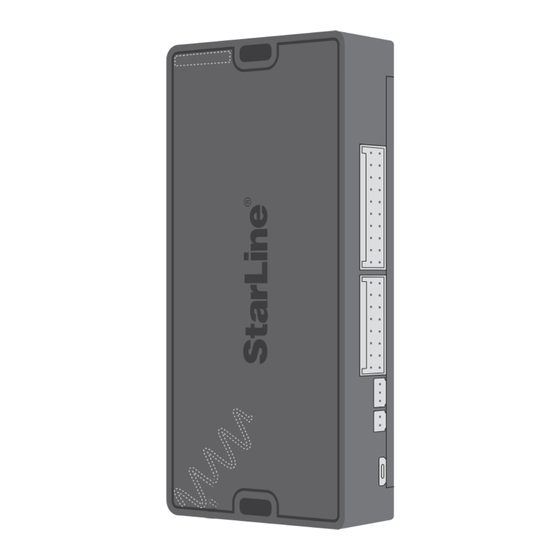

Starline E96BT Connection Diagram

E96
BT
Bluetooth antenna

Recommendations for accommodation

The main unit should be installed at a distance of at least 10
cm from the metal surfaces, in order to avoid deterioration of
reception quality of the Bluetooth and 868 MHz antennas
X1
X2
X3
X4
X5
USB-connector
868 MHz antenna
For convenient setting, diagnostics and software update use the StarLine Master
help.starline.ru/slm
available for download on the website
Enter the program using the service code given on the owner's plastic card.
The developer and manufacturer, StarLine SPA, reserves the right to make technical
improvements not shown in this diagram.
Information on updates, current versions of operation and installation manuals are available on
www.starline.ru
the website in section "Catalogue". Charts of mounting on different car
models are available on website install.starline.ru
General installation speci cations
The complex is designed for installation on vehicles with a voltage of 12V onboard power supply.
Before the complex installation, make sure that the circuits of the electrical equipment of the vehicle, to which the
complex is connected, are in good working order, and also in the absence of error indication of the vehicle's factory
equipment.
The complex installation should be carried out in accordance with the connection diagram.
First of all, you should connect the "ground" wire of the complex to chassis ground.
Wiring should be made as far as possible from sources of electrical interference: ignition coils, high-voltage wires, etc.
Pay attention to the fact that the wires do not come in contact with the moving parts of the vehicle's construction -
pedals, steering rods, etc.
Power supply to the components of the complex is allowed only after the installation is completed.
Do not install the engine temperature sensor near the exhaust manifold, as this may cause the sensor to overheat
and malfunction.
The complex installation should be carried out only by specially trained qualified installers.
When configuration the complex the parameters to be set must not contradict the requirements of the vehicle
guide.
E96 E66 E66
BT
, , ,
X1
Other possible connection
Service button with LED
options are available on the
website
Temperature sensor
After completing the installation of the complex, be sure to
set the current date and time from the remote (see short
user manual).
program,
X2

Connection diagram for StarLine R4 code relay

Hood lock

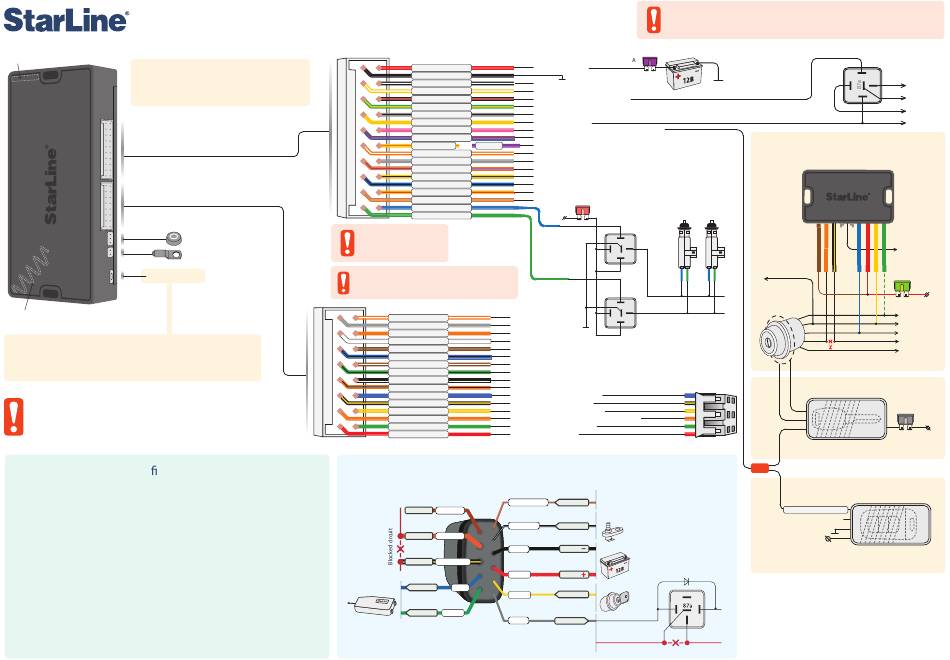

Connection diagram

red
Unit power supply
black
black-white
Security status output (200 mA) (–)
yellow-white
Door opening simulation output (200 mA) (–)
black-red
Engine blocking (200 mA) (–)
green-yellow
"Comfort" function output (200 mA) (–)
gray-black
Engine operation monitoring input
yellow
Ignition input (+)
pink Bypass module control output (200 mA) (–)
blue-red Parking brake input (–)
or
yellow-orange violet Control output for code relay StarLine R4 (200 mA) (–)
orange-white
Trunk limit switch input (–)
gray
Horn control output (2 A) (+)
orange-violet
Brake pedal input
yellow-black
Trunk unlocking output (200 mA) (–)
blue-black Door input (+/–)
yellow-red
Door two-step unlocking output (200 mA) (–)
orange-gray Hood limit switch input (–)
blue
+12 V
green
www.starline.ru
orange-white CAN-H B
gray
LIN1
orange
CAN-L B
white LIN2
brown CAN-L A
blue-black Output to alternative light signal control (200 mA) (–)
brown-white
CAN-H A
green-black
Output to alternative central lock control (200 mA) (–)
white-black StarLine Bus core bus
orange-black DVR control output (2А) (+)
blue
Output to accessories (200 мА) (–)
black-yellow
Output to starter (200 мА) (–)
yellow
Output to ignition 1 (200 мА) (–)
orange
Control output of the built-in starter lock (200 мА) (–)
green
Output to ignition 2 (200 мА) (–)
red
Output +12В (500 мА) (+)
orange-gray
NO brown
black-white
NC
orange
black
COM black-yellow
red
UNLOCK blue
yellow
LOCK green
gray OUTPUT
For cars with a САN/LIN-bus make a connection via the digital CAN/LIN-bus, for other cars make
an analogue connection.
Information on connection to the CAN/LIN-bus of different cars is available on website
Storage battery
3
10 А
(–)
85
30
87а
87
86
(+)
command
«Open»
(–)
command
85
«Close»
30
87а
Activators are
87
86
connected in parallel
(+)
To connector X1 yellow-orange wire
INPUT
Hood limit switch
EXT
Power
GND
External blocking relay
BAT
Ignition
IGN
87
85
(+)
(-)
86
30
NC Common
Blocked circuit
can.starline.ru
Blocking relay
(–)
in the set
85
30
Common
87
86 NC
(+)
NO
Ignition 1
Autostart connection diagrams for E96
Power module
To connector
X2
To the yellow
wire of
connector X1
30 А
+ 12 V
Ignition lock
Ignition 2
Ignition 1
Accessories
Starter
+12 V
StarLine BP-03, BP-05
1 А
+12 V
Variant 1
or
StarLine BP-06
violet-yellow
not used
+12 V
Variant 2
