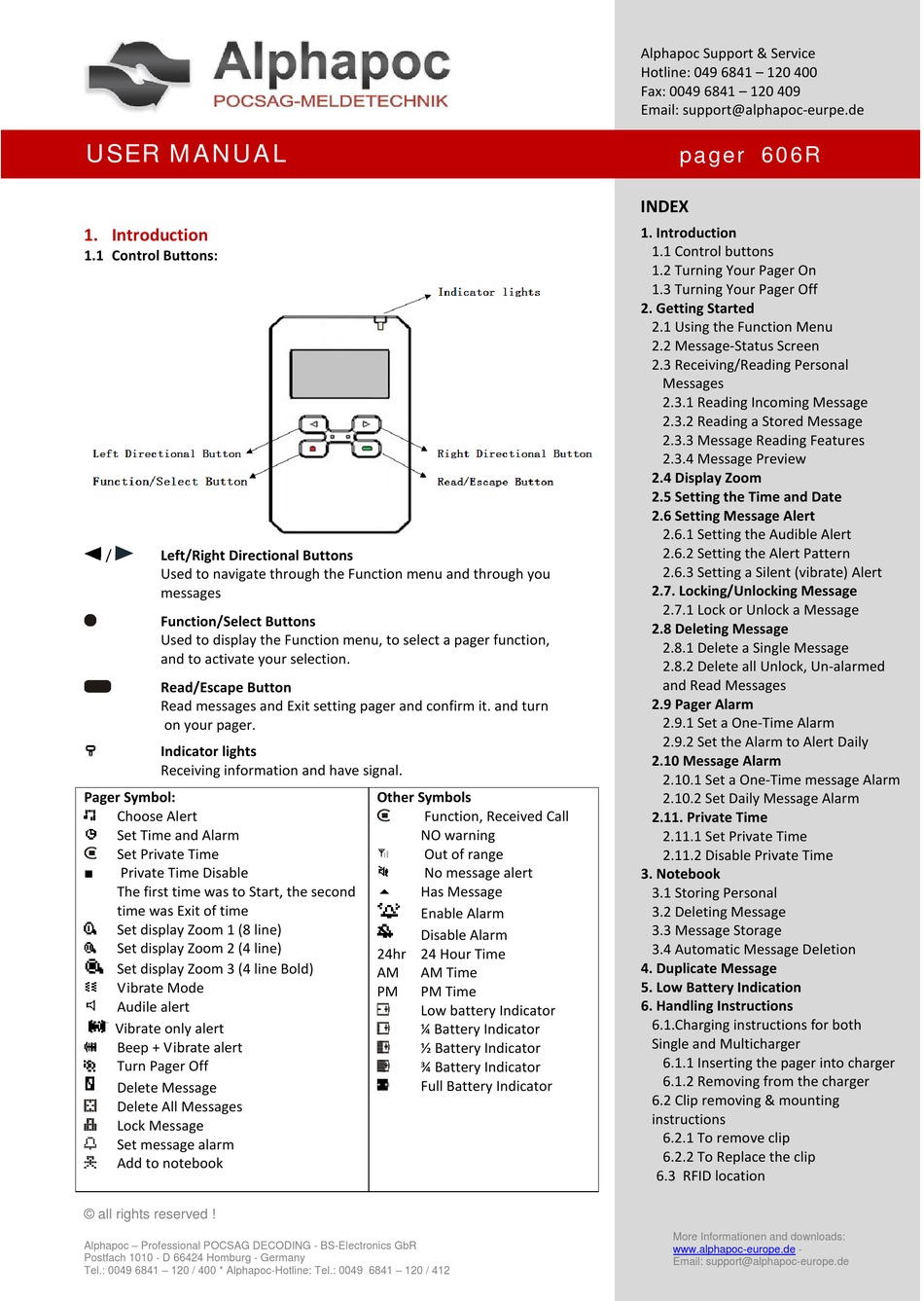

USER MANUAL
1. Introduction
1.1 Control Buttons:
/
Left/Right Directional Buttons
Used to navigate through the Function menu and through you
messages
Function/Select Buttons
Used to display the Function menu, to select a pager function,
and to activate your selection.
Read/Escape Button
Read messages and Exit setting pager and confirm it. and turn
on your pager.
Indicator lights
Receiving information and have signal.
Pager Symbol:
Choose Alert
Set Time and Alarm
Set Private Time
■
Private Time Disable
The first time was to Start, the second
time was Exit of time
Set display Zoom 1 (8 line)
Set display Zoom 2 (4 line)
Set display Zoom 3 (4 line Bold)
Vibrate Mode
Audile alert
Vibrate only alert
Beep + Vibrate alert
Turn Pager Off
Delete Message
Delete All Messages
Lock Message
Set message alarm
Add to notebook
© all rights reserved !
Alphapoc – Professional POCSAG DECODING - BS-Electronics GbR
Postfach 1010 - D 66424 Homburg - Germany
Tel.: 0049 6841 – 120 / 400 * Alphapoc-Hotline: Tel.: 0049 6841 – 120 / 412
Other Symbols
Function, Received Call
NO warning
Out of range
No message alert
Has Message
Enable Alarm
Disable Alarm
24hr 24 Hour Time
AM
AM Time
PM
PM Time
Low battery Indicator
¼ Battery Indicator
½ Battery Indicator
¾ Battery Indicator
Full Battery Indicator
Alphapoc Support & Service
Hotline: 049 6841 – 120 400
Fax: 0049 6841 – 120 409
Email: support@alphapoc-eurpe.de
pager 606R
INDEX
1. Introduction
1.1 Control buttons
1.2 Turning Your Pager On
1.3 Turning Your Pager Off
2. Getting Started
2.1 Using the Function Menu
2.2 Message-Status Screen
2.3 Receiving/Reading Personal
Messages
2.3.1 Reading Incoming Message
2.3.2 Reading a Stored Message
2.3.3 Message Reading Features
2.3.4 Message Preview
2.4 Display Zoom
2.5 Setting the Time and Date
2.6 Setting Message Alert
2.6.1 Setting the Audible Alert
2.6.2 Setting the Alert Pattern
2.6.3 Setting a Silent (vibrate) Alert
2.7. Locking/Unlocking Message
2.7.1 Lock or Unlock a Message
2.8 Deleting Message
2.8.1 Delete a Single Message
2.8.2 Delete all Unlock, Un-alarmed
and Read Messages
2.9 Pager Alarm
2.9.1 Set a One-Time Alarm
2.9.2 Set the Alarm to Alert Daily
2.10 Message Alarm
2.10.1 Set a One-Time message Alarm
2.10.2 Set Daily Message Alarm
2.11. Private Time
2.11.1 Set Private Time
2.11.2 Disable Private Time
3. Notebook
3.1 Storing Personal
3.2 Deleting Message
3.3 Message Storage
3.4 Automatic Message Deletion
4. Duplicate Message
5. Low Battery Indication
6. Handling Instructions
6.1.Charging instructions for both
Single and Multicharger
6.1.1 Inserting the pager into charger
6.1.2 Removing from the charger
6.2 Clip removing & mounting
instructions
6.2.1 To remove clip
6.2.2 To Replace the clip
6.3 RFID location
More Informationen and downloads:
www.alphapoc-europe.de
-
Email: support@alphapoc-europe.de
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Alphapoc 606R
Summary of Contents for Alphapoc 606R
- Page 1 © all rights reserved ! More Informationen and downloads: Alphapoc – Professional POCSAG DECODING - BS-Electronics GbR www.alphapoc-europe.de Postfach 1010 - D 66424 Homburg - Germany Email: support@alphapoc-europe.de Tel.: 0049 6841 – 120 / 400 * Alphapoc-Hotline: Tel.: 0049 6841 – 120 / 412...
-
Page 2: Getting Started
1.2 Turning Your Pager On Press over 3 second, a start-up screen is momentarily displayed and your pager activates the currently selected alert. Note: Press any button to stop the alert. When the pager is on and no activity is taking place, the Standby screen is no displayed. 1.3 Turning Your Pager Off (1) Press to display the Function menu. -
Page 3: Receiving/Reading Personal Messages
Example of the Message-Status Screen 2.3 Receiving/Reading Personal Messages Your pager can receive up to 50 personal messages. When a message is received, your pager alerts according to the current alert setting (Audible alert, Vibrate only alert, Beep+ vibrate alert or no message alert). A new message is indicated by a flashing ... -
Page 4: Setting Message Alert
2.6 Setting Message Alert 2.6.1 Setting the Audible Alert (1) From the Function menu, press to move the cursor to (2) Press When is displayed on the Standby screen, your pager is in the audible alert mode. 2.6.2 Setting the Alert Pattern You can set your pager to alert audible with a standard alert (1), one of seven pleasing alert (2-8), a chirp alert ( ), or a chirp and vibrate alert ( ).or Mute( ) Your pager must be in the audible alert mode (... -
Page 5: Pager Alarm
2.9 Pager Alarm Your pager has an alarm that can be set for a specific time and date, or a specific time on a daily basis. At the selected alarm time, your pager alerts. If the alarm passes without being acknowledge. Flashes until any button is pressed. -
Page 6: Message Alarm
2.10 Message Alarm This feature allows you to set a one-time or daily alarm for a selected personal message. You can set an alarm for up to five personal messages. When a message alarm is set, replaces in the Message-status screen. At the time the alarm sound, ... -
Page 7: Storing Personal In Your Notebooks
(1) Press and release until is displayed. (2) Press to move the cursor to the hour digit. (3) Press to adjust the hour digit. (4) Repeat steps 2 and 3 to adjust the on and off time setting. (5) Press to activate you selection. -
Page 8: Duplicate Message
3.3 Message Storage Your pager can store up to 50 personal messages in memory. Note: Stored message differ from locked messages. They can be deleted or overwritten when memory is full and a new message comes in. 3.4 Automatic Message Deletion If all 50 messages slots are full and a new message is received, the oldest, unlocked, un-alarmed, and previously read message is automatically deleted when a new message is received. - Page 9 6.2 Clip removing and mounting instructions 6.2.1 To remove clip First press to release and pull the clip of the pager 6.2.2 To Replace the clip Next insert the clip in to the slot at the back of the pager to lock it 6.3 RFID location RFID is located on the front side of the pager as shown below: USER MANUAL 601 en...
