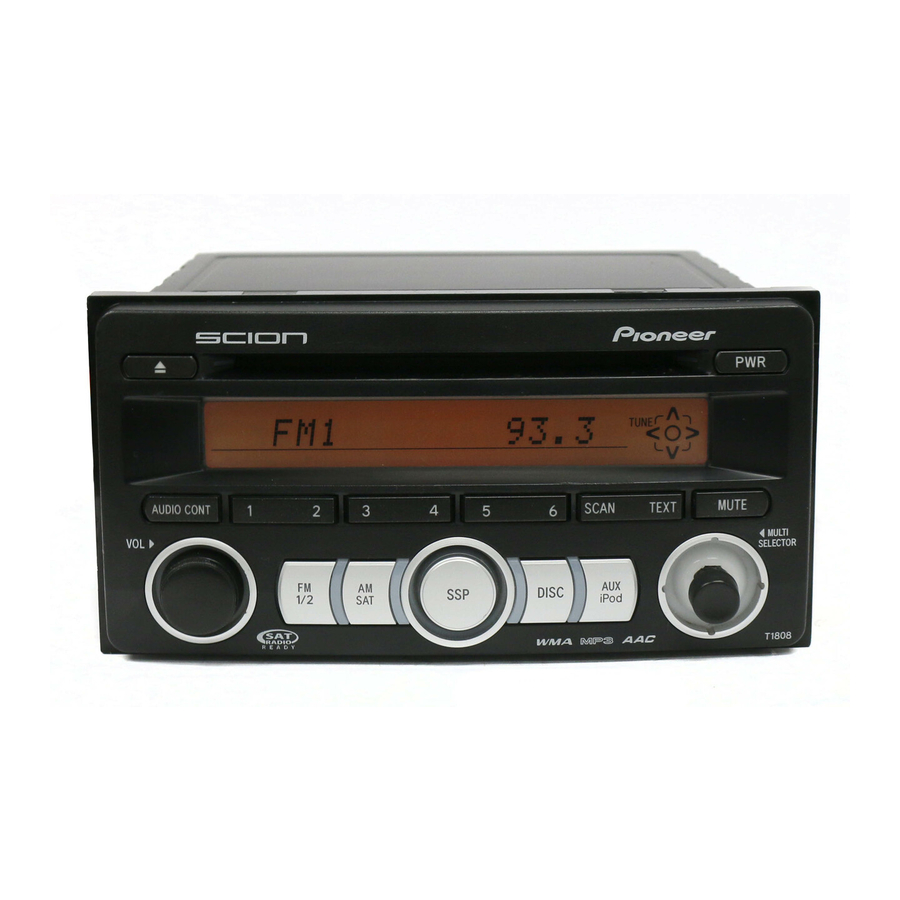

- Page 1 Audio System PT546-00080 TOYOTA PART NO. Owner’s Manual for AM/FM/CD Player with iPod control...
-
Page 2: Features
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, includ- ing interference that may cause undesired operation. -
Page 3: About Ipod
WMA is short for Windows Media Audio and refers to an audio com- pression technology that is devel- oped by Microsoft Corporation. WMA data can be encoded by using Windows Media Player ver- sion 7 or later. Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other... -
Page 4: Table Of Contents
Contents Features ................. . 2 About WMA . -
Page 5: Display And Multi Selector
Display and Multi Selector Possible MULTI SELECTOR operations are indicated. Pressing the MULTI SELECTOR up, down, left or right enables item selection. Turning the MULTI SELECTOR enables item selection. Pressing the MULTI SELECTOR in the center enables item selection. -
Page 6: Basic Operation
2VOLUME 3AUDIO CONTROL 4 SSP is an abbreviation of Scion Sound Processing. 1POWER 5MUTE 4SSP Basic Operation Your audio system works when the ignition switch is in the “ACC” or “ON” position. NOTICE To avoid draining the battery, do not leave the car audio on longer than necessary when the engine is not running. - Page 7 • The ASL function is only effective when the vehicle is moving. 4 SSP (Scion Sound Processing) SSP is a modified DSP (Digital Signal Processing) system that provides a customized sound for your vehicle. You can select from the modes below.
-
Page 8: Listening To The Radio
4PRESET1-6 1AM·SAT 2FM1/2 Listening to the RADIO 1 AM•SAT Switches between the AM mode and SAT1/2/3 modes. (must have Satellite Radio receiver and antenna installed at an additional charge to listen to Satellite Radio.) 5SCAN 2 FM1/2 Switches between FM1 and FM2 modes. - Page 9 3 MULTI SELECTOR The channel preset in PRESET 1-6 switches each time you press the MULTI SELECTOR in the center. < > • TUNE Turn the MULTI SELECTOR clock- wise or press it to the right to manu- ally select (one step at a time) the station with the next higher frequen- When you press the MULTI SELEC- TOR up, the next station selects...
-
Page 10: Listening To A Cd
2EJECT 5Repeat 4Random 8SCAN 9TEXT 3MULTI SELECTOR 1DISC Listening to a CD NOTICE • Never try to disassemble or oil any part of the compact disc player. Do not insert anything except a compact disc into the slot. • You can load an 8 cm disc without using an adaptor. - Page 11 1 DISC Switches to the CD mode. (Only effective if a disc is loaded) 2 EJECT Press to eject the disc currently play- ing. 3 MULTI SELECTOR < > • TRK Press the MULTI SELECTOR to the right to proceed to the next track. <...
-
Page 12: Listening To Mp3/Wma/Aac Disc
3Repeat 2Random 6SCAN 7TEXT 1MULTI SELECTOR Listening to MP3/WMA/ AAC DISC 1 MULTI SELECTOR < > • FILE Turn the MULTI SELECTOR clock- wise or press it to the right to pro- ceed to the next file. < > • FILE DOWN Turn the MULTI SELECTOR counter- clockwise or press it to the left takes... - Page 13 2 PRESET 1 (Random) If you press this, is indicat- ed in the display and starts to play files in the folder being played in ran- dom order. Press again to cancel. If you press and hold until you hear a beep, is indicated in the dis- play and starts to play files in all fold-...
-
Page 14: About Handling The Ipod
About handling the iPod About iPod settings • This unit supports only an iPod featuring the Dock connector port. • Operations may vary depending on the software version of iPod. • You cannot operate the iPod Equalizer on products. We recom- mend that you set the iPod Equalizer to off, before connect- ing the iPod to this unit. -
Page 15: Connecting The Ipod
OFF. NOTICE To resolve most problems when using your iPod with the Scion Audio system, dis- connect your iPod from the vehicle iPod connection and reset it. For instructions on how to reset your iPod, refer to your iPod Owner’s Manual. -
Page 16: Disconnecting The Ipod
• If the iPod does not operate with Scion Audio system, disconnect the connector from the iPod and re-con- nect again. • To reset the iPod, disconnect the connector from the iPod, and then re-connect to the iPod when the operation screen displays. -
Page 18: Listening To Songs On Ipod
4Repeat 3Random 8AUDIO CONT 7TEXT 2MULTI SELECTOR 1AUX·iPod Listening to songs on iPod 1 AUX•iPod Press the button repeatedly until the source becomes iPod. NOTICE If an iPod is not connected, it will not switch to iPod even if you press the AUX•iPod but- ton. - Page 19 • MENU This calls up the iPod MENU. If you first press the MULTI SELECTOR up, play lists are displayed. Each time you press the MULTI SELECTOR up the display changes to one level up from the current level. If you turn the MULTI SELECTOR counterclockwise or clockwise or press to the left or right, the MENU changes as follows:...
- Page 20 NOTICE • Switch to the iPod Direct Control after disconnecting the iPod. • You cannot use the iPod’s remote control at the same time. • You may hear noise if you disconnect during iPod play- back. • The SCAN operation is not availabie when listening to the iPod.
-
Page 21: How To Subscribe To Xm Satellite Radio
How to Subscribe to XM Satellite Radio <Option> Listeners can subscribe by visiting XM on the Web at www.xmradio.com or by calling XM’s Listener Care toll-free at (800)852-9696. Customers should have their Radio ID ready; the Radio ID can be found by selecting channel 000 on the radio. -
Page 22: Listening To A Xm Satellite Radio Broadcast
3PRESET1-6 1AM·SAT Listening to a XM Satellite Radio broad- cast 1 AM•SAT 4SCAN Switches between the AM mode and SAT1/2/3 modes. (must have Satellite 5TEXT Radio receiver and antenna installed at an additional charge to listen to Satellite Radio.) 2MULTI SELECTOR 2 MULTI SELECTOR The channel preset in PRESET 1-6 switches each time you press the... - Page 23 < > • TUNE DOWN Turn the MULTI SELECTOR counter- clockwise or press to the left to select the previous channel. If you press and hold, you can rapidly scroll down through the channels. While displaying Channel Category by TYPE UP/DOWN, you can select the previous channel within the cur- rently selected type (Channel Category) by pressing the MULTI...
-
Page 24: Display The Radio Id
Display the RADIO ID Each XM tuner is identified with a unique Radio ID. You will need the Radio ID when activating XM ser- vice or when reporting a problem. How to display RADIO ID If you select “CH 000”, the ID Code is displayed. - Page 25 Radio ID Refer to the corresponding chart to verify the Radio ID Code before contacting XM Satellite Radio to activate your service. Corresponding chart Display Display Display O (Not used.) F (Not used.) S (Not used.) I (Not used.)
-
Page 26: Using The Aux
1AUX•iPod Using the AUX By inserting a mini plug into the AUX adapter, you can listen to music from a portable audio device through the vehicle’s speaker sys- tem. 1 AUX•iPod Switches to the AUX mode. CAUTION When using a portable audio device connected to the power outlet or cigarette lighter, noise may occur dur-... - Page 27 CD player or radio so please make adjust- ments. • If you install an audio sys- tem other than a Scion Genuine Audio, you will not be able to use the AUX adapter.
-
Page 28: Changing The Opening Screen
Power button, once the key is turned from the ACC position to the off position and POWER back to ACC again, “Scion” is dis- played as the Opening Screen. Users can edit the text themselves to make another Opening Screen,... - Page 29 Step 2. If the edit is registered with • no new text, the original Opening Screen, “Scion” , will be restored. 3 New Message Display The next time the ACC is switched on, the text edited by the user will be displayed.
-
Page 30: Using The Steering Controller
Using the Steering Controller In vehicles equipped with one, you can use the steering controller to operate this product. Operation button names and functions 7 Volume buttons (ª , ·) Press ª to raise the volume level. Press · to lower the volume level. 7 Mode selection button (MODE) •... -
Page 31: Mp3, Wma And Aac Files
MP3, WMA and AAC files • MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. • WMA is short for Windows Media Audio and refers to an audio compression tech- nology that is developed by Microsoft Corporation. -
Page 32: Wma Additional Information
WMA additional infor- mation • This unit plays back WMA files encoded by Windows Media Player version 7, 7.1, 8, 9 and 10. • You can only play back WMA files in the frequencies 32, 44.1 and 48 kHz. • The sound quality of WMA files generally becomes better with an increased bit rate. - Page 33 NOTES This unit assigns folder • number. The user can not assign folder numbers. It is not possible to check • folders that do not include MP3/WMA/AAC files. (These folders will be skipped with- out displaying the folder number.) MP3/WMA/AAC files in up •...
-
Page 34: Terms
Terms Packet write This is a general term for a method of writing on CD-R, etc. at the time required for a file, just as is done with files on floppy or hard discs. Bit rate This expresses data volume per sec- ond, or bps units (bits per second). -
Page 35: Cd Player And Care
CD player and care • Use only CDs that have either of the two Compact Disc Digital Audio marks as shown below. • Use only normal, round CDs. If you insert irregular, non-round, shaped CDs they may jam in the CD player or not play properly. -
Page 36: Error Indications
When the disc is dirty or has been inserted upside-down. Check the disc. There is probably an electrical or mechanical fault in the CD player. Contact your Scion dealer and ask for repair. This appears when there is excess current flow. Contact your Scion dealer and ask for repair. - Page 37 When problems occur while the iPod is connected to this unit, a message will appear on the display. Refer to the table below to identify the problem, then take the suggested corrective action. UPDATE YOUR iPod iPod COMM. ERROR iPodCHARGE ERROR iPod NO SONGS Empty Playlist Old version of iPod.
- Page 38 When problems occur with the XM tuner, a message will appear on the display. Refer to the table below to identi- fy the problem, then take the suggested corrective action. CHECK ANTENNA UPDATING NO SIGNAL LOADING OFF AIR The XM Listener Care Center is also available on the phone, please call (800)-967-2346 during the following hours: The XM antenna is not connected.
-
Page 39: Changing Or Disconnecting Your Battery
