Quick Install Guide
BinGO! Plus/Professional
BinGO! Plus and BinGO! Professional are full-featured Personal ISDN
Internet Access Routers for single users and small-sized companies as
well.
With the Configuration Wizard on the BinTec Companion CD BinTec
Communications offers you a great opportunity to start running your Bin-
GO! Plus/Professional in an easy and quick way. You can perform a ba-
sic configuration via serial connection with your Windows PC. This basic
configuration includes all important settings of the router and access to
the Internet via an Internet Service Provider (ISP). The Configuration
Wizard guides you step by step through the configuration and so thor-
ough knowledge of networking technologies is not necessary. Graphic il-
lustrations and a detailled online help system give you additional
support.
The Configuration Wizard is one of several possibilities to configure your
router. Thereby the access to your router occurs via the serial interface.
Additional methods of configuring your router are described in your
User's Guide. With them you are able to fine tune your configuration.
The following system requirements are necessary:
Windows 95 resp. 98 or Windows NT 4.0 and up
Installed network card (ethernet)
Installed Microsoft TCP/IP stack (see section 2 "Checking and In-
stalling the TCP/IP Protocol")
High color monitor (at least 32000 colours) for correct display of
graphics
This Quick Install Guide takes you through, step by step, a basic config-
uration of your BinGO! Plus/Professional. Congratulations on your new
purchase and good luck!
Version 1.0
Document #70048, October 1998

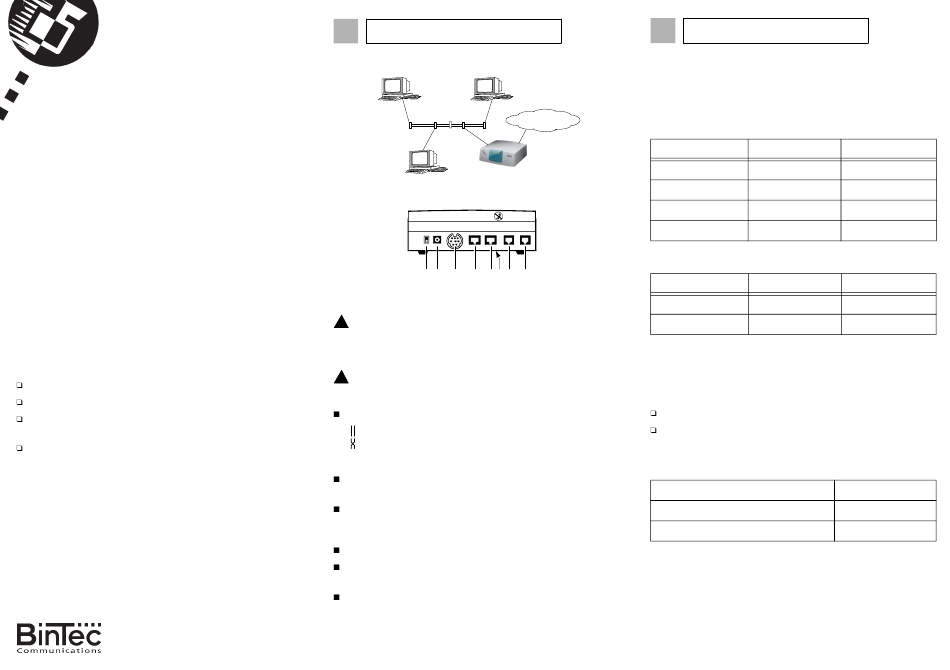

1 Connecting your Router
You can integrate your router in a local network (LAN):
LAN
All ports are located on the back plane of your product:
LAN PHONE
1
POWER SERIAL ISDN-S/T 10BASE-T 1
0
1 2 3 4 5 6 7
Connect the included cables in the following order:
Caution! Using an incorrect power supply may damage your router!
!
Therefore only use the power supply delivered with your BinGO!
Plus/Professional! Don ' t mix up the power supplies of BinGo! and
BinGO! Plus/Professional!
Caution! A wrong cabling of the ISDN and LAN interfaces could
!
'
also damage your router! Don t interchange the LAN and ISDN
interfaces!
Set the LAN switch (6) to position:
if you want to connect your router to the LAN hub (see above),
if you don't want to connect your router to a LAN but directly to
the ethernet card of your PC (single user system).
Connect the included laplink cable to your computer (COM1 or
COM2) and the serial port (3) of your router.
Connect the 10BaseT port (5) of your router to your ethernet or to
the network card of your PC (single user system). Use one of the in-
cluded ISDN (RJ-45) cables.
Connect your analog equipment to phone ports (7) und (8).
Connect the other ISDN (RJ-45) cable to the S
router and your ISDN outlet.
Connect the included power supply to your router (2) and your mains
socket. Turn your router on using the power switch (1).
2 Preparing Configuration
Internet Access
For access to the Internet via your Internet Service Provider (ISP), e.g.
T-Online, you will need several pieces of information which should be
provided by your ISP (different ISPs use different terminology). Write
down your values in the table below to make sure you find the needed
ISDN
information while you perform the configuration, examples are shown.
Account Info
Provider Name
Phone Number (ISP)
User Account
2 Password
Some ISPs, for example T-Online, need additional information:
8
Account Info
T-Online-Nummer
Mitbenutzerkennung
Router Settings
Before you start to configure your router make sure you know the follow-
ing information about your ISDN connection and your network environ-
ment:
ISDN number: the numbers of your ISDN connection.
If you have an existing network: IP address and netmask of your
router. Ask your network administrator! If you install a new network
the Configuration Wizard suggests convenient values for IP address
and netmask.
ISDN Numbers
BinGO! Plus/Professional IP Address
BinGO! Plus/Professional Netmask
port (4) of your
0
Example (T-Online) Your Value
T_ONLINE
0191011
123456789012
TopSecret
Example (T-Online) Your Value
091196730
0001
. . .
. . .
