WebSTAR™ DPR2320™ and
EPR2320™ Gateway Cable
Modems User's Guide

Advertisement

Table of Contents
loading

Related Manuals for Scientific Atlanta WebSTAR DPR2320

Summary of Contents for Scientific Atlanta WebSTAR DPR2320

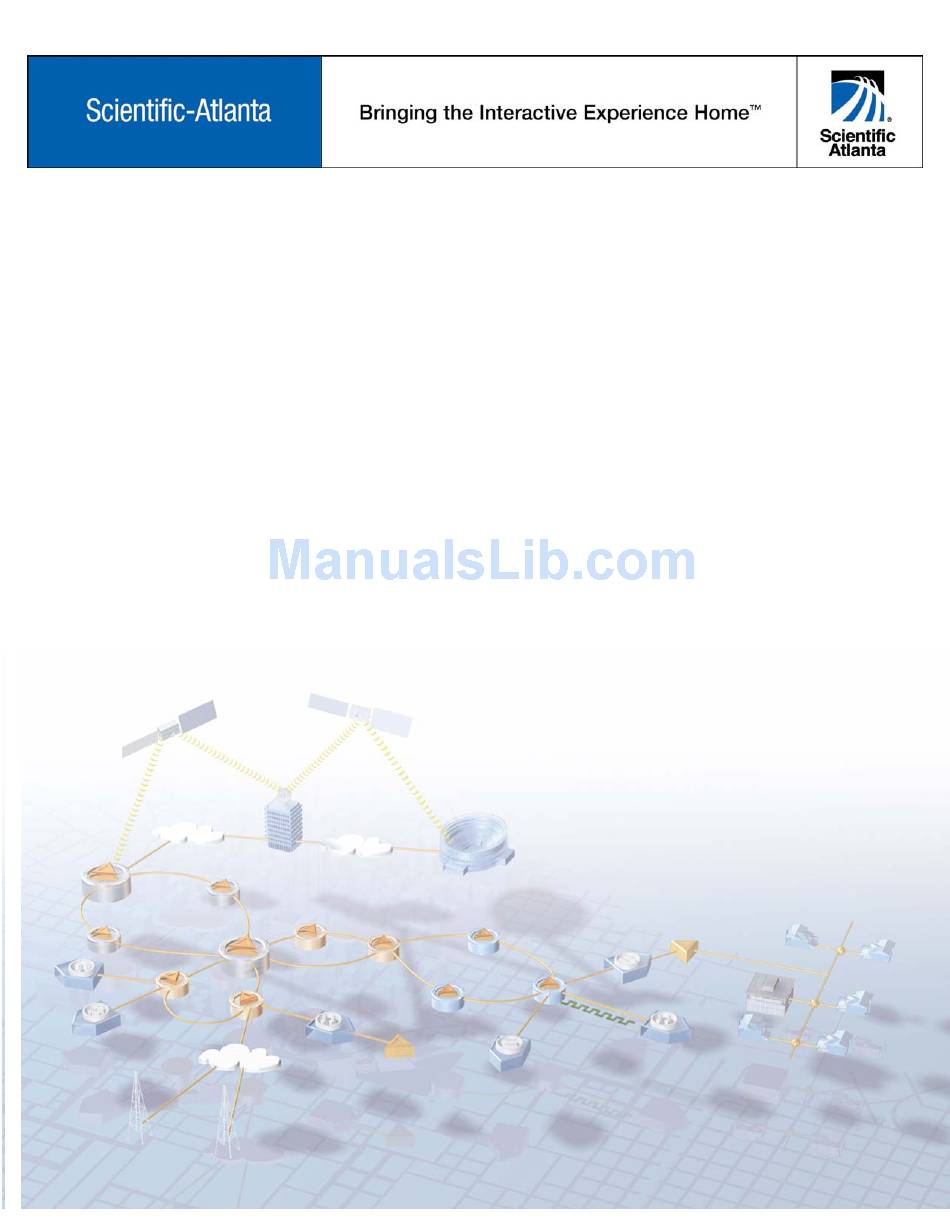

  • Page 1 WebSTAR™ DPR2320™ and EPR2320™ Gateway Cable Modems User’s Guide...

  • Page 2: Benefits And Features

    Modems User’s Guide Introduction Welcome to the exciting world of home and office networking. Your new WebSTAR™ DPR2320™ or EPR2320™ Gateway Cable Modem allows several users to share one high-speed broadband connection across multiple PCs, laptops, digital cameras, personal data assistants (PDAs), and Internet devices. The WebSTAR DPR2320 and EPR2320 Gateway Cable Modems make sharing files and photos with your family and friends hassle free.

  • Page 3: Table Of Contents

    WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide In This Guide IMPORTANT RULES FOR SAFE OPERATION ...3 What’s In the Carton? ...6 Front Panel Description ...7 Back Panel Description ...8 Where is the Best Location for My Gateway Cable Modem...9 What are the System Requirements for Internet Service? ...9...

  • Page 4: Important Rules For Safe Operation

    IMPORTANT RULES FOR SAFE OPERATION WARNING: Avoid personal injury and damage to this equipment. An unstable surface may cause this equipment to fall. Note to Installer Note to CATV System Installer This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC (Section 54, Part I of the Canadian Electrical Code), that provides guidelines for proper grounding and, in particular,...
  • Page 5 WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide Accessories Do not use accessories with this equipment unless recommended by your cable service provider. Ventilation This equipment has openings for ventilation that protect it from overheating. To ensure the reliability of this equipment, do not obstruct the openings.

  • Page 6: Power Sources

    Important Rules for Safe Operation Power Cord Protection Arrange all power cords so that people cannot walk on the cords, place objects on the cords, or place objects against the cords, which can damage the cords. Pay particular attention to cords that are at plugs, at electrical outlets, and at the places where the cords exit the equipment.

  • Page 7: What's In The Carton

    WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide What’s In the Carton? When you receive your gateway cable modem, you should check the equipment and accessories to verify that each item is in the carton and that each item is undamaged. The carton contains the following items:...

  • Page 8: Front Panel Description

    Front Panel Description The front panel of your cable modem provides status lights that indicate how well and at what state your cable modem is operating. After the cable modem is successfully registered on the network, the POWER and CABLE status indicators illuminate continuously to show that the cable modem is active and fully operational.

  • Page 9: Back Panel Description

    WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide Back Panel Description The following illustration describes the back panel components of the DPR2320 and the EPR2320. T10947 ANTENNA— Provides a communication connection for the built-in wireless access point (WAP) to allow wireless devices to communicate with the cable modem POWER—Connects the cable modem to the DC output of the...

  • Page 10: Where Is The Best Location For My Gateway Cable Modem

    Where is the Best Location for My Gateway Cable Modem? The ideal location for your gateway cable modem is where it has access to outlets and other devices. Think about the layout of your home or office, and consult with your cable service provider to select the best location for your gateway cable modem.

  • Page 11: How Do I Set Up My High-Speed Internet Access Account

    WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide How Do I Set Up My High-Speed Internet Access Account? Before you can use your gateway cable modem, you need to have a high-speed Internet access account. If you do not have a high-speed Internet access account, you need to set up an account with your local cable service provider.

  • Page 12: How Do I Connect My Devices To Use The Internet

    How Do I Connect My Devices to Use the Internet? You can use your gateway cable modem to access the Internet, and you can share that Internet connection with other Internet devices in your home or office. Sharing one connection among many devices is called networking. Connecting and Installing Internet Devices You must connect and install your gateway cable modem to access the Internet.
  • Page 13 WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide WARNING To avoid personal injury or damage to your equipment, follow these steps in the exact order shown. To install the gateway cable modem Power down your PC and unplug it from the power source.

  • Page 14: How Do I Configure Tcp/Ip Protocol

    How Do I Configure TCP/IP Protocol? To configure TCP/IP protocol, you need to have an Ethernet Network Interface Card (NIC) with TCP/IP communications protocol installed on your system. TCP/IP is a communications protocol used to access the Internet. This section contains instructions for configuring TCP/IP on your Internet devices to operate with the gateway cable modem in Microsoft Windows or Macintosh environments.
  • Page 15 WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide To configure Windows 2000 systems Click Start, select Settings, and choose Network and Dial-up Connections. Double-click the Local Area Connection icon in the Network and Dial-up Connections window. Click Properties in the Local Area Connection Status window.
  • Page 16 To configure Macintosh systems Click the Apple icon in the upper left corner of the Finder. Scroll down to Control Panels, and then click TCP/IP. Click Edit on the Finder (gray bar) at the top of the screen. Scroll down to the bottom of the menu, and then click User Mode.

  • Page 17: How Do I Install Usb Drivers

    WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide How Do I Install USB Drivers? To install USB drivers, your PC must be equipped with a USB network interface and a Microsoft Windows 98SE, ME, 2000, or XP operating system. This section contains instructions for installing the gateway cable modem USB drivers.
  • Page 18 To install Windows 2000 drivers Insert the USB Cable Modem Driver Installation Disk into the CD-ROM drive of your PC. Wait until the Power and Cable indicators on the cable modem illuminate solid green. Click Next in the Found New Hardware Wizard window. Select Search for a suitable driver for my device (recommended) in the Found New Hardware Wizard window, and then click Next.

  • Page 19: How Do I Troubleshoot My Internet Service Installation

    WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide How Do I Troubleshoot My Internet Service Installation? I cannot connect to the Internet • Verify that the plug to your gateway cable modem AC adapter is properly inserted into an electrical outlet.
  • Page 20 How Do I Troubleshoot My Internet Service Installation? I need to renew the IP address on my PC If your PC cannot access the Internet after the cable modem is online, it is possible that your PC did not renew its IP address. Follow the appropriate instructions in this section for your operating system to renew the IP address on your PC.

  • Page 21: What Are The Requirements For Ethernet Network Devices

    WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide What are the Requirements for Ethernet Network Devices? How Many Ethernet Network Devices Can I Connect? The gateway cable modem can support several Ethernet network devices using either the Ethernet port on the back panel of the unit, or external Ethernet hubs that must be purchased separately.

  • Page 22: How Do I Select And Place Ethernet Network Devices

    How Do I Select and Place Ethernet Network Devices? You can use a large variety of Ethernet network devices with your gateway cable modem. These include NIC cards, hubs, bridges, etc. Contact your cable service provider or consult the documentation for your Ethernet network devices for more information on configuring Ethernet network devices.

  • Page 23: How Do I Connect Ethernet Network Devices

    WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide How Do I Connect Ethernet Network Devices? Connecting Ethernet Devices You must connect your Ethernet devices for use with the gateway cable modem. Professional installation may be available. Contact your local cable service provider for further assistance.
  • Page 24 To connect Ethernet devices Read the warnings and caution on this page. Then, follow the subsequent installation procedures to ensure proper gateway cable modem operation when connecting Ethernet network devices. WARNING: • Hazardous electrical voltages can be present on any connected wiring.

  • Page 25: What Are The Requirements For Usb Network Devices

    WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide What are the Requirements for USB Network Devices? How Many USB Devices Can I Connect? Contact your cable service provider for more information on the maximum number of USB network devices to connect to the gateway cable modem in order to maintain optimal network performance.

  • Page 26: How Do I Select And Place Usb Network Devices

    How Do I Select and Place USB Network Devices? You can use a large variety of USB network devices with your gateway cable modem. These include desktop computers, laptop computers, devices with USB ports, USB adapters. Contact your cable service provider or consult the documentation for your USB network devices for more information on selecting USB network devices.

  • Page 27: How Do I Connect Usb Network Devices

    WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide How Do I Connect USB Network Devices? Connecting USB Devices You must connect your USB devices for use with your gateway cable modem. Professional installation may be available. Contact your local cable service provider for further assistance.
  • Page 28 To connect USB devices Read the warnings and caution on this page. Then, follow the subsequent installation procedures to ensure proper gateway cable modem operation when WARNING: connecting USB network devices. • Hazardous electrical voltages can be present on any connected wiring.

  • Page 29: What Are The Requirements For Wireless Network Devices

    WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide What are the Requirements for Wireless Network Devices? How Many Wireless Devices Can I Connect? The gateway cable modem serves as a wireless access point (WAP). The WAP on the gateway cable modem provides wireless network service to multiple wireless network devices.

  • Page 30: How Do I Select And Place Wireless Network Devices

    How Do I Select and Place Wireless Network Devices? You can use a large variety of wireless network devices with your gateway cable modem. These include computers, PDAs, etc. On the wireless network, all devices impact the characteristics of the network, because each device transmits a wireless signal.

  • Page 31: How Do I Install Wireless Network Devices

    WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide How Do I Install Wireless Network Devices? Installing Wireless Network Devices You must install wireless network devices for use with your gateway cable modem. Professional installation may be available. Contact your local cable service provider for further assistance.
  • Page 32 To install wireless network devices Read the warnings and caution on this page. Then, follow the subsequent installation procedures to ensure proper gateway cable modem operation when WARNING: using wireless network devices. • Hazardous electrical voltages can be Follow these steps to install the gateway cable modem for accessing wireless present on any network devices.

  • Page 33: How Do I Configure The Gateway Cable Modems

    WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide How Do I Configure the Gateway Cable Modems? To configure your gateway cable modem, you must access the WebWizard configuration pages. This section provides detailed instructions and procedures for configuring your gateway cable modem to operate correctly and presents an example of each WebWizard page.
  • Page 34 About Your Modem Page Description The following table provides a description of each field within the About Your Modem page. Field Name Name The name of the gateway cable modem Cable Modem Serial A unique sequential series of alphanumeric Number characters provided to every modem during manufacturing Cable Modem MAC...
  • Page 35 WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide Setting Configuration Options Click Setup on the arc logo located in the upper portion of the About Your Modem screen to access the Setup page. Use the Setup page to access the various gateway cable modem configuration options.
  • Page 36 Setup Page Section Headings The Setup page is divided into the following section headings: • Basic Settings • Advanced Settings • Firewall • Wireless In the Setup page, click the selections listed within these sections to access the WebWizard page for that selection. A description of the selections available in each section follows next.
  • Page 37 WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide Field Name Use this page to configure port forwarding for local IP Port Forwarding addresses. Port forwarding allows you to run a server on the local area network (LAN) by specifying the mapping of TCP/UPD ports to local PCs or to the IP address of other devices.
  • Page 38 Wireless The following table provides a description of the pages available from within the Wireless section of the Setup page. Field Name Basic Use this page to configure your wireless access point (WAP) parameters, including service set identifier (SSID) and channel number Privacy Use this page to configure your WAP wired equivalent privacy (WEP) encryption keys and...
  • Page 39 WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide Setup Basic Settings – Password Settings Page Example The following illustration is an example of the Basic Settings – Password Settings page. Setting Up Your Password To set up your password, type your password in the Password field, and then re-type your password in the Re-Enter Password field.
  • Page 40 How Do I Configure the Gateway Cable Modems? Configuring the Default Settings You can use the default settings, or, if your system requires different settings to operate correctly, you can change the default settings using the Setup Basic Settings – Network Configuration page. If you are not familiar with the network configuration procedures detailed in this section, contact your cable service provider before you attempt to change any of the gateway cable modem default network configuration settings.
  • Page 41 WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide Setup Basic Settings – Network Configuration Page Description The following table provides a description of the fields within the Setup Basic Settings – Network Configuration page. Field Name LAN IP The base IP address of the private home LAN and the Address WebWizard IP address.
  • Page 42 Function Keys The following function keys appear on the Setup Basic Settings – Network Configuration page. Renew WAN IP Address Forces a release and renewal of your WAN IP Lease address Apply Saves the values you enter into the fields without closing the screen Configuring and Managing IP Addresses Use the Setup Basic Settings –...
  • Page 43 WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide Setup Basic Settings – IP Management Page Description The following tables provide a description of the fields within the Setup Basic Settings – IP Management page. Field Name DHCP Server Allows you to enable or disable the DHCP server...
  • Page 44 How Do I Configure the Gateway Cable Modems? Reserving IP Addresses Use the Setup Basic Settings – Fixed CPE IP Assignment page to reserve IP addresses to be issued by the DHCP server in the gateway to specific devices on the LAN.
  • Page 45 WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide Setup Basic Settings – Fixed CPE IP Assignment Page Description The following tables provide a description of the fields within the Setup Basic Settings – Fixed CPE IP Assignment page. Field Name...
  • Page 46 How Do I Configure the Gateway Cable Modems? Enabling and Disabling Advanced Features Use the Setup Advanced Settings – Options page to enable or disable advanced features on your network. When the wireless interface is disabled, the transmitter is turned off. If you are not familiar with the advanced settings detailed in this section, contact your cable service provider before you attempt to change any of the gateway cable modem default advanced options settings.
  • Page 47 WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide Setup Advanced Settings – Options Page Description The following table provides a description of the fields within the Setup Advanced Settings – Options page. If you make changes in the Setup Advanced Settings – Options page, click Apply to apply and save your new IP address filter settings.
  • Page 48 How Do I Configure the Gateway Cable Modems? Configuring IP Address Filters Use the Setup Advanced Settings – IP Filtering page to configure IP address filters. These filters block a range of IP addresses from accessing the Internet. If you are not familiar with the advanced settings detailed in this section, contact your cable service provider before you attempt to change any of the gateway cable modem default advanced IP filtering settings.
  • Page 49 WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide Configuring MAC Address Filters Use the Setup Advanced Settings – MAC Filtering page to configure MAC address filters. These filters allow you to deny or block access to the Internet by the individual MAC addresses listed in the table.
  • Page 50 Setup Advanced Settings – MAC Filtering Page Description Use this page to enter the MAC address or MAC addresses of devices whose Internet access you want to control. Click Apply to apply and save your new MAC address filter settings. Setting Up MAC Address Filters The Block/Pass drop down menu allows you to block or pass Internet access to the MAC addresses of the devices you list in the MAC Address Filters table.
  • Page 51 WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide Configuring and Enabling TCP and UDP Port Filters Use the Setup Advanced Settings – Port Filtering page to configure and enable TCP and UDP port filters. These filters prevent a range of TCP/UDP ports from accessing the Internet.
  • Page 52 How Do I Configure the Gateway Cable Modems? Configuring Port Forwarding for Local IP Addresses Use the Setup Advanced Settings – Port Forwarding page to configure port forwarding for local IP addresses. Port forwarding allows you to run a server on the LAN by specifying the mapping of TCP/UDP ports to a local PC.
  • Page 53 WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide Setup Advanced Settings – Port Forwarding Page Description The following example illustrates how to use the port forwarding feature to configure the Microsoft X-Box Online Live for Internet gaming. For most widely used applications (including Microsoft X-Box Online Live), the WebSTAR firewall automatically maps and opens ports required for that application while the application is in use.
  • Page 54 How Do I Configure the Gateway Cable Modems? Configuring TCP/UDP Port Triggers Use the Setup Advanced Settings – Port Triggers page to configure TCP/UDP port triggers. Port triggering is similar to port forwarding but is dynamic. In other words, the system does not hold the ports open indefinitely. For example, when the gateway cable modem detects outgoing data on a specific IP port number set in the “Trigger Range,”...
  • Page 55 WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide Setup Advanced Settings – Port Triggers Page Description Use this page to enter and enable the port forwarding trigger and target range start and end ports along with protocol information in the appropriate fields. The following example illustrates how to use the port triggering feature to configure the Microsoft X-Box Online Live for Internet gaming.
  • Page 56 How Do I Configure the Gateway Cable Modems? Configuring the DMZ Host Use the Setup Advanced Settings – DMZ Host page to configure an IP address that is visible to the WAN. DMZ hosting is commonly referred to as “exposed host,”...

  • Page 57: Firewall Protection

    WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide Configuring Web Page Filtering, Parental Control, and Firewall Protection Use the Setup Firewall – Web Filters page to configure Web page filtering and firewall protection. This page allows you either block or allow Internet access based on keywords and/or domain names.
  • Page 58 Setup Firewall – Web Filters Page Description This section describes the section headings and fields descriptions of the Setup Firewall – Web Filters page. Section Headings The Setup Firewall – Web Filters page is divided into the following section headings: •...
  • Page 59 WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide Keyword and Domain Blocking Keyword and Domain blocking allows you to restrict access to Internet sites by blocking access to those sites based on a word or a text string contained in the URLs used to access those Internet sites.
  • Page 60 Configuring Firewall Time of Day Access Filters Use the Setup Firewall – Time of Day Access Filter page to block all traffic to and from specific computers based on the day of week and the time of day. If you are not familiar with the advanced settings detailed in this section, contact your cable service provider before you attempt to change any of the gateway cable modem default firewall event logging settings.
  • Page 61 WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide Configuring Firewall Event Logging and E-mail Alerts Use the Setup Firewall – Event Logging page to access the firewall event log and allows you to enter your e-mail address in order for you to receive e-mail alerts related to firewall attacks by hackers.
  • Page 62 Setup Firewall – Event Logging Page Description The Setup Firewall – Event Logging page shows events captured by the firewall. The log displays the following items: • Description of the event • Number of events that have occurred • Last occurrence of an event •...
  • Page 63 WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide Configuring Your Wireless Access Point Parameters Use the Setup Wireless – Basic page to configure your wireless access point (WAP) parameters, included SSID and channel number. If you are not familiar with the advanced settings detailed in this section, contact your cable service provider before you attempt to change any of the gateway cable modem default wireless basic settings.
  • Page 64 Setup Wireless – Basic Page Description This section describes the section headings and fields descriptions of the Setup Wireless – Basic page. If you make changes in the Setup Wireless – Basic page, click Apply to apply and save your wireless basic settings. Field Name Service Set Identifier The name assigned to this access point...
  • Page 65 WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide Configuring Your Wireless Network Privacy and Encryption Parameters Use the Setup Wireless – Privacy page to configure your WAP wired equivalent privacy (WEP) encryption keys and authentication. If you are not familiar with the advanced settings detailed in this section, contact your cable service provider before you attempt to change any of the gateway cable modem default wireless privacy settings.
  • Page 66 Setup Wireless – Privacy Page Description This section describes the section headings and fields descriptions of the Setup Wireless – Privacy page. If you make changes in the Setup Wireless – Privacy page, click Apply to apply and save your wireless privacy settings. Field Name Encryption Mode Allows setting No Encryption, 64-bit Encryption, or...
  • Page 67 WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide For use with Encryption Mode set to 64-bit encryption. 64 Bit Keys Enter 5-byte values for a Key. You do not have to set all four Keys. Only one Key is used for a home network.
  • Page 68 How Do I Configure the Gateway Cable Modems? Configuring Wireless Access Point Access Control Use the Setup Wireless – Access Control page to configure your configure your wireless access point access control. If you are not familiar with the advanced settings detailed in this section, contact your cable service provider before you attempt to change any of the gateway cable modem default wireless advanced settings.
  • Page 69 WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide Setup Wireless – Access Control Page Description This section describes the section headings and field descriptions of the Setup Wireless – Access Control page. Field Name Authentication When encryption is enabled, this selection allows...
  • Page 70 Function Keys The following function keys appear on the Setup Firewall – Event Logging page. Apply Applies and saves the values you enter into the fields without closing the screen Clear Clears the Access List Remove Removes entries from the Access List Adds a client to the Access List Submit Access List Saves and activates changes to the Access List...
  • Page 71 WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide Setup Wireless – Advanced Page Example The following illustration is an example of the Setup Wireless – Advanced page. We recommend that you do not change the default wireless settings that are shown in the preceding illustration unless you are instructed to do so by your cable service provider.
  • Page 72 Setup Wireless – Advanced Page Description This section describes the section headings and fields descriptions of the Setup Wireless – Advanced page. If you make changes in the Setup Wireless – Advanced page, click Apply to apply and save your wireless advanced settings. Field Name Basic Data Rates Displays the default initial data rate for associating with...

  • Page 73: Having Difficulty

    WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide Having Difficulty? Frequently Asked Questions Q. What if I don’t subscribe to cable TV? A. If cable TV is available in your area, data service may be made available with or without subscribing to cable TV service. Contact your local cable service provider for complete information on cable services, including high-speed Internet access.
  • Page 74 Common Troubleshooting Issues I don’t understand the front panel status indicators. See Front Panel Status Indicator Functions, later in this guide for more detailed information on the front panel status indicator operation and function. The modem does not register an Ethernet connection. •...

  • Page 75: Tips For Improved Performance

    WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide Tips for Improved Performance Check and Correct If your cable modem does not perform as expected, the following tips may help. If you need further assistance, contact your cable service provider.

  • Page 76: How Do I Renew The Ip Address On My Pc

    How Do I Renew the IP Address on My PC? If your PC cannot access the Internet after the cable modem is online, it is possible that your PC did not renew its IP address. Renewing the IP Address on Your PC Follow the appropriate instructions in this section for your operating system to renew the IP address on your PC.

  • Page 77: Front Panel Status Indicator Functions

    WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide Front Panel Status Indicator Functions Front Panel LED Status Indicators During Normal Operations Front Panel LED Status Indicators During Normal Operations Front Panel 2 RECEIVE 6 WIRELESS ON - When the wireless access point is operational.
  • Page 78 Special Conditions The following chart describes the appearance of the cable modem front panel status indicators during special conditions to show that you have been denied network access. Front Panel LED Status Indicators During Special Conditions Front Panel LED Status Indicators During Special Conditions Front Panel Indicator Network Access Denied POWER...

  • Page 79: Notices

    WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide Notices Trademarks Scientific-Atlanta and the Scientific-Atlanta logo are registered trademarks of Scientific-Atlanta, Inc. WebSTAR, DPR2320, EPR2320, and “Bringing the Interactive Experience Home” are trademarks of Scientific-Atlanta, Inc. DOCSIS is a registered trademark of Cable Television Laboratories, Inc.

  • Page 80: Fcc Compliance

    1) the device may not cause harmful interference, and 2) the device must accept any interference received, including interference that may cause undesired operation. WebSTAR Gateway Cable Modems Model DPR2320 and Model EPR2320 Scientific-Atlanta, Inc. 5030 Sugarloaf Parkway Lawrenceville, Georgia 30044 USA...

  • Page 81: For Information

    For Information Scientific-Atlanta, Inc. 770.236.5000 Product and service availability subject to change without notice. © 2003 Scientific-Atlanta, Inc. All rights reserved. Bringing the Interactive November 2003 Printed in USA Experience Home If You Have Questions If you have technical questions, contact your local cable service provider. 5030 Sugarloaf Parkway, Box 565447 Lawrenceville, GA 30042 www.scientificatlanta.com...
