INSTALLATION INSTRUCTIONS

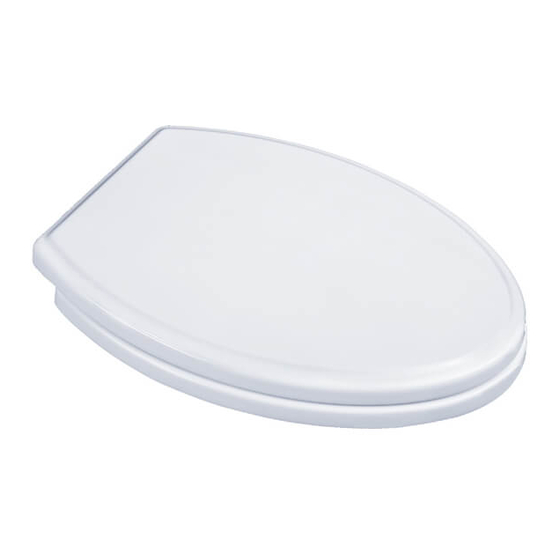

Slow Close Toilet Seats
Elongated Models: 5004A, 5006A, 5011A
Round Front Model: 5004B
Thank you for selecting DXV. To ensure this product is installed properly,
please read these instructions carefully before you begin. (Certain in-
stallations may require professional help.) Also be sure your installation
conforms to local codes.
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work is begun.
Phillips Screwdriver
1
Screw
Plug
3
In the United States:
DXV
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2017
Plumbers' Putty or Caulking
Cap
Hinge
Washer
Insert plugs into
seat holes in bowl.
In Canada:
DXV
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax: 1-800-395-1498
www.DXV.ca
2
Grommet
Flange
Bulb
For ease of installation of black rubber grommets,
insert steel bolt (capture a few threads), and wet the
lower area with some water (soapy water works best).
4
NOTE: FLANGE MUST REMAIN ABOVE THE SURFACE.
DO NOT ALLOW GROMMET TO FALL THROUGH!
- 1 -
Bolt
Wet this area with water
In Mexico:
DXV
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
760168-100 Rev. B (6/17)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DXV 5004A
Summary of Contents for DXV 5004A
-
Page 1: Installation Instructions
Elongated Models: 5004A, 5006A, 5011A Round Front Model: 5004B Thank you for selecting DXV. To ensure this product is installed properly, please read these instructions carefully before you begin. (Certain in- stallations may require professional help.) Also be sure your installation conforms to local codes. - Page 2 Install rubber washer into hinge. Snap hinges with washer into holes on the bottom of the seat. Place seat with hinges onto bowl. Align seat with front of bowl. Put screws into seat hinge and tighten using a screwdriver. Open the seat and cover. Push both inside buttons to release seat and cover.
