Stanley Omnilock 9KOM Installation

Retractor
Latch tube
prong
Latch
tailpiece
Latch tube
prong
Chassis frame
Chassis

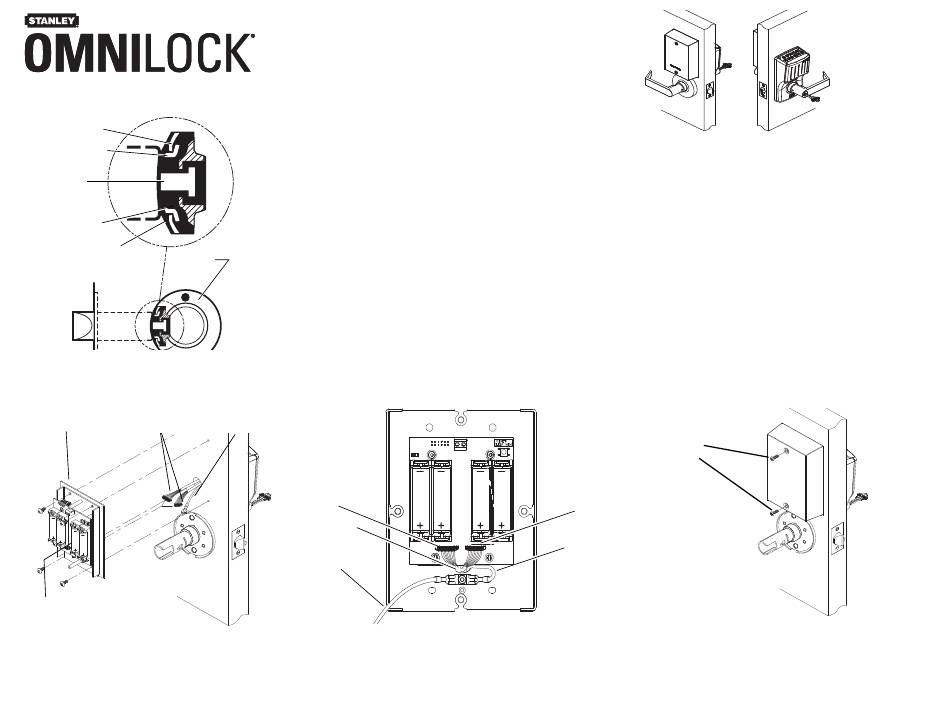

Figure 1 Installing the lock chassis and engaging
the retractor in the latch
Module Connecting
cables
bracket
Wire inlet
Figure 2 Inside circuit module
T83319/Rev A 0000000 ER-7991-12 Jan 2010
Installation Addendum for
Stanley Omnilock 9KOM
Extreme Weatherized Locks
9KOM Extreme Weatherized Cylinder Locks
This addendum begins after step 6 of Installation Instructions for Stanley Omnilock 9KOM Cylinder Locks T83303.
1 From the outside of the door, insert the lock chassis and outside escutcheon into the 2 1/8" (54 mm) chassis
hole.
2 Make sure that the latch tube prongs engage the chassis frame and that the latch tailpiece engages the
retractor. See .
3 Thread connecting cables and grounding wire through the door cable hole. Use screws to attach the
module bracket from the inside of the door. See Figure 2.
Note: Ensure that no wires are pinched when attaching the escutcheon to the door.
4 Connect the batteries and wires as shown in Figure 3.
5 Secure the extreme weather module cover with the security screws provided. See Figure 4.
6 Continue with step 10 of the Installation Instructions for Stanley Omnilock 9KOM Cylindrical Locks (T83303) to
finish installation.
Grounding
wire
12 Pin
Connector
Wire inlet
Cover
grounding
wire
Figure 3 Wire connections to circuit module
Security
screws
10 Pin
Connector
Grounding
wire
Figure 4
Stanley Omnilock
a Product Group of Stanley Security Solutions, Inc.
Inside view of weatherized model
