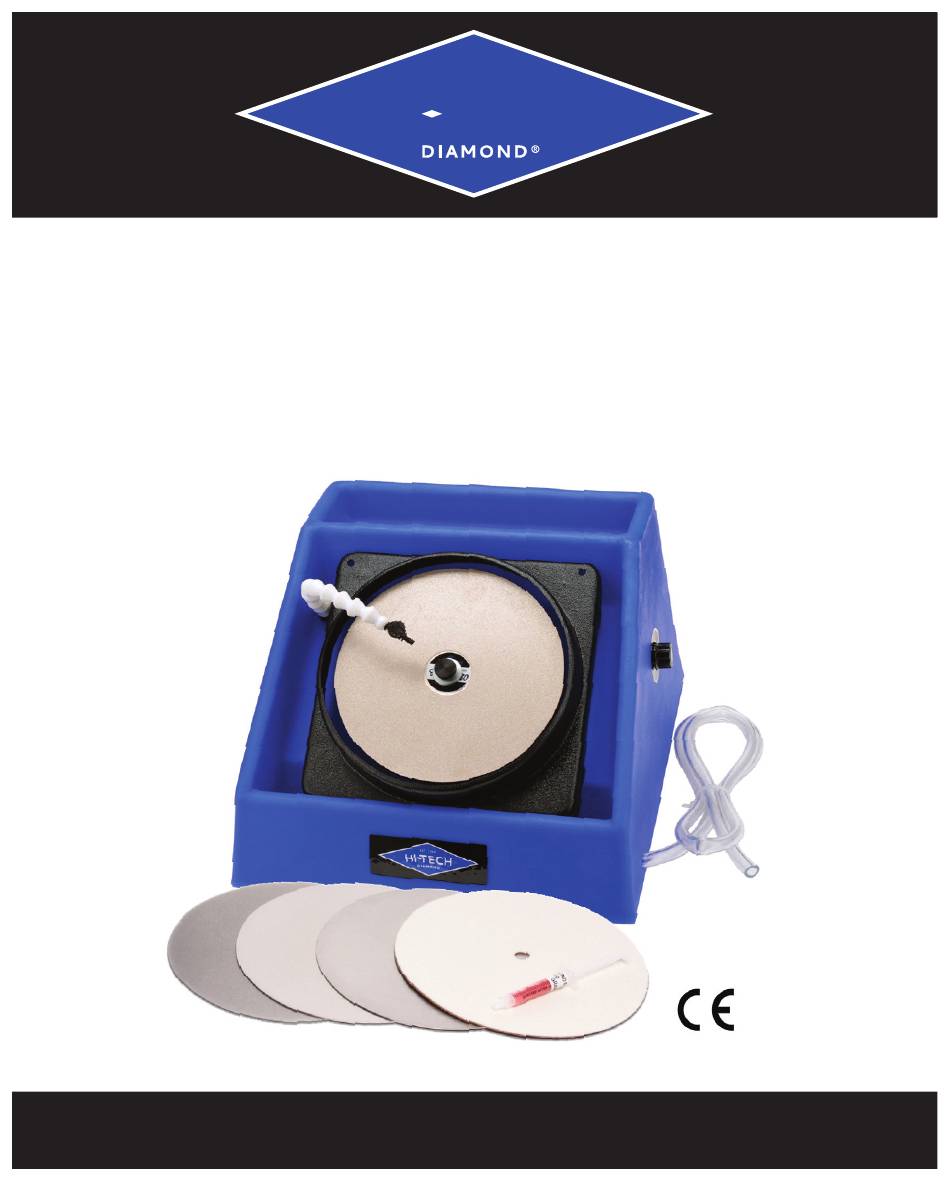

- Page 1 ES T . 1984 ES T . 1984 HI TECH HI TECH Slant Cabber GLASS/CRYSTAL MODEL INSTRUCTION MANUAL...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT! READ FIRST For your own safety be sure to read, understand and follow all warnings, safety rules and instructions in this instruction manual before using this machine. Failure to do so can result in serious personal injury. This instruction manual is intended for the following machine models: 20-011, 20-013, 20-004 and 20-005. - Page 3 SAFETY INSTRUCTIONS • Always wear proper eye protection to protect • Do not allow water to run down the shaft you from any debris that may fly out while and into the motor. This will cause the motor to grinding. We recommend wearing safety goggles instantly burn out.
-
Page 4: Table Of Contents
PRO-FLOW WATER COOLING SYSTEM ACCESSORIES FAQS TROUBLESHOOTING REGISTER YOUR PRODUCT Register your Hi-Tech Diamond Slant Cabber at hitechdiamond.com/register to help facilitate any warranty related requests. You can also register your Slant Cabber by completing and mailing us the enclosed registration form. - Page 5 ONE-YEAR LIMITED WARRANTY Reentel International Inc. stands behind the quality of its Hi-Tech Diamond machines. That’s why they’re warranted to be free from defect for one full year from the date of purchase. Registering your product helps facilitate warranty requests.
-
Page 6: Machine Details
MACHINE DETAILS This image shows parts and accessories included with your Slant Cabber machine On/off power control knob Modular water tube with water control valve Silver arbor with black knob and washer Slant Cabber base unit (1/4 hp variable speed motor) Black spray shield Clear drain tube (included with instruction manual) -
Page 7: Operating Instructions
OPERATING INSTRUCTIONS Carefully unpack the Slant Cabber from the box and remove all loose foam and Knurled knob & washers accessories. Set the packaging aside should Arbor you need it in the future. Check to make sure all parts are present on both the machine and in the accessory kit. -
Page 8: Grinding And Polishing
GRINDING AND POLISHING STEP 1: ROUGHING The 360# diamond disc is the coarsest disc that comes with this Slant Cabber. If you have less than a millimeter to remove, we suggest skipping this step and begin at step 2. The 360# disc is required if you need to remove a large amount of material from your work piece, or to remove glass left from the punty. - Page 9 GRINDING AND POLISHING still see scratches or scales, they are too deep to remove. You must return to step 1 (360# disc) and start this process over. If after this step, your piece has a finely frosted finish, then you are ready to move onto step 4.
-
Page 10: Maintenance
MAINTENANCE CLEANING OILING & ARBOR ADJUSTMENTS The only part you need to oil on the Slant Cabber The Slant Cabber is designed to be easily machine is the inside of the 2" silver arbor. This is cleaned. After each use, flush out the bottom required because the motor shaft and arbor are water reservoir with clean water so the rock made of different materials. - Page 11 PRO-FLOW WATER SYSTEM The Pro-Flow offers two innovative ways to increase the water reservoir capacity on the Slant Cabber. If you’re looking for an efficient cooling system, then the Pro-Flow is for you. Upgrade to the Pro-Flow water system today at hitechdiamond.com. PRO-FLOW PRESSURE TANK PRO-FLOW WATER PUMP The Pro-Flow’s one-gallon pressure tank provides...
-
Page 12: Accessories
ACCESSORIES For more Hi-Tech Diamond products and accessories, visit hitechdiamond.com. Backing plates Tech-11 polishing pads Our 6" and 8" acrylic backing plates provide a Our 6" and 8" Tech-11 polishing pads serve as a flat surface to back diamond discs, diamond general polishing pad to polish stone and glass. - Page 13 ACCESSORIES For more Hi-Tech Diamond products and accessories, visit hitechdiamond.com. Electroplated diamond laps Glass/crystal disc kit Our 6" and 8" diamond laps use high quality Our glass/crystal disc kit is the same accessory diamond discs for precise rough and fine kit included with this All-U-Need.
-
Page 14: Faqs
FAQS What lubricants should I use with the Do you sell electrical spare parts for Slant Cabber? my Slant Cabber? Whom do I contact if I need a repair or replacement for my Only use clean water with the Slant Cabber. If Slant Cabber? desired, you may add a water soluble coolant to the water. -
Page 15: Troubleshooting
10. If it impossible to remove, please What should I do if the drain tube contact Hi-Tech Diamond at 1 (630) 596-9909 and keeps clogging with sediment? one of our specialized technicians will help you If the drain tube keeps clogging with leftover rock over the phone for correct removal. - Page 16 EST. 1984 ES T . 1984 HI TECH HI TECH MANUFACTURED BY Reentel International Inc. 808 Burr Oak Drive Westmont, IL 60559 U.S.A. PHONE 1 (630) 596-9909 EMAIL sales@hitechdiamond.com WEBSITE hitechdiamond.com FACEBOOK facebook.com/hitechdiamond TWITTER twitter.com/hitechdiamond Rev 07/31/18...
