- Page 1 X20G-NagaIII User’s Manual...
- Page 2 FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. FCC WARNING This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
- Page 3 The Federal Communications Commission warns that changes or modifications of the unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. CE mark for Class B ITE (Following European standard EN55022/1998; EN61000- 3-2/1995;...
-
Page 4: Table Of Contents
TABLE OF CONTENTS ...III Your New LCD Monitor Unpacking Identifying Components Adjusting the Tilting Angle Connecting AC Power and Video Cable Power Management System The LCD Monitor’s Control Panel Adjusting the Monitor’s Display TFT LCD Monitor Specifications Supported Timing Troubleshooting ABLE OF ONTENTS... -
Page 5: Your New Lcd Monitor

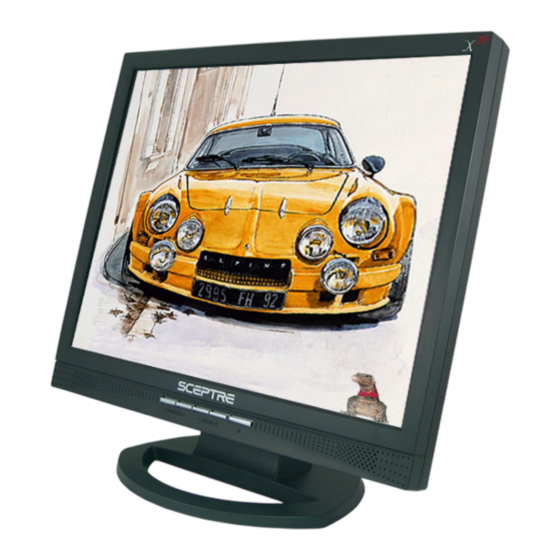

Your New LCD Monitor Your LCD Monitor has been designed to be versatile, ergonomic and user-friendly. The LCD Monitor is capable of displaying most standards, from 640x400 VGA to 1680x1050 WSXGA+. The digital controls located on the front panel allow the user to easily adjust the Monitor’s display parameters, and the LCD Monitor’s small footprint gives you more room in your workspace for other peripherals. -
Page 6: Lcd Monitor
Note: Using a computer for an extended period of time with a poor workstation set-up and incorrect working habits can cause health problems. The science of ergonomics studies the relationship between health and a suitable working environment. There is a section on ergonomics at the end of this chapter. For more information on ergonomics, contact your nearest computer bookstore, or local library. -
Page 7: Identifying Components
Identifying Components A. The LCD Monitor — Front View Figure 1-1: The LCD Monitor Front View 1. Sceptre logo Indicator This Logo indicator will light on for 3 minutes , then dimmer 2. Monitor Stand 3. LCD Screen The LCD monitor is a 20.1-inch TFT 1680 x 1050 Wide WSXGA+ screen. - Page 8 B. "Hot Keys" for Quick Adjustment of Monitor Settings Figure 1-2: "Hot Keys" 1. Brightness adjustment "hot key": Press - or + buttons to allow you to adjust the brightness function 2. Source select “ Hot Key : Source D-Sub Press S button to allow you to change the input source between DVI port and Source DVI...
-
Page 9: Adjusting The Tilting Angle
Adjusting the Tilting Angle The LCD Monitor’s angle settings range from 0° to 10°. 0 to 10 Figure 1-4: Tilting the Monitor Rev.2... -
Page 10: Connecting Ac Power And Video Cable
Connecting AC Power and PC Video Cable Note: Turn off your PC and the LCD monitor before connecting your LCD monitor to the computer. AC-IN AC Outlet (Wall Socket) Connecting with YPbPr configuration AC Outlet (Wall Socket) Note: Our machine can support up to 1080P YPbPr signal Figure 1-5: PC conenction RCA to Stereo... -
Page 11: Power Management System
Power Management System This LCD Monitor complies with the VESA DPMS power management proposal. When the LCD Monitor is in power-saving mode or detects an incorrect timing, the monitor screen will be blank and the power LED indicator starts blinking. Rev.2... -
Page 12: The Lcd Monitor's Control Panel
The LCD Monitor’s Control Panel Cursor Movement button These buttons let you move horizontally across your settings Ajustment button - & + These buttoms let you to change the setting value or move to next sub-menu Menu: OSD Menu button Press this button to display the OSD (On-Screen Display) menu. -
Page 13: Adjusting The Monitor's Display
Adjusting the Monitor’s Display OSD Main Menu 1. Pressing the OSD Menu button causes the screen below to appear. 2. Use the & key to select the desired group, then press - & + key to the sub-menu 3. Repeat step 2 to select the changed item, then press - & + to change the value. 4. -
Page 14: System Requirements
Auto Adjust Option The Auto Adjust option lets the monitor determine and select the settings that are most appropriate for your system requirements. Note: it only apply for Analog RGB input Provides you with the current display timing information. Brightness and Contrast Adjustment Adjusts the Brightness value Adjusts the Contrast value Execute the white balance function... - Page 15 Set up the color temperature value User Mode Sets the color temperature to 6500K Sets the color temperature to 9300K change Red gain for the color temperature (only valid when color temperature set at user mode ) Green change Green gain for the color temperature (only valid when color temperature set at user mode ) Blue change Blue gain for the color temperature...
- Page 16 Adjusts phase tracking to reduce display flicker Moves the whole screen right or left Moves the whole screen up or down Return to the previous Menu OSD Adjustment Restores settings to factory default values Sets the OSD timer Moves the OSD menu horizontally Moves the OSD menu vertically Set the graphic mode or text mode Return to the previous Menu...
-
Page 17: Out Of Range
Note: 1) No video When the monitor is ON and there is no video signal received, the following message will be displayed 2) Signal out of range When the frequency range of the signal is out of the Monitor’s specifications, (over 85HZ) the display will show the following message Out of Range Rev.2... -
Page 18: Tft Lcd Monitor Specifications
TFT LCD Monitor Specifications Item LCD Panel Control Functions Power On-Screen Main Menu Display Information (OSD) Brightness /Contrast Control Audio Control Color temperature Control Display Quality OSD adjsutment Display Area (mm) Display Colors Video Interface HD Video Interface Appendix A Specification 20.1"... - Page 19 Scanning Frequency 24-91K H/V, Hz 50-85 Power Management Meets VESA DPMS Power Consumption 51.6W/1W Max. (ON/OFF, W) Dimensions 18.72 x 15.14 x 6.69 in. WxHxD (475.4 x 384.5 x 170mm) Net Weight 16.256 lbs (approx.) (6.4 Kg) Power Supply Universal Input AC Socket Environment Operating Temperature: 32 to 104°F (0 to 40°...
-
Page 20: Supported Timing
Supported PC Timing Item Standards NEC PC98 MAC 13" mode MAC 17" mode VESA VESA VESA VESA SVGA VESA VESA VESA VESA VESA VESA VESA VESA Non-VESA VESA Non-Vesa *Once a mode is optimized, there is no need to make any further adjustment as long as the VGA card remains unchanged. - Page 21 Supported YCbC/YPbPr mode Item Standards 720x480i 720x480P 720x576i 720x576P 1280x720P 1280x720P 1920x1080i 1920x1080i 1920x1080P 1920x1080P Vertical Horizontal Scanning Scanning Frequency Frequency (Hz) (kHz) 29.97 15.73 59.94 31.46 15.62 31.25 37.5 28.12 33.75 56.25 67.5 Rev.2...
-
Page 22: Troubleshooting
Troubleshooting This LCD monitor comes pre-adjusted with standard VGA timing. Due to output timing differences among various VGA cards, you may initially experience an unstable or unclear display when a new display mode or new VGA card is selected. Before applying any of the following troubleshooting procedures, you should first apply the Auto Adjust option in the OSD menu. - Page 23 Change to one of the alternate modes listed in Appendix B, or replace the VGA card and repeat steps 1 and 2. 4. If the power LED is not lit, check that the AC power connector is securely connected, and verify that the AC adapter LED is lit. If the AC adapter LED is not lit, please contact your dealer for assistance.
