- Page 1 WWW.MOBILE-SIGNAL-BOOSTERS.CO.UK INSTALLATION GUIDE REPEATER Nikrans NS-EDWLL-Boats Freq.: 900, 1800, 2100, 2600 MHz Coverage: Car/Boat...
-
Page 2: Safety Warnings
PREFACE This user’s manual describes the installation and maintenance of wide band consumer boosters. Please do read user manual carefully before installing and maintaining repeaters. The information in this manual is subject to change without prior notice. 1. SAFETY WARNINGS Users must follow the principles below? Repeater should follow system requirements;... -
Page 3: Introduction And Reasons For Weak Cellular Signals
2. INTRODUCTION AND REASONS FOR WEAK CELLULAR SIGNALS Mobile Signal Booster is a perfect solution for providing improvement of cellular signal reception inside a house, office, restaurant, VIP Room, apartment, building or shopping mall. Generally cell phones cannot pick up or maintain a strong cellular signal due to one of the two following reasons: 1. -
Page 4: Model Description

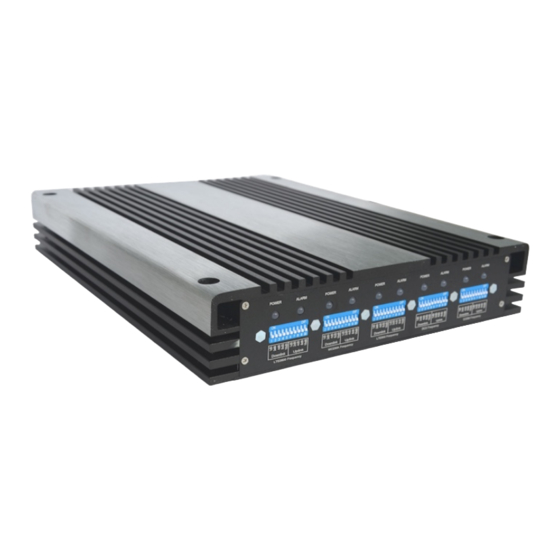

3. MODEL DESCRIPTION Nikrans NS-EDWLL-Boats is one of the most demanded amplifiers which is suitable for improving voice calls and 3G & 4G Internet simultaneously. The device is universal as it is compatible with all providers thanks to a variety of frequencies supported –... -
Page 5: Specification
4. SPECIFICATION Indoor coverage: Car/Boat Up-link freq: 832-862, 880-915, 1710-1785, 1920-1980, 2500-2570MHz MHz Down-link freq: 791-821, 925-960, 1805-1880, 2110-2170, 2620-2690MHz MHz Up-link Gain: 65 dB Down-link Gain: 70 dB Power supply: AC 90~264V, DC9V/7A, 34W Working t °C: -25/+55 Humidity: 5 - 95% Size (mm): 250×360×52... -
Page 6: Repeater System Overview
5. REPEATER SYSTEM OVERVIEW The picture below shows how simple and fast booster installation is and how effectively it works. Out-of-car antenna should be fixed in a proper place (for example, on a car trunk) and connected with the booster by cable. -
Page 7: Antennas And Cables Setting Up
6. ANTENNAS AND CABLES SETTING UP 6.1. Outdoor antenna installation Mount out-of-car antenna onto the car trunk fixing it on a magnetic antenna's surface. Cable layout and connector assembly 1. Keep the type, specifications, routing direction, location and curvature radius of cables in compliance with the model requirements. -
Page 8: Repeater Installation
7. REPEATER INSTALLATION 7.1 Installation requirements 7.1.1 Installation Location Requirements No specific installation requirements shall be followed. 7.1.2 Power requirement DC 12V. Connect the Power adapter to the cigar lighter. 7.2. Installation Steps 7.2.1. Installation schemes INSTALLATION STEPS 1. Find a suitable position for an in-car antenna (e.g. under the seat of a driver). 2. -
Page 9: Repeater Settings
7.3. Repeater Settings 7.3.1. Indicator Light Instructions After power is on, check firstly the alarm and power LEDS. Status and definition of POWER indicators: Status Definition Green Normal Power problem Status and Definition of ALARM LED indicators; Alarm LED only works for downlink signals. Status ALARM It is working in linearity... - Page 10 For single system metal closet: Switches 1.2 represent Downlink and 3.4 represent Uplink. When it is necessary to adjust the gain by DIP switch, firstly please adjust Downlink gain according to input signals, secondly please adjust Uplink gain according to Downlink gain. The DIP Switches have default ‘OFF’...
- Page 11 Put ON a pair of switches for a total of 15dB reduction in gain. (DL1 & UL1 – Alarm Low) – For 800MHz or 900 MHz Band (DL2 & UL2 – Alarm High) – For 1700, 1800, 1900 & 2100 MHz Band Remark: In single system, there is only one system could be set.
-
Page 12: Repeater Commissioning
Put ON a pair of switches for a total of 15dB reduction in gain.You can reduces anyone system in the products. Turn ON the dip switches of GSM or DCS or WCDMA to reduce the gain of GSM system. Repeater Commissioning Downlink gain setting First the alarm LED only indicates the downlink input power level, here we use color of Alarm LED to adjust the gain of the repeater. -
Page 13: System Test
7.4. System Test 7.4.1. Check whether the coverage is good 1. If the signals in small parts of the area have not been improved, please check the following: - Check whether the indoor antenna is installed correctly or not; you may try to change the antenna location to improve coverage. - Page 14 7.4.2 Repeater can not communicate in Power-ON status The repeater’s power is on but the phone cannot get connected to the network and still can not communicate. Reason: There are loose or wrong connections in the repeater system. Solution: Please try to fasten the connections between different parts of the system.
-
Page 15: Will Booster Increase The Rf Radiation
8. FAQ 1. Will booster increase the RF radiation? No, it will decrease instead. Every cell phone irradiates heavily being in zones with poor mobile signal as a cell phone is constantly in searching mode. The danger is your cell phone is about 2cm to your body, which makes its usage rather harmful. And when a booster is installed, it improves the mobile signals in the coverage, and your cell phone stops irradiating strongly, thus it will reduce the RF radiation of the mobile phone tremendously. -
Page 16: About Nikrans Brand
Nikrans product development process is rigorously assessed to comply with ISO 9001:2008 standard and implicates internal tests, which greatly ensures the quality of our goods. High product quality is also confirmed by Phoenix Testlab, Germany and is proved with CE and RoHS certificates. That’s why a 3-year warranty applies to any of Nikrans boosters. - Page 17 Certificates Hereby, Nikrans declares that this signal booster is in compliance with the essential requirements and other relevant provisions of Radio Equipment Directive (RED) 2014/53/UE (CE marking). support@mobile-signal-boosters.co.uk · +448000698689 (Sales) · www.mobile-signal-boosters.co.uk...
