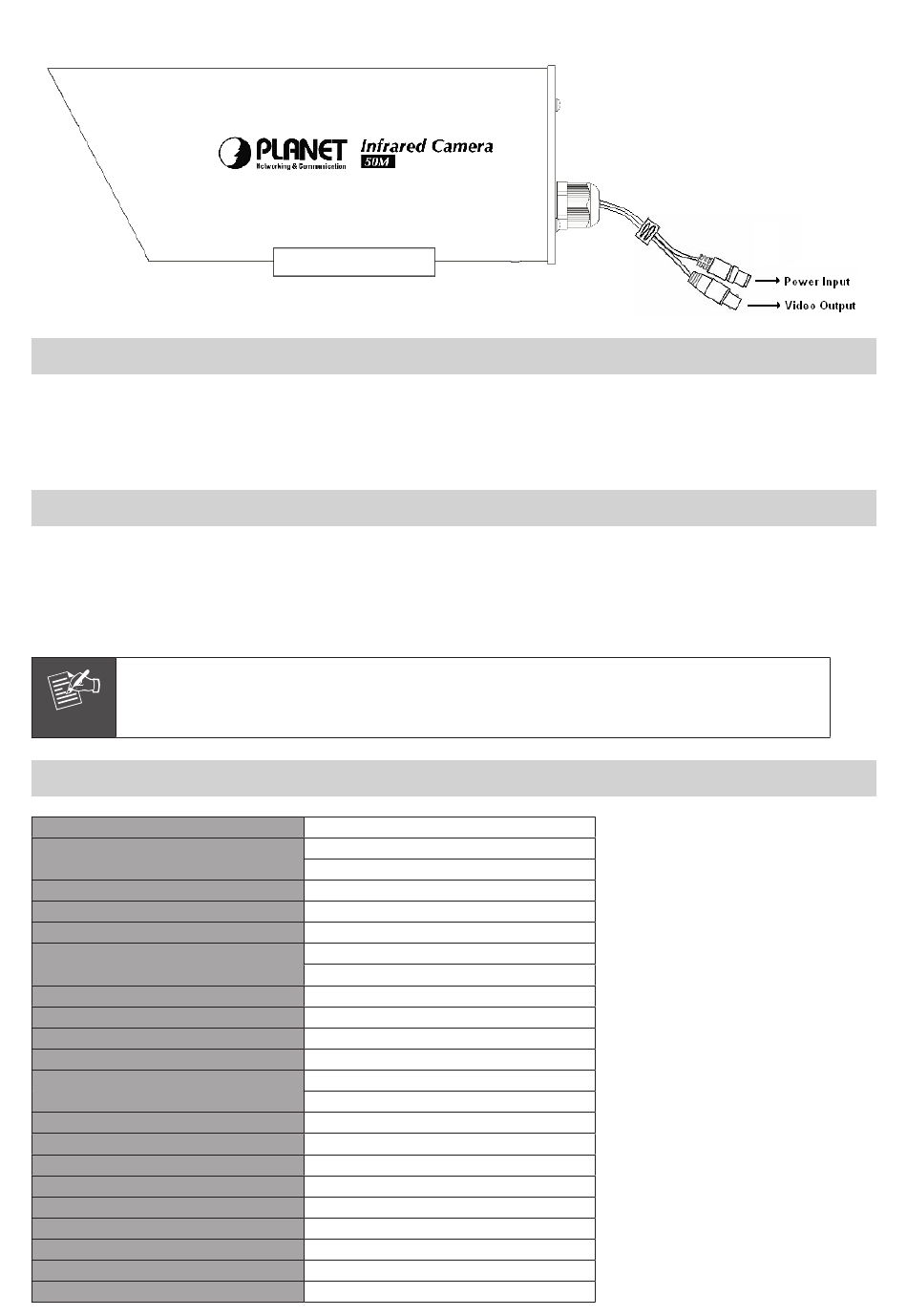

Planet CAM-IR552 Quick Installation Manual

50 Meter Infrared Camera – CAM-IR552
Packet Content
CAM-IR552
Screw kit x 1
Quick Installation Guide x 1
Installation
1. Please fix the CAM-IR552 to a suitable location with the screws.
2. Adjust the camera to the correct direction.
3. Connect Video Output connector to your DVR.
4. Connect a DC 12V power adapter to the Power Input connector.
Before connect power adapter to camera, please make sure the power output voltage is DC 12V (max.
±10%). If you can not sure this part, we will suggest to use a DC 12V Switching power adapter. It can
provide stably power output.
Note
Specification
Image Pick-up Device
Effective Picture Elements
Horizontal Resolution
Minimum Illumination
S/N Ratio
Auto Electronic Shutter
Gain Control
White Balance
Gamma Characteristic
Lens Furnished
View Angle
Synchronous System
Video Output
Power Supply
Operating Temp.
Water Resistance
IR LED
IR Project Distance
Dimensions
Weight
SONY 1/3" Color CCD
NTSC: 811(H) x 508(V)
PAL: 795(H) x 596(V)
520 horizontal TV lines
0 LUX with built-in IR-LED
More than 48 dB
NTSC: 1/60s~1/100,000s
PAL: 1/50s~1/110,000s
Automatically
Automatically (2500K~9500K)
0.45
Board Lens 8.0 mm / F2.0
Horizontal: 33 degree
Vertical: 25 degree
Internal, Negative sync.
1 Vp-p Composite Video / 75 Ohms
12V DC / 100mA (IR on: 450mA)
-20 to 60 degree C
IP-66
12 Units of 850nm IR LED
50 Meters
95 x 250 mm (φ x L)
925g
