Micas AUTOLIGHT SMART DALI Manual

AUTOLIGHT SMART DALI

Table of Contents

Need help?

Do you have a question about the AUTOLIGHT SMART DALI and is the answer not in the manual?

Page 2 AUTOLIGHT SMART DALI Inhalt Instruction: AUTOLIGHT SMART DALI ..................... 3 Functional description ......................... 3 Mounting instruction........................... 4 Technical characteristics ........................5 © MICAS AG, 06.11.2018...

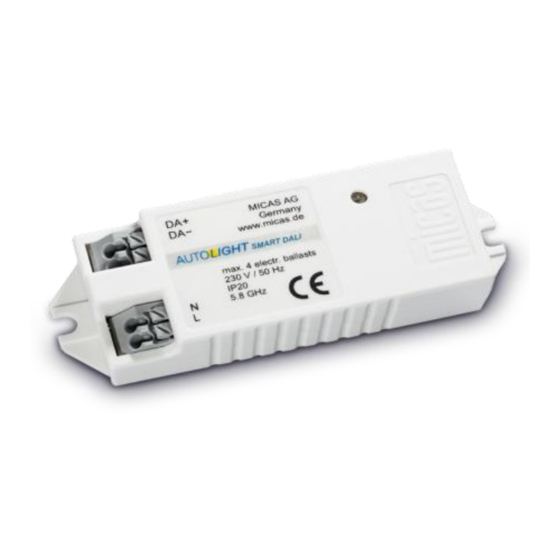

Page 3 Functional description The AUTOLIGHT SMART DALI detects motion in the detection field using a 5.8 GHz radar signal. It should be noted that radar signals can penetrate thin walls, doors and furniture. Thus, if necessary, movements are detected that take place in adjacent rooms. The entry field can be adjusted accordingly with the help of the app.
Page 4 In addition, there are two DALI-compatible connection terminals as bus masters. Up to 4 DALI ballasts (DALI slaves) can be connected in parallel. To install the AUTOLIGHT SMART DALI, the total length of all DALI cables must not exceed 15 m. Additional bus power supplies must not be used and would damage the sensor.
Page 5 AUTOLIGHT SMART DALI Technical characteristics Brief description HF motion detector for installation in luminiares (built-in switch). Enables the connection of up to 4 DALI ballasts and radio networking with other sensors. Operating Voltage 230 V~ ± 10 %, 50 Hz Standby power <...
