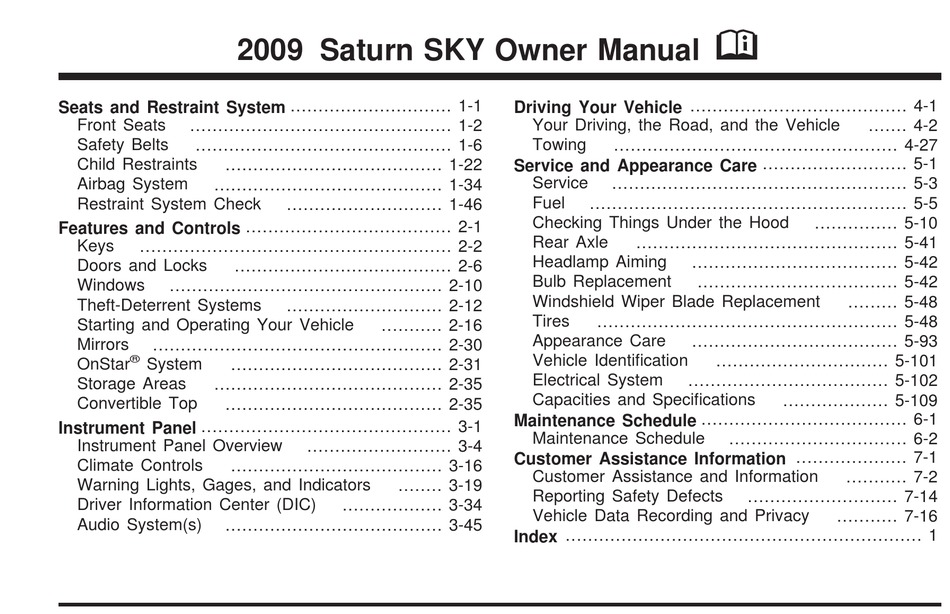

Page 1 2009 Saturn SKY Owner Manual Seats and Restraint System ... 1-1 Front Seats ... 1-2 Safety Belts ... 1-6 Child Restraints ... 1-22 Airbag System ... 1-34 Restraint System Check ... 1-46 Features and Controls ... 2-1 Keys ... 2-2 Doors and Locks ...
Page 2: Canadian Owners
SATURN, the SATURN Emblem, and the name SKY are registered trademarks of Saturn Corporation. GENERAL MOTORS and GM are registered trademarks of General Motors Corporation. This manual includes the latest information at the time it was printed. Saturn reserves the right to make changes after that time without further notice.
Page 3: Vehicle Symbols
Safety Warnings and Symbols A circle with a slash through it is a safety symbol which means “Do Not,” “Do not do this” or “Do not let this happen.” A box with the word CAUTION is used to tell about things that could hurt you or others if you were to ignore the warning.
Page 4 Vehicle Symbol Chart Here are some additional symbols that may be found on the vehicle and what they mean. For more information on the symbol, refer to the index. : Airbag Readiness Light : Air Conditioning : Antilock Brake System (ABS) : Audio Steering Wheel Controls or OnStar : Brake System Warning Light "...
Page 5: Seats And Restraint System
Section 1 Front Seats ...1-2 Manual Seats ...1-2 Seat Height Adjuster ...1-2 Reclining Seatbacks ...1-3 Seatback Latches ...1-5 Safety Belts ...1-6 Safety Belts: They Are for Everyone ...1-6 How to Wear Safety Belts Properly ...1-11 Lap-Shoulder Belt ...1-18 Safety Belt Use During Pregnancy ...1-21 Safety Belt Extender ...1-21 Child Restraints ...1-22 Older Children ...1-22...
Page 6: Front Seats
Front Seats Manual Seats { CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.
Page 7: Reclining Seatbacks
Reclining Seatbacks CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.
Page 8 CAUTION: Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts cannot do their job when you are reclined like this. The shoulder belt cannot do its job. In a crash, you could go into it, receiving neck or other injuries.
Page 9: Seatback Latches
Seatback Latches The seats have a latch located on the outboard side near the top of the seatback that enables the front seatback(s) to fold forward. To fold the seatback forward, lift the latch and push the seatback forward. CAUTION: If either seatback is not locked, it could move forward in a sudden stop or crash.
Page 10: Safety Belts
Safety Belts Safety Belts: They Are for Everyone This section of the manual describes how to use safety belts properly. It also describes some things not to do with safety belts. CAUTION: Do not let anyone ride where a safety belt cannot be worn properly.
Page 11: Why Safety Belts Work
Why Safety Belts Work When you ride in or on anything, you go as fast as it goes. Put someone on it. Take the simplest vehicle. Suppose it is just a seat on wheels.
Page 12 Get it up to speed. Then stop the vehicle. The rider does not stop. The person keeps going until stopped by something. In a real vehicle, it could be the windshield...
Page 13 or the instrument panel... or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That is why safety belts make such good sense.
Page 14 Questions and Answers About Safety Belts Will I be trapped in the vehicle after a crash if I am wearing a safety belt? You could be — whether you are wearing a safety belt or not. But your chance of being conscious during and after an accident, so you can unbuckle and get out, is much greater if you are belted.
Page 15: How To Wear Safety Belts Properly
How to Wear Safety Belts Properly This section is only for people of adult size. Be aware that there are special things to know about safety belts and children. And there are different rules for smaller children and infants. If a child will be riding in the vehicle, see Older Children on page 1-22 or Infants and Young Children on page 1-25.
Page 16 What is wrong with this? The shoulder belt is too loose. It will not give as much protection this way. 1-12 CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
Page 17 What is wrong with this? The lap belt is too loose. It will not give nearly as much protection this way. CAUTION: You can be seriously hurt if your lap belt is too loose. In a crash, you could slide under the lap belt and apply force on your abdomen.
Page 18 What is wrong with this? The belt is buckled in the wrong buckle. 1-14 CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not on the pelvic bones.
Page 19 What is wrong with this? The belt is over an armrest. CAUTION: You can be seriously injured if your belt goes over an armrest like this. The belt would be much too high. In a crash, you can slide under the belt. The belt force would then be applied on the abdomen, not on the pelvic bones, and that could cause serious or fatal injuries.
Page 20 What is wrong with this? The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. 1-16 CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
Page 21 What is wrong with this? The belt is behind the body. CAUTION: You can be seriously injured by not wearing the lap-shoulder belt properly. In a crash, you would not be restrained by the shoulder belt. Your body could move too far forward increasing the chance of head and neck injury.
Page 22: Lap-Shoulder Belt
What is wrong with this? The belt is twisted across the body. 1-18 CAUTION: You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer/retailer to ﬁx it.
Page 23 If the shoulder portion of a passenger belt is pulled out all the way, the child restraint locking feature may be engaged. If this happens, just let the belt go back all the way and start again. 3. Push the latch plate into the buckle until it clicks. Pull up on the latch plate to make sure it is secure.
Page 24: Safety Belt Pretensioners
To unlatch the belt, push the button on the buckle. The belt should return to its stowed position. Slide the latch plate up the safety belt webbing when the safety belt is not in use. The latch plate should rest on the stitching on the safety belt, near the guide loop.
Page 25: Safety Belt Use During Pregnancy
Safety Belt Use During Pregnancy Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they do not wear safety belts. A pregnant woman should wear a lap-shoulder belt, and the lap portion should be worn as low as possible, below the rounding, throughout the pregnancy.
Page 26: Child Restraints
Child Restraints Older Children Older children who have outgrown booster seats should wear the vehicle’s safety belts. 1-22 The manufacturer’s instructions that come with the booster seat, state the weight and height limitations for that booster. Use a booster seat with a lap-shoulder belt until the child passes the below ﬁt test: •...
Page 27 What is the proper way to wear safety belts? An older child should wear a lap-shoulder belt and get the additional restraint a shoulder belt can provide. The shoulder belt should not cross the face or neck. The lap belt should ﬁt snugly below the hips, just touching the top of the thighs.
Page 28 CAUTION: Never do this. Never allow a child to wear the safety belt with the shoulder belt behind their back. A child can be seriously injured by not wearing the lap-shoulder belt properly. In a crash, the child would not be restrained by the shoulder belt.
Page 29: Infants And Young Children
Infants and Young Children Everyone in a vehicle needs protection! This includes infants and all other children. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle.
Page 30 CAUTION: Never do this. Children who are up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Never put a rear-facing child restraint in the right front seat. Secure a rear-facing child restraint in a rear seat.
Page 31 For most basic types of child restraints, there are many different models available. When purchasing a child restraint, be sure it is designed to be used in a motor vehicle. If it is, the restraint will have a label saying that it meets federal motor vehicle safety standards.
Page 32: Child Restraint Systems
Child Restraint Systems A rear-facing infant seat (A) provides restraint with the seating surface against the back of the infant. The harness system holds the infant in place and, in a crash, acts to keep the infant positioned in the restraint. A forward-facing child seat (B) provides restraint for the child’s body...
Page 33: Securing The Child Within The Child Restraint
Securing an Add-on Child Restraint in the Vehicle CAUTION: A child can be seriously injured or killed in a crash if the child restraint is not properly secured in the vehicle. Secure the child restraint properly in the vehicle using the vehicle’s safety belt, following the instructions that came with that child restraint and the instructions in this manual.
Page 34: Securing A Child Restraint In The Right Front Seat Position
Lower Anchors and Tethers for Children (LATCH) Some child restraints have a LATCH system. As part of the LATCH system, your child restraint may have lower attachments and/or a top tether. The LATCH system can help hold the child restraint in place during driving or in a crash.
Page 35 CAUTION: A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger airbag inﬂates. This is because the back of the rear-facing child restraint would be very close to the inﬂating airbag. A child in a forward-facing child restraint can be seriously injured or killed if the right front passenger airbag inﬂates and the passenger seat is in a forward position.
Page 36 2. Put the child restraint on the seat. 3. Pick up the latch plate, and run the lap and shoulder portions of the vehicle’s safety belt through or around the restraint. The child restraint instructions will show you how. 4. Push the latch plate into the buckle until it clicks. Position the release button on the buckle so the safety belt could be quickly unbuckled if necessary.
Page 37 6. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor. When installing a forward-facing child restraint, it may be helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 38: Airbag System
Airbag System The vehicle has the following airbags: • A frontal airbag for the driver. • A frontal airbag for the right front passenger. For frontal airbags, the word AIRBAG will appear on the middle part of the steering wheel for the driver and on the instrument panel for the right front passenger.
Page 39 CAUTION: Airbags inﬂate with great force, faster than the blink of an eye. Anyone who is up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Do not sit unnecessarily close to the airbag, as you would be if you were sitting on the edge of your seat or leaning forward.
Page 40: Where Are The Airbags
Where Are the Airbags? The driver’s frontal airbag is in the middle of the steering wheel. 1-36 The right front passenger’s airbag is in the instrument panel on the passenger’s side.
Page 41: When Should An Airbag Inﬂate
CAUTION: If something is between an occupant and an airbag, the bag might not inﬂate properly or it might force the object into that person causing severe injury or even death. The path of an inﬂating airbag must be kept clear. Do not put anything between an occupant and an airbag, and do not attach or put anything on the steering wheel hub or on or near any other airbag covering.
Page 42: What Makes An Airbag Inﬂate
In any particular crash, no one can say whether an airbag should have inﬂated simply because of the damage to a vehicle or because of what the repair costs were. For frontal airbags, inﬂation is determined by what the vehicle hits, the angle of the impact, and how quickly the vehicle slows down.
Page 43 CAUTION: When an airbag inﬂates, there may be dust in the air. This dust could cause breathing problems for people with a history of asthma or other breathing trouble. To avoid this, everyone in the vehicle should get out as soon as it is safe to do so. If you have breathing problems but cannot get out of the vehicle after an airbag inﬂates, then get fresh air by opening a window or a door.
Page 44: Passenger Sensing System
Passenger Sensing System The vehicle has a passenger sensing system for the right front passenger position. The passenger airbag status indicator will be visible on the instrument panel when the vehicle is started. United States The words ON and OFF, or the symbol for on and off, will be visible during the system check.
Page 45 CAUTION: A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger airbag inﬂates. This is because the back of the rear-facing child restraint would be very close to the inﬂating airbag. A child in a forward-facing child restraint can be seriously injured or killed if the right front passenger airbag inﬂates and the passenger seat is in a forward position.
Page 46 The passenger sensing system is designed to enable (may inﬂate) the right front passenger frontal airbag anytime the system senses that a person of adult size is sitting properly in the right front passenger seat. When the passenger sensing system has allowed the airbag to be enabled, the on indicator will light and stay lit to remind you that the airbag is active.
Page 47 If the Off Indicator is Lit for an Adult-Size Occupant If a person of adult-size is sitting in the right front passenger seat, but the off indicator is lit, it could be because that person is not sitting properly in the seat. If this happens, use the following steps to allow the system to detect that person and enable the right front passenger frontal airbag:...
Page 48: Servicing Your Airbag-Equipped Vehicle
Additional Factors Affecting System Operation Safety belts help keep the passenger in position on the seat during vehicle maneuvers and braking, which helps the passenger sensing system maintain the passenger airbag status. See “Safety Belts” and “Child Restraints” in the Index for additional information about the importance of proper restraint use.
Page 49 Adding Equipment to Your Airbag-Equipped Vehicle Is there anything I might add to or change about the vehicle that could keep the airbags from working properly? Yes. If you add things that change your vehicle’s frame, bumper system, height, front end or side sheet metal, they may keep the airbag system from working properly.
Page 50: Restraint System Check
Restraint System Check Checking the Restraint Systems Safety Belts Now and then, check the safety belt reminder light, safety belts, buckles, latch plates, retractors, and anchorages are all working properly. Look for any other loose or damaged safety belt system parts that might keep a safety belt system from doing its job.
Page 51: Replacing Restraint System Parts After A Crash
Replacing Restraint System Parts After a Crash CAUTION: A crash can damage the restraint systems in your vehicle. A damaged restraint system may not properly protect the person using it, resulting in serious injury or even death in a crash. To help make sure your restraint systems are working properly after a crash, have them inspected and any necessary replacements made as soon as...
Page 52 ✍ NOTES 1-48...
Page 53: Table Of Contents
Section 2 Keys ...2-2 Remote Keyless Entry (RKE) System ...2-3 Remote Keyless Entry (RKE) System Operation ...2-4 Doors and Locks ...2-6 Door Locks ...2-6 Power Door Locks ...2-6 Delayed Locking ...2-7 Automatic Door Lock ...2-7 Programmable Automatic Door Unlock ...2-7 Lockout Protection ...2-8 Trunk ...2-8 Windows ...2-10...
Page 54: Keys
Keys CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons, children or others could be badly injured or even killed. They could operate the power windows or other controls or even make the vehicle move. The windows will function with the keys in the ignition and children could be seriously injured or killed if caught in the path of a closing window.
Page 55: Remote Keyless Entry (Rke) System
The key has a bar-coded key tag that a dealer/retailer or qualiﬁed locksmith can use to make new keys. Store this information in a safe place, not in your vehicle. Notice: If you ever lock your keys in the vehicle, you may have to damage the vehicle to get in.
Page 56: Remote Keyless Entry (Rke) System Operation
Remote Keyless Entry (RKE) System Operation The Remote Keyless Entry (RKE) transmitter functions work up to 60 feet (18 m) away from the vehicle. There are other conditions which can affect the performance of the transmitter. See Remote Keyless Entry (RKE) System on page 2-3. (Lock): Press to lock all the doors.
Page 57: Battery Replacement
Programming Transmitters to the Vehicle Only RKE transmitters programmed to the vehicle will work. If a transmitter is lost or stolen, a replacement can be purchased and programmed through your dealer/retailer. When the replacement transmitter is programmed to the vehicle, all remaining transmitters must also be programmed.
Page 58: Doors And Locks
Doors and Locks Door Locks CAUTION: Unlocked doors can be dangerous. • Passengers, especially children, can easily open the doors and fall out of a moving vehicle. When a door is locked, the handle will not open it. You increase the chance of being thrown out of the vehicle in a crash if the doors are not locked.
Page 59: Delayed Locking
Delayed Locking A vehicle with power door locks has the delayed locking feature which delays the actual locking of the doors when the Remote Keyless Entry (RKE) transmitter is used to lock the vehicle. If any door is open when locking the vehicle using the RKE transmitter, three chimes will sound signaling that the delayed locking feature is active.
Page 60: Lockout Protection
Lockout Protection The lockout protection feature makes it more difficult to lock the key in the vehicle. If the driver’s door is open while the key is in the ignition, the door cannot be locked with the power door lock switch. This feature cannot guarantee that you will never be locked out of the vehicle.
Page 61: Remote Trunk Release
Remote Trunk Release To open the trunk from inside the vehicle, press the remote trunk release button located in the glovebox. The remote trunk release will only work when either the ignition is off or in ACC/ACCESSORY, the parking brake is engaged, or the vehicle speed is less than 2 mph (3 km/h).
Page 62: Windows
Windows CAUTION: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke. Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather.
Page 63: Power Windows
Power Windows CAUTION: Leaving children in a vehicle with the keys is dangerous for many reasons, children or others could be badly injured or even killed. They could operate the power windows or other controls or even make the vehicle move. The windows will function and they could be seriously injured or killed if caught in the path of a closing window.
Page 64: Sun Visors
Express-Down Window Windows with an express-down feature allow the window to be lowered fully without pressing and holding the switch. Press the front of the switch to the ﬁrst position, and the window opens a small amount. Press the switch down fully and the window goes all the way down.
Page 65: Arming The System
Arming the System While the ignition is off, press the Remote Keyless Entry (RKE) transmitter lock button, to arm the system. The system will arm after either of these things occur: • Thirty seconds after all the doors are closed. •...
Page 66: Pass-Key Iii+ Electronic Immobilizer
® PASS-Key III+ Electronic Immobilizer The PASS-Key III+ system operates on a radio frequency subject to Federal Communications Commission (FCC) Rules and with Industry Canada. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.
Page 67 If the engine still does not start, and the key appears to be undamaged, try another ignition key. At this time, you may also want to check the fuse, see Fuses and Circuit Breakers on page 5-103. If the engine still does not start with the other key, your vehicle needs service.
Page 68: Starting And Operating Your Vehicle
Starting and Operating Your Vehicle New Vehicle Break-In Notice: The vehicle does not need an elaborate break-in. But it will perform better in the long run if you follow these guidelines for the ﬁrst 500 miles (805 km): • Do not drive at any one constant speed, fast or slow.
Page 69 (LOCK/OFF): This position locks the ignition and steering column. The key can only be removed in LOCK/OFF. If you have an automatic transmission, the ignition switch cannot be turned to LOCK/OFF unless the shift lever is in P (Park). If you have a manual transmission, the ignition switch can be turned to LOCK/OFF in any shift lever position.
Page 70: Retained Accessory Power (Rap)
Retained Accessory Power (RAP) These vehicle accessories can be used for up to 10 minutes after the engine is turned off: • Audio System • Power Windows, if equipped • Sunroof, if equipped The power windows and sunroof will continue to work for up to 10 minutes or until any door is opened.
Page 71: Starting Procedure
Starting Procedure 1. With your foot off the accelerator pedal, turn the ignition key to START. When the engine starts, let go of the key. The idle speed will go down as the engine warms. Do not race the engine immediately after starting it.
Page 72 Automatic Transmission Operation If the vehicle has an automatic transmission, the shift lever is located on the center console between the front seats. There are several different positions for the automatic transmission. P (Park): This position locks the rear wheels. It is the best position to use when starting the engine because the vehicle cannot move easily.
Page 73 Notice: Shifting to R (Reverse) while the vehicle is moving forward could damage the transmission. The repairs would not be covered by the vehicle warranty. Shift to R (Reverse) only after the vehicle is stopped. R (Reverse): Use this gear to back up. To rock the vehicle back and forth to get out of snow, ice, or sand without damaging the transmission, see If Your Vehicle is Stuck in Sand, Mud, Ice, or Snow...
Page 74 I (Intermediate): This position is also used for normal driving. However, it reduces vehicle speed without using the brakes, for slight downgrades where the vehicle would otherwise accelerate due to steepness of grade. If constant upshifting or downshifting occurs while driving on steep hills, this position can be used to prevent repetitive types of shifts.
Page 75 2 (Second): Press the clutch pedal as you let up on the accelerator pedal and shift into 2 (Second). Then, slowly let up on the clutch pedal as you press the accelerator pedal. 3 (Third), 4 (Fourth), and 5 (Fifth): Shift into 3 (Third), 4 (Fourth) and 5 (Fifth) the same way you do for 2 (Second).
Page 76: Parking Brake
Parking Brake The parking brake lever is located between the front seats. 2-24 To set the parking brake, hold the brake pedal down and pull up on the parking brake lever. If the ignition is on, the brake system warning light will come on. See Brake System Warning Light on page 3-25.
Page 77: Shifting Into Park (Automatic Transmission)
Shifting Into Park (Automatic Transmission) CAUTION: It can be dangerous to get out of the vehicle if the shift lever is not fully in P (Park) with the parking brake ﬁrmly set. The vehicle can roll. If you have left the engine running, the vehicle can move suddenly.
Page 78: Shifting Out Of Park
Torque Lock (Automatic Transmission) If you are parking on a hill and you do not shift your transmission into P (Park) properly, the weight of the vehicle may put too much force on the parking pawl in the transmission. You may ﬁnd it difficult to pull the shift lever out of P (Park).
Page 79: Parking The Vehicle (Manual Transmission)
If you still are unable to shift out of P (Park): 1. Fully release the shift lever button. 2. While holding down the brake pedal, press the shift lever button again. 3. Move the shift lever to the desired position. If you still cannot move the shift lever from P (Park), see your dealer/retailer.
Page 80: Engine Exhaust
Engine Exhaust CAUTION: Engine exhaust contains Carbon Monoxide (CO) which cannot be seen or smelled. Exposure to CO can cause unconsciousness and even death. Exhaust may enter the vehicle if: • The vehicle idles in areas with poor ventilation (parking garages, tunnels, deep snow that may block underbody airﬂow or tail pipes).
Page 81: Running The Vehicle While Parked
Running the Vehicle While Parked It is better not to park with the engine running. But if you ever have to, here are some things to know. CAUTION: Idling a vehicle in an enclosed area with poor ventilation is dangerous. Engine exhaust may enter the vehicle.
Page 82: Mirrors
Mirrors Manual Rearview Mirror Adjust the mirror to see clearly behind your vehicle. Hold the mirror in the center to move it up or down and side to side. Adjust the mirror to avoid glare from the headlamps behind your vehicle. Move the lever to the right for nighttime use and to the left for daytime use.
Page 83: Onstar System
® OnStar System OnStar uses several innovative technologies and live advisors to provide a wide range of safety, security, information, and convenience services. If the airbags deploy, the system is designed to make an automatic call to OnStar Emergency advisors who can request emergency services be sent to your location.
Page 84 OnStar Services Available with the Safe & Sound Plan • Automatic Notiﬁcation of Airbag Deployment • Advanced Automatic Crash Notiﬁcation (AACN) (If equipped) • Link to Emergency Services • Roadside Assistance • Stolen Vehicle Location Assistance • Remote Door Unlock/Vehicle Alert •...
Page 85: Onstar Steering Wheel Controls
OnStar Turn-by-Turn Navigation Vehicles with the OnStar Turn-by-Turn Navigation system can provide voice-guided driving directions. Press the OnStar button to have an OnStar advisor locate a business or address and download driving directions to the vehicle. Voice-guided directions to the desired destination will play through the audio system speakers.
Page 86: Your Responsibility
OnStar service cannot work unless the vehicle is in a place where OnStar has an agreement with a wireless service provider for service in that area. OnStar service also cannot work unless the vehicle is in a place where the wireless service provider OnStar has hired for that area has coverage, network capacity and reception when the service is needed, and technology that is compatible with the OnStar...
Page 87: Storage Areas
Storage Areas Glove Box Lift the glove box handle up to open it. Use the key to lock and unlock the glove box. Cupholders There is a cupholder on the passenger side of the center console. Press and release the forward section of the cupholder to access it.
Page 88 The parts of the manual convertible top that are used when lowering and raising it are: A. Front Edge D. Rear Buttresses B. Side Edge E. Trunk C. Lower Seal Pins Notice: Leaving the convertible top down and exposing the interior of your vehicle to outdoor conditions may cause damage.
Page 89: Lowering The Manual Convertible Top
Lowering the Manual Convertible Top 1. Empty the trunk of all contents. 2. Park on a level surface and set the parking brake. Shift an automatic transmission into (P) Park. Shift a manual transmission into (1) First or (R) Reverse. 3.
Page 90 Raising the Manual Convertible Top 1. Park on a level surface, set the parking brake ﬁrmly and shift an automatic transmission into (P) Park. Shift a manual transmission into (1) First or (R) Reverse. 2. Turn off the ignition, and lower the windows. 3.
Page 91 6. Pull the front edge (A) of the convertible top forward from the outside of the vehicle, or push the front edge (A) of the convertible top forward from the inside of the vehicle. 7. Turn the top front latch handle clockwise to latch the convertible top.
Page 92 ✍ NOTES 2-40...
Page 93 Section 3 Instrument Panel Overview ...3-4 Hazard Warning Flashers ...3-5 Horn ...3-5 Tilt Wheel ...3-6 Turn Signal/Multifunction Lever ...3-6 Turn and Lane-Change Signals ...3-7 Headlamp High/Low-Beam Changer ...3-7 Flash-to-Pass ...3-7 Windshield Wipers ...3-8 Windshield Washer ...3-9 Cruise Control ...3-9 Headlamps ...3-12 Headlamps on Reminder ...3-12 Daytime Running Lamps (DRL) ...3-13 Fog Lamps ...3-13...
Page 94 Section 3 Driver Information Center (DIC) ...3-34 DIC Operation and Displays ...3-34 DIC Warnings and Messages ...3-36 DIC Vehicle Personalization ...3-41 Audio System(s) ...3-45 Setting the Clock ...3-46 Radio(s) ...3-48 Using an MP3 ...3-59 Instrument Panel XM Radio Messages ...3-66 ®...
Page 95 ✍ NOTES...
Page 96: Instrument Panel Overview
Instrument Panel Overview...
Page 97: Hazard Warning Flashers
The main components of the instrument panel are the following: A. Side Window Outlets. See Climate Control System on page 3-16. B. Outlet Adjustment on page 3-19. C. Turn Signal/Multifunction Lever on page 3-6. D. Cruise Control on page 3-9 (If Equipped). E.
Page 98: Tilt Wheel
Tilt Wheel A tilt wheel lets the steering wheel be adjusted. The tilt lever is located on the left side of the steering column. To tilt the wheel, pull the lever down. Raise or lower the wheel to a comfortable position, then pull the lever up to lock the wheel in place.
Page 99: Turn And Lane-Change Signals
Turn and Lane-Change Signals An arrow on the instrument panel cluster ﬂashes in the direction of the turn or lane change. Move the lever all the way up or down to signal a turn. Raise or lower the lever until the arrow starts to ﬂash to signal a lane change.
Page 100: Windshield Wipers
Windshield Wipers The windshield wiper lever is located on the right side of the steering wheel. Move the lever to control the windshield wipers. (Off): Turns the windshield wipers off. & (Intermittent; Speed Sensitive Wipers): For intermittent or speed sensitive operation. The amount of delay time varies between wiping cycles due to the delay setting selected or the speed of the vehicle.
Page 101: Windshield Washer
Windshield Washer Press the button at the end of the windshield wiper lever until the washers begin. CAUTION: In freezing weather, do not use your washer until the windshield is warmed. Otherwise the washer ﬂuid can form ice on the windshield, blocking your vision.
Page 102: Setting Cruise Control
Setting Cruise Control CAUTION: If you leave your cruise control on when you are not using cruise, you might hit a button and go into cruise when you do not want to. You could be startled and even lose control. Keep the cruise control switch off until you want to use cruise control.
Page 103 Increasing Speed While Using Cruise Control There are two ways to increase speed. 1. Disengage the cruise control by applying the brake pedal, but do not turn it off. Accelerate to a higher speed and reset the cruise control. 2. If the cruise control system is already engaged, press the RES+ button.
Page 104: Headlamps
Headlamps The lever on the left side of the steering column operates the exterior lamps. The exterior lamp switch has the following four positions: (Headlamps): Turns on the headlamps, parking lamps, and taillamps. (Parking Lamps): Turns on the parking lamps and taillamps only.
Page 105: Daytime Running Lamps (Drl)
Daytime Running Lamps (DRL) Daytime Running Lamps (DRL) can make it easier for others to see the front of your vehicle during the day. Fully functional daytime running lamps are required on all vehicles ﬁrst sold in Canada. The vehicle has a light sensor on top of the instrument panel that helps control the DRL.
Page 106: Instrument Panel Brightness
Instrument Panel Brightness The control for this feature is located on the instrument panel to the left of the steering wheel. Turn the thumbwheel up or down to brighten or dim the lights. Entry/Exit Lighting The lamps inside the vehicle come on when any door is opened.
Page 107: Ashtray(S) And Cigarette Lighter
Certain electrical accessories may not be compatible with the accessory power outlet and could result in blown vehicle or adapter fuses. If you experience a problem, see your dealer/retailer for additional information on the accessory power outlet. Notice: Adding any electrical equipment to your vehicle can damage it or keep other components from working as they should.
Page 108: Climate Controls
Climate Controls Climate Control System The heating, cooling, and ventilation of the vehicle can be controlled with this system. A. Temperature D. Air Conditioning Control E. Recirculation B. Fan Control F. Rear Window C. Air Delivery Mode Defogger Control (Off): Turn the fan control to this position to turn the fan off.
Page 109 (Floor/Defog): This mode clears the windows of fog or moisture. Air is directed to the windshield, side window, and ﬂoor outlets. In this mode, the system runs the air conditioning compressor unless the outside temperature is near freezing or below. (Defrost): This mode removes fog or frost from the windshield more quickly.
Page 110: Rear Window Defogger
For quick cool down on hot days, do the following: 1. Select 2. Select 3. Select the air conditioning to on. 4. Select the coolest temperature. 5. Select the highest fan speed. Using these settings together for long periods of time can cause the air inside of the vehicle to become too dry.
Page 111: Outlet Adjustment
ﬂow of air into the vehicle. • Use of non-Saturn approved hood deﬂectors may adversely affect the performance of the system. • Keep the path under the front seats clear of objects to help circulate the air inside of the vehicle more effectively.
Page 112: Instrument Panel Cluster
Instrument Panel Cluster The instrument panel cluster is designed to show how the vehicle is running. It shows how fast the vehicle is going, about how much fuel is left in the tank, and many other things needed to drive safely and economically. United States Base Cluster shown, Canada and Uplevel similar 3-20...
Page 113: Speedometer And Odometer
Speedometer and Odometer The speedometer shows the vehicle’s speed in both miles per hour (mph) and kilometers per hour (km/h). The vehicle’s odometer works together with the Driver Information Center (DIC). Trip A and Trip B can be set on the odometer. See “Trip Information” under DIC Operation and Displays on page 3-34.
Page 114: Airbag Readiness Light
Passenger Safety Belt Reminder Light Several seconds after the engine is started, a chime sounds for several seconds to remind the front passenger to buckle their safety belt. This only occurs if the passenger airbag is enabled. See Passenger Sensing System on page 1-40 for more information. The passenger safety belt light, located on the instrument panel, comes on and stays on for several seconds and then ﬂashes for several more.
Page 115: Passenger Airbag Status Indicator
CAUTION: If the airbag readiness light stays on after the vehicle is started or comes on while driving, it means the airbag system might not be working properly. The airbags in the vehicle might not inﬂate in a crash, or they could even inﬂate without a crash.
Page 116: Charging System Light
If the word OFF or the off symbol is lit on the airbag status indicator, it means that the passenger sensing system has turned off the right front passenger frontal airbag. If, after several seconds, both status indicator lights remain on, or if there are no lights at all, there may be a problem with the lights or the passenger sensing system.
Page 117: Brake System Warning Light
Brake System Warning Light The vehicle’s hydraulic brake system is divided into two parts. If one part is not working, the other part can still work and stop the vehicle. For good braking both parts need to be working well. If the warning light comes on, there is a brake problem.
Page 118: Antilock Brake System (Abs) Warning Light
Antilock Brake System (ABS) Warning Light The Antilock Brake System (ABS) light comes on brieﬂy when the engine is started. If it does not, have the vehicle serviced by your dealer/retailer. If the system is working normally the indicator light then goes off. If the ABS light stays on, turn the ignition off.
Page 119: Engine Coolant Temperature Warning Light
When the TCS is disabled, wheel spin is not limited. When the ESC system is disabled, the system does not aid in maintaining vehicle directional control. If the light comes on and ﬂashes, the TCS or the ESC system is actively working. When the LOW TRACTION message appears, the system is limiting wheel spin.
Page 120: Tire Pressure Light
Tire Pressure Light For vehicles with a tire pressure light, this light comes on brieﬂy when the engine is started and provides information about tire pressures and the Tire Pressure Monitoring System. When the Light is On Steady This indicates that one or more of the tires is signiﬁcantly underinﬂated.
Page 121: Malfunction Indicator Lamp
Malfunction Indicator Lamp Check Engine Light A computer system called OBD II (On-Board Diagnostics-Second Generation) monitors operation of the fuel, ignition, and emission control systems. It makes sure that emissions are at acceptable levels for the life of the vehicle, helping to produce a cleaner environment. This light comes on when the ignition is on, but the engine is not running, as a...
Page 122 The following can prevent more serious damage to the vehicle: • Reduce vehicle speed. • Avoid hard accelerations. • Avoid steep uphill grades. If the light continues to ﬂash, when it is safe to do so, stop the vehicle. Find a safe place to park the vehicle. Turn the key off, wait at least 10 seconds, and restart the engine.
Page 123: Oil Pressure Light
Emissions Inspection and Maintenance Programs Some state/provincial and local governments have or might begin programs to inspect the emission control equipment on the vehicle. Failure to pass this inspection could prevent getting a vehicle registration. Here are some things to know to help the vehicle pass an inspection: •...
Page 124: Security Light
If the light comes on and stays on, it means that oil is not ﬂowing through the engine properly. The vehicle could be low on oil and it might have some other system problem. Security Light For information regarding this light and the vehicle’s security system, see Content Theft-Deterrent on page 2-12.
Page 125: Fuel Gage
Fuel Gage The fuel gage shows about how much fuel the vehicle has left in the fuel tank. An arrow on the fuel gage indicates the side of the vehicle the fuel door is on. Here are four things some owners ask about. None of these indicate a problem with the fuel gage: •...
Page 126: Driver Information Center (Dic)
Driver Information Center (DIC) Your vehicle has a Driver Information Center (DIC). The DIC display gives you the status of many of your vehicle’s systems. The DIC is also used to display driver personalization menu modes and warning/status messages. All messages will appear in the DIC display, located at the bottom of the instrument panel cluster.
Page 127 TRIP A or TRIP B Press the information button until TRIP A or TRIP B display. These modes show the current distance traveled since the last reset for each trip odometer in either miles (mi) or kilometers (km). Both odometers can be used at the same time.
Page 128: Tire Pressure
OIL LIFE Press the information button until OIL LIFE displays. The engine oil life system shows an estimate of the oil’s remaining useful life. It shows 100% when the system is reset after an oil change. It alerts you to change the oil on a schedule consistent with your driving conditions.
Page 129: Brake Fluid
AUTO (Automatic) LIGHTS ON This message displays if the automatic headlamp system is enabled with the headlamp switch. BRAKE FLUID This message displays, while the ignition is on, when the brake ﬂuid level is low. The brake system warning light on the instrument panel cluster also comes on. See Brake System Warning Light on page 3-25 for more information.
Page 130: Door Ajar
CRUISE ENGAGED This message displays when the cruise control system is active. See Cruise Control on page 3-9 for more information. DOOR AJAR This message displays if one or more of the vehicle’s doors are not closed properly. Make sure that the door(s) are closed completely.
Page 131: Ice Possible
ICE POSSIBLE This message displays when the outside air temperature is cold enough to create icy road conditions. Adjust your driving accordingly. KEY FOB BATT (Battery) LOW This message displays if the Remote Keyless Entry (RKE) transmitter battery is low. Replace the battery in the transmitter.
Page 132: Traction Off
If this message turns on while you are driving, pull off the road as soon as possible and stop carefully. Try resetting the system by turning the ignition off and then back on. If this message still stays on or turns back on again while you are driving, your vehicle needs service.
Page 133: Dic Vehicle Personalization
DIC Vehicle Personalization Your vehicle has personalization capabilities that allow you to program certain features to a preferred setting. All of the features listed may not be available on your vehicle. Only the features available will be displayed on the DIC. The default settings for the features were set when your vehicle left the factory, but may have been changed from their default state since that time.
Page 134: Unlock Horn
When LOCK HORN appears on the display, press and hold the reset button for at least one second to scroll through the available settings: OFF (default): The horn will not chirp on the ﬁrst press of the lock button on the RKE transmitter. The horn will still chirp on the second press.
Page 135 AUTO UNLK (Unlock) This feature, which allows the vehicle to automatically unlock certain doors, can be enabled or disabled. When AUTO UNLK appears on the display, press and hold the reset button for at least one second to scroll through the available settings: ALL (default): All of the doors will automatically unlock.
Page 136 EXT (Exterior) LIGHTS This feature, which allows the vehicle’s exterior perimeter lighting to turn on each time the unlock button on the Remote Keyless Entry (RKE) transmitter is pressed, can be enabled or disabled. When EXT LIGHTS appears on the display, press and hold the reset button for at least one second to scroll through the available settings: OFF: The exterior perimeter lighting will not turn on...
Page 137: Audio System(S)
Audio System(s) Determine which radio the vehicle has and read the following pages to become familiar with its features. CAUTION: Taking your eyes off the road for extended periods could cause a crash resulting in injury or death to you or others. Do not give extended attention to entertainment tasks while driving.
Page 138: Setting The Clock
Setting the Clock Without Date Display AM/FM Base Radio with a Single CD Player To set the time: 1. Turn the ignition key to ACC/ACCESSORY or ON/RUN. Press to turn the radio on. 2. Press until the hour begins ﬂashing on the display.
Page 139 To change the time default setting from 12 hour to 24 hour or to change the date default setting from month/day/year to day/month/year: 1. Press and then the softkey located below the forward arrow label. Once the time 12H and 24H, and the date MM/DD/YYYY (month, day, and year) and DD/MM/YYYY (day, month, and year) displays.
Page 140: Radio(S)
Radio(s) Radio with CD (Base) 3-48 Radio with CD (MP3) and USB Port shown, Radio with CD (MP3) similar, Radio with Six-Disc CD (MP3) similar The vehicle has one of these radios as its audio system. Radio Data System (RDS) The radio may have RDS.
Page 141: Playing The Radio
In rare cases, a radio station could broadcast incorrect information that causes the radio features to work improperly. If this happens, contact the radio station. Playing the Radio (Power/Volume): Press to turn the system on and off. Turn to increase or decrease the volume. Speed Compensated Volume (SCV): Radios with the Speed Compensated Volume (SCV) feature automatically adjust the radio volume to compensate...
Page 142: Storing Radio Stations
¨ SEEK: Press to seek or scan stations with a strong signal in the selected band. • To seek stations, press and release to the next station and stay there. • To scan stations, press and hold seconds until the radio beeps once. The radio goes to a station, plays for a few seconds, then goes ¨...
Page 143 To store a station as a favorite: 1. Tune to the desired radio station and set the balance/fade and tone settings to the desired levels. 2. Press FAV to display the page where to store the station. 3. Press and hold one of the six softkeys until a beep sounds.
Page 144: Adjusting The Speakers (Balance/Fade)
Setting the Tone (Bass/Midrange/Treble) BASS/MID/TREB (Bass, Midrange, or Treble): The radio may display some or all tones such as BASS, MID, and TREB. To adjust the tone settings on the Radio with CD (Base): Press until the tone control labels display, then turn to change the setting.
Page 145 3. Turn to adjust the highlighted setting. The highlighted setting can also be adjusted by pressing either SEEK arrow. On some radios, FWD and be used to adjust the highlighted level. To adjust balance or fade using 1. Press until the speaker control labels display. 2.
Page 146: Loading A Cd
Undesired XM categories can be removed through the setup menu. To remove an undesired category: 1. Press MENU to display the radio setup menu. 2. Press the softkey below the XM CAT tab. 3. Turn to display the category to be removed. 4.
Page 147: Ejecting A Cd
Radio’s with a Six-Disc CD Player LOAD : Press to load CDs into the CD player. This CD player holds up to six CDs. To insert one CD: 1. Press and release 2. Wait for the message to insert the disc. 3.
Page 148: Playing A Cd
Playing a CD If the ignition or radio is turned off with a CD in the player it stays in the player. When the ignition or radio is turned on, the CD starts to play where it stopped, if it was the last selected audio source. (Tune): Turn to select tracks on the CD currently playing.
Page 149: Care Of Cds
Playing an MP3 CD-R or CD-RW Disc The radio may have the ability to play an MP3 CD-R or CD-RW disc. See Using an MP3 on page 3-59 for more information. CD Messages CHECK DISC: If an error message displays and/or the CD comes out, it could be for one of the following reasons: •...
Page 150: Care Of The Cd Player
Care of the CD Player Do not add labels to a CD, it could get caught in the CD player. Use a marking pen to write on the top of the CD if a description is needed. Do not use CD lens cleaners, they could damage the CD player.
Page 151: Using The Usb Port
Using the USB Port Radio’s with a USB port can control a USB storage ® device or an iPod using the radio buttons and knobs. See Using an MP3 on page 3-59 for information about how to connect and control a USB storage device or an iPod.
Page 152 CD-R or CD-RW Supported File and Folder Structure The radio supports: • Up to 50 folders. • Up to 8 folders in depth. • Up to 50 playlists. • Up to 255 ﬁles. • Playlists with an .m3u or .wpl extension. •...
Page 153 File System and Naming The song name that displays is the song name that is contained in the ID3 tag. If the song name is not present in the ID3 tag, then the radio displays the ﬁle name without the extension (such as .mp3) as the track name. Track names longer than 32 characters or four pages are shortened.
Page 154 (Next Folder): Press the softkey below go to the ﬁrst track in the next folder. RDM (Random): MP3 ﬁles can be listened to on a CD in random, rather than sequential order, on one CD or all discs in the Six-Disc CD player. To use random: 1.
Page 155: Connecting A Usb Storage Device ® Or Ipod
Connecting a USB Storage Device ® or iPod The USB Port can be used to control an iPod or a USB storage device. To connect a USB storage device, connect the device to the USB port located on the front of the radio. To connect an iPod, connect one end of the USB cable that came with the iPod to the iPod’s dock connector and connect the other end to the USB port located...
Page 156: Using Softkeys To Control A Usb Storage Device Or Ipod
Using Softkeys to Control a USB Storage Device or iPod The ﬁve softkeys below the radio display are used to control the functions listed below. To use the softkeys: 1. Press the ﬁrst or ﬁfth softkey below the radio display to display the functions listed below, or press the softkey below the function if it is currently displayed.
Page 157 To select ﬁles: 1. Press the softkey below 2. Turn to scroll through the list of menus. 3. Press to select the desired menu. 4. Turn to scroll through the folders or ﬁles in the selected menu. 5. Press to select the desired ﬁle to be played. To skip through large lists, the ﬁve softkeys can be used to navigate in the following order: •...
Page 158: Xm Radio Messages
XM Radio Messages XL (Explicit Language Channels): These channels, or any others, can be blocked at a customer’s request, by calling 1-800-852-XMXM (9696). XM Updating: The encryption code in the receiver is being updated, and no action is required. This process should take no longer than 30 seconds.
Page 159: Bluetooth
XM Not Available: If this message does not clear within a short period of time, the receiver could have a fault. Consult with your dealer/retailer. ® Bluetooth Vehicles with a Bluetooth system can use a Bluetooth capable cell phone with a Hands Free Proﬁle to make and receive phone calls.
Page 160: Pairing A Phone
Pairing A Bluetooth enabled cell phone must be paired to the in-vehicle Bluetooth system ﬁrst and then connected to the vehicle before it can be used. See the cell phone manufacturers user guide for Bluetooth functions before pairing the cell phone. If a Bluetooth phone is not connected, calls will be made using OnStar Hands-Free Calling, if available.
Page 161: Storing Name Tags
Listing All Paired and Connected Phones 1. Press and hold for two seconds. The system responds with “Ready” followed by a tone. 2. Say “Bluetooth”. The system responds with “Bluetooth ready” followed by a tone. 3. Say “List”. The system lists all the paired Bluetooth devices.
Page 162 Using the Store Command The store command allows a phone number to be stored without entering the digits individually. 1. Press and hold for two seconds. The system responds with “Ready” followed by a tone. 2. Say “Store”. The system responds with “Store, number please”...
Page 163: Deleting Name Tags
4. After the complete number has been entered, say “Store”. The system responds with “Please say the name tag” followed by a tone. 5. Say a name tag for the phone number. The name tag is recorded and the system responds with “About to store <name tag>.
Page 164: Making A Call
Using the Delete All Name Tags Command The delete all name tags command deletes all stored phone book name tags and route name tags for OnStar, if present. To use the delete all name tags command: 1. Press and hold for two seconds.
Page 165: Using The Call Command
4. Continue entering digits until the number to be dialed is complete. After the whole number has been entered, say “Dial”. The system responds with “OK, Dialing” and dials the number. • If an unwanted number is recognized by the system, say “Clear”...
Page 166: Receiving A Call
Receiving a Call When an incoming call is received, the audio system mutes and a ring tone is heard in the vehicle. • Press and begin speaking to answer the call. • Press to ignore a call. Call Waiting Call waiting must be supported on the Bluetooth phone and enabled by the wireless service carrier to work.
Page 167: Transferring A Call
Muting a Call During a call, all sounds from inside the vehicle can be muted so that the person on the other end of the call cannot hear them. To Mute a call 1. Press . The system responds with “Ready” followed by a tone.
Page 168 Voice Pass-Thru Voice Pass-Thru allows access to the voice recognition commands on the cell phone. See the cell phone manufacturers user guide to see if the cell phone supports this feature. This feature can be used to verbally access contacts stored in the cell phone. 1.
Page 169: Other Information
Sending a Stored Name Tag During a Call 1. Press . The system responds with “Ready” followed by a tone. 2. Say “Send name tag.” The system responds with “Say a name tag to send tones” followed by a tone. 3.
Page 170: Theft-Deterrent Feature
Theft-Deterrent Feature ® THEFTLOCK is designed to discourage theft of the vehicle’s radio by learning a portion of the Vehicle Identiﬁcation Number (VIN). The radio does not operate if it is stolen or moved to a different vehicle. Audio Steering Wheel Controls Vehicles with audio steering wheel controls could differ depending...
Page 171: Radio Reception
3. Press and release to scroll up or down the list. • To select a folder, press and hold the folder is highlighted. • To go back further in the folder list, press and hold (End): Press to reject an incoming call, or end a current call.
Page 172: Fixed Mast Antenna
Cellular Phone Usage Cellular phone usage may cause interference with the vehicle’s radio. This interference may occur when making or receiving phone calls, charging the phone’s battery, or simply having the phone on. This interference causes an increased level of static while listening to the radio.
Page 173: Driving Your Vehicle
Section 4 Your Driving, the Road, and the Vehicle ...4-2 Driving for Better Fuel Economy ...4-2 Defensive Driving ...4-2 Drunk Driving ...4-3 Control of a Vehicle ...4-3 Braking ...4-4 Antilock Brake System (ABS) ...4-5 Braking in Emergencies ...4-6 Electronic Stability Control (ESC) ...4-6 Traction Control System (TCS) ...4-9 Limited-Slip Rear Axle ...4-11 Steering ...4-11...
Page 174: Your Driving, The Road, And The Vehicle
Your Driving, the Road, and the Vehicle Driving for Better Fuel Economy Driving habits can affect fuel mileage. Here are some driving tips to get the best fuel economy possible. • Avoid fast starts and accelerate smoothly. • Brake gradually and avoid abrupt stops. •...
Page 175: Drunk Driving
Drunk Driving CAUTION: Drinking and then driving is very dangerous. Your reﬂexes, perceptions, attentiveness, and judgment can be affected by even a small amount of alcohol. You can have a serious — or even fatal — collision if you drive after drinking. Do not drink and drive or ride with a driver who has been drinking.
Page 176: Braking
Braking See Brake System Warning Light on page 3-25. Braking action involves perception time and reaction time. Deciding to push the brake pedal is perception time. Actually doing it is reaction time. Average reaction time is about three-fourths of a second.
Page 177: Antilock Brake System (Abs)
Antilock Brake System (ABS) This vehicle has Electronic Stability Control (ESC) with the Antilock Brake System (ABS), an advanced electronic braking system that will help prevent a braking skid. When the engine is started and the vehicle begins to drive away, ABS checks itself. A momentary motor or clicking noise might be heard while this test is going on, and it might even be noticed that the brake pedal moves a little.
Page 178: Brake Assist
Braking in Emergencies ABS allows the driver to steer and brake at the same time. In many emergencies, steering can help more than even the very best braking. Brake Assist This vehicle has a Brake Assist feature designed to assist the driver in stopping or decreasing vehicle speed in emergency driving conditions.
Page 179 This light ﬂashes on the instrument panel cluster while the ESC system is both on and activated. When the system activates, an ESC ACTIVE message displays on the DIC. The system may be heard or felt while it is working; this is normal. Continue to steer the vehicle in the intended direction.
Page 180: Competitive Driving Mode
ESC may also turn off automatically if it determines that a problem exists with the system. The ESC OFF and SERVICE ESC messages and the ESC/TCS light will be on solid to warn the driver that ESC is disabled and requires service.
Page 181: Traction Control System (Tcs)
Traction Control System (TCS) The vehicle has a Traction Control System (TCS) that limits wheel spin. This is especially useful in slippery road conditions. The system operates only if it senses that the rear wheels are spinning too much or are beginning to lose traction.
Page 182 It is recommended to leave the system on for normal driving conditions, but it may be necessary to turn the system off if the vehicle is stuck in sand, mud, ice or snow, and you want to “rock” the vehicle to attempt to free it.
Page 183: Power Steering
Notice: When traction control is turned off, or Competitive Driving Mode is active, it is possible to lose traction. If you attempt to shift with the drive wheels spinning with a loss of traction, it is possible to cause damage to the transmission. Do not attempt to shift when the drive wheels do not have traction.
Page 184: Steering In Emergencies
If there is a need to reduce speed, do it before entering the curve, while the front wheels are straight. Try to adjust the speed so you can drive through the curve. Maintain a reasonable, steady speed. Wait to accelerate until out of the curve, and then accelerate gently into the straightaway.
Page 185: Off-Road Recovery
Off-Road Recovery The vehicle’s right wheels can drop off the edge of a road onto the shoulder while driving. If the level of the shoulder is only slightly below the pavement, recovery should be fairly easy. Ease off the accelerator and then, if there is nothing in the way, steer so that the vehicle straddles the edge of the pavement.
Page 186 Skidding In a skid, a driver can lose control of the vehicle. Defensive drivers avoid most skids by taking reasonable care suited to existing conditions, and by not overdriving those conditions. But skids are always possible. The three types of skids correspond to the vehicle’s three control systems.
Page 187: Driving At Night
Driving at Night Night driving is more dangerous than day driving because some drivers are likely to be impaired — by alcohol or drugs, with night vision problems, or by fatigue. Night driving tips include: • Drive defensively. • Do not drink and drive. •...
Page 188: Driving In Rain And On Wet Roads
Driving in Rain and on Wet Roads Rain and wet roads can reduce vehicle traction and affect your ability to stop and accelerate. Always drive slower in these types of driving conditions and avoid driving through large puddles and deep-standing or ﬂowing water. CAUTION: Wet brakes can cause crashes.
Page 189: Before Leaving On A Long Trip
Before Leaving on a Long Trip To prepare your vehicle for a long trip, consider having it serviced by your dealer/retailer before departing. Things to check on your own include: • Windshield Washer Fluid: Reservoir full? Windows clean — inside and outside? •...
Page 190: Hill And Mountain Roads
Hill and Mountain Roads Driving on steep hills or through mountains is different than driving on ﬂat or rolling terrain. Tips for driving in these conditions include: • Keep the vehicle serviced and in good shape. • Check all ﬂuid levels and brakes, tires, cooling system, and transmission.
Page 191: Winter Driving
Winter Driving Driving on Snow or Ice Drive carefully when there is snow or ice between the tires and the road, creating less traction or grip. Wet ice can occur at about 32°F (0°C) when freezing rain begins to fall, resulting in even less traction. Avoid driving on wet ice or in freezing rain until roads can be treated with salt or sand.
Page 192 Blizzard Conditions Being stuck in snow can be in a serious situation. Stay with the vehicle unless there is help nearby. If possible, use the Roadside Assistance Program on page 7-7. To get help and keep everyone in the vehicle safe: •...
Page 193: If Your Vehicle Is Stuck In Sand, Mud, Ice, Or Snow
Run the engine for short periods only as needed to keep warm, but be careful. To save fuel, run the engine for only short periods as needed to warm the vehicle and then shut the engine off and close the window most of the way to save heat. Repeat this until help arrives but only when you feel really uncomfortable from the cold.
Page 194: Rocking Your Vehicle To Get It Out
Rocking Your Vehicle to Get It Out Turn the steering wheel left and right to clear the area around the front wheels. Turn off any traction or stability system. Shift back and forth between R (Reverse) and a forward gear, or with a manual transmission, between 1 (First) or 2 (Second) and R (Reverse), spinning the wheels as little as possible.
Page 195 Tire and Loading Information Label Label Example A vehicle speciﬁc Tire and Loading Information label is attached to the center pillar (B-pillar) of your vehicle. With the driver’s door open, you will ﬁnd the label attached below the door latch. This label shows the number of occupant seating positions (A), and the maximum vehicle capacity weight (B) in kilograms and pounds.
Page 196 The resulting ﬁgure equals the available amount of cargo and luggage load capacity. For example, if the “XXX” amount equals 1400 lbs and there will be ﬁve 150 lb passengers in your vehicle, the amount of available cargo and luggage load capacity is 650 lbs (1400 −...
Page 197 Example 2 Item Description Vehicle Capacity Weight for Example 2 = Subtract Occupant Weight @ 150 lbs (68 kg) x 2 = Available Cargo Weight = Total Item Vehicle Capacity 400 lbs (181 kg) Weight for Example 3 = Subtract Occupant 300 lbs (136 kg) Weight @ 200 lbs (91 kg) x 2 =...
Page 198 Certiﬁcation Label A vehicle speciﬁc Certiﬁcation label is attached to the rear edge of the driver’s door or the vehicle’s center pillar (B-pillar) below the driver’s door latch. It tells you the gross weight capacity of your vehicle, called the Gross Vehicle Weight Rating (GVWR).
Page 199: Towing
If you put things inside your vehicle — like suitcases, tools, packages, or anything else — they will go as fast as the vehicle goes. If you have to stop or turn quickly, or if there is a crash, they will keep going.
Page 200 ✍ NOTES 4-28...
Page 201: Service And Appearance Care
Section 5 Service ...5-3 Accessories and Modiﬁcations ...5-3 California Proposition 65 Warning ...5-4 California Perchlorate Materials Requirements ...5-4 Doing Your Own Service Work ...5-4 Adding Equipment to the Outside of the Vehicle ...5-5 Fuel ...5-5 Gasoline Octane ...5-5 Gasoline Speciﬁcations ...5-5 California Fuel ...5-6 Additives ...5-6 Fuels in Foreign Countries ...5-7...
Page 202 Section 5 Tire Pressure Monitor Operation ...5-58 Tire Inspection and Rotation ...5-62 When It Is Time for New Tires ...5-64 Buying New Tires ...5-65 Different Size Tires and Wheels ...5-66 Uniform Tire Quality Grading ...5-67 Wheel Alignment and Tire Balance ...5-69 Wheel Replacement ...5-69 Tire Chains ...5-72 If a Tire Goes Flat ...5-72...
Page 203: Service
Service For service and parts needs, visit your dealer/retailer. You will receive genuine Saturn parts and Saturn-trained and supported service people. Genuine Saturn parts have one of these marks. Accessories and Modiﬁcations When non-dealer/non-retailer accessories are added to the vehicle, they can affect vehicle performance and...
Page 204: California Proposition 65 Warning
California Proposition 65 Warning Most motor vehicles, including this one, contain and/or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Engine exhaust, many parts and systems (including some inside the vehicle), many ﬂuids, and some component wear by-products contain and/or emit these chemicals.
Page 205: Adding Equipment To The Outside Of The Vehicle
This vehicle has an airbag system. Before attempting to do your own service work, see Servicing Your Airbag-Equipped Vehicle on page 1-44. Keep a record with all parts receipts and list the mileage and the date of any service work performed. See Maintenance Record on page 6-16.
Page 206: California Fuel
California Fuel If the vehicle is certiﬁed to meet California Emissions Standards, it is designed to operate on fuels that meet California speciﬁcations. See the underhood emission control label. If this fuel is not available in states adopting California emissions standards, the vehicle will operate satisfactorily on fuels meeting federal speciﬁcations, but emission control system performance might be affected.
Page 207: Fuels In Foreign Countries
Also, your dealer/retailer has additives that will help correct and prevent most deposit-related problems. Gasolines containing oxygenates, such as ethers and ethanol, and reformulated gasolines might be available in your area. We recommend that you use these gasolines, if they comply with the speciﬁcations described earlier. However, E85 (85% ethanol) and other fuels containing more than 10% ethanol must not be used in vehicles that were not designed for those fuels.
Page 208: Filling The Tank
Filling the Tank CAUTION: Fuel vapor burns violently and a fuel ﬁre can cause bad injuries. To help avoid injuries to you and others, read and follow all the instructions on the pump island. Turn off the engine when you are refueling.
Page 209 CAUTION: Fuel can spray out on you if you open the fuel cap too quickly. If you spill fuel and then something ignites it, you could be badly burned. This spray can happen if the tank is nearly full, and is more likely in hot weather.
Page 210: Filling A Portable Fuel Container
Filling a Portable Fuel Container CAUTION: Never ﬁll a portable fuel container while it is in the vehicle. Static electricity discharge from the container can ignite the fuel vapor. You can be badly burned and the vehicle damaged if this occurs.
Page 211: Hood Release
Hood Release To open the hood, do the following: 1. Locate the interior hood release lever. It is located below the instrument panel on the driver’s side of the vehicle. 2. Pull down on the rear edge of the lever to release the hood latch.
Page 212: Engine Compartment Overview
Engine Compartment Overview When you open the hood on the 2.4L L4 engine, this is what you will see: 5-12...
Page 213 A. Windshield Washer Fluid Reservoir. See “Adding Washer Fluid” under Windshield Washer Fluid on page 5-33. B. Coolant Surge Tank and Pressure Cap. See Cooling System on page 5-24. C. Brake Master Cylinder Reservoir. See “Brake Fluid” under Brakes on page 5-34 and Hydraulic Clutch on page 5-23.
Page 214 When you open the hood on the 2.0L L4 engine, this is what you will see: 5-14...
Page 215: Engine Oil
A. Windshield Washer Fluid Reservoir. See “Adding Washer Fluid” under Windshield Washer Fluid on page 5-33. B. Coolant Surge Tank and Pressure Cap. See Cooling System on page 5-24. C. Brake Master Cylinder Reservoir. See “Brake Fluid” under Brakes on page 5-34 and Hydraulic Clutch on page 5-23.
Page 216: When To Add Engine Oil
When to Add Engine Oil If the oil is below the MIN (minimum) mark, add at least one quart/liter of the recommended oil. This section explains what kind of oil to use. For engine oil crankcase capacity, see Capacities and Speciﬁcations on page 5-109.
Page 217: What Kind Of Engine Oil To Use
What Kind of Engine Oil to Use For Vehicles With the 2.0L L4 Engine Look for three things: • GM4718M This vehicle’s engine requires a special oil meeting GM Standard GM4718M, such as Mobil 1 equivalent. Oils meeting this standard may be identiﬁed as synthetic.
Page 218: Cold Temperature Operation
For Vehicles With the 2.4L L4 Engine Look for three things: • GM6094M Use only an oil that meets GM Standard GM6094M. • SAE 5W-30 SAE 5W-30 is best for the vehicle. These numbers on an oil container show its viscosity, or thickness. Do not use other viscosity oils such as SAE 20W-50.
Page 219: Engine Oil Life System
Engine Oil Additives / Engine Oil Flushes Do not add anything to the oil. The recommended oils with the starburst symbol that meet GM Standard GM6094M are all that is needed for good performance and engine protection. Engine oil system ﬂushes are not recommended and could cause engine damage not covered by the vehicle warranty.
Page 220: How To Reset The Engine Oil Life System
How to Reset the Engine Oil Life System The Engine Oil Life System calculates when to change your engine oil and ﬁlter based on vehicle use. Whenever the oil is changed, reset the system so it can calculate when the next oil change is required. If a situation occurs where the oil is changed prior to a CHANGE OIL SOON message being turned on, reset the system.
Page 221: Engine Air Cleaner/Filter
Engine Air Cleaner/Filter 2.0L L4 Engine 2.4L L4 Engine See Engine Compartment Overview on page 5-12 for the location of the engine air cleaner/ﬁlter. 5-21...
Page 222: How To Inspect The Engine Air Cleaner/Filter
When to Inspect the Engine Air Cleaner/Filter Inspect the air cleaner/ﬁlter element at each scheduled Maintenance II service interval and replace the air cleaner/ﬁlter element at the ﬁrst oil change after 50,000 miles (80 000 km). If you are driving in dusty/dirty conditions, inspect the ﬁlter at each engine oil change.
Page 223: Automatic Transmission Fluid
Automatic Transmission Fluid It is not necessary to check the transmission ﬂuid level. A transmission ﬂuid leak is the only reason for ﬂuid loss. If a leak occurs, take your vehicle to a dealer/retailer and have it repaired as soon as possible. Change the ﬂuid and ﬁlter at the intervals listed in the Maintenance Schedule.
Page 224: Cooling System
Cooling System The Cooling System allows the engine to maintain the correct working temperature. 2.4 L4 Engine A. Electric Engine Cooling Fan (Out of View) B. Coolant Surge Tank and Pressure Cap 5-24 2.0L L4 Engine A. Coolant Surge Tank and Pressure Cap B.
Page 225: Engine Coolant
CAUTION: Heater and radiator hoses, and other engine parts, can be very hot. Do not touch them. If you do, you can be burned. Do not run the engine if there is a leak. If you run the engine, it could lose all coolant. That could cause an engine ﬁre, and you could be burned.
Page 226: What To Use
What to Use CAUTION: Adding only plain water to the cooling system can be dangerous. Plain water, or some other liquid such as alcohol, can boil before the proper coolant mixture will. The vehicle’s coolant warning system is set for the proper coolant mixture. With plain water or the wrong mixture, the engine could get too hot but you would not get the overheat warning.
Page 227: Checking Coolant
Checking Coolant The vehicle must be on a level surface when checking the coolant level. The coolant surge tank is located in the engine compartment on the driver’s side of the vehicle. See Engine Compartment Overview on page 5-12 for more information on location.
Page 228 CAUTION: An electric engine cooling fan under the hood can start up even when the engine is not running and can cause injury. Keep hands, clothing, and tools away from any underhood electric fan. CAUTION: Steam and scalding liquids from a hot cooling system can blow out and burn you badly.
Page 229 3. Fill the coolant surge tank with the proper mixture, to the COLD FILL line. Wait about ﬁve minutes, then check to see if the level is below the COLD FILL line. If the level is below the line, add additional coolant to bring the level up to the line.
Page 230: Engine Overheating
Engine Overheating The vehicle has an indicator to warn of engine overheating. There is an engine coolant temperature warning light on your vehicle’s instrument panel. See Engine Coolant Temperature Warning Light on page 3-27 for more information. You may decide not to lift the hood when this warning appears, but instead get service help right away.
Page 231: If No Steam Is Coming From The Engine Compartment
If No Steam Is Coming From The Engine Compartment If an engine overheat warning is displayed but no steam can be seen or heard, the problem may not be too serious. Sometimes the engine can get a little too hot when the vehicle: •...
Page 232: Power Steering Fluid
Power Steering Fluid See Engine Compartment Overview on page 5-12 for reservoir location. When to Check Power Steering Fluid The power steering ﬂuid does not need to be checked regularly, unless there is a suspected leak or an unusual noise. If there is ﬂuid loss, have the system inspected and repaired.
Page 233: Adding Washer Fluid
What to Use To determine what kind of ﬂuid to use, see Recommended Fluids and Lubricants on page 6-12. Always use the proper ﬂuid. Notice: Use of the incorrect ﬂuid may damage the vehicle and the damages may not be covered by the vehicle’s warranty.
Page 234: Brakes
Brakes Brake Fluid The brake master cylinder reservoir is ﬁlled with DOT-3 brake ﬂuid. See Engine Compartment Overview on page 5-12 for the location of the reservoir. There are only two reasons why the brake ﬂuid level in the reservoir might go down: •...
Page 235: Brake Wear
CAUTION: With the wrong kind of ﬂuid in the brake or clutch hydraulic system, the brakes or clutch might not work well. This could cause a crash. Always use the proper brake ﬂuid. Notice: • Using the wrong ﬂuid can badly damage brake or clutch hydraulic system parts.
Page 236: Battery
Brake Pedal Travel See your dealer/retailer if the brake pedal does not return to normal height, or if there is a rapid increase in pedal travel. This could be a sign that brake service might be required. Brake Adjustment Every time the brakes are applied, with or without the vehicle moving, the brakes adjust for wear.
Page 237: Jump Starting
Jump Starting If the vehicle’s battery has run down, you may want to use another vehicle and some jumper cables to start the vehicle. Be sure to use the following steps to do it safely. CAUTION: Batteries can hurt you. They can be dangerous because: •...
Page 238 4. Open the hood on the other vehicle and locate the positive (+) and negative (−) terminal locations on that vehicle. You will not need to access your battery for jump starting. The vehicle has a remote positive (+) and a remote negative (−) jump starting terminal.
Page 239 CAUTION: Using a match near a battery can cause battery gas to explode. People have been hurt doing this, and some have been blinded. Use a ﬂashlight if you need more light. Be sure the battery has enough water. You do not need to add water to the battery installed in your new vehicle.
Page 240 7. Do not let the other end touch metal. Connect it to the positive (+) terminal of the good battery. Use a remote positive (+) terminal if the vehicle has one. 8. Now connect the black negative (−) cable to the negative (−) terminal of the good battery.
Page 241: Rear Axle
To disconnect the jumper cables from both vehicles: 1. Disconnect the black negative (−) cable from the vehicle that had the dead battery. 2. Disconnect the black negative (−) cable from the vehicle with the good battery. 3. Disconnect the red positive (+) cable from the vehicle with the good battery.
Page 242: Headlamp Aiming
Headlamp Aiming Headlamp aim has been preset at the factory and should need no further adjustment. However, if your vehicle is damaged in a crash, the headlamp aim may be affected. Aim adjustment to the low-beam headlamps may be necessary if oncoming drivers ﬂash their high-beam headlamps at you (for vertical aim).
Page 243 To replace one of these bulbs: 1. Open the hood. See Hood Release on page 5-11. 2. Remove the bulb access cover from the bulb (high or low-beam only) you need to change. 3. Turn the bulb socket counterclockwise and pull it from the headlamp assembly.
Page 244: Front Turn Signal, Parking And Fog Lamps
Front Turn Signal, Parking and Fog Lamps A. Front Turn Signal/Parking Lamp B. Fog Lamp To replace one of these bulbs: 1. Open the hood. See Hood Release on page 5-11. 2. Locate the bulb assembly under the front bumper. 3.
Page 245: Taillamps, Turn Signal, Stoplamps And Sidemarker Lamps
Taillamps, Turn Signal, Stoplamps and Sidemarker Lamps To replace one of these bulbs: 1. Open the trunk. See Trunk on page 2-8. 2. From inside the vehicle, remove the two screws from the taillamp assembly. 3. Pull the taillamp assembly upwards and sideways to disengage it from the vehicle.
Page 246: Back-Up Lamps
Back-Up Lamps The back-up lamps are located in the rear fascia. To replace a bulb: 1. Locate the bulb socket under and behind the rear facia. 2. Turn the bulb socket counterclockwise to remove from the bulb assembly. 5-46 3. Pull the bulb from the bulb socket. 4.
Page 247: License Plate Lamp
License Plate Lamp To replace the license plate lamp bulb: 1. Remove the license plate assembly by turning the two screws counterclockwise. 2. Turn and pull the license plate lamp forward through the fascia opening. 3. Turn the bulb socket counterclockwise and pull the bulb straight out of the socket.
Page 248: Windshield Wiper Blade Replacement
Windshield Wiper Blade Replacement Windshield wiper blades should be inspected for wear and cracking. See Scheduled Maintenance on page 6-4 for more information. Replacement blades come in different types and are removed in different ways. For proper type and length, see Maintenance Replacement Parts on page 6-14.
Page 249 CAUTION: Poorly maintained and improperly used tires are dangerous. • Overloading your vehicle’s tires can cause overheating as a result of too much ﬂexing. You could have an air-out and a serious accident. See Loading the Vehicle on page 4-22. •...
Page 250: Winter Tires
Winter Tires If your vehicle has P245/45R18 size tires, they are classiﬁed as low-proﬁle performance tires. These tires are designed for very responsive driving on wet or dry pavement. If you expect to drive on snow or ice covered roads often, you may want to get winter tires for your vehicle.
Page 251: Tire Sidewall Labeling
Tire Sidewall Labeling Useful information about a tire is molded into its sidewall. The example below shows a typical passenger (p-metric) tire sidewall. Passenger (P-Metric) Tire Example (A) Tire Size The tire size is a combination of letters and numbers used to deﬁne a particular tire’s width, height, aspect ratio, construction type, and service description.
Page 252 (F) Uniform Tire Quality Grading (UTQG) manufacturers are required to grade tires based on three performance factors: treadwear, traction and temperature resistance. For more information see Uniform Tire Quality Grading on page 5-67. (G) Maximum Cold Inﬂation Load Limit Maximum load that can be carried and the maximum pressure needed to support that load.
Page 253: Tire Terminology And Deﬁnitions
Tire Terminology and Deﬁnitions Air Pressure The amount of air inside the tire pressing outward on each square inch of the tire. Air pressure is expressed in pounds per square inch (psi) or kilopascal (kPa). Accessory Weight This means the combined weight of optional accessories.
Page 254 Load Index An assigned number ranging from 1 to 279 that corresponds to the load carrying capacity of a tire. Maximum Inﬂation Pressure pressure to which a cold tire can be inﬂated. The maximum air pressure is molded onto the sidewall.
Page 255: Inﬂation - Tire Pressure
Treadwear Indicators Narrow bands, sometimes called wear bars, that show across the tread of a tire when only 1/16 inch (1.6 mm) of tread remains. See When It Is Time for New Tires on page 5-64. UTQGS (Uniform Tire Quality Grading Standards) A tire information system that provides consumers with ratings for a tire’s...
Page 256: Tire Pressure Monitor System
The recommended cold tire inﬂation pressure, shown on the label, is the minimum amount of air pressure needed to support your vehicle’s maximum load carrying capacity. For additional information regarding how much weight your vehicle can carry, and an example of the Tire and Loading Information label, see Loading the Vehicle on page 4-22.
Page 257 Each tire, including the spare (if provided), should be checked monthly when cold and inﬂated to the inﬂation pressure recommended by the vehicle manufacturer on the vehicle placard or tire inﬂation pressure label. (If your vehicle has tires of a different size than the size indicated on the vehicle placard or tire inﬂation pressure label, you should determine the proper tire inﬂation pressure for those tires.)
Page 258: Tire Pressure Monitor Operation
Federal Communications Commission (FCC) and Industry and Science Canada The Tire Pressure Monitor System (TPMS) operates on a radio frequency and complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2.
Page 259: Tpms Malfunction Light And Message
The low tire pressure warning light may come on in cool weather when the vehicle is ﬁrst started, and then turn off as you start to drive. This could be an early indicator that the air pressure in the tire(s) are getting low and need to be inﬂated to the proper pressure.
Page 260: Tpms Sensor Matching Process
• Replacement tires or wheels do not match your vehicle’s original equipment tires or wheels. Tires and wheels other than those recommended for your vehicle could prevent the TPMS from functioning properly. See Buying New Tires on page 5-65. • Operating electronic devices or being near facilities using radio wave frequencies similar to the TPMS could cause the TPMS sensors to malfunction.
Page 261 5. Remove the valve cap from the tire’s valve stem. Activate the TPMS sensor by increasing or decreasing the tire’s air pressure for about eight seconds. The horn chirp, can take up to 30 seconds to sound. It chirps one time and then all the turn signals ﬂash one time to conﬁrm the sensor identiﬁcation code has been matched to the tire/wheel position.
Page 262: Tire Inspection And Rotation
Tire Inspection and Rotation We recommend that you regularly inspect your vehicle’s tires for signs of wear or damage. See When It Is Time for New Tires on page 5-64 for more information. Tires should be rotated every 5,000 to 8,000 miles (8 000 to 13 000 km).
Page 263 Directional Tires If your vehicle has Goodyear Eagle F1-GS2 P245/45R18 size tires, they are directional tires and must roll in a certain direction for the best overall performance. The direction is shown by an arrow on the tire sidewall. Because these tires are directional, they should be rotated as shown here.
Page 264: When It Is Time For New Tires
When It Is Time for New Tires Various factors, such as maintenance, temperatures, driving speeds, vehicle loading, and road conditions inﬂuence when you need new tires. One way to tell when it is time for new tires is to check the treadwear indicators, which will appear when your tires have only 1/16 inch...
Page 265: Buying New Tires
Buying New Tires GM has developed and matched speciﬁc tires for your vehicle. The original equipment tires installed on your vehicle, when it was new, were designed to meet General Motors Tire Performance Criteria Speciﬁcation (TPC spec) system rating. If you need replacement tires, GM strongly recommends that you get tires with the same TPC Spec rating.
Page 266: Different Size Tires And Wheels
CAUTION: If you use bias-ply tires on the vehicle, the wheel rim ﬂanges could develop cracks after many miles of driving. A tire and/or wheel could fail suddenly, causing a crash. Use only radial-ply tires with the wheels on the vehicle. If you must replace your vehicle’s tires with those that do not have a TPC Spec number, make sure they are the same size, load range, speed rating, and...
Page 267: Uniform Tire Quality Grading
You may increase the chance that you will crash and suffer serious injury. Only use Saturn speciﬁc wheel and tire systems developed for your vehicle, and have them properly installed by a Saturn certiﬁed technician.
Page 268 While the tires available on General Motors passenger cars and light trucks may vary with respect to these grades, they must also conform to federal safety requirements and additional General Motors Tire Performance Criteria (TPC) standards. Treadwear The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a speciﬁed government test course.
Page 269: Wheel Alignment And Tire Balance
Temperature – A, B, C The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a speciﬁed indoor laboratory test wheel. Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire failure.
Page 270 If you need to replace any of your wheels, wheel bolts, or wheel nuts, replace them only with new Saturn original equipment parts. This way, you will be sure to have the right wheel, wheel bolts, and wheel nuts for your vehicle.
Page 271: Used Replacement Wheels
This could lead to a crash. Be sure to use the correct wheel nuts. If you have to replace them, be sure to get new Saturn original equipment wheel nuts. Notice: Improperly tightened wheel nuts can lead to brake pulsation and rotor damage.
Page 272: Tire Chains
Tire Chains CAUTION: Do not use tire chains. There is not enough clearance. Tire chains used on a vehicle without the proper amount of clearance can cause damage to the brakes, suspension, or other vehicle parts. The area damaged by the tire chains could cause you to lose control of the vehicle and you or others may be injured in a crash.
Page 273 A rear blow out, particularly on a curve, acts much like a skid and may require the same correction you would use in a skid. In any rear blow out, remove your foot from the accelerator pedal. Get the vehicle under control by steering the way you want the vehicle to go.
Page 274: Tire Sealant And Compressor Kit (Without Selector Switch)
Tire Sealant and Compressor Kit (Without Selector Switch) System Identiﬁcation If the vehicle has the tire sealant and compressor kit shown above, see the operating instructions that follow. 5-74 If the vehicle has the tire sealant and compressor kit shown above, follow the operating instructions under “Tire Sealant and Compressor Kit (With Selector Switch).
Page 275 CAUTION: Idling a vehicle in an enclosed area with poor ventilation is dangerous. Engine exhaust may enter the vehicle. Engine exhaust contains Carbon Monoxide (CO) which cannot be seen or smelled. It can cause unconsciousness and even death. Never run the engine in an enclosed area that has no fresh air ventilation.
Page 276: Tire Sealant
Read and follow all of the tire sealant and compressor kit instructions. The kit includes: A. Air Compressor E. Pressure Gage B. Tire Sealant F. Air Only Hose Canister (Black) C. Power Plug G. Sealant/Air Hose D. On/Off Button (Clear) 5-76 Tire Sealant Read and follow the safe handling instructions on the...
Page 277: Punctured Tire
Using the Tire Sealant and Compressor Kit to Temporarily Seal and Inﬂate a Punctured Tire When using the tire sealant and compressor kit during cold temperatures, warm the kit in a heated environment for 5 minutes. This will help to inﬂate the tire faster. Always do a safety check ﬁrst.
Page 278 6. Plug the power plug (C) into the accessory power outlet in the vehicle. Unplug all items from other accessory power outlets. See Accessory Power Outlet(s) on page 3-14. If the vehicle has an accessory power outlet, do not use the cigarette lighter. If the vehicle only has a cigarette lighter, use the cigarette lighter.
Page 279 11. Unplug the power plug (C) from the accessory power outlet in the vehicle. 12. Turn the sealant/air hose (F) counterclockwise to remove it from the tire valve stem. 13. Replace the tire valve stem cap. 14. Replace the sealant/air hose (F), and the power plug (C) back in their original location.
Page 280: Not Punctured
19. Wipe off any sealant from the wheel, tire or vehicle. 20. Dispose of the used sealant canister (B) and sealant/air hose (F) assembly at a local dealer/retailer or in accordance with local state codes and practices. 21. Replace it with a new canister available from your dealer/retailer.
Page 281 3. Pull the air only hose (F) from the sealant canister (B). 4. Remove the power plug (C) from the air compressor (A). 5. Place the kit on the ground. Make sure the tire valve stem is positioned close to the ground so the hose will reach it. 6.
Page 282: Removal And Installation Of The Sealant Canister
13. Unplug the power plug (C) from the accessory power outlet in the vehicle. 14. Disconnect the air only hose (F) from the tire valve stem, by turning it counterclockwise, and replace the tire valve stem cap. 15. Replace the air only hose (F) and the power plug (C) back in its original location.
Page 283 4. Turn the sealant canister (B) so the inﬂator ﬁlling hose is aligned with the slot in the compressor. 5. Lift the sealant canister (B) from the compressor and replace with a new sealant canister. See your dealer/retailer for more information. To install a new sealant canister: 1.
Page 284: Tire Sealant And Compressor Kit (With Selector Switch)
Tire Sealant and Compressor Kit (With Selector Switch) System Identiﬁcation If the vehicle has the tire sealant and compressor kit shown above, see the operating instructions that follow. 5-84 If the vehicle has the tire sealant and compressor kit shown above, follow the operating instructions under “Tire Sealant and Compressor Kit (Without Selector Switch).
Page 285 CAUTION: Idling a vehicle in an enclosed area with poor ventilation is dangerous. Engine exhaust may enter the vehicle. Engine exhaust contains Carbon Monoxide (CO) which cannot be seen or smelled. It can cause unconsciousness and even death. Never run the engine in an enclosed area that has no fresh air ventilation.
Page 286 Read and follow all of the tire sealant and compressor kit instructions. The kit includes: A. Selector Switch E. Tire Sealant (Sealant/Air or Canister Air Only) F. Sealant/Air B. On/Off Button Hose (Clear) C. Pressure Gage G. Air Only Hose D.
Page 287 Using the Tire Sealant and Compressor Kit to Temporarily Seal and Inﬂate a Punctured Tire Follow the directions closely for correct sealant usage. When using the tire sealant and compressor kit during cold temperatures, warm the kit in a heated environment for 5 minutes.
Page 288 7. Start the vehicle. The vehicle must be running while using the air compressor. 8. Turn the selector switch (A) counterclockwise to the Sealant + Air position. 9. Press the on/off (B) button to turn the tire sealant and compressor kit on. The compressor will inject sealant and air into the tire.
Page 289 16. If the ﬂat tire was able to inﬂate to the recommended inﬂation pressure, remove the maximum speed label from the sealant canister (E) and place it in a highly visible location. The label is a reminder not to exceed 55 mph (90 km/h) until the damaged tire is repaired or replaced.
Page 290 Using the Tire Sealant and Compressor Kit without Sealant to Inﬂate a Tire (Not Punctured) To use the air compressor to inﬂate a tire with air only and not sealant: Always do a safety check ﬁrst. See If a Tire Goes Flat on page 5-72.
Page 291 10. Inﬂate the tire to the recommended inﬂation pressure using the pressure gage (C). The recommended inﬂation pressure can be found on the Tire and Loading Information label. See Inﬂation - Tire Pressure on page 5-55. The pressure gage (C) may read higher than the actual tire pressure while the compressor is on.
Page 292: Tire Sealant And Compressor Kit Storage
Removal and Installation of the Sealant Canister To remove the sealant canister: 1. Unwrap the sealant hose. 2. Press the canister release button. 3. Pull up and remove the canister. 4. Replace with a new canister which is available from your dealer/retailer. 5.
Page 293: Appearance Care
Appearance Care Interior Cleaning The vehicle’s interior will continue to look its best if it is cleaned often. Although not always visible, dust and dirt can accumulate on the upholstery. Dirt can damage carpet, fabric, leather, and plastic surfaces. Regular vacuuming is recommended to remove particles from the upholstery.
Page 294: Fabric/Carpet
Do not clean the vehicle using: • A knife or any other sharp object to remove a soil from any interior surface. • A stiff brush. It can cause damage to the vehicle’s interior surfaces. • Heavy pressure or aggressive rubbing with a cleaning cloth.
Page 295: Leather
If any of the soil remains, a commercial fabric cleaner or spot lifter may be necessary. When a commercial upholstery cleaner or spot lifter is to be used, test a small hidden area for colorfastness ﬁrst. If the locally cleaned area gives any impression that a ring formation may result, clean the entire surface.
Page 296: Care Of Safety Belts
Care of Safety Belts Keep belts clean and dry. CAUTION: Do not bleach or dye safety belts. It may severely weaken them. In a crash, they might not be able to provide adequate protection. Clean safety belts only with mild soap and lukewarm water. Weatherstrips Silicone grease on weatherstrips will make them last longer, seal better, and not stick or squeak.
Page 297: Cleaning Exterior Lamps/Lenses
High pressure car washes may cause water to enter the vehicle. Avoid using high pressure washes closer than 12 inches (30 cm) to the surface of the vehicle. Use of power washers exceeding 1,200 psi (8 274 kPa) can result in damage or removal of paint and decals. Cleaning Exterior Lamps/Lenses Use only lukewarm or cold water, a soft cloth and a car washing soap to clean exterior lamps and lenses.
Page 298: Windshield And Wiper Blades
Windshield and Wiper Blades Clean the outside of the windshield with glass cleaner. Clean the rubber blades using a lint free cloth or paper towel soaked with windshield washer ﬂuid or a mild detergent. Wash the windshield thoroughly when cleaning the blades. Bugs, road grime, sap, and a buildup of vehicle wash/wax treatments may cause wiper streaking.
Page 299: Aluminum Or Chrome-Plated Wheels And Trim
Aluminum or Chrome-Plated Wheels and Trim The vehicle may have either aluminum or chrome-plated wheels. Keep the wheels clean using a soft clean cloth with mild soap and water. Rinse with clean water. After rinsing thoroughly, dry with a soft clean towel. A wax may then be applied.
Page 300: Tires
Tires To clean the tires, use a stiff brush with tire cleaner. Notice: Using petroleum-based tire dressing products on the vehicle may damage the paint ﬁnish and/or tires. When applying a tire dressing, always wipe off any overspray from all painted surfaces on the vehicle.
Page 301: Chemical Paint Spotting
Chemical Paint Spotting Some weather and atmospheric conditions can create a chemical fallout. Airborne pollutants can fall upon and attack painted surfaces on the vehicle. This damage can take two forms: blotchy, ring-shaped discolorations, and small, irregular dark spots etched into the paint surface.
Page 302: Service Parts Identiﬁcation Label
Engine Identiﬁcation The eighth character in the VIN is the engine code. This code helps identify the vehicle’s engine, speciﬁcations, and replacement parts. See “Engine Speciﬁcations” under Capacities and Speciﬁcations on page 5-109 for your vehicle’s engine code. Service Parts Identiﬁcation Label This label is on the inside of the glove box.
Page 303: Headlamp Wiring
Headlamp Wiring The headlamp wiring is protected by fuses in the fuse block. An electrical overload will cause the lamps to turn off. If this happens, have the headlamp wiring checked right away. Power Windows and Other Power Options Circuit breakers in the fuse block protect the power windows and other power accessories.
Page 304: Floor Console Fuse Block
Floor Console Fuse Block The ﬂoor console fuse block is located on the passenger side of the vehicle under the carpet. Remove the fuse block cover to access the fuses. Use the fuse puller to remove fuses. After re-installing the fuse block cover, be sure to tuck the carpet under the heater ﬂoor outlets.
Page 305 Fuses Usage Ignition Switch, PassKey III+ Stoplamp Climate Control System, PassKey III+ Empty Spare Airbag Spare Wiper Climate Control System, Automatic Occupant Sensing Module, Crank Relay, Instrument Panel Cluster Empty Empty Steering Wheel Controls Fuses Usage Spare Spare Empty Radio Sensing and Diagnostic Module Engine Control Module, Transmission Control Module...
Page 306: Underhood Fuse Block
Underhood Fuse Block The underhood fuse block is located in the engine compartment on the passenger side of the vehicle. Lift the cover for access to the fuse block. Notice: Spilling liquid on any electrical components on the vehicle may damage it. Always keep the covers on any electrical component.
Page 307 Fuses Usage Empty Trunk Trunk Empty Fuel Pump Rear Defogger Relay Air Conditioning Clutch Relay Empty Empty Trunk Release Relay Fuel Pump Relay Empty Mirrors Air Conditioning Empty Cooling Fan 2 Relay (LE5); Empty (LNF) Fuse Puller Powertrain Relay Empty Fuses Usage Back-up Lamps Relay (Automatic...
Page 308 Fuses Engine Control Module, Transmission Antilock Brake System Injectors, Ignition Coils (LE5); Ignition Coils (LNF) Back-up Lamps (Manual Transmission); Empty (Automatic Transmission) Empty Daytime Running Lamps Relay Daytime Running Lamps Cooling Fan 1 Relay (LE5); Empty (LNF) Run/Crank Relay Windshield Wiper Low/High Relay Fog Lamps Fog Lamps Relay Horn Relay...
Page 309: Capacities And Speciﬁcations
Capacities and Speciﬁcations The following approximate capacities are given in English and metric conversions. Please refer to Recommended Fluids and Lubricants on page 6-12 for more information. Application Air Conditioning Refrigerant R134a Cooling System 2.0L L4 Engine — Automatic 2.0L L4 Engine — Manual 2.4L L4 Engine —...
Page 310 Engine 2.0L L4 2.4L L4 5-110 Engine Speciﬁcations VIN Code Transmission Automatic Manual Automatic Manual Spark Plug Gap 0.035 in (0.90 mm) 0.040 in (1.01 mm)
Page 311 Section 6 Maintenance Schedule ...6-2 Introduction ...6-2 Maintenance Requirements ...6-2 Your Vehicle and the Environment ...6-2 Using the Maintenance Schedule ...6-2 Scheduled Maintenance ...6-4 Additional Required Services ...6-6 Maintenance Footnotes ...6-7 Maintenance Schedule Owner Checks and Services ...6-8 At Each Fuel Fill ...6-8 At Least Once a Month ...6-9 At Least Once a Year ...6-9 Recommended Fluids and Lubricants ...6-12...
Page 312: Maintenance Schedule
Maintenance Schedule Introduction Important: Keep engine oil at the proper level and change as recommended. Maintenance Requirements Notice: Maintenance intervals, checks, inspections, replacement parts, and recommended ﬂuids and lubricants as prescribed in this manual are necessary to keep this vehicle in good working condition.
Page 313 This schedule is for vehicles that: • carry passengers and cargo within recommended limits on the Tire and Loading Information label. See Loading the Vehicle on page 4-22. • are driven on reasonable road surfaces within legal driving limits. • use the recommended fuel.
Page 314: Scheduled Maintenance
Scheduled Maintenance When the CHANGE OIL SOON message displays on the Driver Information Center (DIC), service is required for the vehicle. See DIC Warnings and Messages on page 3-36. Have the vehicle serviced as soon as possible within the next 600 miles (1 000 km). It is possible that, if driving under the best conditions, the engine oil life system may not indicate that vehicle service is necessary for over a year.
Page 315 Change engine oil and ﬁlter. See Engine Oil on page 5-15. Reset oil life system. See Engine Oil Life System on page 5-19. An Emission Control Service. Visually check for any leaks or damage. See footnote (j). Inspect engine air cleaner ﬁlter. If necessary, replace ﬁlter. See Engine Air Cleaner/Filter on page 5-21.
Page 316: Additional Required Services
Additional Required Services The following services should be performed at the ﬁrst maintenance service (I or II) after the indicated miles (kilometers) shown for each item. Service and Miles (Kilometers) Inspect fuel system for damage or leaks. Inspect exhaust system for loose or damaged components.
Page 317: Maintenance Footnotes
Maintenance Footnotes (a) Visually inspect brake lines and hoses for proper hook-up, binding, leaks, cracks, chaﬁng, etc. Inspect disc brake pads for wear and rotors for surface condition. Inspect drum brake linings/shoes for wear or cracks. Inspect other brake parts, including drums, wheel cylinders, calipers, parking brake, etc.
Page 318: Engine Oil Level Check
(j) A ﬂuid loss in any vehicle system could indicate a problem. Have the system inspected and repaired and the ﬂuid level checked. Add ﬂuid if needed. (k) Change automatic transmission ﬂuid and ﬁlter if the vehicle is mainly driven under one or more of these conditions: −...
Page 319: At Least Once A Month
At Least Once a Month Tire Inspection and Inﬂation Check Inspect the vehicle’s tires for wear and make sure they are inﬂated to the correct pressures. See Inﬂation - Tire Pressure on page 5-55. At Least Once a Year Starter Switch Check CAUTION: When you are doing this inspection, the vehicle could move suddenly.
Page 320: Ignition Transmission Lock Check
Automatic Transmission Shift Lock Control System Check CAUTION: When you are doing this inspection, the vehicle could move suddenly. If the vehicle moves, you or others could be injured. 1. Before starting this check, be sure there is enough room around the vehicle. It should be parked on a level surface.
Page 321: Underbody Flushing Service
Parking Brake and Automatic Transmission P (Park) Mechanism Check CAUTION: When you are doing this check, the vehicle could begin to move. You or others could be injured and property could be damaged. Make sure there is room in front of the vehicle in case it begins to roll. Be ready to apply the regular brake at once should the vehicle begin to move.
Page 322: Recommended Fluids And Lubricants
Recommended Fluids and Lubricants Fluids and lubricants identiﬁed below by name, part number, or speciﬁcation can be obtained from your dealer/retailer. Usage Fluid/Lubricant Engine oil which meets GM Standard GM6094M and displays the American Petroleum Institute Engine Oil Certiﬁed for Gasoline Engines (2.4L L4 starburst symbol.
Page 323 Usage Fluid/Lubricant SAE 75W-90 Synthetic Axle Lubricant (GM Part No. U.S. 89021677, in Canada 89021678) meeting Rear Axle GM Speciﬁcation 9986115. (Limited-Slip With a complete drain and Differential) reﬁll add 4 ounces (118 ml) of Limited-Slip Axle Lubricant Additive (GM Part No. U.S. 1052358, in Canada 992694) where required.
Page 324: Maintenance Replacement Parts
Maintenance Replacement Parts Replacement parts identiﬁed below by name, part number, or speciﬁcation can be obtained from your dealer/retailer. Part Engine Air Cleaner/Filter 2.0L L4 Engine 2.4L L4 Engine Engine Oil Filter Spark Plugs 2.0L L4 Engine 2.4L L4 Engine Wiper Blades Driver Side —16 in (40 cm) Passenger Side —...
Page 325: Engine Drive Belt Routing
Engine Drive Belt Routing Belt routing for air conditioning (AC) shown. Dotted line represents routing for vehicles without AC. 6-15...
Page 326: Maintenance Record
Maintenance Record After the scheduled services are performed, record the date, odometer reading, who performed the service, and the type of services performed in the boxes provided. See Maintenance Requirements on page 6-2. Any additional information from Owner Checks and Services on page 6-8 can be added on the following record pages. You should retain all maintenance receipts.
Page 327 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-17...
Page 328 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-18...
Page 329: Customer Assistance Information
Reporting Safety Defects ...7-14 Reporting Safety Defects to the United States Government ...7-14 Reporting Safety Defects to the Canadian Government ...7-15 Reporting Safety Defects to Saturn ...7-15 Service Publications Ordering Information ...7-15 Vehicle Data Recording and Privacy ...7-16 Event Data Recorders ...7-17 ®...
Page 330: Customer Assistance And Information
Information Customer Satisfaction Procedure Your satisfaction and goodwill are important to your retailer and to Saturn. Together we are committed to providing our customers with unparalleled service, before, during, and after the purchase of a Saturn vehicle, for total customer satisfaction. We call this the Saturn Difference.
Page 331 Saturn vehicle. However, if you continue to remain unsatisﬁed after following the procedure outlined in Steps One and Two, Saturn and its retailers offer the additional assistance of a neutral party through our voluntary participation in a mediation/arbitration program called Better Business Bureau (BBB) Auto Line.
Page 332: Online Owner Center
For further information concerning eligibility in the Canadian Motor Vehicle Arbitration Plan (CAMVAP), call toll-free 1-800-207-0685. Alternatively, you may call the Saturn Customer Communication Centre, 1-800-263-1999, or you may write to: Mediation/Arbitration Program c/o Customer Communication Centre General Motors of Canada Limited...
Page 333: Customer Assistance For Text Telephone (Tty) Users
To sign up, visit the My GM Canada section within www.gm.ca. Customer Assistance for Text Telephone (TTY) Users To assist owners who have hearing difficulties, Saturn has installed special TDD (Telecommunication Devices for the Deaf) equipment in its Saturn Customer Assistance Center.
Page 334: Gm Mobility Reimbursement Program
The offer is available for a limited period of time from the date of vehicle purchase/lease. For more details, or to determine your vehicle’s eligibility, visit your Saturn retailer or call the Saturn Customer Assistance Center at 1-800-553-6000. Text telephone (TTY) users, call 1-800-833-6000.
Page 335: Roadside Assistance Program
Roadside Assistance is not a part of the New Vehicle Limited Warranty. Saturn and General Motors of Canada Limited reserve the right to make any changes or discontinue the Roadside Assistance program at any time without notiﬁcation.
Page 336: Services Not Included In Roadside Assistance
• Emergency Tow From a Public Road or Highway: Tow to the nearest Saturn retailer for warranty service, or if the vehicle was in a crash and cannot be driven. Assistance is also given when the vehicle is stuck in sand, mud, or snow.
Page 337: Scheduling Service Appointments
• Trip Interruption Beneﬁts and Assistance: Must be over 250 kilometres from where your trip was started to qualify. General Motors of Canada Limited requires pre-authorization, original detailed receipts, and a copy of the repair orders. Once authorization has been received, the Roadside Assistance advisor will help you make arrangements and explain how to receive payment.
Page 338: Transportation Options
Transportation Options Warranty service can generally be completed while you wait. However, if you are unable to wait, Saturn helps to minimize your inconvenience by providing several transportation options. Depending on the circumstances, your retailer can offer you one of the following:...
Page 339: Collision Damage Repair
All Courtesy Transportation arrangements will be administered by appropriate retailer personnel. Saturn reserves the right to unilaterally modify, change or discontinue Courtesy Transportation at any time and to resolve all questions of claim eligibility pursuant to the terms and conditions described herein at its sole discretion.
Page 340: Insuring Your Vehicle
Aftermarket collision parts are also available. These are made by companies other than GM and may not have been tested for your vehicle. As a result, these parts may ﬁt poorly, exhibit premature durability/corrosion problems, and may not perform properly in subsequent collisions. Aftermarket parts are not covered by your GM New Vehicle Limited Warranty, and any vehicle failure related to such parts are not covered by that warranty.
Page 341: If A Crash Occurs
If a Crash Occurs Here is what to do if you are involved in a crash. • Check to make sure that you are all right. If you are uninjured, make sure that no one else in your vehicle, or the other vehicle, is injured. •...
Page 342: Reporting Safety Defects
However, NHTSA cannot become involved in individual problems between you, your retailer or Saturn Corporation. To contact NHTSA, call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-9153);...
Page 343: Reporting Safety Defects To The Canadian Government
Oshawa, Ontario L1H 8P7 Service Publications Ordering Information Service Manuals A variety of publications are available to you. Saturn service manuals are written for trained technicians, and in some cases, specialized tools and equipment are necessary to complete certain repairs. However,...
Page 344: Vehicle Data Recording And Privacy
7-16 Most bulletins apply to conditions affecting a small number of vehicles. Your Saturn retailer or a qualiﬁed technician may have to determine if a speciﬁc bulletin applies to your vehicle. To order Saturn bulletins, call Saturn Publications at 1-800-2-SATURN or visit saturn-publications.com to order online.
Page 345: Event Data Recorders
Data that Saturn collects or receives may also be used for Saturn research needs or may be made available to others for research purposes, where a need is shown and the data is not tied to a speciﬁc vehicle or vehicle owner.
Page 346: Onstar
RFID technology in Saturn vehicles does not use or record personal information or link with any other Saturn system containing personal information.
Page 347 Accessories and Modiﬁcations ... 5-3 Accessory Power Outlets ... 3-14 Adding Equipment to Your Airbag-Equipped Vehicle ... 1-45 Additives, Fuel ... 5-6 Add-On Electrical Equipment ... 5-102 Air Cleaner/Filter, Engine ... 5-21 Air Conditioning ... 3-16 Airbag Passenger Status Indicator ... 3-23 Readiness Light ...
Page 348 Audio System(s) ... 3-48 Automatic Door Lock ... 2-7 Automatic Transmission Fluid ... 5-23 Operation ... 2-20 Battery ... 5-36 Run-Down Protection ... 3-14 ® Bluetooth ... 3-67 Brake Emergencies ... 4-6 Brake Fluid ... 5-34 Brakes ... 5-34 System Warning Light ... 3-25 Braking ...
Page 349 Telephone (TTY) Users ... 7-5 Customer Assistance Offices ... 7-5 Customer Satisfaction Procedure ... 7-2 GM Mobility Reimbursement Program ... 7-6 Reporting Safety Defects to Saturn ... 7-15 Reporting Safety Defects to the Canadian Government ... 7-15 Reporting Safety Defects to the United States Government ...
Page 350 Driver Seat Height Adjuster ... 1-2 Driver Information Center (DIC) ... 3-34 DIC Operation and Displays ... 3-34 DIC Vehicle Personalization ... 3-41 DIC Warnings and Messages ... 3-36 Driving At Night ... 4-15 Before a Long Trip ... 4-17 Defensive ...
Page 351 Filter Engine Air Cleaner ... 5-21 Finish Damage ... 5-100 Fixed Mast Antenna ... 3-80 Flashers, Hazard Warning ... 3-5 Flash-to-Pass ... 3-7 Flat Tire ... 5-72 Fluid Automatic Transmission ... 5-23 Power Steering ... 5-32 Windshield Washer ... 5-33 Fog Lamp Fog ...
Page 352 Highway Hypnosis ... 4-17 Hill and Mountain Roads ... 4-18 Hood Checking Things Under ... 5-10 Release ... 5-11 Horn ... 3-5 How to Wear Safety Belts Properly ... 1-11 Hydraulic Clutch ... 5-23 Ignition Positions ... 2-16 Infants and Young Children, Restraints ... 1-25 Inﬂation - Tire Pressure ...
Page 353 Lights ... 3-12 Flash-to-Pass ... 3-7 High/Low Beam Changer ... 3-7 On Reminder ... 3-12 Limited-Slip Rear Axle ... 4-11 Loading Your Vehicle ... 4-22 Lockout Protection ... 2-8 Locks Automatic Door Lock ... 2-7 Delayed Locking ... 2-7 Door ... 2-6 Lockout Protection ...
Page 354 Odometer ... 3-21 Off-Road Recovery ... 4-13 Engine ... 5-15 Pressure Light ... 3-31 Oil, Engine Oil Life System ... 5-19 Older Children, Restraints ... 1-22 Online Owner Center ... 7-4 OnStar, Privacy ... 7-18 ® ® OnStar System, see OnStar Manual ...
Page 355 Remote Keyless Entry (RKE) System, Operation ... 2-4 Replacement Bulbs ... 5-47 Replacement Parts, Maintenance ... 6-14 Reporting Safety Defects Canadian Government ... 7-15 Saturn ... 7-15 United States Government ... 7-14 Restraint System Check Checking the Restraint Systems ... 1-46 Replacing Restraint System Parts After a Crash ...
Page 356 Service (cont.) California Perchlorate Materials Requirements ... 5-4 California Proposition 65 Warning ... 5-4 Doing Your Own Work ... 5-4 Engine Soon Lamp ... 3-29 Publications Ordering Information ... 7-15 Service, Scheduling Appointments ... 7-9 Servicing Your Airbag-Equipped Vehicle ... 1-44 Setting the Clock ...
Page 357 Tires (cont.) Inspection and Rotation ... 5-62 Pressure Monitor Operation ... 5-58 Pressure Monitor System ... 5-56 Tire Sealant and Compressor Kit ... 5-74, 5-84 Tire Sidewall Labeling ... 5-51 Tire Terminology and Deﬁnitions ... 5-53 Uniform Tire Quality Grading ... 5-67 Wheel Alignment and Tire Balance ...
Page 358 Warning Lights, Gages, and Indicators ... 3-19 Warnings DIC Warnings and Messages ... 3-36 Hazard Warning Flashers ... 3-5 Safety and Symbols ... iii Wheels Alignment and Tire Balance ... 5-69 Different Size ... 5-66 Replacement ... 5-69 Windows ... 2-10 Power ...

Saturn 2009 SKY Owner's Manual

Section 2 Features and Controls

Features and Controls

Keys

Doors and Locks

Windows

Theft-Deterrent Systems

Starting and Operating Your Vehicle

Mirrors

Onstar System

Storage Areas

Convertible Top

Section 3 Instrument Panel

Instrument Panel Overview

Climate Controls

Warning Lights, Gages, and Indicators

Driver Information Center (DIC)

Audio System(S)

Section 4 Driving Your Vehicle

Driving Your Vehicle

Your Driving, the Road, and the Vehicle

Towing

Section 5 Service and Appearance Care

Service and Appearance Care

Service

Fuel

Checking Things under the Hood

Rear Axle

Headlamp Aiming

Bulb Replacement

Windshield Wiper Blade Replacement

Appearance Care

Vehicle Identiﬁcation

Electrical System

Capacities and Speciﬁcations

Quick Links

Chapters

Related Manuals for Saturn 2009 SKY

Summary of Contents for Saturn 2009 SKY
