SATO CS-9018 Specifications

• Automatically registers top of form
• 2-Line, 40-character LCD display
• Variable speed capability
• Display information includes ticket
count, speeds and throughput
• Stores up to 99 ticket setup configurations
• Double-cut capability for clean-edge tickets
• Quick adjustment of ticket length and height
via easy-to-read scale (U.S. standard and
metric measurements)
• Easy-to-service air filter improves productivity
• Worldwide sales and service through Sato
1 Requires optional slitter assembly
Fast, Reliable Cutter/Stacker Delivers Time-Saving Convenience.

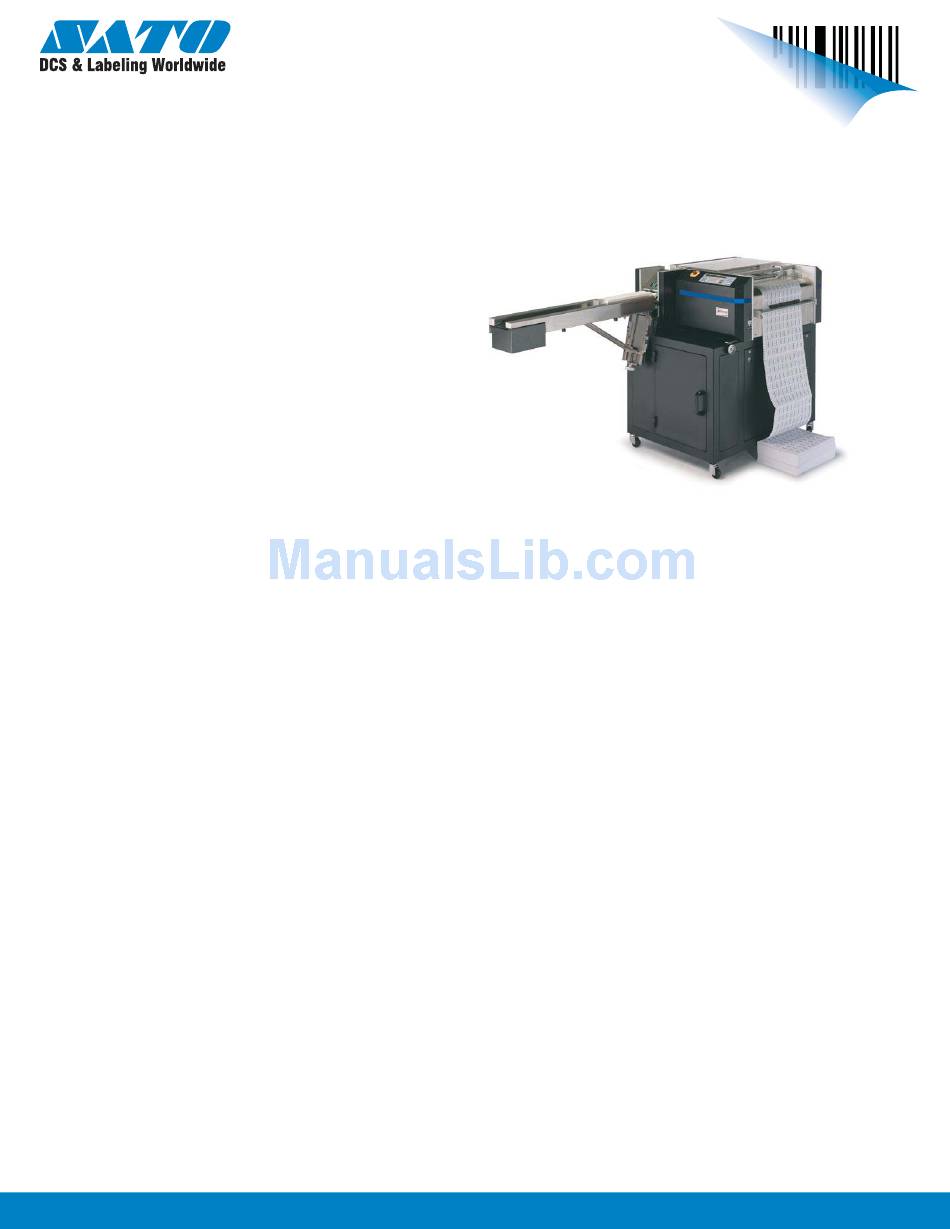

The Sato® CS-9018 Cutter/Stacker is a self-contained, continuous-form, ticket-handling device. It is designed to slit, cut and
sequentially stack preprinted tickets at a rate of 188,000 per hour.
Operator-friendly controls allow for fast ticket setup, operation and error detection. The CS-9018 features automatic top-of-form
registration for quick loading of forms. Removable slitter assembly and interchangeable slitter blades enable fast changeover
between ticket-size formats. Memory storage of up to 99 ticket configurations also helps to minimize setup time.
Adjustable conveyor-speed controls compensate for variations in ticket thickness. And, to increase motor reliability, the CS-9018
has an automatic, pre-configurable time-out circuit to shut down both vacuum and conveyor motors when they're not in use.
The CS-9018 has a double-cut capability that removes the horizontal perforation, delivering clean-cut ticket edges. Separating
batches on the CS-9018 is also quick and easy: when printed by Sato laser printers, black separator bars on the header and
trailer tickets of each batch enable operators to spot the beginning and end of even the smallest ticket runs at a glance. An
attractive enclosed and shelved storage cabinet provides easy access to CS-9018 supplies and provides convenient storage for
the optional slitter assembly.
CS-9018
1
www.satolabeling.com
