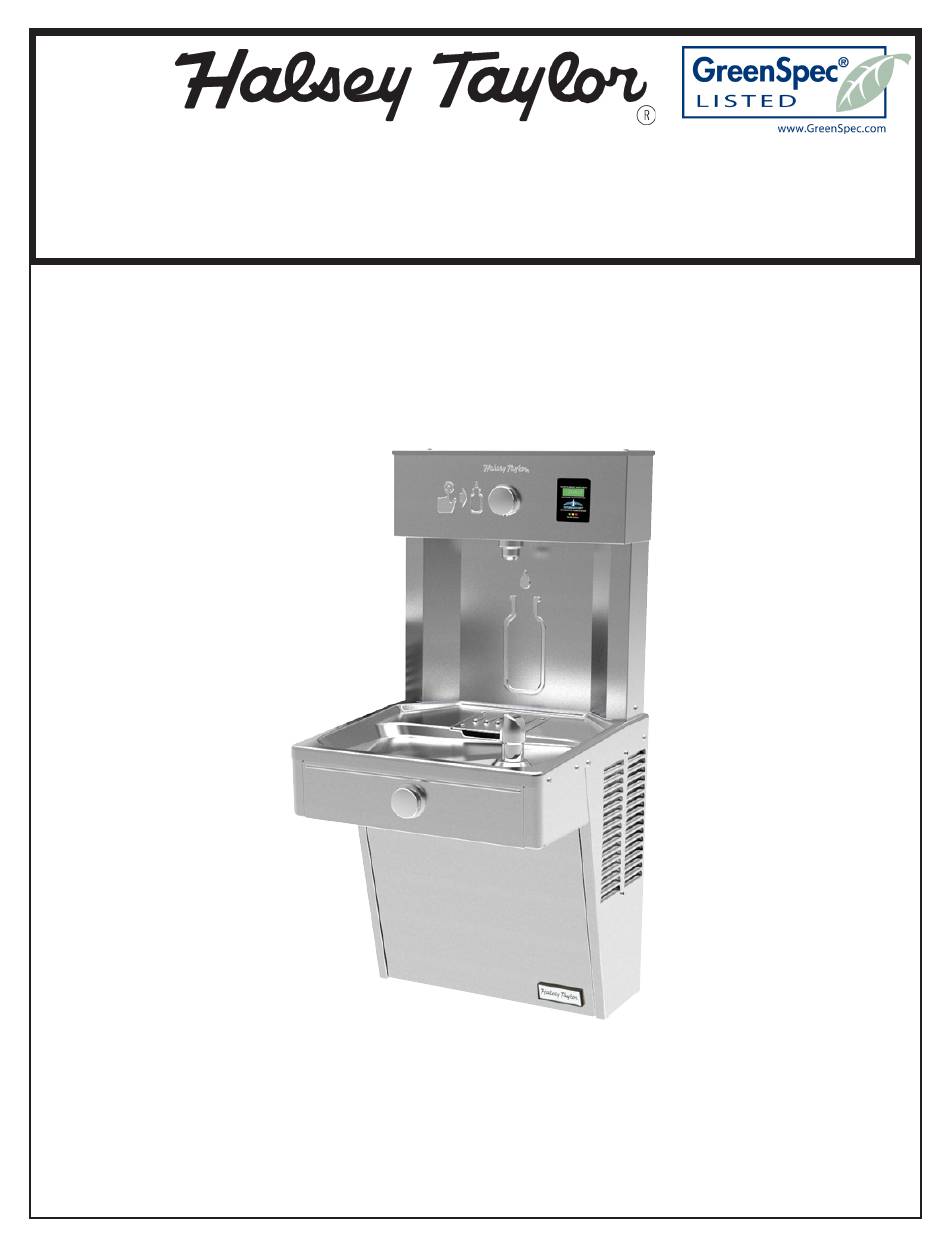

  • Page 1 HTHBHVR8-NF*1A, *2A, *3A HTHBHVR-NF*A, *2A HTHBHVR8*1A, *2A, *3A HTHBHVR*A, *2A Owners Manual HTHBHVR8, HTHBHVR8-25, HTHBHVR8-26 Factory Prep HydroBoost Bottle Filling Station and Cooler ® Model HTHBHVR8 Page 1 98986C (Rev. Q - 12/18)
  • Page 2: Tools Required

    THE BOTTLE FILLING STATION AND WATER COOLER BE PROTECTED BY A GROUND FAULT CIRCUIT INTERRUPTER (GFCI). HTHBHVR8 Bottle Fillers are among the easiest to install on the market today. To insure you install these models easily and correctly, PLEASE READ THESE SIMPLE INSTRUCTIONS BEFORE STARTING THE INSTALLATION.
  • Page 3 HTHBHVR8-NF*1A, *2A, *3A HTHBHVR-NF*A, *2A HTHBHVR8*1A, *2A, *3A HTHBHVR*A, *2A Note: Danger! Electric shock hazard. Disconnect power before servicing unit. Pictured is unit only without Bottle Filler Uses HFC-134A refrigerant See Fig. 8 17, 18 See Fig. 7 See Fig. 9 See Fig.
  • Page 4 HTHBHVR8-NF*1A, *2A, *3A HTHBHVR-NF*A, *2A HTHBHVR8*1A, *2A, *3A HTHBHVR*A, *2A Fig. 2 98986C (Rev. Q - 12/18) Page 4...
  • Page 5 HTHBHVR8-NF*1A, *2A, *3A HTHBHVR-NF*A, *2A HTHBHVR8*1A, *2A, *3A HTHBHVR*A, *2A MOUNTING TOP COVER SCREWS BOTTLE FILLER MOUNTING BRACKET FOR FASTENING UNIT MOUNTING SCREWS TO WALL DO NOT REMOVE MOUNTING SCREWS DO NOT REMOVE NOTE: TRIM PLATES MUST BE INSTALLED ON THE INSIDE OF THE BOTTLE FILLER SIDE PANEL SLOTS.
  • Page 6 HTHBHVR8-NF*1A, *2A, *3A HTHBHVR-NF*A, *2A HTHBHVR8*1A, *2A, *3A HTHBHVR*A, *2A REMOVAL OF BOTTLE FILLER FOR SERVICING 1) Turn off the water supply to the Water Cooler. Unplug and/or turn off Circuit Breaker to Cooler and Bottle Filler. NOTE: the Lower Front Panel of the cooler(s) may need to be removed. To prevent scratching the basin place a towel or soft cloth over the entire basin when working above it.
  • Page 7 HTHBHVR8-NF*1A, *2A, *3A HTHBHVR-NF*A, *2A HTHBHVR8*1A, *2A, *3A HTHBHVR*A, *2A PUSH BUTTON MECHANISM Fig. 7 Basin Fig. 9 VANDAL RESISTANT BUBBLER DETAIL Fig. 8 Page 7 98986C (Rev. Q - 12/18)
  • Page 8 HTHBHVR8-NF*1A, *2A, *3A HTHBHVR-NF*A, *2A HTHBHVR8*1A, *2A, *3A HTHBHVR*A, *2A BF9 PROGRAM SETTING THE CONTROL BOARD VERIFY CONTROL BOARD SOFTWARE SETTING UNIT TYPE 1) To verify the software program of the control board the 1) Depress the program button for approximately 2 seconds unit will need to be shut down and restarted.
  • Page 9 HTHBHVR8-NF*1A, *2A, *3A HTHBHVR-NF*A, *2A HTHBHVR8*1A, *2A, *3A HTHBHVR*A, *2A BF11 - BF12 PROGRAM SETTING THE CONTROL BOARD VERIFY CONTROL BOARD SOFTWARE Continued from below: 1) To verify the software program of the control board the unit will 2) When the display changes to “SETTINGS”, depress the button again.
  • Page 10 HTHBHVR8-NF*1A, *2A, *3A HTHBHVR-NF*A, *2A HTHBHVR8*1A, *2A, *3A HTHBHVR*A, *2A WATERSENTRY PLUS FILTER PARTS LIST ® ITEM PART NO. DESCRIPTION 55898C Filter Assy-3000 Gallon (Single) 55898C_12PK Filter Assy-3000 Gallon (12 Pack) 98926C Kit-Filter Head Fittings-includes John Guest Fittings 1000003563 Assy-Filter Head & Brkt includes Filter Head/...
  • Page 11: 115V Wiring Diagram

    HTHBHVR8-NF*1A, *2A, *3A HTHBHVR-NF*A, *2A HTHBHVR8*1A, *2A, *3A HTHBHVR*A, *2A 115V PARTS LIST ITEM PART NO. DESCRIPTION BOTTLE FILLER REPLACEMENT PART KITS Bubbler Assy - VR 97446C PART NO. DESCRIPTION 98777C Kit - Compressor Mtg/Clips/Studs/Grommets Kit - Fan Motor/Blade/Shroud/Nut/Screws 98775C...
