PARTS LIST
Specifications
Power source
: AC 120 V 60 Hz
Power consumption
: 12 A
Motor revolution
: 21,700 r.p.m.
Vacuum
: 20,000 Pa
Dimensions
: 559 X 350 X 365 mm
L X W X H
Net weight
: 7.5 Kg (16 lbs. 8 ozs.)
Attachment
: Suction hose, Power head,

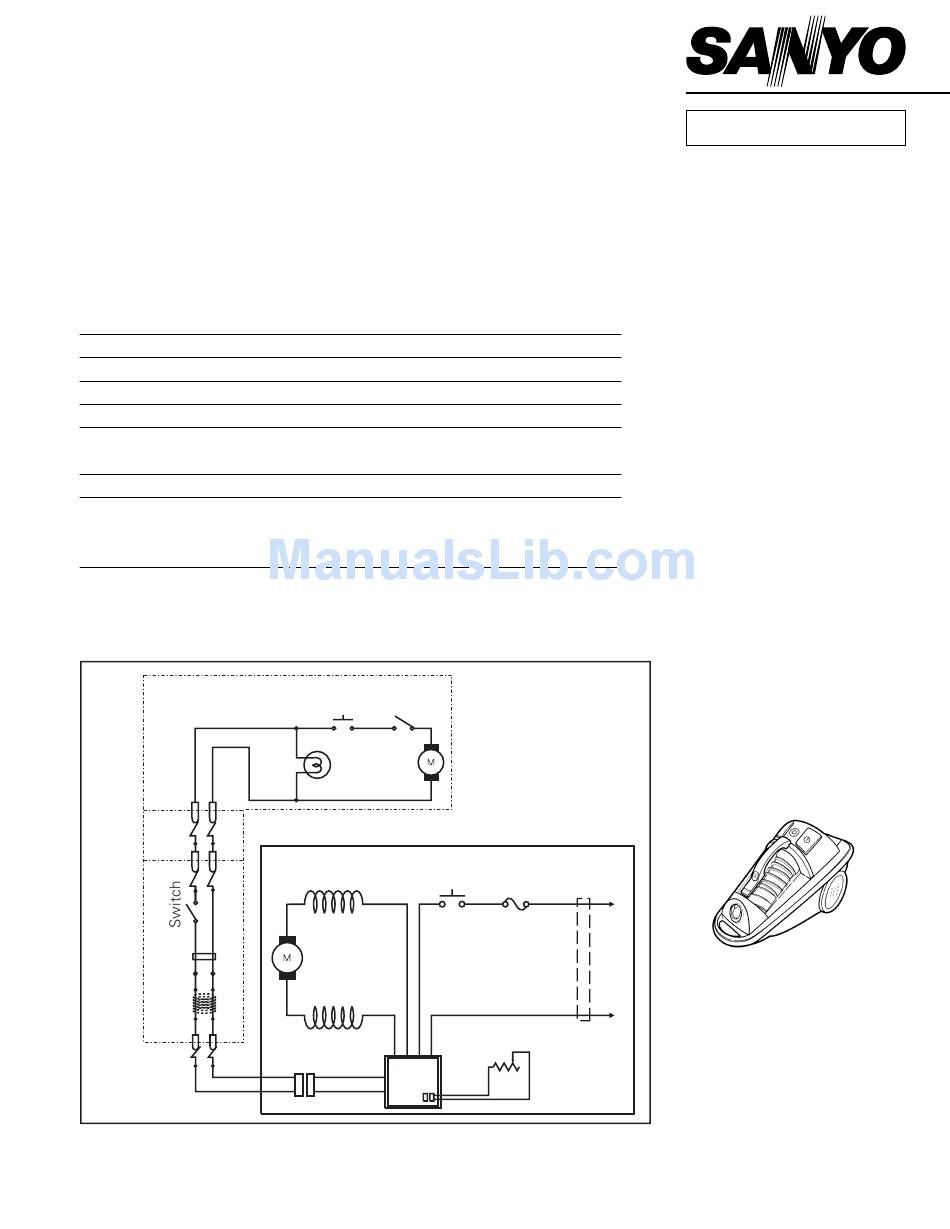

Wiring Diagram
Pipe
Hose
Vacuum Cleaner
(22" X 13 - 25/32" X 14 - 3/8")
Connection pipe, Crevice tool,
Upholstery brush, Duster arm
Switch
Switch
Lamp
Switch
Carbon brush
Control
circuit
SC-X2100P
PRODUCT CODE NO.
Fuse
Cord reel
AC
Volume
REFERENCE NO.
- 1 -
FILE No.
(U.S.A.)
1 - 326 728 02 ( LM )
PL6510333-00
Advertisement
Related Manuals for Sanyo SC-X2100P
Summary of Contents for Sanyo SC-X2100P
-
Page 1: Vacuum Cleaner
Upholstery brush, Duster arm Wiring Diagram Switch Pipe Hose Carbon brush Vacuum Cleaner Switch Lamp Switch Fuse Cord reel Volume Control circuit - 1 - FILE No. SC-X2100P (U.S.A.) PRODUCT CODE NO. 1 - 326 728 02 ( LM ) PL6510333-00 REFERENCE NO. -
Page 2: Exploded View (Main Unit)
Exploded View NOTE : The parts marked with (Main unit) 87,88 have special characteristics of safety, if replace the mark parts,use only SANYO specified parts. - 2 - SC-X2100P (U.S.A.) -
Page 3: Parts List (Main Unit)
53 663 000 9536 MOTOR COMP. (AC 120V) 663 000 0298 CARBON BRUSH ASSEMBLY COLOR CODE:B-476T/B-475(BLUE),N3-99T(SILVER),N1-233/N1-242(GRAY),NN-B(BLACK) have special characteristics of safety, mark parts,use only SANYO specified parts. Q'ty Parts No. 54 663 000 9543 MOTOR CUSHION FRONT 55 663 000 9550 MOTOR CUSHION COVER... - Page 4 Exploded View NOTE : The parts marked with (Attachment) have special characteristics of safety, if replace the mark parts,use only SANYO specified parts. 1 (2 - 54) - 4 - SC-X2100P (U.S.A.)
- Page 5 48 663 000 9048 WHEEL FRONT (NN-B) 49 663 000 9055 SHAFT 50 663 000 9062 CAUTION LABEL A COLOR CODE:B-476T/B-475(BLUE),N3-78(GRAY),N5-28(WHITE),N1-233(GRAY),NN-B(BLACK) have special characteristics of safety, mark parts,use only SANYO specified parts. Q'ty Parts No. 51 663 000 9079 SCREW 52 663 001 0044 CORD ASSEMBLY...
-
Page 6: Parts List
21 663 000 7693 SCREW (3X8) 22 663 000 8423 JOINT PIPE PACKING COLOR CODE:N1-52/N1-233(GRAY) Nov./2001 Printed in Japan have special characteristics of safety, mark parts,use only SANYO specified parts. 1 (2 - 36) Q'ty Parts No. 23 663 000 8430 SLIP RING BASE...
