PARTS LIST
Specifications
Power source
: AC 120 V 60 Hz
Power consumption
:
Motor revolution
: 27,000 r.p.m.
Vacuum
: 2,300 mmAq
Dimensions
: 14 - 1/4" X 14 - 3/16" X 45"
L X W X H
Net weight
: 19 lbs. 6 ozs. ( 8.8 Kg )
Attachment
: 2 Suction hose, 2 Wands,

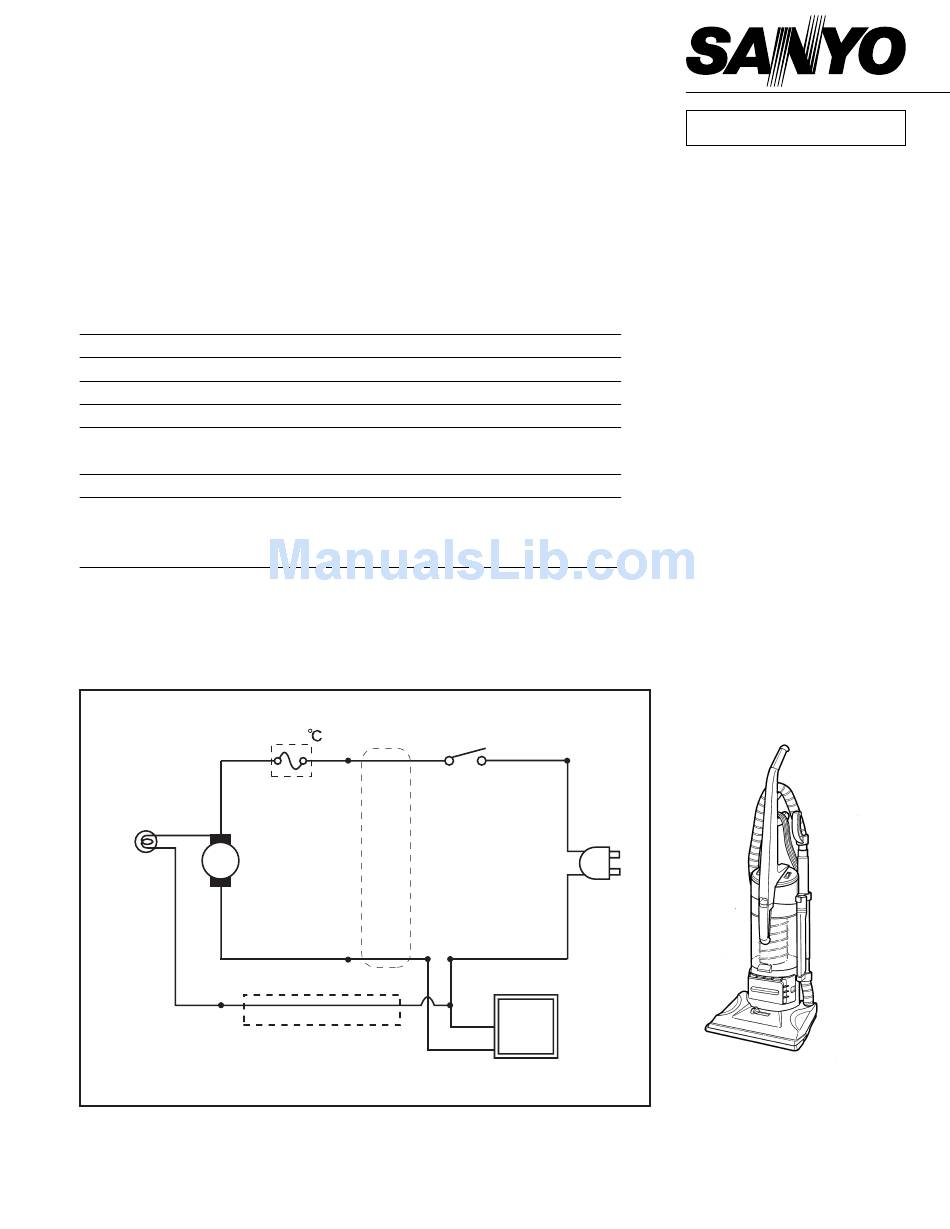

Wiring Diagram
(13A 120 )
Black
Lamp
Carbon brush
(120V 15W)
Cord assembly
(L=580)
Vacuum Cleaner
12 A
(362 X 360 X 1,143 mm)
Crevice tool, Upholstery brush,
Dusting brush
Fuse
Black
Cord assembly
(L=680)
White
Switch
Black
A C
White
Control circuit
- 1 -
FILE No.
SC-B1230
(U.S.A.)
PRODUCT CODE NO.
1 - 326 663 01 ( R )
PL6510020-00
REFERENCE NO.
Advertisement
Related Manuals for Sanyo SC-B1230
Summary of Contents for Sanyo SC-B1230
-
Page 1: Vacuum Cleaner
Lamp Carbon brush (120V 15W) White Cord assembly (L=580) Vacuum Cleaner Switch Black Cord assembly (L=680) White Control circuit - 1 - FILE No. SC-B1230 (U.S.A.) PRODUCT CODE NO. 1 - 326 663 01 ( R ) PL6510020-00 REFERENCE NO. - Page 2 Exploded View NOTE : The parts marked with 11,12 have special characteristics of safety, if replace the mark parts,use only SANYO specified parts. 54 55 - 2- SC-B1230 77( 78- 80 ) (U.S.A.)
- Page 3 Exploded View SC-B1230 NOTE : The parts marked with have special characteristics of safety, (U.S.A.) if replace the mark parts,use only SANYO specified parts. 88( 89- 91 ) 112 111 - 3 -...
- Page 4 57 649 000 5235 SHAFT REAR COLOR CODE:R-206/R-262(RED),N1-217/N1-230/N1-233/N5-46(GRAY),NN-B(BLACK) Sep./’99/1,000 Printed in Japan have special characteristics of safety, mark parts,use only SANYO specified parts. Q'ty Parts No. 58 649 000 2593 SLEEVE (NN-B) 59 649 000 5242 DUST BOX PACKING (N1-233)
