PARTS LIST
Specifications
Power source
: AC 120 V 60 Hz
Power consumption
:
Motor revolution
: 36,700 r.p.m.
Vacuum
: 23,000 Pa
Dimensions
: 14 - 1/4" X 14 - 3/16" X 45"
L X W X H
Net weight
: 18 lbs. 5 ozs. ( 8.3 Kg )
Attachment
: Suction hose, Floor tool,
Wiring Diagram
Motor
Stator
Black
Carbon brush
Rotor
Stator
White

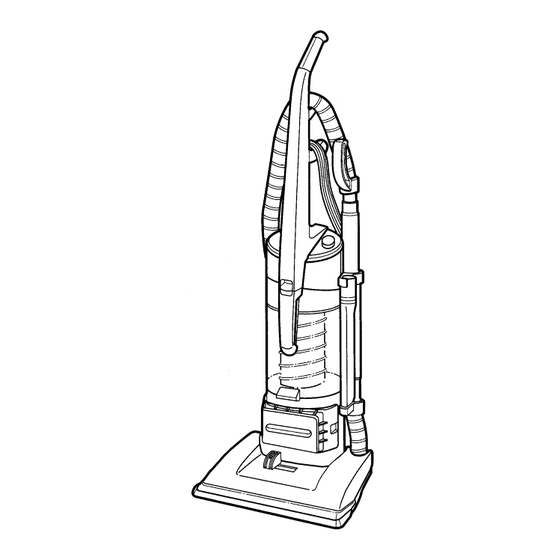

Vacuum Cleaner
12 A
(362 X 360 X 1,143 mm)
Connection pipe, Crevice tool,
Upholstery brush
Switch
Cord
SC-B1211
PRODUCT CODE NO.
Fuse
A C
REFERENCE NO.
- 1 -
FILE No.
(U.S.A.)
1 - 326 735 01 ( L )
PL6510311-00
Advertisement
Related Manuals for Sanyo SC-B1211
Summary of Contents for Sanyo SC-B1211
-
Page 1: Vacuum Cleaner
Connection pipe, Crevice tool, Upholstery brush Wiring Diagram Motor Stator Black Carbon brush Rotor Stator White Vacuum Cleaner Switch Fuse Cord - 1 - FILE No. SC-B1211 (U.S.A.) PRODUCT CODE NO. 1 - 326 735 01 ( L ) PL6510311-00 REFERENCE NO. - Page 2 Exploded View NOTE : The parts marked with 10,11 have special characteristics of safety, if replace the mark parts,use only SANYO specified parts. - 2- SC-B1211 71 (72 - 74) (U.S.A.)
- Page 3 Exploded View SC-B1211 (U.S.A.) - 3 -...
- Page 4 53 663 000 6177 SCREW (3X16) 54 663 000 6184 EXTENSION PIPE RETAINER COLOR CODE:B-516/B-520(BLUE),N3-99T(SILVER),N1-233/NC01(GRAY),NN-B(BLACK) Aug./2001/60 Printed in Japan have special characteristics of safety, mark parts,use only SANYO specified parts. Q'ty Parts No. 55 663 000 4128 NAME PLATE 56 663 000 6207 TRANSMISSON ASSEMBLY...
