PARTS LIST
Specifications
Power source
: AC 120 V 50 Hz
Power consumption
: 11 A
Motor revolution
: 36,000 r.p.m.
Vacuum
: 23,000 Pa
Dimensions
: 13 - 3/8" x 12 - 31/32" x 42 - 1/8"
L X W X H
Net weight
: 15 lbs. 3 ozs. ( 6.9 Kg )
Attachment
: Suction hose, 2 Wands,

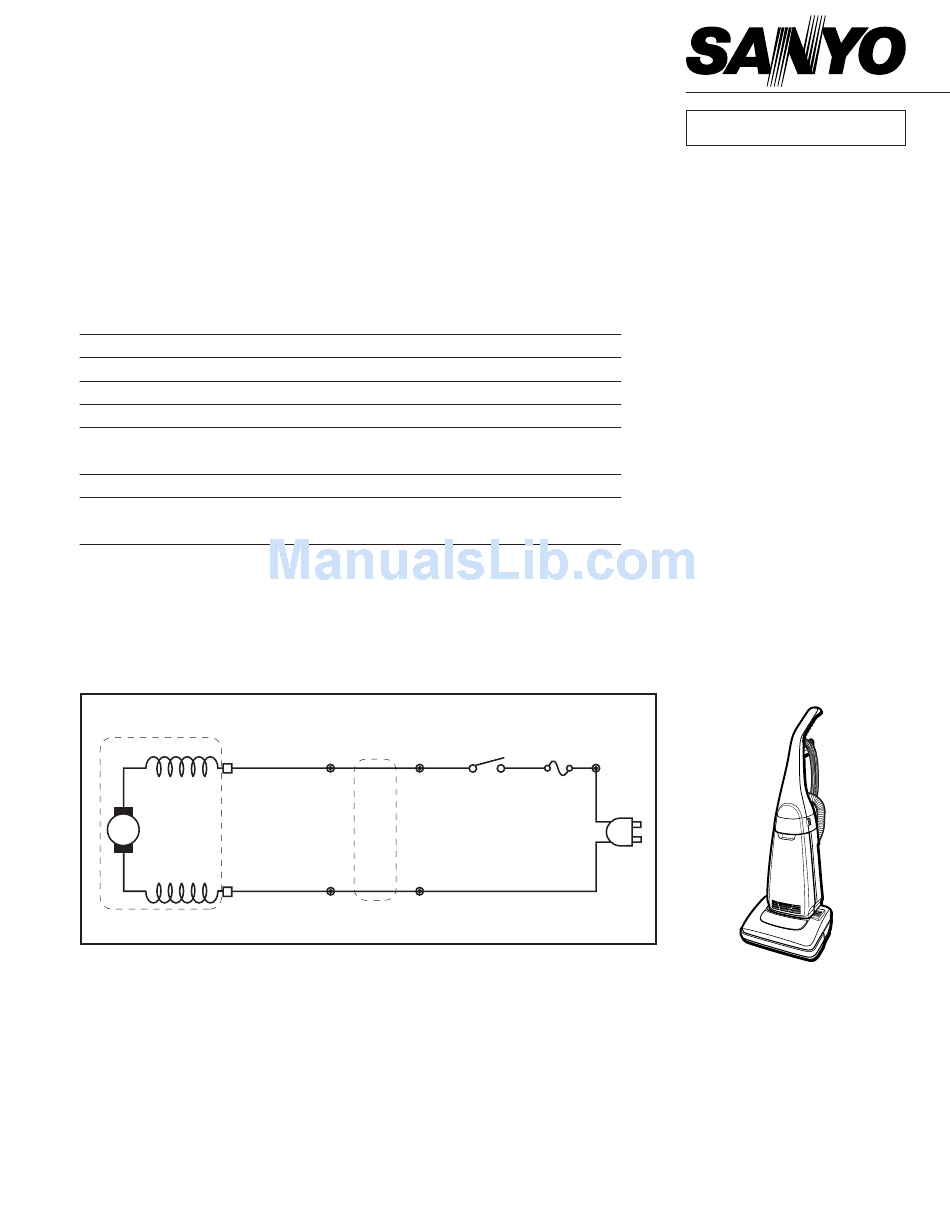

Wiring Diagram
Motor
Stator
Black
Carbon brush
Rotor
Stator
White
Vacuum Cleaner
(340 x 330 x 1,070 mm)
Crevice tool, Upholstery tool
Black
Cord
Switch
Fuse
A C
REFERENCE NO.
- 1 -
FILE No.
SC-A114
(U.S.A.)
PRODUCT CODE NO.
1 - 326 734 51 ( L )
PL6510304-00
