Operation manual
E461506
Rev 01

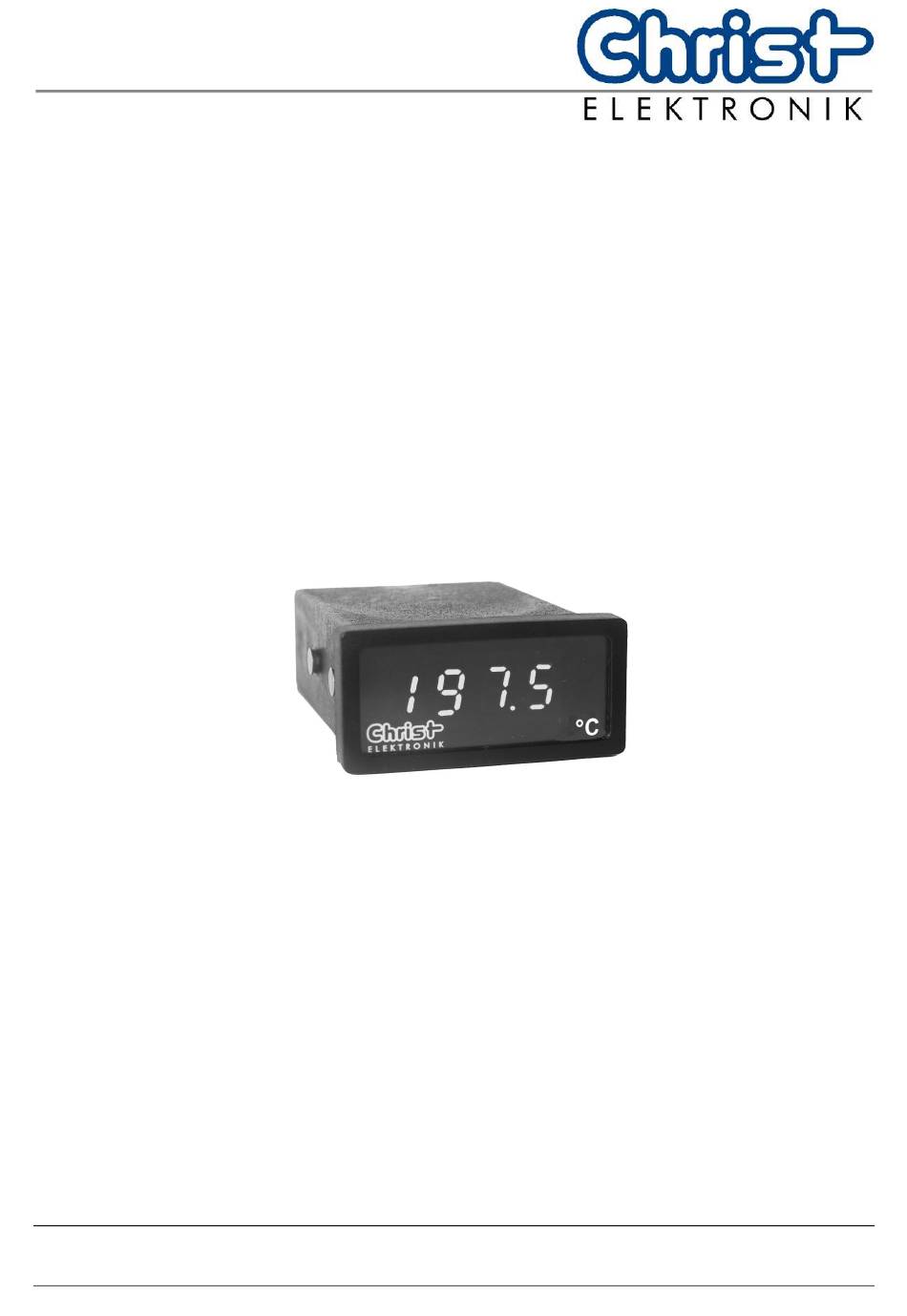

Operation manual CAM 100
Digital panel meter for Thermometer Pt100
About this manual:
Read this manual carefully for safety instructions and operating guidance before installation.
Christ-Elektronik GmbH • Alpenstrasse 34 • D-87700 Memmingen
Tel. +49 (0) 83 31/83 71 - 0 • Fax +49 (0) 83 31/83 71 - 99
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Christ Elektronik CAM 100
Summary of Contents for Christ Elektronik CAM 100
- Page 1 Operation manual E461506 Rev 01 Operation manual CAM 100 Digital panel meter for Thermometer Pt100 About this manual: Read this manual carefully for safety instructions and operating guidance before installation. Christ-Elektronik GmbH • Alpenstrasse 34 • D-87700 Memmingen Tel. +49 (0) 83 31/83 71 - 0 • Fax +49 (0) 83 31/83 71 - 99...
- Page 2 (e.g. VDE 0100). Supply voltage is indicated on the type plate and is to put on the clamps 5 and 6. 2. Operation 2.1 Starting With the digital panel meter CAM 100 the temperature - measuring range can be stopped by programming places. The deci- mal point is likewise set with programming places. 2.2 Adjustment Pt 100 1.
- Page 3 Picture 2: Solder Pads Solder Pads Solder Side Picture 3: Display-ranges DP 2 DP 1 DP 3 DP 0 DP 3 DP 2 DP 1 DP 0 Table 1: Connecting Pt100 Connection terminal block / bridges 4 - wire to terminal block 1, 2, 3, 4, no bridges 3 - wire to terminal block 1, 3, 4, and bridge B1 2 - wire...
-
Page 4: Technical Data
3 Technical data Display Display 7 – Segment display, 8 mm LED red ± 1999 digits Display range Decimal point via solder bridge Measurement range Display „1“ at overrange or sensor break Display „-1“ at underrange Measurement functions Measurement range via solder bridge Meas.
