Sensorex TX2000 Operation Manual

Intelligent ph/orp
Hide thumbs Also See for TX2000:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual
GlobalScientificSupply
www.

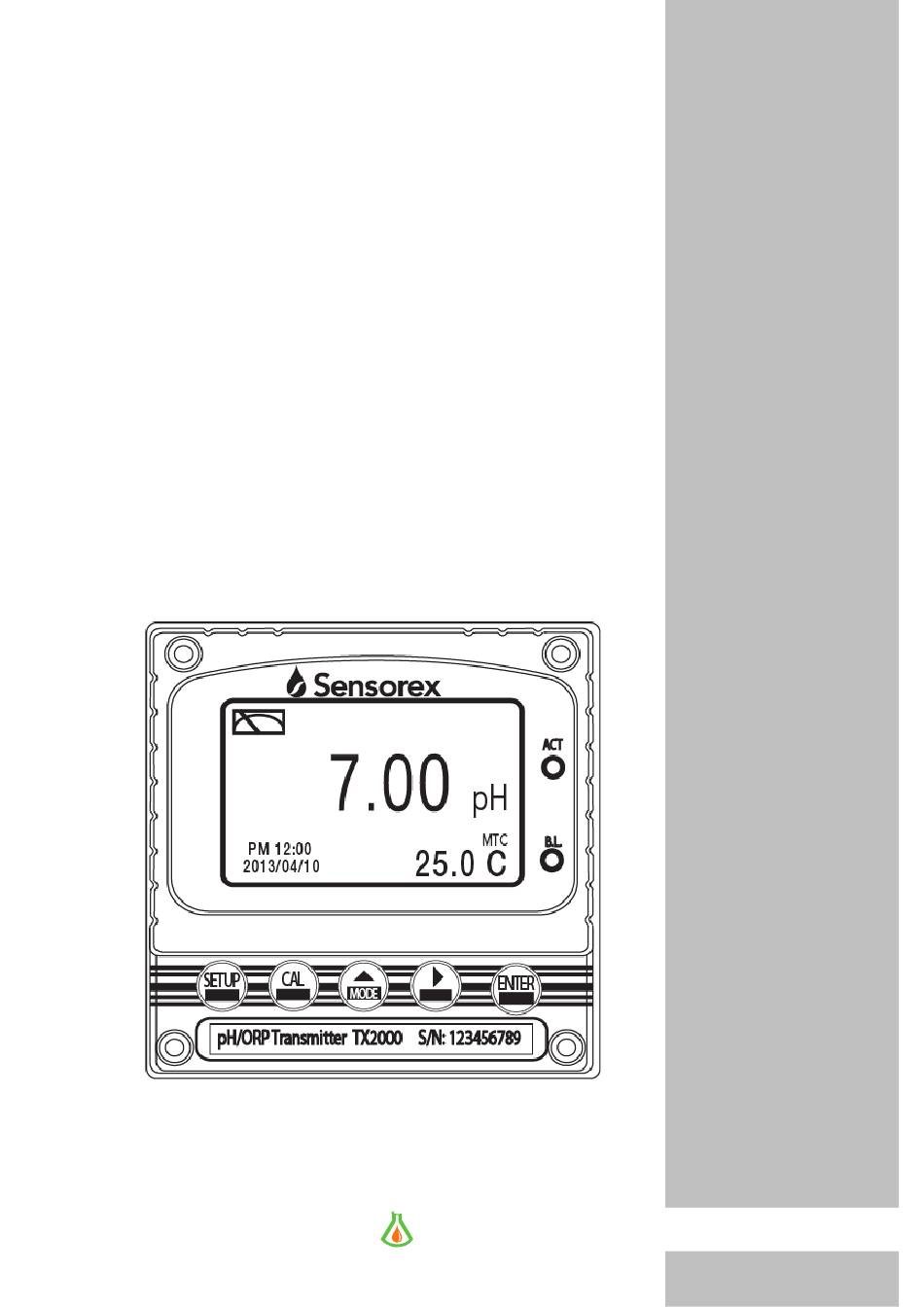

T X 2 0 0 0
Intelligent
pH/ORP
Transmitter
.com
25.0 C
GLOBAL SCIENTIFIC SUPPLY
The Laboratory Supply Company!
Operation
Manual
info@GlobalScientificSupply.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TX2000 and is the answer not in the manual?

Questions and answers

Related Manuals for Sensorex TX2000

Summary of Contents for Sensorex TX2000

  • Page 1 T X 2 0 0 0 Operation Manual Intelligent pH/ORP Transmitter 25.0 C GlobalScientificSupply GLOBAL SCIENTIFIC SUPPLY info@GlobalScientificSupply.com www. .com The Laboratory Supply Company!
  • Page 2 Precautions for installation Wrong wiring will lead to breakdown or electrical shock of the instrument, please read this operation manual clearly before installation. Make sure to remove AC power from the controller before wiring input, output connections, and remove it before opening the controller housing. The installation site of the controller should be good in ventilation and avoid direct sunshine.
  • Page 3 obalScientificSupply GLOBAL SCIENTIFIC SUPPLY info@GlobalScientificSup .com The Laboratory Supply Company!

  • Page 4: Table Of Contents

    6.4 Multi-point calibration(Multi-Cal) 6.5 Temperature 6.6 Relay 1 6.7 Relay 2 6.8 Wash time(Clean) 6.9 Analog output 1 (pH/ORP) 6.10 Analog output 2 (temperature) 6.11 Date/Time (Clock) 6.12 Sample average of measurements (Digital filter) 6.13 Backlight settings 6.14 Contrast settings 6.15 Automatically back to measurement mode(Return) 7.
  • Page 5 Brief Instruction Description of set-up settings (see chapter 7 for details) Press simultaneously to see the overview of the set-up settings now. Then press if you would like to modify set-up settings. Press keypad according to index of keypad on the screen. Index of keypad keypad Function...
  • Page 6 Analog 2 Current output according for temperature Clock Clock setting (When power , the time setting will return to the factory Back-light Backlight setting, to set Auto/ON/OFF backlight, brightness, and sensitivity Contrast Contrast of screen setting Digital Filter Take every serial 1~60 measurements, average them continuously, and make it as the readings Return Return to the measurement mode...
  • Page 7 Use NIST standard buffers(DIN 19266) as standard solution for calibration Use any buffer solution by users’ definition for calibration Note Sensorex reserves the right to change the figure of icons and contents. The actual icons and contents please refer to the instruments. GlobalScientificSupply GLOBAL SCIENTIFIC SUPPLY info@GlobalScientificSupply.com...

  • Page 8: Specifications

    1. Specifications TX2000 Model Measuring modes pH / ORP / Temp. -2.00~16.00 pH -1999~1999 mV Ranges -30.0~130.0 °C Temp. 0.01 pH Resolutions 1 mV 0.1 °C Temp. ±0.01 pH ± 1 Digit Accuracy ±0.1% ± 1 Digit Temp. ±0.2°C± 1 Digit...

  • Page 9: Assembly And Installation

    2. Assembly and installation 2.1 Transmitter installation: This Transmitter can be installed through panel mounting, wall mounting and pipe mounting. Panel mounting: First, prepare a square hole of 93 x 93mm on the panel box, and then insert the controller directly into the panel box. Insert the mounting bracket from the rear, until it is locked into the pickup groove.
  • Page 10 GlobalScientificSupply GLOBAL SCIENTIFIC SUPPLY info@GlobalScientificSupply.c .com The Laboratory Supply Company!
  • Page 11 T h i s p a g e i n t e n t i o n a l l y l e f t b l a n k GlobalScientificSupply GLOBAL SCIENTIFIC SUPPLY info@GlobalScientificSupp .com The Laboratory Supply Company!
  • Page 12 T h i s p a g e i n t e n t i o n a l l y l e f t b l a n k GlobalScientificSupply GLOBAL SCIENTIFIC SUPPLY info@GlobalScientificSupp .com The Laboratory Supply Company!
  • Page 13 T h i s p a g e i n t e n t i o n a l l y l e f t b l a n k GlobalScientificSupply GLOBAL SCIENTIFIC SUPPLY info@GlobalScientificSuppl .com The Laboratory Supply Company!
  • Page 14 GlobalScientificSupply GLOBAL SCIENTIFIC SUPPLY info@GlobalScientificSupply.com www. .com The Laboratory Supply Company!
  • Page 15 GlobalScientificSupply GLOBAL SCIENTIFIC SUPPLY info@GlobalScientificSupply.com .com The Laboratory Supply Company!
  • Page 16 T h i s p a g e i n t e n t i o n a l l y l e f t b l a n k GlobalScientificSupply GLOBAL SCIENTIFIC SUPPLY info@GlobalScientificSuppl .com The Laboratory Supply Company!
  • Page 17 T h i s p a g e i n t e n t i o n a l l y l e f t b l a n k obalScientificSupply GLOBAL SCIENTIFIC SUPPLY info@GlobalScientificSup .com The Laboratory Supply Company!
  • Page 18 3.7 Illustration of electrical connection: 100 ~ 240VAC Transmitter Surge absorber Surge absorber External relay Washing device Surge absorber Surge absorber External relay Dose feeder Surge absorber Surge absorber External relay Dose feeder GlobalScientificSupply GLOBAL SCIENTIFIC SUPPLY info@GlobalScientificSupply.com www. .com The Laboratory Supply Company!
  • Page 19 4. Configuration: 4.1 Illustration of front panel: 4.2 Keypad: In order to prevent inappropriate operation by others, before the parameter setting and calibration, the operation applies multi-keys, and coding protection if necessary . Description of the key functions is in the following: ：In the parameter set-up mode, pressing this key allows you exit parameter set-up mode and return back to Measurement mode.
  • Page 20 4.4 Display: Analog 1 output REL 1 high or REL 2 high or current over range low point alarm low point alarm Measurement mode alarm Analog 2 output current over range Set-up mode alarm Calibration mode Control function on hold Measurement value Measurement unit Temperature...
  • Page 21 Relay 1：High point alarm: AUTO，SP1= 10.00 pH，db1= 0.10 pH Relay 2：Low point alarm: AUTO，SP2 =04.00 pH，db2= 0.10 pH Wash time: OFF Analog 1 current output (pH/ORP)：4~20 mA，2.00~12.00pH Analog 2 current output (Temp)：4~20 mA，0~100.0°C（TX2000 only） Display backlit: Auto，Brightness= 0，Sensitivity =0 Code set-up: OFF Date & Time：2010/1/1 00:00:00...
  • Page 22 6. Settings Block diagram of settings...
  • Page 23 6.1 Entry of set-up menu In the measurement mode, pressing the two keys simultaneously allows you enter the overview of current setting, and press to enter the set-up mode to modify the setting if necessary. “Measurement (Mode)” Press Press Press Press to confirm it Enter set-up menu...
  • Page 24 6.2 Security code of settings: After entering set-up mode, select “code” item, press to enter into code procedure. The preset code is 1111. Note: The code of setting mode must be done prior to the code for calibration. That means that the code of setting mode can be used for the code of calibration mode.
  • Page 25 6.3 Mode Enter setup of “Mode”. Select between “pH” or “ORP” measurement. Press to confirm it. Press to select between pH or ORP Press to confirm it. Enter ”Multi-Cal” Setup GlobalScientificSupply GLOBAL SCIENTIFIC SUPPLY info@GlobalScientificSupply.com www. .com The Laboratory Supply Company!

  • Page 26: Temperature

    6.4 Multi-Cal Enter setup of multi-points calibration to set the number of calibration points. Press to confirm it. Press to select the number of calibration points. There are 1~3 points to choose from. The factory default is 2 points. When the calibration reaches the number of setting points, the calibration procedure will automatically be terminated and display the calibration result.

  • Page 27: Relay

    6.5 Temperature Enter setup of “Temperature” to select temperature compensation mode. Select from NTC(NTC 30K), PTC(PT 1K) or MTC(Manual adjustment). Press to confirm it. Press Press to select to select Press to confirm it. Press to confirm it. Use standard thermometer to test If necessary, compare with the actual temperature of the the actual temperature value...

  • Page 28: Relay

    6.6 Relay 1 Enter setup of Relay 1. Select the item to turn on or turn of the relay 1 function. If you select to turn on the relay 1, then select for using relay 1 as “Hi set-point” alarm or “Low set-point”...
  • Page 29 6.7 Relay 2 Enter setup of Relay 2. Select the item to turn on or turn of the relay 2 function. If you select to turn on the relay 2, then select for using relay 2 as “Hi set-point” alarm or “Low set-point”...
  • Page 30 6.8 Clean Enter setup of “Clean” function. Select the icon to turn on or turn off the clean function. If you select “Auto” turning on, and set the timer of the clean function including automatically turning on time and turning off time, and set the bead-band value(DB). Note: When the clean function is turned on, if any value is set to be 0, the instrument will automatically turn off this function.

  • Page 31: Analog Output 1 (Ph/Orp)

    6.9 Analog output 1 (pH/ORP): Enter setup of Analog 1 . Select 0~20mA or 4~20m A current output. Set the related value to the range of pH/ORP measurement. If the range or the pH/ORP measurement is smaller, the resolution of current output is higher. Press to confirm it.

  • Page 32: Analog Output 2 (Temperature)

    6.10 Analog output 2 (Temperature): Enter setup of Analog 2 . Select 0~20mA or 4~20m A current output. Set the related value to the range of temperature measurement. If the range or the temperature measurement is smaller, the resolution of current output is higher. Press to confirm it.

  • Page 33: Sample Average Of Measurements (Digital Filter)

    6.11 Date/Time(Clock) Enter setup of Date/Time(Clock). Set the “Year”, “Month”, “Date”, “Hour”, and “Minute” time. Note: The clock needs to be reset after a power failure. Press to confirm it. Press set the year. Press to confirm it. Press set the month part, and press to move to adjust the date part.
  • Page 34 6.12 Sample average of measurements (Digital Filter) Enter the setup of Digital filter. You may select the number of samples to be averaged each time to increase the stability of measurement. Press to confirm it. Press set the number of sample to be averaged.

  • Page 35: Backlight Settings

    6.13 Backlight settings Enter setup of backlight display. As needed, you can set the brightness of the display and sensitivity of the backlight sensor. Press to confirm it. Press Press to select to select backlight mode. backlight mode. Press to confirm it. Press to confirm it.

  • Page 36: Contrast Settings

    6.14 Contrast settings Enter setup of display contrast. You can set the contrast of display according to your need. Press to confirm it. Press to select display contrast level. Press to confirm it. Enter “Auto return mode (Return)”Setup GlobalScientificSupply GLOBAL SCIENTIFIC SUPPLY info@GlobalScientificSupply.com www.
  • Page 37 6.15 Return Enter setup of auto return mode (Return) to set the function that the instrument automatically exit the setup menu after a period of time without pressing any key. The “Manual Exit” means that it needs to exit setup menu manually, while “Auto” means that the display automatically exits the setup menu and returns to measurement mode after a period of time without pressing any key.

  • Page 38: Block Diagram Of Calibration

    7. Calibration Block diagram of Calibration Cal. Info. Calculate zero, slop, sensitivity and determination coefficient Cal. Mode Code Return TECH NIST Asymmetry Setting Setting Manual Input Auto Temp. adust for Temp. adust for Exit Temp. adust for first Paeeword first buffer first buffer buffer uffer( MTC uffer( MTC or...
  • Page 39 7.1 Enter calibration setup menu In the measurement mode, pressing the two keys simultaneously allows you enter the Calibration Information. If you do not need to re-calibrate the measurement system, press to go back to measurement mode. If you need to re-calibrate the system, press to enter the calibration setup menu.

  • Page 40: Security Password Of Calibration

    7.2 Security password of calibration (Code) Select the Code (password) icon after entering calibration setup mode. Select to activate code function or not. The default Calibration setting code is “1100”. Press to confirm it. The first ‘0” of digits ‘0000” start to twinkle.

  • Page 41: Ph Calibration

    7.4 pH Calibration The instrument provides multi-point standard buffer solution calibration. You may decide how many points to calibrate the measurement system(up to 3-point). The principle is according to “Method of Least Squares”. Apply linear regression to calibration the electrode’s slope and zero point (Asy, Offset or Zero point). When calibrating a electrode, you may calibrate 1 to 3 point by any sequence to provide linear regression for mV and pH multi-calibration of a electrode, and to show the electrode’s slope and zero point(Asy, offset or Zero point) at 25°C.

  • Page 42: Definition Of Calibration Parameter

    7.4.4 Definition of calibration parameter You can calibrate the electrode by one point or up to three points of standard solutions in any sequence. As different calibration point method is applied, the definition of the zero point and slope is different. Calibration point Determination The showed calibration value Zero point (Asy, offset or Zero point)= Asy...
  • Page 43 9. Maintenance Generally speaking, under normal operation, the controllers produced by our company, need no maintenance. Regular cleaning and calibration of the electrode is suggested to ensure accurate and stable measurement and system operation. The cleaning cycle for the electrode depends on the degree of contamination from the measured sample.

  • Page 44: Any Calibration

    7.4.6 Any Calibration The procedure below is two points calibration of Any mode. First, enter the setup of Multi-points calibration and set the number of calibration point for 2. (See chapter 6.4 Multi-Cal) Then, go to Calibration menu and select “Any” mode. Operate the instrument as follow procedure diagram.

  • Page 45: Orp Calibration

    7.5 ORP Calibration Under ORP measurement mode, enter calibration setup menu. Select Calibration icon, and adjust mV value. The adjustable range is from -300mV to 300mV. Put the ORP electrode into ORP standard solution. Press to adjust the main display value until it is equal to the desired mV value.

  • Page 46: Error Messages (Error Code)

    8. Error messages (Error code) Messages Reason Dispositions Please call customer service. Serious error that does not permit any further Error9 measuring 1. Please adjust the buffer 1. During calibration, the buffer solution solution temperature to the temperature exceeds a appropriate temperature range of 5～50℃...

  • Page 47: Maintenance

    9. Maintenance Generally speaking, under normal operation, the controller produced by our company needs no maintenance accept regular cleaning and calibration of the electrode to ensure accurate and stable measurement and system operation. The cleaning cycle for the electrode depends on the pollution degree of the measurement sample.

  • Page 48: Appendix

    Appendix Table 1 TECH Mode TECH buffers TEMP℃ Buffer 4.01 Buffer 7 Buffer 10 3.999 7.087 10.241 3.998 7.053 10.155 3.999 7.031 10.116 4.002 7.011 10.047 4.006 6.996 9.998 4.011 6.985 9.952 4.018 6.976 9.925 4.031 6.971 9.874 4.047 6.969 9.843 4.055 6.969...
