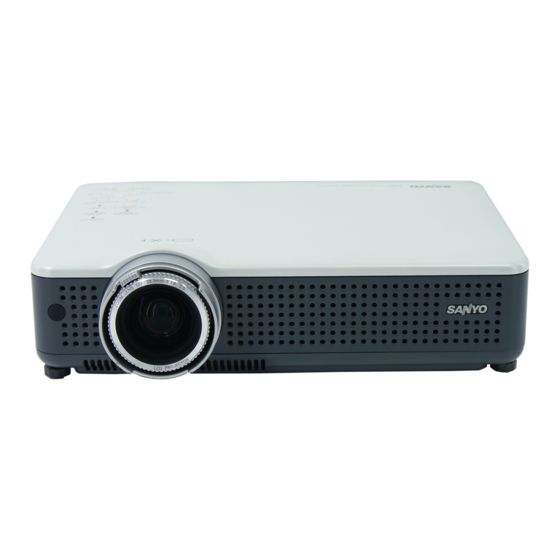

Sanyo PLC-XU88 Owner's Manual

Sanyo projector owner's manual
Hide thumbs Also See for PLC-XU88:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
Multimedia Projector
PLC-XU88
MODEL
Owner's Manual
Network Supported
Wireless LAN
□
IEEE802.11b/g
Wired LAN
□
100-Base-TX/10-Base-T
Memory Viewer
SD Card Memory Viewer
□
* Refer to the owner's manuals below for details
about network and memory viewer function.
Network Set-up and Operation
■
Memory viewer
■

Advertisement

Table of Contents
loading

Related Manuals for Sanyo PLC-XU88

Summary of Contents for Sanyo PLC-XU88

  • Page 1 Multimedia Projector PLC-XU88 MODEL Owner’s Manual Network Supported Wireless LAN □ IEEE802.11b/g Wired LAN □ 100-Base-TX/10-Base-T Memory Viewer SD Card Memory Viewer □ * Refer to the owner’s manuals below for details about network and memory viewer function. Network Set-up and Operation ■...

  • Page 3: Features And Design

    Features and Design This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology. Compact Design ◆...

  • Page 4: Table Of Contents

    Safety Instructions . . . . . . . . . . . . . . . . . . . . .6 Air Circulation Installing the Projector in Proper Directions Moving the Projector Compliance .

  • Page 5: To The Owner

    NOTE: This symbol and recycle system are applied to EU countries only and not applied to the countries in the other area of the world. Your SANYO product is designed and manufactured with high quality materials and components which can be recycled and reused.

  • Page 6: Safety Instructions

    Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector.

  • Page 7: Installing The Projector In Proper Position

    For information about transporting the projector by courier or any other transport service, consult your dealer. – Do not put the projector in a case before the projector is cooled enough. Air Intake Vent...

  • Page 8: Compliance

    Telephone No. : (818)998-7322 The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it. AC Power Cord for the United States and Canada: AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and certified by the Canadian Standard Association (CSA).

  • Page 9: Part Names And Functions

    ① Infrared Remote Receiver ② Focus Ring ③ Zoom Lever ④ Projection Lens ⑤ Lens Cap (See page 59 for attaching.) CAUTION Do not turn on a projector with lens cap attached. High temperature from light beam may damage lens cap and result in fire hazard. ⑥ ⑥ Air Intake Vent ⑦ Exhaust Vents CAUTION Hot air is exhausted from the exhaust vent. Do not put heat-sensitive objects near this side.

  • Page 10: Rear Terminal

    ① USB In order to operate the computer with the remote control and use the PAGE remote control during a presentation, connect the USB port of the computer to the USB terminal with a USB cable (not supplied) (pp.12, 18). ② SERVICE PORT This jack is used to service the projector. ③ COMPUTER IN 1/DVI-I Connect computer output (Digital/Analog DVI-I type) to this terminal (p.18). ④ COMPUTER IN 2/COMPONENT IN/ MONITOR...

  • Page 11: Top Control

    Refer to the owner's manual of "Network Set-up and Operation" and owner's manual of Memory viewer. ④ POwER indicator – Lights red when the projector is in stand-by mode. – Lights green during operations. – Blinks green in the Power management mode (p.51).

  • Page 12: Remote Control

    – Execute the selected item. (p.23) – Expand or compress the image in Digital zoom mode. (p.38) ㉓ PRESENTATION POINTER button Move a pointer of the projector or a pointer for wireless mouse operation. (pp.13-14) ㉔ AUTO SET/CANCEL button – Correct vertical keystone distortion and adjust the PC display parameters. (pp.25, 46) –...

  • Page 13: Laser Pointer Function

    Signal Emission Indicator Laser Light Window Pointer Function You can move the Spotlight or Pointer of the projector with the remote control to emphasize a part of the projected image. Press and hold the MENU and NO SHOW buttons for more than 10 seconds to activate the Pointer function.

  • Page 14: Wireless Mouse Operation

    Change the remote control code for the projector first before changing that for the remote control. See “Remote control” in the Setting Menu on page 52.

  • Page 15: Remote Control Battery Installation

    ● Do not drop the remote control. ● If the battery has leaked on the remote control, carefully wipe the case clean and install new batteries. ● Risk of an explosion if battery is replaced by an incorrect type. ● Dispose of used batteries according to the instructions. Remote Control Operating Range Point the remote control toward the projector (Infrared Remote Receiver) when pressing the buttons. Maximum operating range for the remote control is about 16.4'(5 m) and 60 degrees in front of the projector. Adjustable Feet Projection angle can be adjusted up to 10.0 degrees with the...

  • Page 16: Installation

    Installation Positioning the Projector For projector positioning, see the figures below. The projector should be set perpendicularly to the plane of the screen.  Notes: • The brightness in the room has a great influence on picture quality. It is recommended to limit ambient lighting in order to obtain the best image.

  • Page 17: Connecting The Ac Power Cord

    NOTE ON THE POWER CORD AC power cord must meet requirement of the country where you use the projector. Confirm the AC plug type with the chart below and proper AC power cord must be used. If supplied AC power cord does not match your AC outlet, contact your sales dealer.

  • Page 18: Connecting To A Computer

    • VGA Cable (Mini D-sub 15 pin) * • DVI-VGA Cable • DVI Cable • USB Cable • Audio Cables (*One cable is supplied; other cables are not supplied with the projector.) Audio Output Monitor Output USB cable cable Audio cable...

  • Page 19: Connecting To Video Equipment

    (Cables are not supplied with the projector. ) S-Video cable  Notes: • When the AUDIO OUT is plugged-in, the projector's built- in speaker is not available. • The S-VIDEO jack connection overrides the VIDEO jack connection when selecting AUTO in the Input Menu (p.39).

  • Page 20: Connecting To Component Video Equipment

    COMPONENT IN or Monitor output. (See Page 50.)  Notes: • When the AUDIO OUT is plugged-in, the projector's built-in speaker is not available. • See page 72 for ordering optional cables. • RGB Scart signal cannot be output from the MONITOR OUT terminal.

  • Page 21: Basic Operation

    After the countdown, the input source that was selected the last time and the lamp control status icon (see page 52) appear on the screen. If the projector is locked with a PIN code, PIN code input dialog box will appear. Enter the PIN code as instructed below.

  • Page 22: Turning Off The Projector

    • The running speed of cooling fans is changed according to the temperature inside the projector. • Do not put the projector in a case before the projector is cooled enough. • If the WARNING TEMP. indicator blinks or lights red, see “WARNING TEMP.

  • Page 23: How To Operate The On-Screen Menu

    Basic Operation How to Operate the On-Screen Menu The projector can be adjusted or set via the On-Screen Menu. For each adjustment and setting procedure, refer to the respective sections in this manual. Press the MENU button on the top control or the remote control to display the On-Screen Menu.

  • Page 24: Menu Bar

    B ) / S h a r p n e s s / G a m m a / N o i s e reduction/Progressive] (pp.43– 44). Basic Operation Setting Menu wireless Menu Used to set See owner’s manual the projector’s “Network Set-up and operating Operation”. configurations (pp.46-56). Sound Menu...

  • Page 25: Zoom And Focus Adjustment

    Rotate the Focus Ring to adjust the focus of the image. Auto Setup Function Auto setup function is provided to automatically correct Keystone distortion according to the projector’s tilt and adjust the computer display parameters (Fine sync, Total dots, and Picture position) by just pressing the AUTO SETUP/CANCEL button on the top control or the AUTO SET/CANCEL button on the remote control.

  • Page 26: Sound Adjustment

    Sound Adjustment Direct Operation Volume Press the VOLUME+/– buttons on the top control or on the remote control to adjust the volume. The volume dialog box appears on the screen for a few seconds. Mute Press the MUTE button on the remote control to temporarily turn off the sound.

  • Page 27: Remote Control Operation

    Basic Operation Remote Control Operation Using the remote control for some frequently used operations is advisable. Just pressing one of the buttons enables you to make the desired operation quickly without calling up the On-Screen Menu. COMPUTER/VIDEO/NETwORK button Press the COMPUTER, VIDEO, or NETWORK button on the remote control to select the input source.
  • Page 28 NO SHOw button Press the NO SHOW button on the remote control to black out the image. To restore to normal, press the NO SHOW button again or press any other button. When a projected image is captured and set as “User” in the Logo selection (see page 48), the screen changes each time you press the NO SHOW button as follows.

  • Page 29: Computer Input

    Computer Input Input Source Selection (RGB: Computer 1 (Analog)/Computer  ) Direct Operation Choose either Computer 1 (Analog) or Computer 2 by pressing the INPUT button on the top control or press the COMPUTER button on the remote control. Before using these buttons, correct input source should be selected through Menu operation as described below.

  • Page 30: Input Source Selection (Rgb(Pc Digital), Rgb(Av Hdcp))

    The specification of HDCP is decided and controlled by Digital Content Protection, LLC. Should the specification be changed, this projector may not display the digital content protected by HDCP. • Wired and Wireless are for the Network function. See owner’s manual “Network Set-up and Operation”...

  • Page 31: Computer System Selection

    Computer Input Computer System Selection This projector automatically tunes to various types of computers based on VGA, SVGA, XGA, SXGA, WXGA, or UXGA with its Multi-scan system and Auto PC Adjustment. If a computer is selected as a signal source, this projector automatically detects the signal format and tunes to project a proper image without any additional settings.

  • Page 32: Auto Pc Adjustment

    To store adjustment parameters The adjusted parameters from the Auto PC Adjustment can be stored in the projector. Once the parameters are stored, the setting can be done just by selecting a Mode (1–5) in the PC System Menu (see page 31). See also “Store” on page Notes:...

  • Page 33: Manual Pc Adjustment

    Computer Input Manual PC Adjustment Some computers employ special signal formats which may not be tuned by Multi-scan system of this projector. Manual PC Adjustment enables you to precisely adjust several parameters to match those signal formats. The projector has five independent memory areas to store those parameters manually adjusted. It allows you to recall the setting for a specific computer.
  • Page 34 Display area H Use the Point buttons to adjust the horizontal area ◄► displayed by this projector. Display area V Use the Point buttons to adjust the vertical area ◄► displayed by this projector. Reset To reset the adjusted data, select Reset and press the SELECT button.

  • Page 35: Image Mode Selection

    Image 3, and Image 4 by pressing the IMAGE button on the remote control. Dynamic For viewing pictures in a bright room. Standard Normal picture mode preset on the projector. Real Picture mode with improved halftone for graphics. Blackboard (Green) For the image projected on a blackboard.

  • Page 36: Image Adjustment

    Image Adjustment Press the MENU button to display the On-Screen Menu. Use the Point buttons to move the red ◄► frame pointer to the Image Adjust Menu icon. Use the Point buttons to move the red frame ▲▼ pointer to the desired item and then press the SELECT button to display the adjustment dialog box.

  • Page 37: Screen Size Adjustment

    Image Mode Selection on page 35. Quit Exit the Image Adjust Menu. Screen Size Adjustment This projector has the picture screen resize function, which enables you to customize the image size. Press the MENU button to display the On-Screen Menu. Use the Point ◄►...

  • Page 38: For Zooming In And Out The Images

    Custom Adjust the screen scale and position manually with this function. Press the SELECT button at Custom and the “Custom” is displayed on the screen for a few seconds and then the Aspect dialog box appears. Scale H/V ... Adjust the Horizontal/Vertical screen scale.

  • Page 39: Video Input

    SELECT button. When selecting Auto, the projector automatically Auto detects incoming video signal, and adjusts itself to optimize its performance. The projector selects connection in the following order: 1. S-video 2. Video When video input signal is connected to the Video VIDEO jack, select Video.

  • Page 40: Input Source Selection (Component, Rgb Scart 21-Pin)

    Input Source Selection (Component, RGB Scart 1-pin) Direct Operation Choose Computer 2 by pressing the INPUT button on the top control or press the COMPUTER button on the remote control. Before using these buttons, correct input source should be selected through Menu operation as described below. Menu Operation Press the MENU button to display the On-Screen Menu.

  • Page 41: Video System Selection

    The projector automatically detects an incoming video signal, and adjusts itself to optimize its performance. COMPONENT VIDEO SIGNAL FORMAT If the projector cannot reproduce proper video image, select a specific component video signal format from among 480i, 575i, 480p, 575p, 720p, 1035i, and 1080i.

  • Page 42: Image Mode Selection

    Image 3, and Image 4 by pressing the IMAGE button on the remote control. Dynamic For viewing pictures in a bright room. Standard Normal picture mode preset on the projector. Cinema Picture mode adjusted with fine tone. Blackboard (Green) For the image projected on a blackboard.

  • Page 43: Image Adjustment

    Video Input Image Adjustment Press the MENU button to display the On-Screen Menu. Use the Point ◄► frame pointer to the Image Adjust Menu icon. Use the Point buttons to move the red frame ▲▼ pointer to the desired item and then press the SELECT button to display the adjustment dialog box.
  • Page 44 L1 ... For an active picture. L2 ... For a still picture. Film ... For watching a film. With this function, the projector reproduces pictures faithful to the original film quality. Reset To reset the adjusted data, select Reset and press the SELECT button.

  • Page 45: Screen Size Adjustment

    Video Input Screen Size Adjustment This projector has the picture screen resize function, which enables you to customize the image size. Press the MENU button to display the On-Screen Menu. Use the Point ◄► frame pointer to the Screen Menu icon.

  • Page 46: Setting

    Setting Setting This projector has a Setting menu that allows you to set up the other various functions described below. Press the MENU button to display the On-Screen Menu. Use the Point ◄► frame pointer to the Setting Menu icon.
  • Page 47 Countdown Off ... Show the input image instead of the countdown when turning on the projector. Use this function when you want to project the image as early as possible even when the lamp is not bright enough.
  • Page 48 After capturing the projected image, go to the Logo select function and set it to “User”. Then the captured image will be displayed the next time you turn on the projector or when you press the NO SHOW button (see page 28).
  • Page 49 After entering the four-digit number, move the pointer to “Set.” Press the SELECT button so that you can start to operate the projector. If you entered an incorrect Logo PIN code, “Logo PIN code” and the number (    ) will turn red for a moment.
  • Page 50 Terminal The COMPUTER IN 2/COMPONENT IN / MONITOR OUT terminal on the back of the projector is switchable for computer input or monitor output. (See page 10) Select Computer 2 or Monitor Out with the Point ◄► buttons.
  • Page 51 Eco ... Select “Eco” when you do not use the projector via network. The projector’s network function will stop when turning off the projector. Refer to the owner’s manual “Network Set-up and Operation”.
  • Page 52 On start When this function is set to “On,” the projector will be automatically turned on just by connecting the AC power cord to a wall outlet. Note: • Be sure to turn off the projector properly (see “Turning Off the Projector” on page 22). If the projector is turned off in the incorrect sequence, the On start function does not work properly.
  • Page 53 Security (Key lock and PIN code lock) This function allows you to use the Key lock and PIN code lock function to set the security for the projector operation. Key lock This function locks the top control and remote control buttons to prevent operation by unauthorized persons.
  • Page 54 DOwN THE NEw PIN CODE IN COLUMN OF THE PIN CODE NO . MEMO ON PAGE 75, AND KEEP IT SECURELy . IF yOU FORGET yOUR PIN CODE, THE PROjECTOR CAN NO LONGER BE STARTED . Enter a PIN code button to move ◄...
  • Page 55 (p.22). L1 ... Normal operation L2 ... Slower and lower-sound than the normal operation (L1), but it takes more time to cool the projector down. Fan control Choose the running speed of cooling fans from the following options.

  • Page 56: Filter Counter

    Filter counter This function is used to set a frequency for the filter cleaning. When the projector reached a specified time between cleanings, a Filter warning icon appears on the screen, notifying the cleaning is necessary. After cleaning the filter, be sure to select RESET and set the timer.

  • Page 57: Maintenance And Cleaning

    Maintenance and Cleaning wARNING TEMP . indicator The Warning Temp. indicator shows the state of the function which protects the projector. Check the state of the Warning Temp. indicator and the POWER indicator to take proper maintenance. The projector is shut down and the warning Temp .

  • Page 58: Cleaning The Filter

    If a “Filter warning” icon appears on the screen, clean the air filters immediately. Clean the air filters by following the steps below.

  • Page 59: Attaching The Lens Cap

    Maintenance and Cleaning Attaching the Lens Cap When moving this projector or while not using it over an extended period of time, replace the lens cap. Attach the lens cap according to the following procedures. Pass the string through a hole of the lens cap.

  • Page 60: Lamp Replacement

    Lamp Replacement When the projection lamp of the projector reaches its end of life, the Lamp replacement icon appears on the screen and LAMP REPLACE indicator lights yellow. Replace the lamp with a new one promptly. The timing when the LAMP REPLACE indicator should light is depending on the lamp mode.

  • Page 61: Resetting The Lamp Counter

    Additionally, check carefully to ensure that there are no broken shards or pieces of glass around the projector or coming out from the cooling air circulation holes. Any broken shards found should be cleaned up carefully. No one should check the inside of the projector except those who are authorized trained technicians and who are familiar with projector service.

  • Page 62: Appendix

    Before calling your dealer or service center for assistance, check the items below once again. – Make sure you have properly connected the projector to peripheral equipment as described on pages 18-20. – Make sure all equipment is connected to AC outlet and the power is turned on.
  • Page 63 – Press the Volume + button. See page 26. – Press the Mute button. See page 26. – When the AUDIO OUT is plugged-in, the projector's built-in speaker is not available – Is the image projected? You will hear the sound only when the image is projected.
  • Page 64 – Make sure no obstruction is between the projector and remote control. – Make sure you are not too far from the projector when using the remote control. Maximum operating range is 16.4'(5 m). – Make sure the code of the remote control is conformed to the projector’s code.
  • Page 65 High voltages are used to operate this projector . Do not attempt to open the cabinet . If problems still persist after following all operating instructions, contact the dealer where you purchased the projector or the service center. Specify the model number and explain about the problem. We will advise you how to obtain service.

  • Page 66: Menu Tree

    Menu Tree Computer Input/Video Input Input Computer 1 (Analog) Computer 1 (Digital) Computer 2 Video Wired Wireless Sound Sound Volume Mute Quit Computer Input System SVGA 1 Mode 1 Mode 2 - - - - * Systems displayed in the System Menu vary depending on an input signal.
  • Page 67 On/Off Computer2/Momitor out Off/On1/On2 Eco/Normal Ready Shut down Timer (1–30 Min.) Quit On/Off Normal/Auto/Eco Spotlight/Pointer Quit Code 1–Code 8 Key lock Projector Remote control Quit PIN code lock Off/On1/On2 PIN code change Quit Quit L1/L2 Normal/Max Hour(s) Reset Yes/No Quit...

  • Page 68: Indicators And Projector Condition

    The projector detects an abnormal condition and cannot be turned on. Unplug the AC power cord and plug it again to turn on the projector. If the projector is turned off again, unplug the AC power cord and contact the dealer or the service center for service and checkup.

  • Page 69: Compatible Computer Specifications

    Appendix Compatible Computer Specifications Basically this projector can accept the signal from all computers with the V-, H-Frequency mentioned below and less than 140 MHz of Dot Clock for analog signal and 110 MHz of Dot Clock for digital signal.
  • Page 70 When the input signal is digital from DVI terminal, refer to the chart below. ON-SCREEN H-Freq . RESOLUTION DISPLAy (KHz) D-VGA 640 x 480 31.47 D-480p 640 x 480 31.47 D-575p 768 x 575 31.25 D-SVGA 800 x 600 37.879 D-XGA 1024 x 768 43.363...

  • Page 71: Technical Specifications

    Appendix Technical Specifications Mechanical Information Projector Type Dimensions (W x H x D) Net Weight Feet Adjustment Panel Resolution LCD Panel System Panel Resolution Number of Pixels Signal Compatibility Color System High Definition TV Signal Scanning Frequency Optical Information Projection Image Size (Diagonal)

  • Page 72: Optional Parts

    Accessories Owner’s Manual (CD-ROM) Quick Reference Guide AC Power Cord Remote Control and Batteries VGA Cable Lens Cap with String PIN Code Label Lamp Replacement Label Network Application (CD-ROM) ● The specifications are subject to change without notice. ● LCD panels are manufactured to the highest possible standards. Even though 99.99% of the pixels are effective, a tiny fraction of the pixels (0.01% or less) may be ineffective by the characteristics of the LCD panels.

  • Page 73: Pj Link Notice

    Appendix PJ Link Notice This projector is compliant with PJLink Standard Class 1 of JBMIA (Japan Business Machine and Information System Industries Association). This projector supports all commands defined by PJLink Class 1 and is verified conformance with PJLink Standard Class 1.

  • Page 74: Configurations Of Terminals

    Configurations of Terminals COMPUTER IN  /COMPONENT IN /MONITOR OUT (ANALOG) Terminal: Analog RGB (Mini D-sub 15 pin) DVI-I TERMINAL (DIGITAL/ANALOG) C1 C2 USB CONNECTOR (Series B) - Data + Data Ground LAN TERMINAL TX + TX – RX + 8 7 6 5 4 3 2 1 SERVICE PORT CONNECTOR Terminal : Mini DIN 8-PIN...

  • Page 75: Pin Code Number Memo

    PIN Code Number Memo Write down the PIN code number in the column below and keep it with this manual securely. If you forgot or lost the number and unable to operate the projector, contact the service station. PIN Code Lock No .

  • Page 76: Dimensions

    Appendix Dimensions Unit: mm(inch) Screw Holes for Ceiling Mount Screw: M4 Depth: 12.0(0.472) 88.7(3.49) 246.3(9.70) 228(9.0) 53.5(2.11) 90(3.54) 70(2.76) º 10 MAX...
  • Page 77 KD3AC-A SANYO Electric Co., Ltd.
