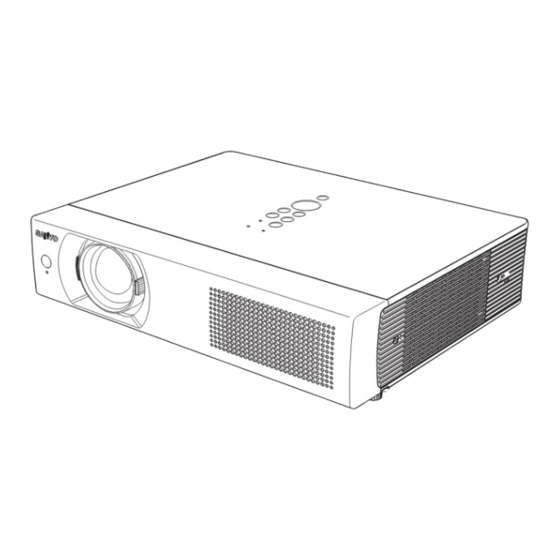

Multimedia Projector
PLC-WXU700A
MODEL
Owner's Manual
Network Supported
□ Wireless LAN
IEEE802.11b/g/n
□ Wired LAN
100-Base-TX/10-Base-T
Memory Viewer
USB Memory Viewer
□
* Refer to the owner's manuals below for
details about network and memory viewer
function.
Network Set-up and Operation
■
Memory viewer function
■

Advertisement

Table of Contents
loading

Related Manuals for Sanyo PLC WXU700A

Summary of Contents for Sanyo PLC WXU700A

  • Page 1 Multimedia Projector PLC-WXU700A MODEL Owner’s Manual Network Supported □ Wireless LAN IEEE802.11b/g/n □ Wired LAN 100-Base-TX/10-Base-T Memory Viewer USB Memory Viewer □ * Refer to the owner’s manuals below for details about network and memory viewer function. Network Set-up and Operation ■...

  • Page 2: Features And Design

    Features and Design This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology. ♦...

  • Page 3: Table Of Contents

    Moving the Projector Installing the Projector in Proper Directions Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . .8 Part Names and Functions .

  • Page 4: To The Owner

    Be especially careful that children do not stare directly into the beam. – Install the projector in a proper position. Otherwise it may result in fire hazard. – Allowing the proper amount of space on the top, sides, and rear of the projector cabinet is critical for proper air circulation and cooling of the unit.

  • Page 5: Safety Instructions

    Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector.

  • Page 6: Air Circulation

    This may cause damage to the projector. For information about transporting the projector by courier or any other transport service, consult your dealer. – Do not put the projector in a case before the projector is cooled enough.

  • Page 7: Installing The Projector In Proper Directions

    Installing the Projector in Proper Directions Use the projector properly in specified positions. Improper positioning may reduce the lamp life and result in severe accident or fire hazard. This projector can project the picture upward, downward or backward, perpendicular to the plane of the screen as shown in the figure below.

  • Page 8: Compliance

    Telephone No. : (818)998-7322 The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it. AC Power Cord for the United States and Canada: AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and certified by the Canadian Standard Association (CSA).

  • Page 9: Part Names And Functions

    ④ Zoom Lever ⑤ Lens Cap ⑥ CAUTION Do not turn on a projector with lens cap attached. High temperature from light beam may damage lens cap and result in fire hazard. Top Controls and Indicators ⑦ Air Intake Vent ⑧...

  • Page 10: Rear Terminal

    USB port of the computer to the USB terminal with a USB cable (not supplied) (p.17). ③ CONTROL PORT When controlling the projector with RS-232C, connect the control equipment to this connector with the serial control cable. ④ COMPUTER IN 1 / COMPONENT IN...

  • Page 11: Top Control

    Memory Viewer menu. Refer to the owner's manual of "Memory Viewer function". ⑤ POWER indicator – Lights red when the projector is in stand-by mode. – Lights green during operations. – Blinks green in the Power management mode (p.56).

  • Page 12: Remote Control

    – Expand or compress the image in Digital zoom mode. (p.39) ㉖ PRESENTATION POINTER button Move a pointer of the projector or a pointer for wireless mouse operation. (pp.14-15) ㉗ AUTO SET/CANCEL button – Correct vertical keystone distortion and adjust computer display parameters such as Fine sync, Total dots, Horizontal and Vertical position –...

  • Page 13: Front

    Change the remote control code for the projector first before changing that for the remote control. See "Remote control" in the Setting Menu on page 58.

  • Page 14: Laser Pointer Function

    Signal Emission Indicator Laser Light Window Pointer Function You can move the Spotlight or Pointer of the projector with the remote control to emphasize a part of the projected image. Press and hold the MENU and the NO SHOW buttons for more than 5 seconds to activate the Pointer function.

  • Page 15: Front

    Projection angle can be adjusted up to 8.9 degrees with the adjustable feet. Lift the front of the projector and pull the feet lock latches on both side of the projector. Release the feet lock latches to lock the adjustable feet and rotate the adjustable feet to a proper height and tilt.

  • Page 16: Installation

    Installation Positioning the Projector For projector positioning, see the figures below. The projector should be set perpendicularly to the plane of the screen.  Note: • The brightness in the room has a great influence on picture quality. It is recommended to limit ambient lighting in order to obtain the best image.

  • Page 17: Connecting To A Computer

    Cables used for connection • VGA cables (Mini D-sub 15 pin) * • USB cable • Audio cables • HDMI-DVI cable (*One cable is supplied; other cables are not supplied with the projector.) Monitor Audio Output Output USB cable cable...

  • Page 18: Connecting To Video Equipment

    (Cables are not supplied with the projector. ) Video and Audio Output (Video) Video and Audio cable VIDEO Note:  When the AUDIO OUT is plugged-in, the projector's built- in speaker is not available. External Audio Equipment Audio Input Audio cable (stereo) AUDIO OUT (stereo)

  • Page 19: Connecting To Component Video Equipment

    Scart-VGA cable Component- VGA cable COMPUTER IN 1/ COMPONENT IN  Note: • When the AUDIO OUT is plugged-in, the projector's built-in speaker is not available. • See page 80 for ordering optional cables. Audio Output HDMI Output Audio HDMI...

  • Page 20: Connecting The Ac Power Cord

    NOTE ON THE POWER CORD AC power cord must meet requirement of the country where you use the projector. Confirm the AC plug type with the chart below and proper AC power cord must be used.

  • Page 21: Basic Operation

    SELECT button. And then follow the input signal guidance window to correct the signal and connection. If the projector is locked with a PIN code, PIN code input dialog box will appear. Enter the PIN code as instructed on the next page.
  • Page 22 PIN code. CAUTION ON HANDLING PIN CODE If you forget your PIN code, the projector can no longer be started. Take a special care in setting a new PIN code; write down the number in a column on page 83 of this manual and keep it on hand.

  • Page 23: Turning Off The Projector

    • The running speed of cooling fans is changed according to the temperature inside the projector. • Do not put the projector in a case before the projector is cooled enough. • If the WARNING indicator blinks or lights red, see "WARNING indicator"...

  • Page 24: How To Operate The On-Screen Menu

    Basic Operation How to Operate the On-Screen Menu The projector can be adjusted or set via the On-Screen Menu. The menus have a hierarchical structure, with a main menu that is divided into submenus, which are further divided into other submenus. For each adjustment and setting procedure, refer to respective sections in this manual.

  • Page 25: Menu Bar

    Used to adjust the volume or mute the sound (p.27).  Setting Used to set the projector’s operating configurations (pp.47-62).  Information Display the input source information: Input , H-sync freq ., V-sync freq ., Screen, Language, Lamp status, Lamp counter, Power management, Key lock, PIN code lock and Remote control (p.63).

  • Page 26: Zoom And Focus Adjustment

    Basic Operation Zoom and Focus Adjustment Rotate the Zoom Lever to zoom in and out. Rotate the Focus Ring to adjust the focus of the image. Auto Setup Function Auto setup function is provided to automatically execute the setting of Auto setup (includes Input search, Auto PC adj.

  • Page 27: Sound Adjustment

    Sound Adjustment Direct Operation Volume Press the VOLUME+/– buttons on the top control or on the remote control to adjust the volume. The volume dialog box appears on the screen for a few seconds. Mute Press the MUTE button on the remote control to select On to temporarily turn off the sound.

  • Page 28: Remote Control Operation

    Basic Operation Remote Control Operation Using the remote control for some frequently used operations is advisable. Just pressing one of the buttons enables you to make the desired operation quickly without calling up the On-Screen Menu. HDMI/COMPUTER/VIDEO/NETWORK button Press the HDMI, COMPUTER, VIDEO or NETWORK button on the remote control to select the input source.
  • Page 29 NO SHOW button Press the NO SHOW button on the remote control to black out the image. To restore to normal, press the NO SHOW button again or press any other button. When a projected image is captured and set as User in the Logo selection (see page 50), the screen changes each time you press the NO SHOW button as follows.

  • Page 30: Computer Input

    Computer Input Input Source Selection (Computer 1: RGB / Component / RGB(Scart) ) Direct Operation Choose Computer 1 by pressing the INPUT button on the top control or press the COMPUTER button on the remote control. Before using these buttons, correct input source should be selected through Menu operation as described below.

  • Page 31: Input Source Selection (Computer 2: Rgb)

    Input Source Selection (Computer : RGB) Direct Operation Choose Computer  by pressing the INPUT button on the top control or press the COMPUTER button on the remote control. Before using these buttons, correct input source should be selected through Menu operation as described below.

  • Page 32: Computer System Selection

    This projector automatically tunes to various types of computers with its Multi-scan system and Auto PC adjustment. If a computer is selected as a signal source, this projector automatically detects the signal format and tunes to project a proper image without any additional settings. (Signal formats provided in this projector are shown on pages 76-77)

  • Page 33: Auto Pc Adjustment

    To store adjustment parameters The adjusted parameters from the Auto PC adjustment can be stored in the projector. Once the parameters are stored, the setting can be done just by selecting a Mode (1–5) in the PC System Menu (see page 32). See also Store on page 35.

  • Page 34: Manual Pc Adjustment

    Computer Input Manual PC adjustment Some computers employ special signal formats which may not be tuned by Multi-scan system of this projector. Manual PC adjustment enables you to precisely adjust several parameters to match those signal formats. The projector has five independent memory areas to store those parameters manually adjusted. It allows you to recall the setting for a specific computer.
  • Page 35 • Display area (H/V) cannot be selected when 480i, 575i, 480p, 575p, 70p, 1035i or 1080i is selected in the PC System Menu (p.32). • When input computer signal to the projector, PC adjust will become available. Computer Input Mode free This mode has stored parameters.

  • Page 36: Image Mode Selection

    ▲▼ and then press the SELECT button. Dynamic For viewing pictures in a bright room. Standard Normal picture mode preset on the projector. Real Picture mode with improved halftone for graphics. Blackboard (Green) For the image projected on a blackboard.

  • Page 37: Image Adjustment

    Image Adjustment Press the MENU button to display the On-Screen Menu. Use the Point buttons to select Image ▲▼ adjust and then press the Point button. Use the Point buttons select the desired item ▲▼ and then press the SELECT button to display the adjustment dialog box.

  • Page 38: Screen Size Adjustment

    1080i (HDTV) is selected in the PC System Menu (p.32). • This projector cannot display any resolution higher than 1920 x 1200. If your computer’s screen resolution is higher than it, reset the resolution to the lower before connecting to the projector.
  • Page 39 Custom Adjust the screen scale and position manually with this function. Press the Point ►button at Custom and the Custom is displayed on the screen, you can use the Point ▲▼ buttons to choose the item you want to adjust. Scale H/V ...

  • Page 40: Video Input

    Video Input Input Source Selection (Video, S-video) Direct Operation Choose Video or S-video by pressing the INPUT button on the top control or the VIDEO button on the remote control. Remote Control VIDEO button Menu Operation Press the MENU button to display the On-Screen Menu.
  • Page 41 Input Source Selection (Component, RGB Scart 1-pin, HDMI) Direct Operation Choose Computer 1 by pressing the INPUT button on the top control or press the COMPUTER button on the remote control; choose HDMI by pressing the INPUT button on the top control or press the HDMI button on the remote control.

  • Page 42: Video System Selection

    The projector automatically detects an incoming video signal, and adjusts itself to optimize its performance. COMPONENT VIDEO SIGNAL FORMAT If the projector cannot reproduce proper video image, select a specific component video signal format among 480i, 575i, 480p, 575p, 70p, 1035i and 1080i.

  • Page 43: Image Mode Selection

    ▲▼ and then press the SELECT button. Dynamic For viewing pictures in a bright room. Standard Normal picture mode preset on the projector. Cinema Picture mode adjusted with fine tone. Blackboard (Green) For the image projected on a blackboard. This mode helps enhance the image projected on a blackboard.

  • Page 44: Image Adjustment

    Video Input Image Adjustment Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ adjust and then press the Point button. Use the Point buttons select the desired item ▲▼ and then press the SELECT button to display the adjustment dialog box.
  • Page 45 L1 ... For an active picture. L ... For a still picture. Film ... For watching a film. With this function, the projector reproduces pictures faithful to the original film quality. Reset To reset the adjusted data, select Reset and press the Point or the SELECT button.

  • Page 46: Screen Size Adjustment

    Video Input Screen Size Adjustment This projector has the picture screen resize function, which enables you to customize the image size. Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ then press the Point or SELECT button ►...

  • Page 47: Setting

    Setting Setting This projector has a Setting menu that allows you to set up the other various functions described below. Press the MENU button to display the On-Screen Menu. Press the Point ▲▼ and press the Point or the SELECT button to access ►...

  • Page 48: Auto Setup

    – When pressing the AUTO SET/CANCEL button on the remote control. On ...Input search works under the following situation. – When turning on the projector by pressing the ON/STAND-BY button on the top control or the remote control. – When pressing the AUTO SET/CANCEL button on the remote control.
  • Page 49 Countdown Off... Show the input image instead of the countdown when turning on the projector. Use this function when you want to project the image as early as possible even when the lamp is not bright enough.
  • Page 50 Setting Logo (Logo and Logo PIN code lock settings) This function allows you to customize the screen logo with Logo select, capture, Logo PIN code lock and Logo PIN code change functions. Note: When On is selected in the Logo PIN code lock function, Logo select, capture and Logo PIN code change cannot be selected.
  • Page 51 After capturing the projected image, go to the Logo select function and set it to User. Then the captured image will be displayed the next time you turn on the projector or when you press the NO SHOW button (see page 29).
  • Page 52 After entering the four-digit number, move the pointer to Set. Press the SELECT button so that you can start to operate the projector. If you entered an incorrect Logo PIN code, Logo PIN code and the number (    ...
  • Page 53 HDMI Digital R/G/B output equipment. Terminal The COMPUTER IN 2/MONITOR OUT terminal on the back of the projector is switchable for computer 2 input or monitor output. (See page 10) Computer  . . . Computer input Monitor out .
  • Page 54 Eco ... Select Eco when you do not use the projector via network. The projector’s network function will stop when turning off the projector. Refer to the owner’s manual of “Network Set-up and Operation”.
  • Page 55 (Picture in Picture combinations provided in this projector are shown on pages 78.) Only the sound on the main picture is heard, the sound on the sub picture cannot be heard.( In P in P, the big picture is main picture, and the small one is sub picture;...
  • Page 56 Power management For reducing power consumption as well as maintaining the lamp life, the Power management function turns off the projection lamp when the projector is not operated for a certain period. Select one of the following options: Ready ... When the lamp has been fully cooled down, the POWER indicator changes to green blinking.
  • Page 57 On start When this function is set to On, the projector will be automatically turned on just by connecting the AC power cord to a wall outlet. Note: Be sure to turn off the projector properly (see "Turning Off the Projector" on page 23). If the projector is turned off in the incorrect sequence, the On start function does not work properly.
  • Page 58 (Code 1) and the other seven codes (Code  to Code 8). The same code should set on both the projector and the remote control. For example, operating the projector in Code 7, the remote control code also must be switched to Code 7.

  • Page 59: Key Lock And Pin Code Lock

    Security (Key lock and PIN code lock) This function allows you to use the Key lock and PIN code lock function to set the security for the projector operation. Key lock This function locks the top control and remote control buttons to prevent operation by unauthorized persons.
  • Page 60 DOWN THE NEW PIN CODE IN COLUMN OF THE PIN CODE NO . MEMO ON PAGE 83, AND KEEP IT SECURELy . IF yOU FORGET yOUR PIN CODE, THE PROjECTOR CAN NO LONGER BE STARTED . Enter a PIN code . If ...
  • Page 61 (p.23). L1 ... Normal operation L ... Slower and lower-sound than the normal operation (L1), but it takes more time to cool the projector down. Fan control Choose the running speed of cooling fans from the following options according to the ground elevation under which you use the projector.
  • Page 62 Warning log This function records anomalous operations while the projector is in operation and use it when diagnosing faults. Up to 10 warning logs are displayed with the latest warning message at the top of the list, followed by previous warning messages in chronological order.

  • Page 63: Information

    Information Input Source Information Display The Information Menu is used for checking the status of the image signal being projected and the operation of the projector. Direct Operation Press the INFO. button on the remote control to display the Information Menu.

  • Page 64: Maintenance And Cleaning

    Maintenance and Cleaning WARNING indicator The WARNING indicator shows the state of the function which protects the projector. Check the state of the WARNING indicator and the POWER indicator to take proper maintenance. The projector is shut down and the WARNING indicator is blinking red .

  • Page 65: Cleaning The Filters

    If a Filter warning icon appears on the screen, clean the filters immediately. Clean the filters by following the steps below.

  • Page 66: Attaching The Lens Cap

    Maintenance and Cleaning Attaching the Lens Cap When moving the projector or while it is not in use, replace the lens cap. Thread the string through the hole on the lens cap and then tie a knot in the string to secure it in place.

  • Page 67: Lamp Replacement

    Lamp Replacement When the projection lamp of the projector reaches its end of life, the Lamp replacement icon appears on the screen and LAMP REPLACE indicator lights yellow. Replace the lamp with a new one promptly. The timing when the LAMP REPLACE indicator should light is depending on the lamp mode.

  • Page 68: Resetting The Lamp Counter

    Additionally, check carefully to ensure that there are no broken shards or pieces of glass around the projector or coming out from the cooling air circulation holes. Any broken shards found should be cleaned up carefully. No one should check the inside of the projector except those who are authorized trained technicians and who are familiar with projector service.

  • Page 69: Appendix

    Before calling your dealer or service center for assistance, check the items below once again. – Make sure you have properly connected the projector to peripheral equipment as described on pages 17-19. – Make sure all equipment is connected to AC outlet and the power is turned on.
  • Page 70 – Press the Volume + button. See page 27. – Press the Mute button. See page 27. – When the AUDIO OUT is plugged-in, the projector's built-in speaker is not available. – Is the image projected? You will hear the sound only when the image is projected.
  • Page 71 – Make sure no obstruction is between the projector and remote control. – Make sure you are not too far from the projector when using the remote control. Maximum operating range is 16.4'(5 m). – Make sure the code of the remote control is conformed to the projector’s code.
  • Page 72 High voltages are used to operate this projector . Do not attempt to open the cabinet . If problems still persist after following all operating instructions, contact the dealer where you purchased the projector or the service center. Specify the model number and explain about the problem. We will advise you how to obtain service.

  • Page 73: Menu Tree

    Menu Tree Computer Input/HDMI Input/Video Input Input Input Computer 1 Computer 2 HDMI Video S-video Network Sound Sound Volume Mute Computer Input System SVGA 1 Mode 1 Mode 2 - - - - * Systems displayed in the System Menu vary depending on an input signal.
  • Page 74 Subpicture position Ready Shut down Timer (1–30 Min) On/Off Closed Caption Off/CC1/CC2/CC3/CC4 Color Color/White Auto/High/Normal/Eco Code 1–Code 8 Key lock Projector Remote control PIN code lock Off/On1/On2 PIN code change L1/L2 Offl/On1/On2/On3 Lamp counter Lamp counter reset Filter counter Timer Off/100H/200H/300H...

  • Page 75: Indicators And Projector Condition

    The projector detects an abnormal condition and cannot be turned on. Unplug the AC power cord and plug it again to turn on the projector. If the projector is turned off again, unplug the AC power cord and contact the dealer or the service center for service and checkup.

  • Page 76: Compatible Computer Specifications

    Appendix Compatible Computer Specifications Basically this projector can accept the signal from all computers with the V-, H-Frequency mentioned below and less than 140 MHz of Dot Clock for analog signal and 110 MHz of Dot Clock for digital signal.
  • Page 77 PC settings. • When you project a DVI signal, connect the cables, turn the projector on, then select the input. Finally, turn on your PC. Be sure to follow this procedure, otherwise an image may not be projected on the screen. If an image is not projected correctly, restart your PC.

  • Page 78: List Of Picture In Picture

    Appendix List of Picture in Picture o : Picture in Picture combinations are enabled - : Picture in Picture combinations are disabled  Note: • When the input signal(s) is/are incompatible, X mark will be displayed on the Main/Sub picture. •...

  • Page 79: Technical Specifications

    Technical Specifications Mechanical Information Projector Type Dimensions (W x H x D) Net Weight Feet Adjustment Panel Resolution LCD Panel System Panel Resolution Number of Pixels Signal Compatibility Color System High Definition TV Signal Scanning Frequency Optical Information Projection Image Size (Diagonal)

  • Page 80: Optional Parts

    Appendix Accessories Owner’s Manual (CD-ROM) Quick Reference Guide Safety Manual AC Power Cord Remote Control and Batteries VGA Cable Lens Cap with String PIN Code Label Network Application (CD-ROM) Soft Carrying Case USB thumb drive for Auto Capture Case (for USB thumb drive) Hook and Loop Fastener ●...

  • Page 81: Pj Link Notice

    Pj Link Notice This projector is compliant with PJLink Standard Class 1 of JBMIA (Japan Business Machine and Information System Industries Association). This projector supports all commands defined by PJLink Class 1 and is verified conformance with PJLink Standard Class 1.

  • Page 82: Configurations Of Terminals

    Appendix Configurations of Terminals COMPUTER IN 1 /COMPONENT IN /MONITOR OUT (ANALOG) Terminal: Analog RGB (Mini D-sub 15 pin) HDMI (19 Pin Type A) 1 3 5 7 9 11 13 15 17 19 USB CONNECTOR (Series B) LAN TERMINAL 8 7 6 5 4 3 2 1 Red (R/Cr) Input/Output Green (G/Y) Input/Output...

  • Page 83: Pin Code Number Memo

    PIN Code Number Memo Write down the PIN code number in the column below and keep it with this manual securely. If you forgot or lost the number and unable to operate the projector, contact the service station. PIN Code Lock No .

  • Page 84: Dimensions

    Appendix Dimensions Unit: inch (mm) Screw Holes for Ceiling Mount Screw: M4 Depth: 12.0(0.472) 13.16(334.2) 3.17(80.5) 5.08(129.0) 5.20(132.0) 5.08(129.0) 4.43(112.5)
  • Page 85 KY7AE...
