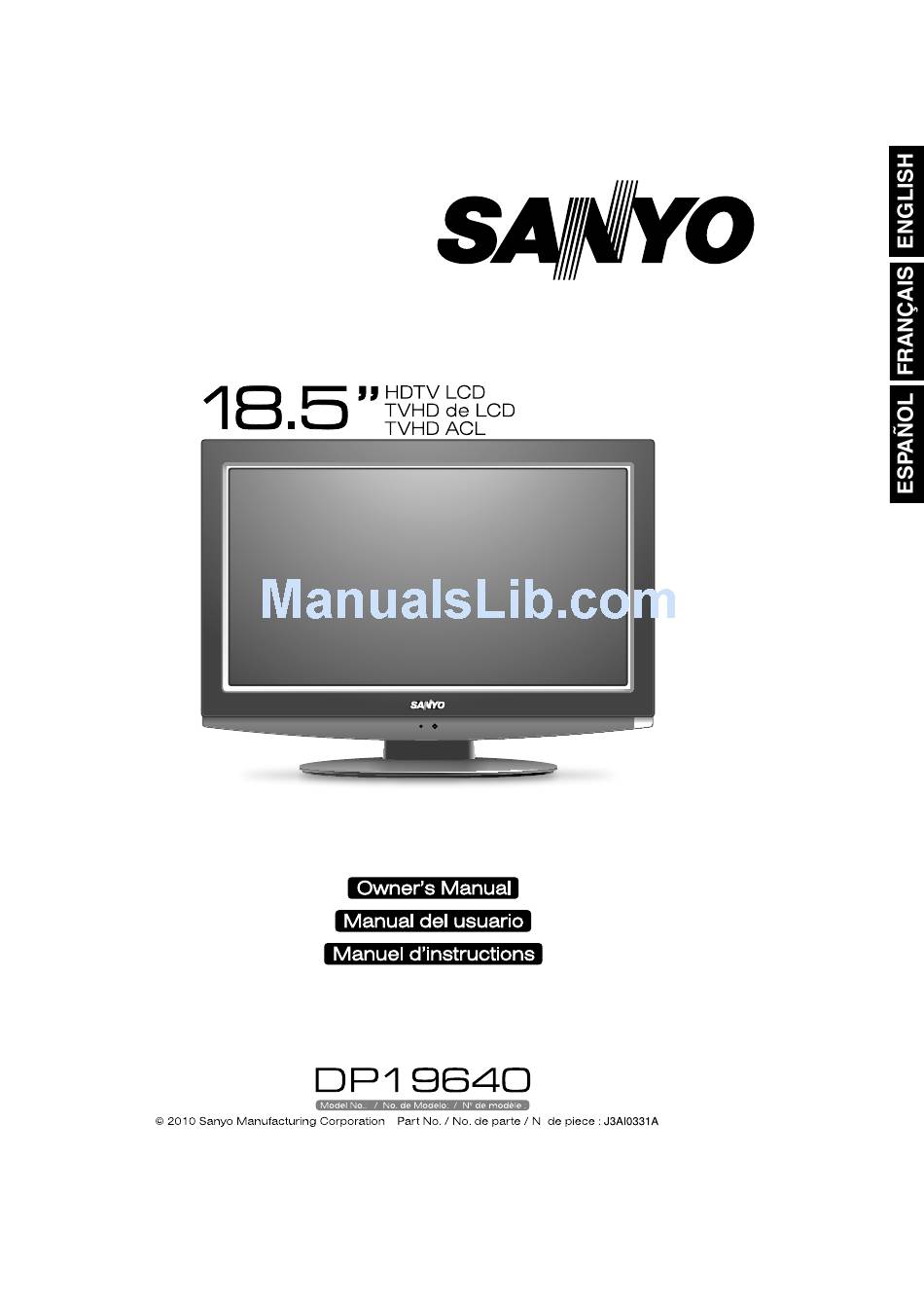

Sanyo DP19640 Owner's Manual

18.5" hdtv lcd
Hide thumbs Also See for DP19640:
Table of Contents

Advertisement

Quick Links

See also: Service Manual

Advertisement

Table of Contents
loading

Related Manuals for Sanyo DP19640

Summary of Contents for Sanyo DP19640

  • Page 2: Before Using Your Unit

    TV to be free from manufacturing defects in materials and workmanship under nor- mal use and conditions for parts and labor. For the FIRST 90 DAYS from the date of original retail purchase, Sanyo Manufacturing Corporation will replace any defective TV via exchange at the retailer. To ensure proper warranty application, keep the original-dated-sales receipt for evidence of purchase.

  • Page 3: Trademarks

    It is designed and manufactured to meet rigid U.L. safety standards against risk of fire, casualty and electrical hazards. SANYO recommends keeping the TV set at its factory settings or moving Energy Saver settings from “Level 1” to “Level 2” or “Level 3” to further reduce power requirements and increase energy savings. Doing so contributes to the sustainability of our resources and environment.
  • Page 4 CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OPEN FLAMES AWAY FROM THIS PRODUCT AT TIMES.
  • Page 5 15) Apparatus should not be exposed to dripping or splashing, and objects filled with liquids, such as vases, should not be placed on the apparatus. 16) An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits.

  • Page 6: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS 20) When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards. 21) Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to determine that the unit is in proper operating condition.

  • Page 7: Safety Precautions

    IMPORTANT SAFETY INSTRUCTIONS CONDENSATION Moisture will form in the operating section of the unit if the unit is brought from cool surroundings into a warm room or if the temperature of the room rises suddenly. When this happens, unit's performance will be impaired. To prevent this, let the unit stand in its new surroundings for about an hour before switching it on, or make sure that the room temperature rises gradually.

  • Page 8: How To Attach The Stand

    How to attach the stand NOTE: • Unplug the AC cord from the AC INPUT terminal. • Before beginning this process, assure that TV is laid on a clean, safe, and cushioned space to avoid any damage to the unit. •...

  • Page 9: Features

    • Integrated Digital Tuner - You can view digital broadcasts without using a Digital TV Set-Top Box. • Closed Caption Decoder With Full Text Mode - Displays text captions or full screen text on the screen for hearing impaired viewers. •...

  • Page 10: Table Of Contents

    Contents Before using your unit WARRANTY ...2 TRADEMARKS ...3 IMPORTANT SAFETY INSTRUCTIONS ...5 SAFETY PRECAUTIONS ...7 How to attach the stand ...8 How to remove the stand ...8 Features ...9 Power source ...9 Contents ...10 Parts and functions ...11 Remote control ...12 Antenna connections ...13 Cable TV connections ...14 Connections to other equipment ...15...

  • Page 11: Parts And Functions

    Front Rear AC INPUT jack HEADPHONE jack COMPONENT IN jacks (Y/Pb/Pr/ AUDIO (L/R)) (VIDEO/S-VIDEO/AUDIO (L/R)) Parts and functions Right side POWER indicator To display the menu screen. Red: Standby Press MENU button to display the menu Green: On screen. Remote sensor CHANNEL +/–...

  • Page 12: Remote Control

    Remote control 1.POWER Button - Used to turn the power on/off to the LCD TV. 2.Direct Channel Selection Buttons (0-9) - Allows direct access to any channel of the LCD TV. 3.– Button -This button is the “–” button used when selecting digital channels.

  • Page 13: Antenna Connections

    If you are using an indoor or outdoor antenna, follow the instructions below that correspond to your antenna system. If you are using a Cable TV service, see page 14 for Cable TV connections. Combination VHF/UHF Antenna (Single 75 ohm cable or 300 ohm twin-lead wire) Antenna Jack 300-75 ohm...

  • Page 14: Cable Tv Connections

    Cable TV connections This TV has an extended tuning range and can tune most cable channels without using a Cable TV Converter box. Some cable companies offer “premium pay channels” where the signal is scrambled. Descrambling these signals for normal viewing requires the use of a descrambler device which is generally provided by the Cable TV company.

  • Page 15: Connections To Other Equipment

    The exact arrangement you use to interconnect various video and audio components to this unit is dependent on the model and features of each component. Check the Owner’s Manual provided with each component for the location of video and audio inputs and outputs. To connect the LCD TV to a VCR Rear of the unit To VIDEO/AUDIO IN...
  • Page 16 Connections to other equipment Using an AV Amplifier with built-in digital surround If you are using an Amplifier with built-in digital surround sound, you can enjoy various audio systems including Dolby Digital Surround audio that sounds just like the movie. Connect an AV amplifier with built-in Dolby Digital decoder, etc.
  • Page 17 To connect the TV to a PC (Personal Computer) NOTE: Before connecting any cables, disconnect the AC Power Cords of both the TV and Personal Computer from the AC outlets. Connect an RGB cable from the monitor output (a) on your PC to the RGB connector on the TV and tighten the screws.

  • Page 18: Tv Operation

    Starting setup The Starting Setup menu appears the first time you turn on the TV, and assists you to specify the Air/Cable setting, and program your channels automatically. IMPORTANT: Make sure that the antenna or cable TV system connection is made! To turn on the TV, press POWER (POWER indicator on the front of the unit changes green.

  • Page 19: Quick Guide For Menu Operation

    DISPLAY Press DISPLAY to display the current information on the screen. When the TV receives a digital signal, the digital information will appear. Sleep Timer 62-001 HDTV Moving Picture1 CH-1 TV-MA Digital English No Program Information is available Full 1080i •...

  • Page 20: Convenience Functions

    Convenience functions You can change the default settings to convenience use. Icon Selected Items Picture Picture Brightness / Setting Contrast / Sharpness / Color / Tint Color Temperature Backlight Dynamic On/Off Gamma Picture Sports Preference Standard Movie Memory Picture Size Film Mode On/Off PC Setting...

  • Page 21: Memorizing Channels

    Memorizing channels This TV is equipped with a channel memory feature which allows channels to skip up or down to the next channel set into memory, skipping over unwanted channels. Before selecting channels, they must be programmed into the TV’s memory. To use this TV with an antenna, set the Signal Type option to the Air mode.

  • Page 22: Checking The Digital-Signal Strength

    Clear All All channels are deleted from the channel memory. Select “Channel”, then press Press to select “Add/Delete”, then press or ENTER. Press to select “Clear All”, then press or ENTER. Add/Delete Adding Channel >> Add/Delete >> Clear All >> : Select ENTER:Set Checking the digital-...

  • Page 23: Setting The V-Chip

    Setting the V-Chip An age limitation can be set to restrict children from viewing or hearing violent scenes or pictures that you may choose to exclude. The restriction applies to “TV Rating” and “Movie Rating” if this data is transmitted. You may set this restriction separately.

  • Page 24: Closed Caption

    Downloading the additional V-Chip rating system As a supplement to the standard V-Chip rating system, your television will be able to download an additional rating system, if such a system becomes available in the future. To download the additional V-Chip rating system (when available) Select “Lock”, then press Use Number buttons (0-9) to enter your password,...

  • Page 25: Setting The Picture Size

    Press to select “Digital CC Preset”, then press to select “Custom”. Press to select “CC Advanced”, then press or ENTER. The CC Advanced menu will appear. Press to select the desired item, then press to change the setting. CC Advanced Text Size Auto Text Type...

  • Page 26: Reception Disturbances

    Reception disturbances Most types of television interference can be remedied by adjusting the height and position of the VHF/ UHF antenna. Outdoor antennas are recommended for best results. The most common types of television interference are shown below. If one of these symptoms appear when the TV is connected to a Cable TV system, the disturbance may be caused by the local Cable TV company broadcast.

  • Page 27: Troubleshooting

    Use the following checklist for troubleshooting if you have problems with your LCD TV. Consult your local dealer or service outlet if problems persist. Be sure all connections are properly made when using with other units. SYMPTOMS POSSIBLE SOLUTIONS • Make sure the power cord is plugged in.

  • Page 28: Specifications

    Specifications GENERAL Power supply: Power consumption: Weight: Dimensions: Operating temperature: Operating humidity: Type: Display method: Number of Pixels: Broadcasting system: Receiving channels: Tuner type: Inputs: Outputs: Speaker: Audio output power: ACCESSORIES Designs and specifications are subject to change without notice. AC 120V 60Hz Operation: 29W Stand by: 0.8W...
  • Page 29 Memo...
  • Page 30 J3AI0331A SH 10/02 January Enero 2010 2010...
