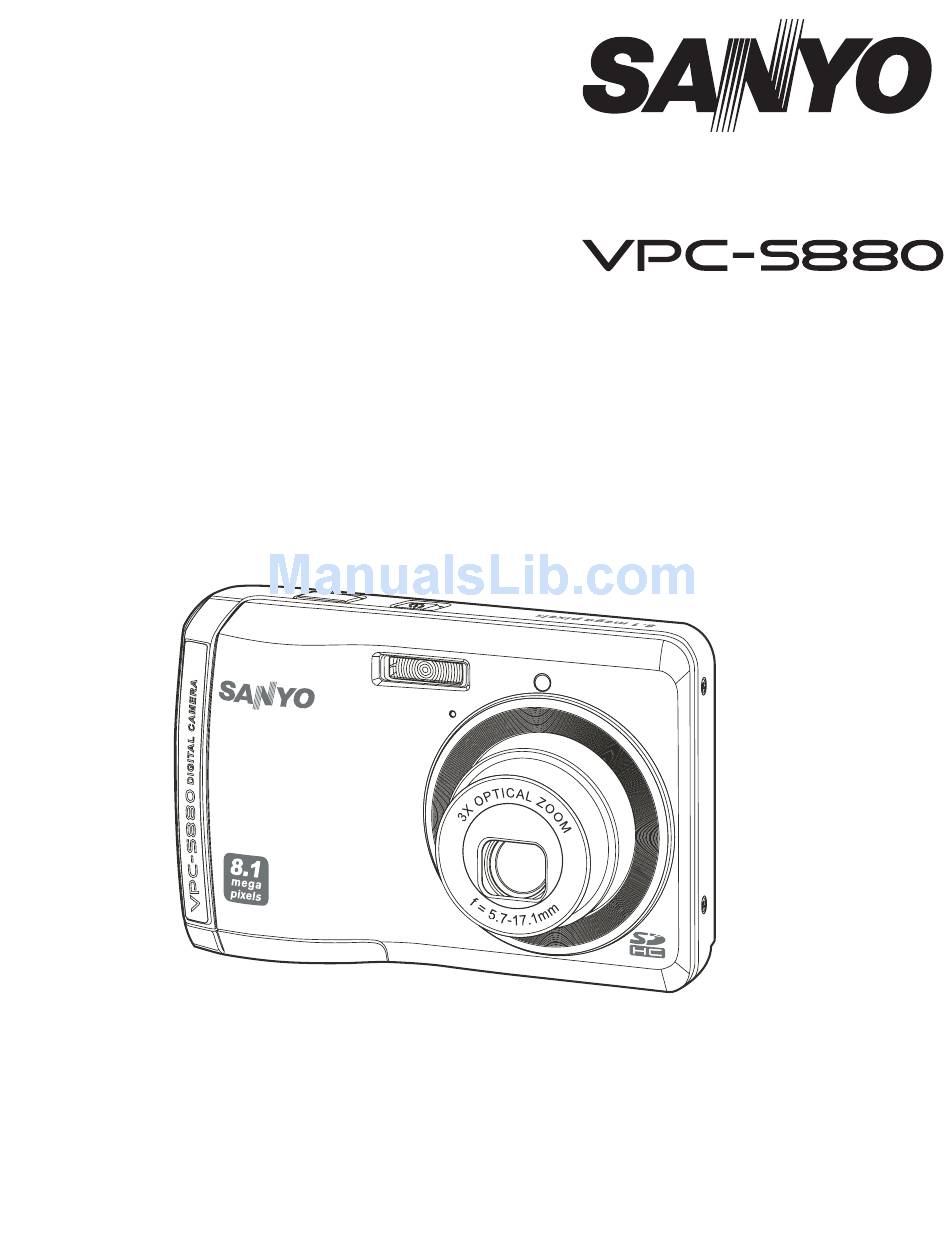

INSTRUCTION MANUAL

Digital Camera

Please read these instructions carefully before using the camera.
Keep this manual in a safe place for later reference.

Advertisement

Table of Contents
loading

Summary of Contents for Sanyo Xacti Vpc-S880

  • Page 1: Instruction Manual

    INSTRUCTION MANUAL Digital Camera Please read these instructions carefully before using the camera. Keep this manual in a safe place for later reference.
  • Page 2: Fcc Statement

    FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 3: Read This First

    READ THIS FIRST Trademark Information ® Microsoft and Windows ® Pentium is a registered trademark of Intel Corporation. Macintosh is a trademark of Apple Inc. SD™ is a trademark. SDHC™ is a trademark. Other names and products may be trademarks or registered trademarks of their respective owners.
  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS Read and understand all Warnings and Cautions before using this product. Warnings If foreign objects or water have entered the camera, turn the power off and remove the batteries. Continued use might cause fire or electric shock. Consult the store of purchase.
  • Page 5 Cautions Insert the battery paying careful attention to the polarity (+ or –) of the terminals. Inserting the battery with its polarities inverted might cause fire and injury, or damage to the surrounding areas due to the battery rupturing or leaking. Do not fire the flash close to anyone’s eyes.
  • Page 6 Warning: TO PREVENT THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE FOR AMERICAN USERS The following advisory is included in accordance with the laws of the State of California (USA): WARNING: This product contains chemicals, including lead, known to the States of California to cause cancer, birth defects or other reproductive harm.
  • Page 7 This symbol mark and recycle system apply to EU countries and do not apply to countries in other areas of the world. Your SANYO product is designed and manufactured with high quality materials and components which can be recycled and reused.
  • Page 8: Symbols Used In This Manual

    “Troubleshooting”. Declaration of Conformity Model number: VPC-S880 Trade Name: SANYO Responsible party: SANYO FISHER COMPANY Address: 21605 Plummer Street Chatsworth, California 91311 Telephone No.: (818) 998-7322 This device complies with Part 15 of the FCC Rules. Operation is subject to the...
  • Page 9: Notes On Battery Usage

    Notes on Battery Usage When you use the batteries, carefully read and strictly observe the Safety Instructions and the notes described below: Use only the specified batteries. Avoid extremely cold environments as low temperatures can shorten the battery life and reduce camera performance. Therefore Ni-MH rechargeable batteries are highly recommended.
  • Page 10: Table Of Contents

    CONTENTS 10 INTRODUCTION 10 Overview 10 Package Contents 11 GETTING TO KNOW YOUR CAMERA 11 Front View 12 Rear View 13 LCD Monitor Display 15 GETTING START 15 Preparation 16 Initial Settings 18 CAPTURE MODE 18 Capturing Images 19 Recording Shots using Face Detection Technology 20 Setting the Scene Mode 22 Panorama Mode...
  • Page 11: Introduction

    INTRODUCTION Overview Congratulations on your purchase of the new digital camera. Capturing high-quality digital images is fast and easy with this state-of-the-art smart camera. Equipped with an 8.1-megapixel sensor, this camera is capable of capturing images with a resolution of up to 3264 x 2448 pixels.
  • Page 12: Getting To Know Your Camera

    GETTING TO KNOW YOUR CAMERA Front View 1. Shutter button 2. Power button 3. Status LED 4. Flash 5. Self-timer LED 6. Microphone 7. Lens EN-11...
  • Page 13: Rear View

    Rear View 1. LCD monitor Zoom in button Zoom out button 3. MENU Menu button 4. MODE Mode button Capture mode S Video mode x Playback mode 5. 4-way control button Up button Focus button Right button X Flash button Down button %F Self-timer/Delete button Left button...
  • Page 14: Lcd Monitor Display

    LCD Monitor Display Capture Mode 1. Scene mode 2. Flash mode [Z] Auto Flash [Y] Red-eye Reduction [X] Forced Flash [W] Flash Off 3. Zoom status 4. Battery condition [D] Full battery power [C] Medium battery power [B] Low battery power [A] No battery power 5.
  • Page 15 Video mode [S] 1. Mode icon 2. Zoom status 3. Battery condition 4. Storage media 5. Video resolution 6. Available recording time/Elapsed time 7. Main focus area 8. Date 9. Self-timer icon 10. Focus setting Playback mode [x] - Still image playback 1.
  • Page 16: Getting Start

    GETTING START Preparation 1. Attach the camera strap. 2. Open the battery/memory card cover. 3. Load the supplied batteries with correct orientation as shown. 4. Insert an SD/SDHC memory card (Optional). The camera has 16MB internal memory (12MB available for image storage), but you can load an SD/SDHC memory card to expand the camera’s memory capacity.
  • Page 17: Initial Settings

    Initial Settings Setting the Date and Time The date/time needs to be set if and when: Camera is turned on for the first time. Camera is turned on after leaving the camera without the battery for an extended period of time. Follow these steps to set the correct date and time: 1.
  • Page 18: Choosing The Language

    Choosing the Language Specify in which language menus and messages are to be displayed on the LCD monitor. 1. Set the camera mode to [ You may set the language from the playback mode. 2. Press the MENU button. 3. Select [Setup] menu with the 4.
  • Page 19: Capture Mode

    CAPTURE MODE Capturing Images Your camera is equipped with a 2.8" full color TFT LCD monitor to help you compose images, playback recorded images/video clips or adjust menu settings. 1. Press the Power button to turn the power on. The status LED lights green and the camera is initiated. 2.
  • Page 20: Recording Shots Using Face Detection Technology

    Recording Shots using Face Detection Technology Face Detection Technology can identify and focus on the human faces in the image. This advanced function simultaneously detects up to 5 human faces regardless of their position in the scene. White frame Face detection function is on 1.
  • Page 21: Setting The Scene Mode

    Setting the Scene Mode By simply selecting one of the following 20 modes, you can capture the image with the most appropriate settings. 1. Set the camera mode to [ 2. Press the SET/DISPLAY button. 3. Select the desired scene mode with the DISPLAY button.
  • Page 22 Scene mode Description c Candlelight Select this mode when you want to capture photos of candlelit scene, without spoiling the ambience. d Fireworks Select this mode when you want to capture fireworks clearly with optimal exposure. The shutter speed becomes slower, so using a tripod is recommended.
  • Page 23: Panorama Mode

    Panorama Mode This mode is designed to make it easier to take a series of shots then stitch them together with software to make a single photo. You can capture a photographic subject that won't fit into a single frame, such as a landscape, and stitch it together later with a program such as Cool 360 or Photoshop application.
  • Page 24: Video Mode

    VIDEO MODE Recording Video Clips This mode allows you to record video clips at a resolution of 320 x 240 / 640 x 480 pixels. Voice can also be recorded. 1. Set the camera mode to [w]. 2. Compose the image. 3.
  • Page 25: Playback Mode

    PLAYBACK MODE Playing Back Still Images You can play back the still images on the LCD monitor. 1. Set the camera mode to [x]. The last image appears on the screen. 2. The images can be displayed in reverse or forward sequence with the To view the previous image, press the button.
  • Page 26: Thumbnail Display

    Thumbnail Display This function allows you to view 9 thumbnail images on the LCD monitor at the same time, which can let you quickly search for the image that you want. 1. Set the camera mode to [x]. The last image appears on the screen. 2.
  • Page 27: Protecting Images

    Protecting Images Set the data to read-only to prevent images from being erased by mistake. 1. Set the camera mode to [x]. 2. Select the image that you want to protect with buttons. 3. Press the MENU button. 4. Select [Protect] with the press the SET/DISPLAY button.
  • Page 28: Erasing Images

    Erasing Images Erasing single image / Erasing all images 1. Set the camera mode to [x]. The last image will be displayed on the screen. 2. Select the image you want to erase with the buttons. 3. Press the %F button. The deletion menu will be displayed.
  • Page 29: Menu Options

    MENU OPTIONS Capture Menu This menu is for the basic settings to be used when capturing still images. Capture Size Size Normal Normal Quality Quality Color Color Normal Normal Auto Auto W.Blance W.Blance Manual WB Next Menu Next Menu Manual WB Auto Auto MENU:Exit...
  • Page 30 * [ h ] Fl1 * [ i ] Fl2 * [ c ] Daylight * [ d ] Cloudy ] Manual Manual WB This manually sets the white balance and stores it. Use of this is convenient when the white balance does not offer a good match.
  • Page 31: Video Menu

    Video Menu This menu is for the basic settings to be used when recording video clips. Video Size Size 640 x 480 640 x 480 Color Color Normal Normal MENU:Exit SET:Adj. 1. Set the camera mode to [ w ]. 2.
  • Page 32: Playback Menu

    Playback Menu In the [x] mode, choose which settings are to be used for playback. Play Fix Red Eyes Fix Red Eyes Next Menu Next Menu 3 sec. 3 sec. Slide Show Slide Show Next Menu Next Menu Protect Protect LCD Bright.
  • Page 33: Setup Menu

    Setup Menu Set your camera’s operating environment. Setup Beep Beep Date/Time Date/Time Next Menu Next Menu Language Language English English Fr.No.Reset Fr.No.Reset Next Menu Next Menu LCD Bright. LCD Bright. Auto Off Auto Off 3 Min. 3 Min. MENU:Exit SET:Adj. Setup Light Freq.
  • Page 34 LCD Bright. Refer to section in this manual titled “LCD Bright.” in Playback Menu for further details. Auto Off If no operation is performed for a specific period of time, the power to the camera is automatically turned off. This feature is useful for reducing battery usage. * 1 Min.
  • Page 35: Transferring Files To Your Computer

    TRANSFERRING FILES TO YOUR COMPUTER System Requirement Windows Pentium 166 MHz or higher Windows 2000/XP/Vista 128MB RAM 128MB hard disk space CD-ROM drive Available USB port Downloading Your Files 1. Connect one end of the USB cable to an available USB port on your computer. 2.
  • Page 36: Editing Software Installation

    EDITING SOFTWARE INSTALLATION There are 2 types of software that are included on the CD-ROM: MediaOne Gallery SE - makes it the easiest way to manage and share your digital life with family & friends. The intuitive thumbnail library automatically organizes, updates and sorts files for the most natural way to browse your multimedia collection.
  • Page 37: Specifications

    SPECIFICATIONS Item Description Image sensor 1/2.5” CCD sensor (8.1 megapixels) Image resolution <Still image> 3264 x 2448, 2816x2112, 2272x1704, 1600 x 1200, 640 x 480 <Video clip> 640 x 480 (24 fps), 320 x 240 (30 fps) LCD monitor 2.8” full color TFT LCD (230K pixels) Recording media 16MB internal memory (12MB available for image storage) Supports SD/SDHC memory card (up to 4GB) (optional)
  • Page 38: Appendix

    APPENDIX Possible Number of Shots Possible number of shots (still image) The table shows the approximate shots that you can capture at each setting based on the capacity of the internal memory and the SD/SDHC memory card. Size Quality Fine 3264 x 2448 Normal Economy...
  • Page 39: Troubleshooting

    Troubleshooting Refer to the symptoms and solutions listed below before sending the camera for repairs. If the problem persists, contact your local reseller or service center. Symptom Cause The power does not The batteries are not loaded. Load the batteries correctly. come on.
  • Page 40: Connecting To A Pictbridge Compatible Printer

    Connecting to a PictBridge Compatible Printer Read this section if the model you purchased is included with the PictBridge functions. If a printer that supports PictBridge is available, images can be printed by connecting the digital still camera directly to the PictBridge-compatible printer without using a computer. Connecting the camera to the printer 1.
  • Page 41 3. If you select [Single] in the previous step, the figure shown on the right hand side will appear. Select the image that you want to print with buttons. Select the [Print Num] (up to 99) with the buttons. After selecting the desired image and printing number, press the SET/DISPLAY button to confirm.
