Summary of Contents for Sanyo PDP-31H1ENV

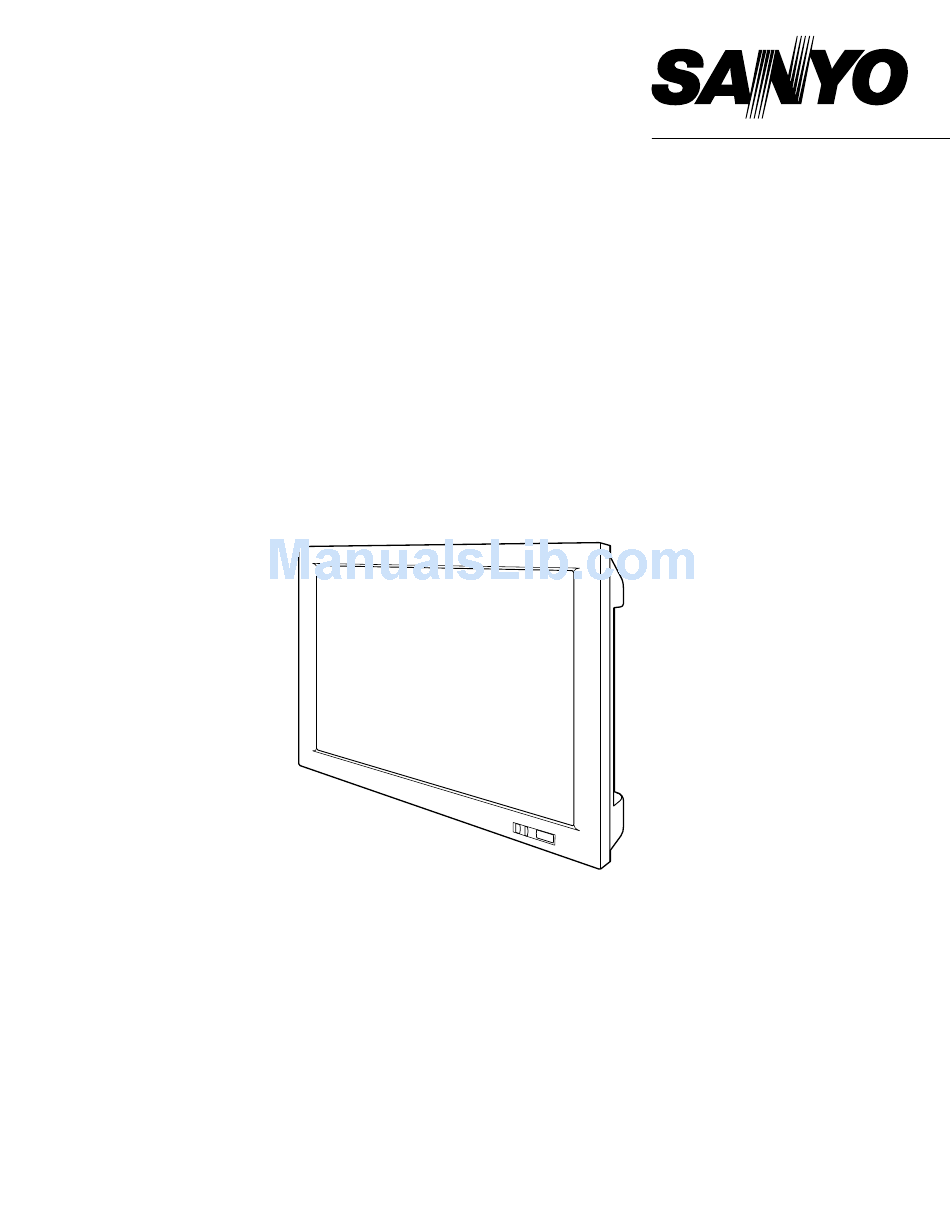

- Page 1 Multimedia Plasma Monitor PDP-32H1ENV MODEL PDP-32H1AN PDP-32H1EN Owner's Manual...
-
Page 2: To The Owner
Before operating this Plasma Monitor, read this manual thoroughly and operate the Plasma Monitor properly. This Plasma Monitor provides many convenient features and functions. Operating the Plasma Monitor properly enables you to manage those features and maintains it in better condition for a considerable time. Improper operation may result in not only shortening the product-life, but also malfunctions, fire hazard, or other accidents. -
Page 3: Safety Instructions
This for use only with following Stand and Mount Unit . Use with other stands or mount units is capable of resulting in instability causing possible injury. SANYO Table top stand KA-TD-H10S SANYO Floor stand KA-TD-H10W SANYO Tilt mount unit... -
Page 4: Declaration Of Conformity
Model Number : PDP-32H1AN Trade Name : Sanyo Responsible party : SANYO FISHER COMPANY Address : 21605 Plummer Street, Chatsworth, California 91311 Telephone No. : (818)998-7322 G This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 5: Table Of Contents
TABLE OF CONTENTS FEATURES AND DESIGN PREPARATION NAME OF EACH PART OF PLASMA MONITOR 7 SETTING-UP PLASMA MONITOR CONNECTING PLASMA MONITOR TERMINALS OF PLASMA MONITOR CONNECTING TO VIDEO EQUIPMENT CONNECTING TO COMPONENT VIDEO EQUIPMENT CONNECTING TO COMPUTER BEFORE OPERATION OPERATION OF REMOTE CONTROL OPERATING ON-SCREEN MENU BASIC OPERATION TURNING ON / OFF PLASMA MONITOR... -
Page 6: Features And Design
This Plasma Monitor is designed with the most advanced technology. The Plasma Monitor utilizes built-in multimedia features, a palette of 16.77 million colors, and Plasma Display Panel technology. High Definition Plasma Panel Plasma Monitor This has 852 x 1,024 dots High Definition Plasma Display Panel. -
Page 7: Preparation
PREPARATION NAME OF EACH PART OF PLASMA MONITOR FRONT MENU BUTTON Used to select MENU operation. (P18) OK BUTTON Used execute selected menu on On- Screen Menu. (P18) INPUT MENU VOLUME VOLUME BUTTONS Used to adjust volume. (P27) INPUT BUTTON Used to select input source. - Page 8 PREPARATION NAME OF EACH PART OF PLASMA MONITOR BACK TERMINALS AND CONNECTORS (SIDE) (Refer to page 11) SPEAKER OUTPUT NOTES ON USING PLASMA MONITOR For using this Plasma Monitor, Optional Stand or Mounting Bracket is needed. Those optional units are not included within this Monitor Set.
-
Page 9: Setting-Up Plasma Monitor
SETTING-UP PLASMA MONITOR CONNECTING AC POWER CORD This Plasma Monitor uses nominal input voltages of 100- 120 V or 200-240 V AC. The Plasma Monitor automatically selects the correct input voltage. It is designed to work with single-phase power systems having a grounded neutral conductor. - Page 10 PREPARATION INSTALLATION OF OPTIONAL SPEAKERS AND STAND Please read the each option's instruction manual (or installation manual) for the installation. CAUTION IN INSTALLATION G Through installation work, handling with more than two people is recommended. G When holding (moving or lifting) the Plasma Monitor, hold the Monitor's body. Do not handle it by holding the attached accessory parts (the Speakers), otherwise damage could be result.
-
Page 11: Connecting Plasma Monitor
CONNECTING PLASMA MONITOR TERMINALS OF PLASMA MONITOR This Plasma Monitor has INPUT TERMINALS and OUTPUT TERMINALS on its side and back, for connecting computers and video equipment. Refer to the figure on pages 13 to 15 and connect properly. SIDE RS-232C TERMINAL When controlling this Plasma RS-232C... - Page 12 CONNECTING PLASMA MONITOR BACK VIDEO1 INPUT JACKS Connect video and audio outputs from video equipment. (Refer to P13.) S-VIDEO (Mini DIN 4-type) VIDEO (RCA-type) AUDIO R and L(MONO) (RCA-type) VIDEO1 IN S-VIDEO VIDEO R-AUDIO-L(MONO) S-VIDEO VIDEO R-AUDIO-L VIDEO2 IN VIDEO2 INPUT JACKS Connect video and audio outputs from video equipment.
-
Page 13: Connecting To Video Equipment
CONNECTING TO VIDEO EQUIPMENT NOTE : Models PDP-32H1ENV and PDP-32H1AN only. Cables used for connection ( Cables are not supplied with this Plasma Monitor.) • 21-PIN Video Cable (BNC x 4) • Video Cable (RCA x 1) • Video Cable (RCA x 3) •... -
Page 14: Connecting To Component Video Equipment
CONNECTING PLASMA MONITOR CONNECTING TO COMPONENT VIDEO EQUIPMENT NOTE : Models PDP-32H1ENV and PDP-32H1AN only. Cables used for connection • Video Cable (RCA x 3) or (BNC x 3) • Audio Cable (RCA x 2) Component Video Source (example) VIDEO1 IN S-VIDEO VIDEO R-AUDIO-L(MONO) -
Page 15: Connecting To Computer
CONNECTING TO COMPUTER Cables used for connection • VGA Cable (HDB 15 pin) • Video Cable (BNC x 5) ✽ • MAC Adapter (in the case of connecting Macintosh computer) • Audio Cables (RCA x 2) or ( Mini Plug - Mini Plug (R/L)) ✽... -
Page 16: Before Operation
BEFORE OPERATION OPERATION OF REMOTE CONTROL Remote Control Unit can be used as either Wired or Wireless. WIRED REMOTE JACK When using as Wired Remote Control, connect Remote Control Cable to this jack. (P17) VIDEO BUTTON Used to select video inputs "AV 1"... -
Page 17: Remote Control Batteries Installation
WIRED REMOTE CONTROL OPERATION When using this Remote Control Unit as Wired Remote Control, Connect Remote Control Unit to R/C JACK with Remote Control Cable (supplied). Batteries installation is required when using as Wired Remote Control Unit. Remote Control Cable (supplied) REMOTE CONTROL BATTERIES INSTALLATION Remove the battery compartment lid. -
Page 18: Operating On-Screen Menu
BEFORE OPERATION OPERATING ON-SCREEN MENU You can control and adjust this Plasma Monitor through ON-SCREEN MENU. Refer to the following pages to operate each adjustment on ON-SCREEN MENU. BUTTONS OF ON-SCREEN MENU OPERATION REMOTE CONTROL UNIT FRONT CONTROL FLOW OF ON-SCREEN MENU OPERATION Press MENU button and ON-SCREEN MENU will appear. -
Page 19: Menu List
MENU LIST Contrast Contrast Brightness Brightness Color Color Tint Tint Sharpness Sharpness Sound Sound Screen adjust Screen adjust PC mode adjustment PC mode adjustment Setup menu Setup menu Information Information : Select : Select : OK : OK MENU MENU : Return STATUS : Return STATUS : Exit... -
Page 20: Basic Operation
BASIC OPERATION TURNING ON / OFF PLASMA MONITOR Complete the peripheral connections (with Computer, VCR, etc.) before turning on Plasma Monitor. (Refer to "CONNECTING PLASMA MONITOR" on Pages 13~15 for connecting that equipment.) Connect the Plasma Monitor's AC Power Cord into an AC outlet . Press MAIN ON/OFF switch on Front Control of Plasma Monitor to turn ON. -
Page 21: Off Timer
WHEN USE MULTIPLE MONITORS When you use multiple Plasma Monitors, you can use POWER ON button and POWER OFF button on Remote Control Unit instead of the POWER ON-OFF button. Press POWER ON button to turn Plasma Monitor ON so as not to affect another Plasma Monitor which may be already turned ON. -
Page 22: Selecting Input Source
BASIC OPERATION SELECTING INPUT SOURCE VIDEO INPUT Select either "AV 1 (VIDEO 1)" or "AV 2 (VIDEO 2)" by pressing VIDEO button on Remote Control Unit. (Refer to "CONNECTING TO VIDEO EQUIPMENT" on Page 13.) COMPONENT INPUT Select "COMPONENT" by pressing COMPONENT button on Remote Control Unit. -
Page 23: Picture Image Level Select
PICTURE IMAGE LEVEL SELECT IN VIDEO/COMPONENT MODE Select image level among Dynamic, Natural, Cinema and Memory by pressing PICTURE button on the Remote Control Unit. Dynamic High contrast picture level preset on this Plasma Monitor. Natural Normal picture level preset on this Plasma Monitor. Cinema Picture level adjusted for the picture with fine tone. -
Page 24: Image Level Adjustment
BASIC OPERATION IMAGE LEVEL ADJUSTMENT Press MENU button and ON-SCREEN MENU will appear. Press button to select the item that you want to adjust, and then press OK button. The level of selected item is displayed. Adjust each level by pressing NOTE : Sharpness cannot be adjusted when the input mode is "PC", "RGB 1"... -
Page 25: Wide Screen Operations
WIDE SCREEN OPERATIONS With this function, you can select screen size. SELECTING WIDE MODE Select screen size among "Natural wide", "Zoom", "Zoom(Caption- IN)", "Full" and "Normal" by pressing WIDE button on the Remote Control Unit. ✽ "Zoom(Caption-IN)" mode cannot be selected at "PC", "RGB 1" or "RGB 2"... -
Page 26: Power Button
BASIC OPERATION UP/DOWN PICTURE To move up/down the image vertically, press the MOVE UP / MOVE DOWN buttons. NOTE : Up/down picture function can work only when the input signal mode is "AV 1 (VIDEO 1)", "AV 2 (VIDEO 2)" and "COMPONENT". Up/down picture function can work only when the image mode is "Natural wide", "Zoom"... -
Page 27: Sound Adjustment
SOUND ADJUSTMENT VOLUME Press VOLUME (+/–) button(s) on Remote Control Unit or Front Control to adjust volume. Volume dialog box appears on the screen for a few seconds. (+) button to increase volume, and (–) button decreasing. MUTE Press MUTE button on Remote Control Unit to cut off sound. To restore sound to its previous level, press MUTE button again or press Volume (+/–) button(s). -
Page 28: Computer Mode
COMPUTER MODE SELECTING INPUT SOURCE REMOTE CONTROL OPERATION Select "PC" or "RGB 1" by pressing PC/RGB button on Remote Control Unit. FRONT CONTROL OPERATION Select "PC" or "RGB 1" by pressing INPUT button on Front Control. NOTE : "RGB 2" is used for RGB Video signals from 21-PIN connector. (Refer to "CONNECTING TO VIDEO EQUIPMENT"... -
Page 29: Pc Adjustment
"PC mode adjustment" menu is provided to adjust "Auto setup", "Clock", "Phase", "Position", "Power save" and "Information" to conform to your computer. These function can be operated as follows. Press MENU button and ON-SCREEN MENU will appear. Press button to select "PC mode adjustment" menu and then press OK button. - Page 30 COMPUTER MODE Power save Enable or disable Power save function. Enable Power save by choosing "Yes" with NOTE : The Power save function automatically reduces the Plasma Monitor's power consumption if the computer is not operated for a certain period of time. This function can be used when using the Plasma Monitor with a computer conforming to the VESA DPMS standard.
- Page 31 COMPATIBLE COMPUTER SPECIFICATIONS Basically this Plasma Monitor can accept the signal from all computers with the V, H-Frequency mentioned below and less than 100 MHz of Dot Clock. SYSTEM H-Freq. RESOLUTION MODE 640 x 480 31.47 640 x 400 31.47 640 x 480 37.86 640 x 480...
-
Page 32: Video Mode
VIDEO MODE SELECTING INPUT SOURCE VIDEO INPUT Select either "AV 1 (VIDEO 1)" or "AV 2 (VIDEO 2)" by pressing VIDEO button on Remote Control Unit. COMPONENT INPUT Select "COMPONENT" by pressing COMPONENT button on Remote Control Unit. FRONT CONTROL OPERATION Select "AV 1 (VIDEO 1)"... -
Page 33: Selecting Video System
SELECTING VIDEO SYSTEM VIDEO JACK OR S-VIDEO JACK Press MENU button and ON-SCREEN MENU will appear. Press button to select "Setup menu" and then press OK button. "Setup menu" will appear. Press button to select "Color system". Press button and select Color system. Auto Plasma Monitor automatically detects incoming Color system, and adjusts itself to optimize its performance. -
Page 34: Setting
SETTING Displaying a still picture (non-movement) on the screen for a long time cause a burning image on the screen. To neutralize the remaining image, Screen Saver function (3 modes) is provided in the Monitor. Use the function conveniently. SELECTING SCREEN SAVER Press MENU button and ON-SCREEN MENU will appear. -
Page 35: Setting Menu
Press MENU button and ON-SCREEN MENU will appear. Press button to select "Setup menu" and then press OK button. "Setup menu" will appear. Press button to select the item that you want to setup, and setup the selected item by pressing Language Select language by pressing buttons among English, French,... -
Page 36: Cleaning The Plasma Monitor
SETTING Color temperature This function is used for selecting color temperature. Select "Normal", "Cool" or "Warm" with select. No operation shut off timer This function turns off Plasma Monitor's power automatically, when there is no operation of Remote Control or Front Control for 3 hours. When "On"... -
Page 37: Appendix
APPENDIX Before calling your dealer or service center for assistance, check the matters below once again. 1. Make sure you have connected Plasma Monitor to your equipment as described in the section "CONNECTING PLASMA MONITOR" on pages 13 ~ 15. 2. -
Page 38: Functions Of Product Safety Features
APPENDIX Problem: There are tiny black points and/or bright points on the PDP. The POWER indicator is flashing. (No power) WARNING : High voltages are used to operate this Plasma Monitor. Do not attempt to open the cabinet. If the problem still persists after following all operating instructions, contact the sales dealer where you purchased Plasma Monitor or the service center. -
Page 39: Information Menu
INTERNAL TEMPERATURE MONITOR This function activates due to the temperature inside Plasma Monitor. When the temperature inside Plasma Monitor exceeds the normal, after displaying a message, Plasma Monitor will be turned off automatically. When the message "Warning! Internal temperature is too high." is displayed. When this message is displayed, the internal temperature of Plasma monitor exceeds normal. -
Page 40: Technical Specifications
APPENDIX TECHNICAL SPECIFICATIONS Screen Diagonal Product name Panel type Display area Resolution / Color Viewing Angle Color System PC Interface Capability Plug & Play Power Management Audio Amp Terminals AC IN VIDEO1 IN ✽ VIDEO2 IN ✽ COMPONENT/RGB IN ✽ PC IN RS232C IN WIRED RC IN... -
Page 41: Measurement
MEASUREMENT The products listed below are optionally supplied. When ordering these products, give name and Type No. to sales dealer. Speaker unit KA-SX-32H (R and L) Table top stand KA-TD-H10S Floor stand KA-TD-H10W Side rack KA-TD-R100 Tilt mount unit KA-TI-H10 Wall mount unit KA-WA-H10WV Ceiling mount unit... - Page 42 APPENDIX CONFIGURATIONS OF RS232C TERMINALS RS232C TERMINAL Terminal : HDB9-PIN Connect the serial port of computer to this terminal with Serial Cross Cable (not supplied). Pin Configuration INTERFACE COMMAND EXAMPLE : POWER ON (C00) No Connect R x D No Connect T x D No Connect DTR (5V)
- Page 43 CONFIGURATIONS OF PC TERMINALS PC IN (D-SUB) TERMINAL Terminal : HDB15-PIN Connect the display output terminal of computer to this terminal with VGA Cable (supplied). When connecting the Macintosh computer, the MAC Adapter (not supplied) is required. Pin Configuration MAC ADAPTER (NOT SUPPLIED) Set Slide Switches as shown in the table below depending on RESOLUTION MODE that you want to use before you turn-on Plasma Monitor and computer.
- Page 44 Printed in Japan Part No. 610 301 2599 (1AA6P1P3504-- J3SF) SANYO Electric Co., Ltd...
