KEYBOARD PLATFORM ASSEMBLY
BEFORE YOU BEGIN Failure to properly install safety stops may result in injury from
falling keyboard platform.

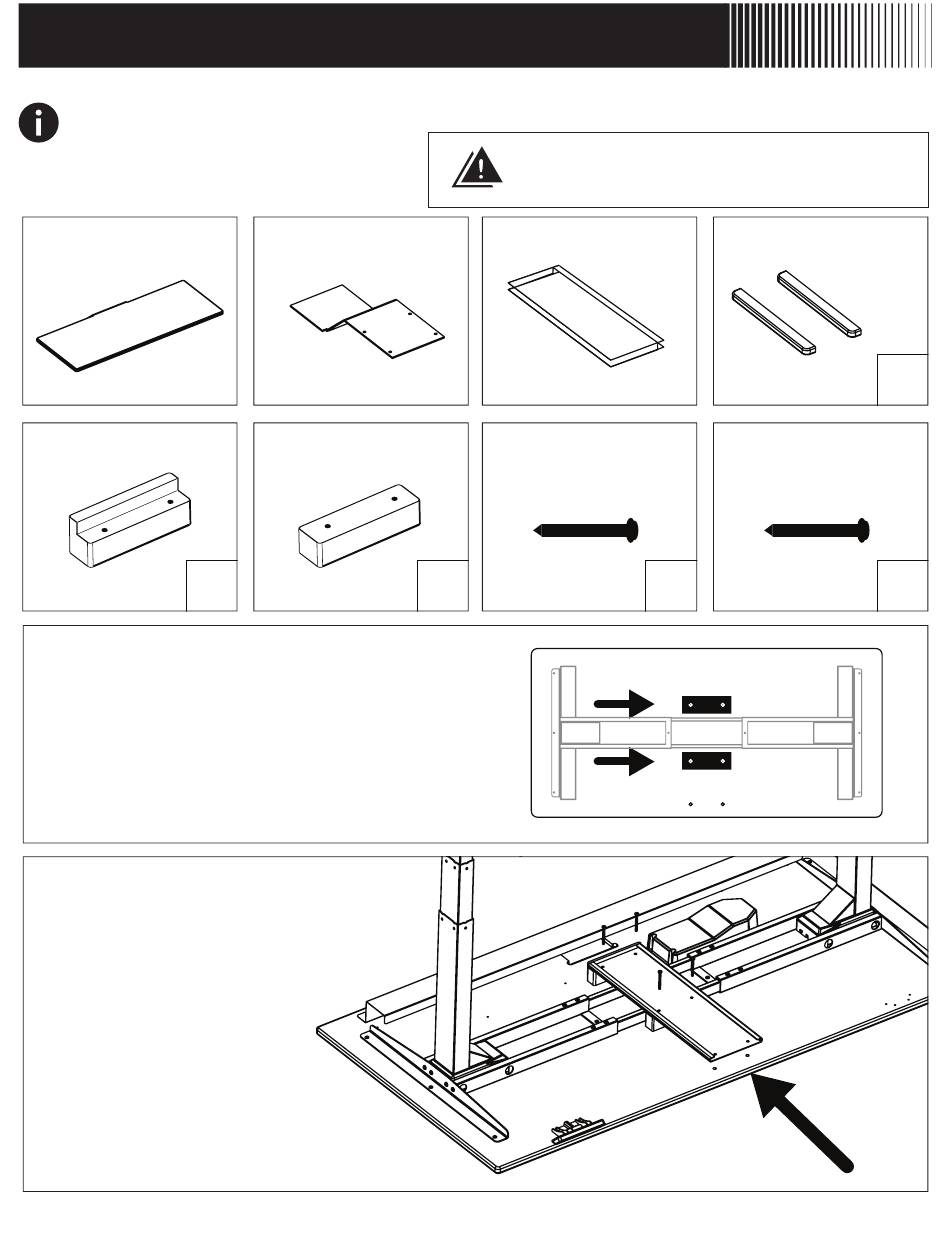

KEYBOARD COMPONENTS INCLUDED
Platform
End Riser Block
x2
STEP 1
Align the End Riser Block and Center Riser
Block over the four threaded inserts towards
the back of the desktop (side opposite of
the controller).
STEP 2
Align rail unit on spacers, secure in
place with four included 2" #10-24
Machine Screws.
Arm
Center Riser
Block
x1
CAUTION: Do not use any screw over .5"
long or damage to the assembly may occur.
Rail
2" #10-24
Machine Screw
x6
Keyboard Assembly Instructions - 1
ABS Sliders
x2
.5" Wood Screw
x4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for evodesk KEYBOARD PLATFORM
Summary of Contents for evodesk KEYBOARD PLATFORM
- Page 1 KEYBOARD PLATFORM ASSEMBLY BEFORE YOU BEGIN Failure to properly install safety stops may result in injury from falling keyboard platform. CAUTION: Do not use any screw over .5” long or damage to the assembly may occur. KEYBOARD COMPONENTS INCLUDED Platform...
- Page 2 STEP 3 Apply the included ABS Sliders over the keyboard arm flanges. STEP 4 Attach the keyboard platform to the keyboard arm using the four included .5” Wood Screws. CAUTION: Do not use any screw over .5” long or damage to the assembly may occur.
