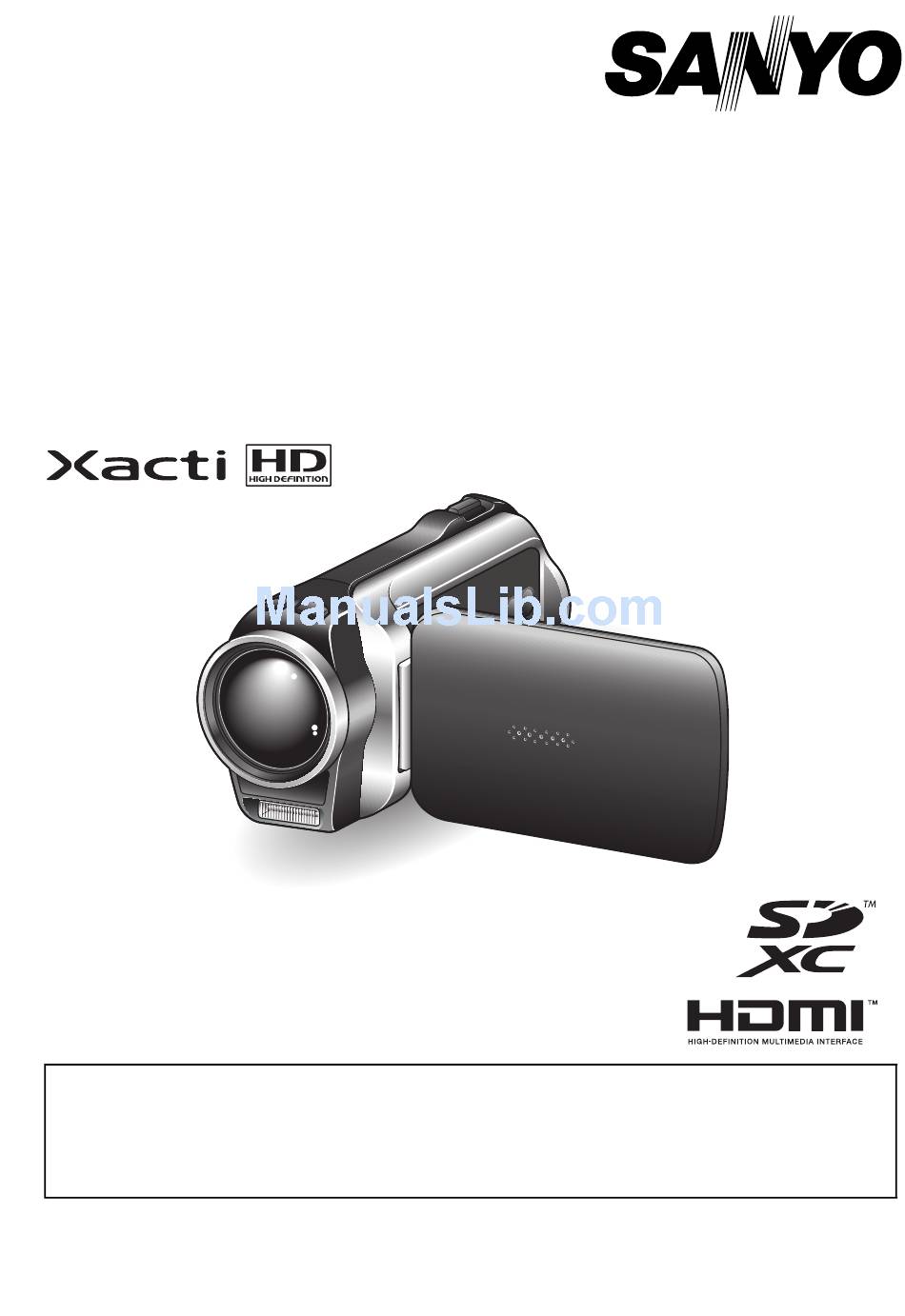

GUIDE FOR
BASIC OPERATION
Dual Camera
Important note
This manual explains how to safely operate the VPC-SH1EX, VPC-SH1, VPC-
SH1GX, VPC-SH1PX and VPC-SH1TA.
Any information regarding only one of these products will be labeled as such.
Please read these instructions carefully before using the camera.
Make sure to read and understand the separate booklet "SAFETY MANUAL".
Keep this manual in a safe place for later reference.
VPC-SH1EX
VPC-SH1
VPC-SH1GX
VPC-SH1PX
VPC-SH1TA

Advertisement

Table of Contents
loading

Related Manuals for Sanyo XACTI VPC-SH1EX

Summary of Contents for Sanyo XACTI VPC-SH1EX

  • Page 1 GUIDE FOR BASIC OPERATION Dual Camera Important note This manual explains how to safely operate the VPC-SH1EX, VPC-SH1, VPC- SH1GX, VPC-SH1PX and VPC-SH1TA. Any information regarding only one of these products will be labeled as such. Please read these instructions carefully before using the camera. Make sure to read and understand the separate booklet “SAFETY MANUAL”.
  • Page 2 Declaration of Conformity Model number: VPC-SH1 Trade Name: SANYO Responsible party: SANYO North America Corporation Address: 21605 Plummer Street, Chatsworth, California 91311 Telephone No.: (818) 998-7322 This device complies with Part 15 of the FCC Rules. Operation is subject...
  • Page 3 The symbol mark and recycling systems described below apply to EU countries and do not apply to countries in other areas of the world. Your SANYO product is designed and manufactured with high quality materials and components which can be recycled and/or reused.

  • Page 4: How To Read This Manual

    (page 48). ↓ To use additional features Visit the Sanyo website to learn how to adjust the camera settings for various shooting scenes. There you’ll also find information about the software for playing back data recorded with your camera and for burning (recording) DVDs.

  • Page 5: Preparing The Camera

    SHOOT, PLAY BACK AND SAVE Preparing the camera Connect the AC adaptor to the camera. DC IN terminal cover 1 Open About saving your recorded data h If you wish to use an SD Memory Card, refer to page 12 to install the card in the camera.
  • Page 6 SHOOT, PLAY BACK AND SAVE Shooting Press the ON/OFF button for at least 1 second to turn the camera on. h If the screen to set the date and time appears, press the MENU button 2 times to cancel it. For how to set the date and time, see page 22.
  • Page 7 Sanyo declines any claim for compensation for recorded contents etc. in case of photographing or recording failure due to a chance camera or card flaw.

  • Page 8: Deleting Files

    SHOOT, PLAY BACK AND SAVE Deleting files On the screen in step 2, move the orange frame to the file you wish to delete, and press the MENU button. Select “DELETE”, and press the SET button. Select “DELETE SINGLE”, and press the SET button. Select “DELETE”, and press the SET button.
  • Page 9 Install application program Set the supplied CD-ROM in your computer’s DVD drive. h The installation window opens. Click on [TotalMedia Extreme for SANYO]. h After clicking on the application program, follow the instructions shown on the monitor to install the program.

  • Page 10: Connect Your Camera To A Computer

    SHOOT, PLAY BACK AND SAVE Connect your camera to a computer Connect your camera to a computer, and copy the desired files to the computer. Use the supplied dedicated USB interface cable to connect your camera to the computer. Turn on the camera. h The USB Connection Screen appears on the camera’s monitor.
  • Page 11 Copy the data from the camera to the computer. h The CD-ROM (Xacti Software CD) includes “TotalMedia Extreme for SANYO” with which photo and video files can be imported en bloc. HINT i For information on how to copy all the camera’s still image and video clip files at once, please see the support pages at the website below: http://www.sanyo-dsc.com/...
  • Page 12 Help file for TotalMedia Extreme. Insert a blank DVD in your computer’s DVD drive. Double-click the desktop [TotalMedia Extreme for SANYO] icon. h TotalMedia Extreme for SANYO is launched, and the startup page appears. [Create video] icon English...
  • Page 13 Click the [Create video] icon. h The TotalMedia Studio screen appears. [New DVD project] English...
  • Page 14 SHOOT, PLAY BACK AND SAVE Click [New DVD project]. h The screen to create a video clip to burn to DVD appears. [Insert video] xiii English...
  • Page 15 Click [Insert video]. h The screen to select the video clip file to burn to DVD appears. h Click on the file you wish to burn to DVD. h To select multiple files, keep the [Ctrl] key pressed while selecting files.
  • Page 16 SHOOT, PLAY BACK AND SAVE Click the [Design] tab. h The screen to design the title menu that is shown when the DVD is played appears. h Select one of the designs. English [Produce] tab...
  • Page 17 Click the [Produce] tab. h The screen to burn files to the DVD appears. Click the [Burn] button. h A window appears asking if you wish to save the project. h Saving the project will save your settings from steps 5 through 7. h It is recommended that you save the project if you intend to again edit the same video clips that you burned to DVD.
  • Page 18 Click the [n] close button in the upper right corner. h You are returned to the top page. Click the [n] close button in the upper right corner. h TotalMedia Extreme for SANYO is exited. HINT About software upgrades i For information concerning TotalMedia Extreme upgrades, please go to the following website: http://www.arcsoft.com/en-us/index.asp...
  • Page 19 CAUTION Does the window requesting confirmation to enable the MPEG-2 Codec appear? When using TotalMedia Extreme for the first time, a window requesting you to confirm activation of the MPEG-2 Codec appears during the procedure. The MPEG-2 Codec must be activated in order to burn files to a DVD. Complete the following procedure to activate the MPEG-2 Codec.
  • Page 20 SHOOT, PLAY BACK AND SAVE Europe Tel: +353 (0) 61-702087 Web: http://www.arcsoft.com/en/support Email Support: eurosupport@arcsoft.com Hours: M-Th from 8:30am - 5:30pm GMT (excluding holidays observed by ArcSofts Affilitate) F from 8:30am - 5:00pm GMT (excluding holidays observed by ArcSoft’s Affilitate) (Adjusted for daylight savings time when applicable) Language: English, French, Italian, German, Spanish and Dutch China...

  • Page 22: Table Of Contents

    CONTENTS HOW TO READ THIS MANUAL ...iii CHECKING THE INCLUDED ACCESSORIES ... 3 How to use the accessories ... 5 About the power plug ... 7 ABOUT THE SEPARATELY SOLD ACCESSORIES AND THE CARD ... 8 Separately sold accessories ... 8 Media cards that can be used with this camera ...
  • Page 23 PLAYBACK PLAYING BACK VIDEO CLIPS AND STILL IMAGES ...38 How to save one frame from a video clip as a still image ...41 SLIDESHOW PLAYBACK ...42 PLAYBACK VOLUME ...43 CONNECTING TO A TV CONNECTING TO A STANDARD VIDEO INPUT TERMINAL ...44 ENJOY HIGHER IMAGE QUALITY ...46 Connecting to the HDMI terminal ...46 PLAYING BACK ON A TV ...47...

  • Page 24: Checking The Included Accessories

    CHECKING THE INCLUDED ACCESSORIES i Handstrap (page 5): 1 * To prevent from dropping the camera, be sure to attach the handstrap. i Li-ion battery pack (page 15): i Dedicated USB interface cable (page ix): 1 i Lens cap (page 6): 1 English i Xacti Software CD (CD-ROM) (page viii) : 1...
  • Page 25 i “SAFETY MANUAL” (safety precautions booklet) Please read this booklet carefully before using the camera. i QUICK GUIDE i GUIDE FOR BASIC OPERATION English...

  • Page 26: How To Use The Accessories

    CHECKING THE INCLUDED ACCESSORIES How to use the accessories k Handstrap Strap holder <To use the grip belt...> English Tripod mounting hole...
  • Page 27 k Lens cap <To remove> 1 Push in 2 Pull * Attach as shown in the illustration. English...

  • Page 28: About The Power Plug

    CHECKING THE INCLUDED ACCESSORIES About the power plug A power plug suitable for the destination country is provided for the AC adaptor. VPC-SH1EX VPC-SH1TA VPC-SH1GX VPC-SH1PX * No power plug is provided for the VPC-SH1. k How to attach English...

  • Page 29: About The Separately Sold Accessories And The Card

    ABOUT THE SEPARATELY SOLD ACCESSORIES AND THE CARD Separately sold accessories i Mini HDMI cable VCP-HDMI02 Cable for connecting to the HDMI terminal on the camera. i Lithium-ion Battery Charger VAR-L90 Battery charger for the supplied or separately sold lithium-ion battery pack (DB-L90).

  • Page 30: Media Cards That Can Be Used With This Camera

    ABOUT THE SEPARATELY SOLD ACCESSORIES AND THE CARD Media cards that can be used with this camera The types of card that can be inserted into and used with this camera are: i SD Memory Card i SDHC Memory Card i SDXC Memory Card What “card”...

  • Page 31: Setup

    PARTS NAMES Camera Front Sub-REC buttons [R] button Video recording button [O] button Photo shooting button Lens Flash SETUP SETUP 1 Insert your hand in the handstrap from the top of the camera. 2 Enfold the camera in the palm of your hand to grip it.
  • Page 32 PARTS NAMES Rear Monitor USB/AV terminal HDMI terminal Operation pad SET button [O] button Photo shooting button MENU button English Strap holder Multi-indicator Speaker [R] button Video recording button Rear Battery cover Operation pad ON/OFF button REC/PLAY button...

  • Page 33: Installing The Card

    INSTALLING THE CARD Be sure to format a newly purchased card or one that was used in another device before using it in your camera (page 13). If an unformatted card is used, the card itself may become unusable. Your camera has an internal memory, so you can record without a card installed.
  • Page 34 INSTALLING THE CARD CAUTION Do not attempt to forcibly remove the card i Doing so may damage the card or the stored files. If the multi-indicator is flashing red... i Never remove the card when the multi-indicator is flashing red, as doing so may result in loss of files stored in the card.

  • Page 35: Charging The Battery Pack

    CHARGING THE BATTERY PACK Please charge the supplied battery pack before using it. Install the battery pack in the camera, and connect the AC adaptor to charge the battery. Power to the camera can also be supplied from a power outlet when the AC adaptor is connected.
  • Page 36 CHARGING THE BATTERY PACK Insert the battery pack, then replace the battery cover. Battery pack English...
  • Page 37 Use the power cord to connect the AC adaptor to a power outlet. h Charging begins. 1 Open <During charging...> h During charging, the multi- indicator is lit red. When charging is completed, the indicator turns off. h The multi-indicator flashes red if the battery pack is defective or is not installed correctly.
  • Page 38 CHARGING THE BATTERY PACK CAUTION Do not charge the battery pack immediately after the camera has been in continuous use for a long time i The battery pack becomes hot when the camera is used continuously for a long time. If you attempt to charge the battery pack in this state, the multi- indicator may flash red and it may not be possible to charge the battery pack.

  • Page 39: About Recharging

    About recharging Recharging takes place only when the camera is turned off, or when the power save function or the sleep function has been activated. Recharging does not take place when the camera is in the recording mode or playback mode.

  • Page 40: Turning The Camera On And Off

    TURNING THE CAMERA ON AND Turning on the camera Open the monitor unit, and press the ON/OFF button for at least 1 second. h If you press the REC/PLAY button for at least 1 second, the camera turns on in the playback mode.

  • Page 41: Turning On The Camera When The Power Save (Sleep) Mode Is Active

    Turning on the camera when the power save (sleep) mode is active In order to preserve battery pack power, the power save (sleep) function will automatically turn off the camera after about 1 minute of no use during shooting, or about 5 minutes of no use during playback (factory-preset setting).
  • Page 42 TURNING THE CAMERA ON AND OFF HINT To immediately activate the power save mode i Press the ON/OFF button briefly to activate the power save function. About the standby mode i To turn off the camera only briefly, you can close the monitor unit to put the camera in the standby mode.

  • Page 43: Date And Time Setting

    DATE AND TIME SETTING The camera will record the date and time an image or audio recording is taken so that you can display them during playback. Therefore, before capturing images, make sure the correct date and time are set. h To correct the date and time setting, please see under HINT on page 24.
  • Page 44 DATE AND TIME SETTING Set the clock. 1 Select “TIME”. 2 Press the SET button. h The Set Time Screen appears. 3 Set the time to “19:30”. h The time is set in the following order: Set the hour → Set the minute. h A 24-hour clock is used for the time display.
  • Page 45 Press the MENU button. h The date and time setting is completed. h To display the Recording or Playback Screen, press the MENU button. HINT i Under normal conditions, while the battery pack is being replaced, an internal battery will maintain the date and time settings. However, there is a small chance the settings may be lost (the backup will last for about 7 days).

  • Page 46: Switching Between The Recording Mode And Playback Mode

    SWITCHING BETWEEN THE RECORDING MODE AND PLAYBACK MODE Switch between the recording mode (for recording) and the playback mode (for viewing your recorded images). Turn on the camera (page 19). Press the REC/PLAY button. h The mode changes. h The mode changes each time the REC/PLAY button is pressed.

  • Page 47: Simple Mode/Normal Mode

    SIMPLE MODE/NORMAL MODE About the SIMPLE mode and NORMAL mode The “SIMPLE mode” comprises only those functions that are most often used and necessary to operate the camera, while the “NORMAL mode” enables full use of all the camera’s many functions. Select the mode that is suitable for your purposes.

  • Page 48: Switching Between The Simple And Normal Modes

    SIMPLE MODE/NORMAL MODE Switching between the SIMPLE and NORMAL modes Turn on the camera (page 19). h The previous mode is active. Press the MENU button. h The Menu Screen for the active mode appears. Select the operating mode icon, and press the SET button.

  • Page 49: Accessing/Exiting The Simple/Normal Mode Menu Screen

    Accessing/exiting the SIMPLE/NORMAL Mode Menu Screen Set the camera to the recording or playback mode (page 25). Select the desired operating mode (page 27). If the Menu Screen is not displayed, press the MENU button. h The Menu Screen appears. h To cancel the Menu Screen, press the MENU button.

  • Page 50: Shooting

    VIDEO CLIP RECORDING Turn on the camera (page 19), and set it to the recording mode (page 25). Press the [ ] button. h Recording begins. h It is not necessary to keep the ] button pressed while recording. h When the remaining recording time available for the currently recording clip becomes little, a countdown...

  • Page 51: Shooting Single Shots

    SHOOTING SINGLE SHOTS Capture a still image (single-shot). Turn on the camera (page 19), and set it to the recording mode (page 25). Press the [ ] button. 1 Press the [ ] button halfway. h The autofocus operates, and the image is focused (focus lock).
  • Page 52 SHOOTING SINGLE SHOTS HINT Adjusting the monitor brightness i While the Recording Screen is active, you can quickly access the screen for adjusting the brightness of the monitor by pressing the MENU button for at least 1 second. What is the camera focusing on? i A target mark &...

  • Page 53: Using The Flash

    Using the flash The flash is not only used for photographing under dark conditions, but is also convenient for example when the subject is in shadow or lit from behind. The flash is available only when shooting single-shot still images. Display the SIMPLE Mode Recording Menu (page 28), select the flash setting, and press the SET button.
  • Page 54 SHOOTING SINGLE SHOTS CAUTION Do not touch the flash unit when shooting i The flash unit becomes very hot and may cause a burn. Avoid touching the flash unit when shooting. HINT i The flash cannot be used during video clip recording. i By assigning an operation shortcut to the SET button (page 48), you can change the flash mode from the Recording Screen (NORMAL mode).

  • Page 55: Shoot A Still Image While Recording A Video Clip

    SHOOT A STILL IMAGE WHILE RECORDING A VIDEO CLIP You can capture a still image (a single-shot) while recording a video clip. Turn on the camera (page 19), and set it to the recording mode (page 25). Press the [ ] button.
  • Page 56 SHOOT A STILL IMAGE WHILE RECORDING A VIDEO CLIP HINT i When shooting a still image while recording a video clip, the flash does not operate. i The photo stabilizer (page 48) is inoperative. i When the remaining video recording time becomes approximately 50 seconds, it will no longer be possible to capture a still image while recording a video clip.

  • Page 57: Macro-Photography (Zoom)

    MACRO-PHOTOGRAPHY (ZOOM) Your camera has two zoom functions: optical zoom and digital zoom. Point the camera lens at the subject. Push the zoom switch toward [T/]] or [W/P] to compose the desired image. [T/]]: Zoom in on the subject. [W/P]: Zoom out. h When the zoom switch is pushed, the zoom bar appears on the monitor.
  • Page 58 MACRO-PHOTOGRAPHY (ZOOM) HINT When recording video clips at a high magnification i When recording video clips at a high magnification, a moving subject or moving camera can cause camera shake, resulting in a distorted playback image. This phenomenon is due to the characteristics of the CMOS sensor and is not a malfunction.

  • Page 59: Playing Back Video Clips And Still Images

    PLAYING BACK VIDEO CLIPS AND STILL IMAGES Set the camera to the playback mode (page 25). Select the image to play back. h Toggle the SET button left, right, up or down to move the orange frame to the file you wish to play back.

  • Page 60: Video Clip Playback Operation

    PLAYING BACK VIDEO CLIPS AND STILL IMAGES Video clip playback operation To do this... Normal forward playback Stop playback Pause To play back During forward one image playback at a time During reverse (single- playback frame step) During forward playback Slow playback During reverse...
  • Page 61 HINT If the a icon appears on the playback Screen... i The a icon appears when playing back a file that was saved in segments (page 48). English...

  • Page 62: How To Save One Frame From A Video Clip As A Still Image

    PLAYING BACK VIDEO CLIPS AND STILL IMAGES How to save one frame from a video clip as a still image Play back the video clip. Pause the playback at the point you wish to “snap” a photo. Press the [ ] button.

  • Page 63: Slideshow Playback

    SLIDESHOW PLAYBACK You can play back files in succession with the “slideshow playback” feature. Display the SIMPLE Mode Playback Menu (page 28), select the slideshow setting, and press the SET button. =: Play back all files. 3: Play back video clips and audio files.

  • Page 64: Playback Volume

    PLAYBACK VOLUME Adjust the playback volume for video clips and audio files. Display the SIMPLE Mode Playback Menu (page 28), select the playback volume setting, and press the SET button. h The volume control bar appears. Toggle the SET button to the left or right to set the volume, and press the SET button.

  • Page 65: Connecting To A Tv

    CONNECTING TO A STANDARD VIDEO INPUT TERMINAL About image output: The image output destination differs depending on the connection cable. Connection Image output cable destination Camera monitor Dedicated AV interface cable Camera monitor HDMI cable m: Images are output n: Images are not output To USB/AV terminal * Connect with the [n] mark facing downwards.
  • Page 66 CONNECTING TO A STANDARD VIDEO INPUT TERMINAL * Please affix the core. Core English...

  • Page 67: Enjoy Higher Image Quality

    ENJOY HIGHER IMAGE QUALITY Connecting to the HDMI terminal To HDMI terminal * Connect with the [n] mark facing downwards. To HDMI terminal on the TV NOTE Insert and pull out the cable carefully i When connecting the cables, make sure that the cable plugs are correctly oriented and that they match the shapes of the terminal sockets on the devices.

  • Page 68: Playing Back On A Tv

    PLAYING BACK ON A TV i After connecting the camera to the television, switch the TV input to the terminal to which the camera is connected. i When the camera is connected to a TV, no image appears on the camera’s monitor.

  • Page 69: Obtaining The Instruction Manual

    OBTAINING THE INSTRUCTION MANUAL The Instruction Manual that explains the features in detail can be downloaded from our website. i “Adobe Reader” is required to view the Instruction Manual. If Adobe Reader is not already installed on your computer, a link to the website from which you can download it can be found on our website.
  • Page 70 OBTAINING THE INSTRUCTION MANUAL Turning on the camera when the power save (sleep) mode is active DATE AND TIME SETTING SWITCHING BETWEEN THE RECORDING MODE AND PLAYBACK MODE SIMPLE MODE/NORMAL MODE About the SIMPLE mode and NORMAL mode Switching between the SIMPLE and NORMAL modes Accessing/exiting the SIMPLE/NORMAL Mode Menu Screen Overview of the SIMPLE Mode Setting Screen Overview of the NORMAL Mode Setting Screen...
  • Page 71 Scene select setting Filter setting Self-timer setting RECORDING MENU 2 Motion compensation (image stabilizer) setting Focus range setting Focus mode setting Light-measuring mode setting ISO sensitivity setting RECORDING MENU 3 White balance setting Exposure setting Subject chaser settings High sensitivity mode setting Digital zoom setting Storage folder setting Exposure compensation...
  • Page 72 OBTAINING THE INSTRUCTION MANUAL OTHER DEVICES AND CONNECTIONS CONNECTING TO A TV CONNECTING TO A STANDARD VIDEO INPUT TERMINAL ENJOY HIGHER IMAGE QUALITY Connecting to the HDMI terminal PLAYING BACK ON A TV CONNECTING TO A PRINTER PRINTING APPENDICES COMMONLY ASKED QUESTIONS TROUBLESHOOTING Camera Notes regarding the Scene Select feature and filters...

  • Page 73: How To Obtain The Instruction Manual

    How to obtain the Instruction Manual The Instruction Manual that explains the camera functions in detail can be obtained from the SANYO website. Insert the supplied Xacti Software CD in your computer's CD drive. On the installation screen, click [Go to Xacti SH1 Web Support Page].

  • Page 74: About The Eye-Fi Transfer Feature

    SSID setup/delete HINT i The Instruction Manual for the Eye-Fi transfer feature can be obtained from the Sanyo website (page 52). * “Adobe Reader” is required to view the Instruction Manual. Adobe Reader can be found in the Xacti Software CD.

  • Page 75: Appendices

    COMMONLY ASKED QUESTIONS If you have a question about the camera operation, you might find the answer in this compilation of commonly asked questions. Question Why doesn’t the power turn on? Why is the battery pack consumed so quickly even after it was fully recharged? Power...
  • Page 76 COMMONLY ASKED QUESTIONS Question Why does the multi-indicator flash red? Why doesn’t the flash operate? Are the settings retained even after the camera is turned off? Which resolution Shooting setting should I use? English Answer A recorded file is Not a malfunction. being saved on Wait until the multi- the card or...

  • Page 77: Manual Focus

    Question What is the difference between the digital zoom and the optical zoom? Shooting How can I get the distant view into focus? Answer Action — Because shooting with the optical zoom uses the optics of a physical lens, you can shoot without losing minute details in the image.
  • Page 78 COMMONLY ASKED QUESTIONS Question When used in cold weather, why does the image seem to leave traces as it moves? Monitor Why does the displayed image contain some red, blue and green dots, or why are black spots visible? Why is the image too bright? Viewing Why is the image...
  • Page 79 Question Why is there no image (z is shown)? Why is the playback image distorted? Why isn’t the magnified image Viewing clear? images Why isn’t the captured image clear? Can I play back image and sound files that I edited using my computer? Why is there a...
  • Page 80 COMMONLY ASKED QUESTIONS Question Why is there no sound? What is the difference among the normal video (composite video) output and HDMI output? Connecting to a TV English Answer The volume on Adjust the volume the TV is set to on the TV.
  • Page 81 Question Why does a message appear Printing during PictBridge printing? The “Cannot edit video clips with unlike settings” message appears. Why is a noise heard from a nearby TV or radio during battery recharging? Why does the “Insufficient card Misc. memory”...
  • Page 82 COMMONLY ASKED QUESTIONS Question A problem such as inability to record or play back occurs. Can I use my camera abroad? Misc. Why does the “System error” message appear? English Answer The card or After saving your internal memory files to a different contains files that medium, format the were saved using...

  • Page 83: Specifications

    SPECIFICATIONS Camera Recorded image Still images: file format Video clips: Audio: Data storage Internal memory: Approx. 50 MB media SD Memory Card SDHC Memory Card (up to 32 GB) SDXC Memory Card (up to 64 GB) Image sensor/ 1/3.6-inch (0.7 cm) CMOS sensor camera effective Still images: Approx.
  • Page 84 SPECIFICATIONS Still image shooting mode (recording resolution) Video clip recording mode (recording resolution) White balance English E: 3648 × 2736 pixels (approx. 10 million pixels). 3: 3584 × 2016 pixels (approx. 7 million pixels, 16:9 aspect ratio). M: 2288 × 1712 pixels (approx. 4 million pixels, low compression).
  • Page 85 Lens Focal length: f = 4.0 mm to 92.0 mm, Optical 23× zoom Open: F = 3.5 (wide) to 4.1 (tele) 8 groups, 11 elements (including two with two aspheric surfaces) Galvanometer iris Internal ND filter 35 mm film camera conversion Still image shooting: 35 mm to 805 mm (23×) Video clip recording: 35 mm to 1050 mm (30×...
  • Page 86 SPECIFICATIONS Sensitivity Minimum subject illumination Image stabilizer Monitor Flash working range Flash modes Focus Self-timer Ambient environment English Still image shooting (standard output sensitivity*)/ video clip recording mode: Auto (video clip recording: ISO 50 to 1600; still image shooting: ISO 50 to 400)/ISO 50, ISO 100, ISO 200, ISO 400, ISO 800, ISO 1600, and ISO 3200 (switchable from the Recording Menu) h Sensitivity measured in compliance with the...
  • Page 87 Power supply Battery pack (supplied) AC adaptor (supplied) Power consumption Dimensions (excluding protrusions) Weight Li-ion battery pack (DB-L90) ×1 VAR-G11 2.9 W (When using the Li-ion battery during recording) 42.8 (W) × 117.9 (D) × 59.2 (H) mm 1.69 (W) × 4.64 (D) × 2.33 (H) in. (Maximum dimensions) Volumetric capacity: Approx.

  • Page 88: Camera Connectors

    SPECIFICATIONS Camera connectors USB/AV Regrouped jack terminal Audio output Video output USB 2.0 High Speed PC camera: USB video class HDMI terminal Video output Total number of scan lines (effective number of scan lines): 750p (720p)/1125i (1080i)/525p (480p) Audio output: L-PCM 48 kHz sampling DC IN (external DC 5 V (for exclusive use with the supplied AC adaptor DC power input)

  • Page 89: Battery Life

    Battery life Shooting Still image shooting mode Video clip recording mode Playback i Until battery pack runs out when using a fully charged battery pack at a 25 °C (77°F) ambient temperature. i The operation time may vary depending on the conditions of the battery pack and the conditions of use.

  • Page 90: Possible No. Of Images/Possible Shooting Time/Possible Recording Time

    SPECIFICATIONS Possible No. of Images/Possible Shooting Time/ Possible Recording Time Shooting/ Resolution recording setting mode Still image mode " & Video clip mode Audio recording — mode English Internal memory 8 GB 15 images 2,390 images 21 images 3,270 images 26 images 4,010 images 38 images...
  • Page 91 i If the continuous recording time of a voice memo exceeds about 13 hours, the recorded file is saved once, and then recording continues in a new file. In the video clip recording mode, when the size of the file being recorded exceeds 4 GB, the recorded file is saved once, and then recording continues in a new file.

  • Page 92: Concerning The Multi-Indicator

    SPECIFICATIONS Concerning the multi-indicator The camera’s multi-indicator will light, flash, or be off, depending on the different camera operations. Multi-indicator Color status Green Flashing Orange Slow Flashing Fast Very English Camera status Connected to a computer or printer Power save mode active Connected to a Charging...

  • Page 93: Supplied Ac Adaptor

    Supplied AC adaptor Part number Power source Rated output Temperature Ambient environment Humidity Dimensions Weight Supplied Li-ion battery pack Model number Voltage Capacity Ambient Temperature environment Humidity Dimensions Weight VAR-G11 AC 100 V to 240 V, 50/60 Hz DC 5 V, 2.0 A 0 to 40 °C (32 to 104 °F) (operation), –20 to 60 °C (–4 to 140 °F) (storage) 20 to 80% (no condensation)

  • Page 94: Others

    SPECIFICATIONS Others Mac OS is a trademark of Apple Inc., registered in the U.S. and other countries. Microsoft and Windows are registered trademarks of Microsoft Corporation in the USA and other countries. Intel and Pentium are registered trademarks of Intel Corporation (USA). ®...

  • Page 95: Before Capturing Those Important Shots, Be Sure To First Take A Test Shot To Confirm That Your Camera Is Set Up And Ready To Go

    Sanyo Electric. i Sanyo Electric shall not be held responsible for any losses or loss of revenue resulting from the loss of data caused by the malfunction, or the repairing of a malfunction, of the camera.
  • Page 96 SANYO Electric Co., Ltd.

This manual is also suitable for:

Xacti vpc-sh1pxXacti vpc-sh1Xacti vpc-sh1taXacti vpc-sh1gxVpc-sh1bkVpc-sh1 - full hd 1080 video ... Show all
