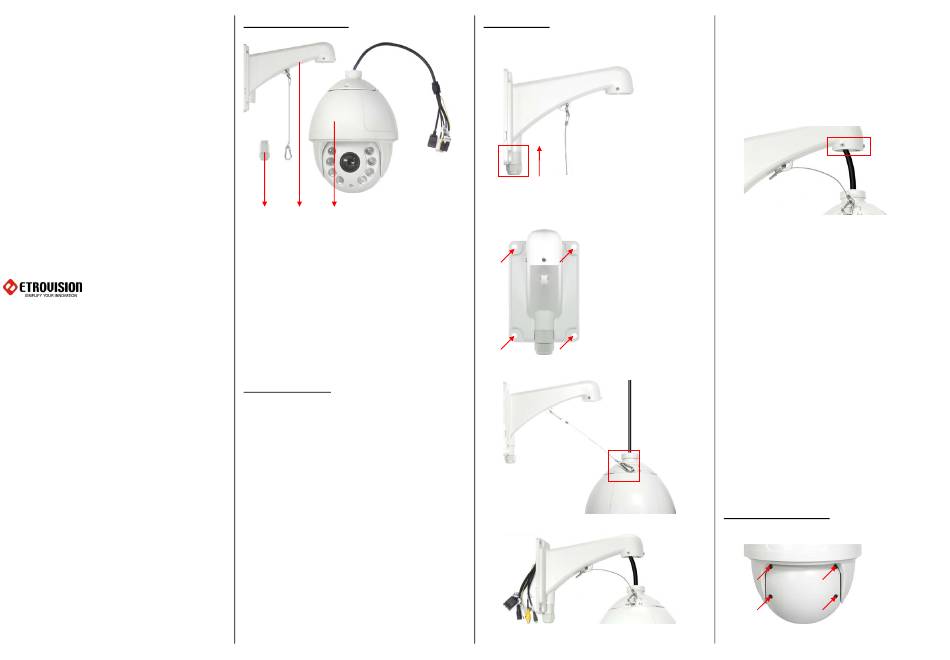

EtroVISION M23 Series Quick Installation Manual

N23
Series
Quick

Installation

Guide
V.1.1
www.etrovision.com
+886-2-2655-1518
Technical Support: etrotech@etrovision.com
Sales Contact: etrosales@etrovision.com

Product Overview

A B C
A. Waterproof conduit
B. Wall mount bracket
C. N23 series camera with extended cables.
The cable consists of:
－ Audio in (yellow)
－ Audio out (white)
－ AC 24V power input (black)
－ RJ45 networking port (black)
－ Terminal block (Green, not used)
－ Ground wire

Product Notice

Note:
1. Make sure all parts in the package included are in good
condition.
2. Check that the specification of the products matches
the specific installation environment.
3. Make sure the power supply is of the right voltage
with your AC outlet to avoid electronic damage.
Warning:
To ensure the camera is mounted correctly, please:
1. Make sure the wall mount bracket is tightened to the
wall which is strong enough to support the weight of
the camera.
2. Make sure the wall mount bracket and camera have
been securely tightened.
Installation
1. Fasten the waterproof conduit to the wall mount
bracket.
2. Fix the wall mount bracket to a surface. (4 screws are
needed but are not included in the box. Anchor bolts
are recommended.)
3. Hook up the camera to the wall mount bracket.
4. Cable connection
－ Pass the extended cables (female) through the
wall mount bracket.
－ Pass all cables (male) through the waterproof
conduit.
Plug each cable (male) into each corresponding
－
cable (female).
5. Mounting the camera
－ Loosen the 3 screws on the wall mount bracket.
－ Push the top section of camera up to match the
wall mount bracket.
－ Tighten the 3 screws.
－ Make sure the wall mount bracket and camera
have been securely tightened.
Note:
For other installation situations, please follow the
recommended steps below.
－ If the surface of the designated installation location is
without a hole, the cables have to pass through the
waterproof conduit on the wall mount bracket, the
recommended step is 1 -> 3 -> 4 -> 2 -> 5, to complete
the installation.
－ If the surface of the designated installation location
has a hole, the installer can connect the cables on the
backside of the surface directly, please follow the steps
in sequence from 1 to 5, to complete the installation.

Insert the SD Card

1. Remove the 4 screws to remove the top cover.
