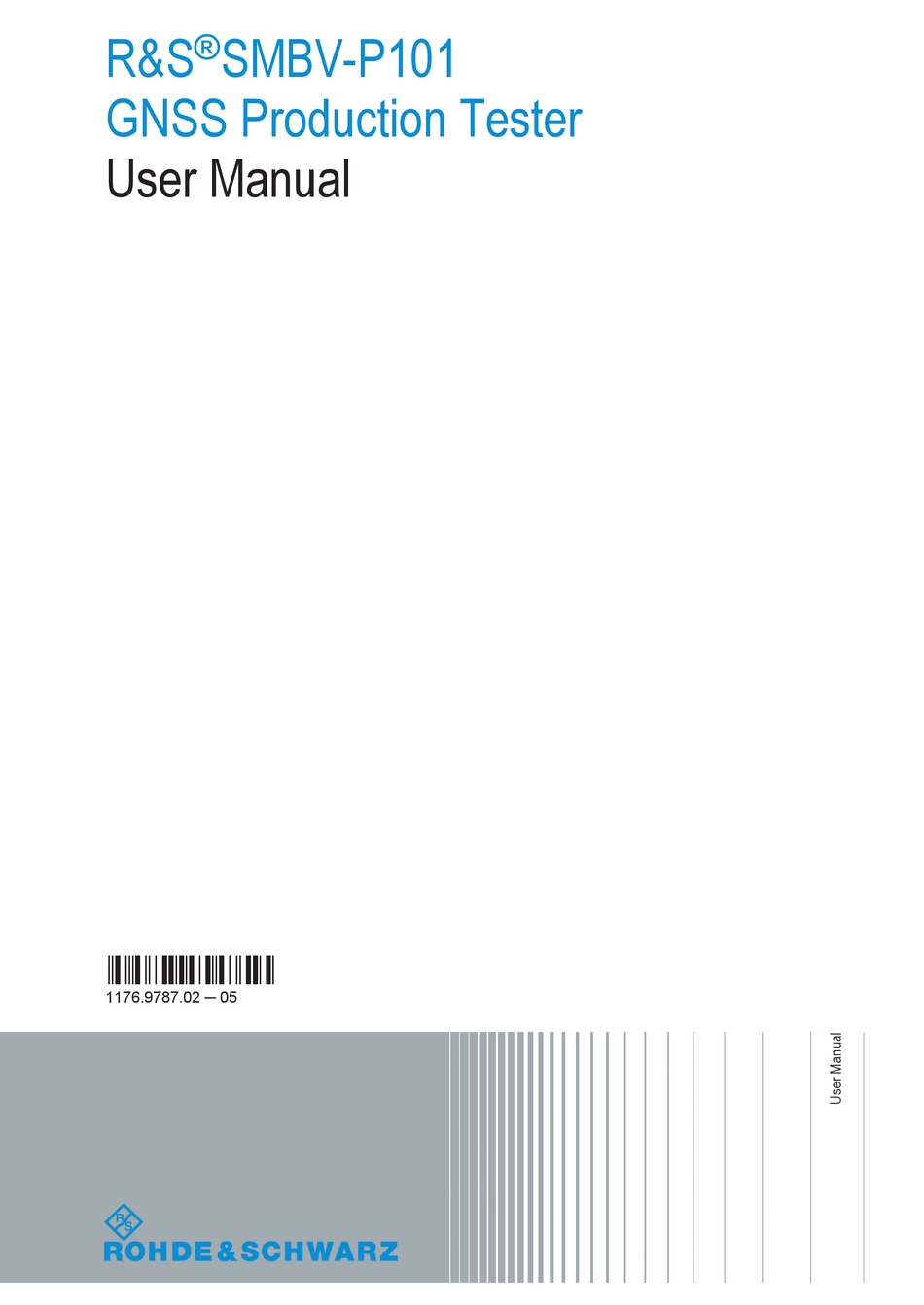

R&S
SMBV-P101
GNSS Production Tester
User Manual
(;Úïå2)
1176.9787.02 ─ 05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMBV-P101 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rohde & Schwarz SMBV-P101

Summary of Contents for Rohde & Schwarz SMBV-P101

  • Page 1 ® R&S SMBV-P101 GNSS Production Tester User Manual (;Úïå2) 1176.9787.02 ─ 05...
  • Page 2 ® This document describes the software option R&S SMBV-P101 1419.2844.02 for generating a satellite signal in static mode with hybrid satellite configuration: GPS, Galileo, GLONASS and BeiDou. ® This manual describes firmware version 4.15.125.xx and later of the R&S SMBV100A.
  • Page 3 Basic Safety Instructions Always read through and comply with the following safety instructions! All plants and locations of the Rohde & Schwarz group of companies make every effort to keep the safety standards of our products up to date and to offer our customers the highest possible degree of safety. Our products and the auxiliary equipment they require are designed, built and tested in accordance with the safety standards that apply in each case.
  • Page 4 Basic Safety Instructions Symbol Meaning Symbol Meaning Caution ! Hot surface Alternating current (AC) Protective conductor terminal Direct/alternating current (DC/AC) To identify any terminal which is intended for connection to an external conductor for protection against electric shock in case of a fault, or the terminal of a protective earth Earth (Ground) Class II Equipment...
  • Page 5 Basic Safety Instructions Operating states and operating positions The product may be operated only under the operating conditions and in the positions specified by the manufacturer, without the product's ventilation being obstructed. If the manufacturer's specifications are not observed, this can result in electric shock, fire and/or serious personal injury or death. Applicable local or national safety regulations and rules for the prevention of accidents must be observed in all work performed.
  • Page 6 Basic Safety Instructions 6. The product may be operated only from TN/TT supply networks fuse-protected with max. 16 A (higher fuse only after consulting with the Rohde & Schwarz group of companies). 7. Do not insert the plug into sockets that are dusty or dirty. Insert the plug firmly and all the way into the socket provided for this purpose.
  • Page 7 Basic Safety Instructions 2. Before you move or transport the product, read and observe the section titled "Transport". 3. As with all industrially manufactured goods, the use of substances that induce an allergic reaction (allergens) such as nickel cannot be generally excluded. If you develop an allergic reaction (such as a skin rash, frequent sneezing, red eyes or respiratory difficulties) when using a Rohde &...
  • Page 8 Basic Safety Instructions 2. Adjustments, replacement of parts, maintenance and repair may be performed only by electrical experts authorized by Rohde & Schwarz. Only original parts may be used for replacing parts relevant to safety (e.g. power switches, power transformers, fuses). A safety test must always be performed after parts relevant to safety have been replaced (visual inspection, protective conductor test, insulation resistance measurement, leakage current measurement, functional test).
  • Page 9 Instrucciones de seguridad elementales 3. If you use the product in a vehicle, it is the sole responsibility of the driver to drive the vehicle safely and properly. The manufacturer assumes no responsibility for accidents or collisions. Never use the product in a moving vehicle if doing so could distract the driver of the vehicle.
  • Page 10 Instrucciones de seguridad elementales Además queda en la responsabilidad del usuario utilizar el producto en la forma debida. Este producto está destinado exclusivamente al uso en la industria y el laboratorio o, si ha sido expresamente autorizado, para aplicaciones de campo y de ninguna manera deberá ser utilizado de modo que alguna persona/cosa pueda sufrir daño.
  • Page 11 Instrucciones de seguridad elementales Símbolo Significado Símbolo Significado Conexión a tierra El aparato está protegido en su totalidad por un aislamiento doble (reforzado) Conexión a masa Distintivo de la UE para baterías y acumuladores Más información en la sección "Eliminación/protección del medio ambiente", punto 1.
  • Page 12 Instrucciones de seguridad elementales Estados operativos y posiciones de funcionamiento El producto solamente debe ser utilizado según lo indicado por el fabricante respecto a los estados operativos y posiciones de funcionamiento sin que se obstruya la ventilación. Si no se siguen las indicaciones del fabricante, pueden producirse choques eléctricos, incendios y/o lesiones graves con posible consecuencia de muerte.
  • Page 13 Instrucciones de seguridad elementales integran productos sin interruptor en bastidores o instalaciones, se deberá colocar el interruptor en el nivel de la instalación. 5. No utilice nunca el producto si está dañado el cable de conexión a red. Compruebe regularmente el correcto estado de los cables de conexión a red.
  • Page 14 Instrucciones de seguridad elementales 17. No utilice el producto en condiciones en las que pueda producirse o ya se hayan producido condensaciones sobre el producto o en el interior de éste, como p. ej. al desplazarlo de un lugar frío a otro caliente.
  • Page 15 Instrucciones de seguridad elementales pueden causar perturbaciones radioeléctricas en entornos residenciales debido a posibles perturbaciones guiadas o radiadas. En este caso, se le podrá solicitar al operador que tome las medidas adecuadas para eliminar estas perturbaciones.  Aparato de clase B: Aparato adecuado para su uso en entornos residenciales, así...
  • Page 16 Instrucciones de seguridad elementales 8. En caso de devolver baterías de litio a las filiales de Rohde & Schwarz, debe cumplirse las normativas sobre los modos de transporte (IATA-DGR, código IMDG, ADR, RID). Transporte 1. El producto puede tener un peso elevado. Por eso es necesario desplazarlo o transportarlo con precaución y, si es necesario, usando un sistema de elevación adecuado (p.
  • Page 17 Customer Support Technical support – where and when you need it For quick, expert help with any Rohde & Schwarz equipment, contact one of our Customer Support Centers. A team of highly qualified engineers provides telephone support and will work with you to find a solution to your query on any aspect of the operation, programming or applications of Rohde &...

  • Page 18: Table Of Contents

    1.2.7 Release Notes and Open Source Acknowledgment (OSA)..........9 1.2.8 Application Notes, Application Cards, White Papers, etc..........9 2 Welcome to the R&S SMBV-P101 GNSS Production Tester ... 10 Accessing the GNSS Dialog..................10 Scope........................... 11 Description of the Non-GNSS-Related Settings............11 Contents........................11...
  • Page 19 ® Contents R&S SMBV-P101 Almanac Settings......................24 Time Conversion Configuration Settings..............25 Satellite Configuration Settings.................27 4.4.1 Power Configuration......................27 4.4.2 Configuration of the Satellite Constellation..............28 4.4.3 Individual Satellite Settings................... 29 4.4.4 Modulation Control......................32 4.4.5 Signal Dynamics......................34 Navigation Message Configuration................37 Atmospheric Configuration Settings................
  • Page 20 ® Contents R&S SMBV-P101 6.13 Clock Settings......................106 List of Commands................108 Index....................114 User Manual 1176.9787.02 ─ 05...
  • Page 21 ® Contents R&S SMBV-P101 User Manual 1176.9787.02 ─ 05...

  • Page 22: Preface

    The following topics are included: ● Welcome to the Production Tester Introduction to and getting familiar with the option R&S SMBV-P101 ● About the GNSS systems Background information on basic terms and principles in the context of the signal generation ●...

  • Page 23: Documentation Overview

    ® Preface R&S SMBV-P101 Documentation Overview The screenshots usually show a fully equipped product, that is: with all options instal- led. Thus, some functions shown in the screenshots may not be available in your par- ticular product configuration. 1.2 Documentation Overview This section provides an overview of the R&S SMBV user documentation.

  • Page 24: Instrument Security Procedures

    ® Preface R&S SMBV-P101 Documentation Overview 1.2.4 Instrument Security Procedures Deals with security issues when working with the R&S SMBV in secure areas. It is available for download on the Internet. 1.2.5 Basic Safety Instructions Contains safety instructions, operating conditions and further important information.

  • Page 25: Welcome To The R&S Smbv-P101 Gnss Production Tester

    2 Welcome to the R&S SMBV-P101 GNSS Production Tester The R&S SMBV-P101 GNSS Production Tester generates the signals of four satellites in static mode, in accordance with GPS, Galileo, GLONASS and COMPASS/BeiDou. The GNSS solution for the R&S SMBV is suitable for production tests of GNSS receiv- ers.

  • Page 26: Scope

    2.3 Description of the Non-GNSS-Related Settings Refer to the R&S SMBV operating manual for description of the non-GNSS-related set- tings. When the R&S SMBV-P101 GNSS production tester option is installed, the R&S SMBV operating manual applies except the following chapters: ●...
  • Page 27 ® Welcome to the R&S SMBV-P101 GNSS Production Tester R&S SMBV-P101 Contents Notes on screenshots When describing the functions of the product, we use sample screenshots. These screenshots are meant to illustrate as much as possible of the provided functions and possible interdependencies between parameters.

  • Page 28: About The Gnss Production Tester

    ® About the GNSS Production Tester R&S SMBV-P101 3 About the GNSS Production Tester In manufacturing, the sensitivity of a receiver for acquiring and tracking a satellite sig- nal must be determined. The R&S SMBV production tester enables you to generate hybrid satellite signals in static mode.

  • Page 29: Real-Time Generation

    ® About the GNSS Production Tester R&S SMBV-P101 Multi-satellite GNSS Signal Figure 3-1: GNSS frequency bands ● COMPASS/BeiDou The fully deployed BeiDou Navigation Satellite System (BDS) is a Chinese satellite navigation system. This navigation system is also know as BeiDou-2 and is expec- ted in 2020.

  • Page 30: Signal Dynamics

    ® About the GNSS Production Tester R&S SMBV-P101 Power Configuration 3.3 Signal Dynamics For basic receiver testing, the R&S SMBV production tester generates signals with varying Doppler effects. Thus you can define Doppler profiles with configurable maxi- mum dynamics (velocity, acceleration and jerk).

  • Page 31: Configuration Of The Atmospheric Parameters

    ® About the GNSS Production Tester R&S SMBV-P101 Leap Second Simulation 3.7 Configuration of the Atmospheric Parameters The ionospheric navigation parameters of the provided GNSS standards are enabled for configuration. The ionospheric navigation parameters define what the satellites are transmitting as ionospheric correction parameters.

  • Page 32: Gnss Production Configuration And Settings

    ® GNSS Production Configuration and Settings R&S SMBV-P101 GNSS Main Dialog 4 GNSS Production Configuration and Set- tings The GNSS R&S SMBV procduction tester supports up to four satellite signals of the standards GPS, Galileo, GLONASS and BeiDou. You can access the available satellite settings via the baseband block.

  • Page 33: General Settings For Gnss Simulation

    ® GNSS Production Configuration and Settings R&S SMBV-P101 GNSS Main Dialog ● Additionally, you can access settings for configuring the satellite signals. The remote commands required to define these settings are described in Chapter 6, "Remote-Control Commands", on page 58.
  • Page 34 ® GNSS Production Configuration and Settings R&S SMBV-P101 GNSS Main Dialog Parameter Value Data Source All 0 (GPS, BeiDou)/Zero oder Real Navigation Data (GLONASS) System Time Satellite configuration Maximum Number of Satellites State satellite 1-4 Standard GPS, Galileo, GLONASS and BeiDou...
  • Page 35 ® GNSS Production Configuration and Settings R&S SMBV-P101 GNSS Main Dialog Update RF Frequency Sets the "Status Bar > Frequency" display to the resulting frequency. The RF Fre- quency is calculated automatically depending on the selected Band, on the entry standard and on the enabled navigation standards.

  • Page 36: Navigation Data

    ® GNSS Production Configuration and Settings R&S SMBV-P101 GNSS Main Dialog Execute Trigger For internal trigger source, executes trigger manually. Remote command: on page 101 [:SOURce<hw>]:BB:GNPR:TRIGger:EXECute Clock Accesses the dialog for selecting the clock source and for setting a delay (see Chap- ter 4.7, "Trigger/Marker/Clock...

  • Page 37: Dialog

    ® GNSS Production Configuration and Settings R&S SMBV-P101 GNSS Main Dialog "PRBSxx/Data List/Pattern" Arbitrary data is available in "Static" mode. A GNSS receiver recognizes signals generated in this way. There is no real navigation data modulated with the GNSS spreading code but the signal is sufficient for simple functional tests and sensitivity tests.
  • Page 38 ® GNSS Production Configuration and Settings R&S SMBV-P101 GNSS Main Dialog "Time Basis" Per default, the timebase of the entry standard is used. If different timebase is selected, the time is automatically recalculated and dis- played in the selected time format.

  • Page 39: Almanac Settings

    ® GNSS Production Configuration and Settings R&S SMBV-P101 Almanac Settings 4.2 Almanac Settings To access this dialog: 1. Select "GNSS > General > Navigation Data" 2. Select "Navigation Data > Data Source > Real Navigation Data" 3. Select "Navigation Data > Almanac"...

  • Page 40: Time Conversion Configuration Settings

    ® GNSS Production Configuration and Settings R&S SMBV-P101 Time Conversion Configuration Settings ● "Week Number" and "Week Span": no SCPI command for Glonass For an overview of the supported almanac files, see Chapter 3.5, "Multiple Almanacs", on page 15. 4.3 Time Conversion Configuration Settings Access: ►...
  • Page 41 ® GNSS Production Configuration and Settings R&S SMBV-P101 Time Conversion Configuration Settings Time Conversion Parameters The basis for the time conversion is the UTC. The parameters of each of the navigation standards are set as an offset to the UTC.

  • Page 42: Satellite Configuration Settings

    ® GNSS Production Configuration and Settings R&S SMBV-P101 Satellite Configuration Settings The Glonass satellites transmit the offset between GPS and GLONASS system time as part of their navigation message. They assume only a delay and no frequency drift. The time offset is calculated as following: GPS –...

  • Page 43: Configuration Of The Satellite Constellation

    ® GNSS Production Configuration and Settings R&S SMBV-P101 Satellite Configuration Settings The total power of the generated GNSS signal is displayed with the parameter Total Power. Power Mode........................28 Reference Power......................28 Total Power........................28 Power Mode Indicates that the power calculation is based on user-defined settings.

  • Page 44: Individual Satellite Settings

    ® GNSS Production Configuration and Settings R&S SMBV-P101 Satellite Configuration Settings Satellite State ← Constellation Table Activates/deactivates the satellite. Remote command: on page 75 [:SOURce<hw>]:BB:GNPR:SATellite<st>:STATe Standard ← Constellation Table Indicates the navigation standard the corresponding satellite belongs to. Remote command: on page 75 [:SOURce<hw>]:BB:GNPR:SATellite<st>:STANdard?
  • Page 45 ® GNSS Production Configuration and Settings R&S SMBV-P101 Satellite Configuration Settings The values displayed in this section are the initial values of the parameters. The initial values are calculated at the beginning of the simulation or at the time the specific satel- lite is activated.
  • Page 46 ® GNSS Production Configuration and Settings R&S SMBV-P101 Satellite Configuration Settings Remote command: on page 73 [:SOURce<hw>]:BB:GNPR:SATellite<st>:MODulation? Navigation... Accesses the dialog for configuring the parameters of the navigation message. Chapter 4.5, "Navigation Message Configuration", on page 37 Modulation Control Accesses the Chapter 4.4.4, "Modulation...

  • Page 47: Modulation Control

    ® GNSS Production Configuration and Settings R&S SMBV-P101 Satellite Configuration Settings Remote command: on page 73 [:SOURce<hw>]:BB:GNPR:SATellite<st>:ICPHase Resulting Start Frequency Indicates the currently valid values for Doppler shifted carrier frequency. The resulting frequency is calculated according to the following: ●...
  • Page 48 ® GNSS Production Configuration and Settings R&S SMBV-P101 Satellite Configuration Settings 3. Select "Modulation Control". Figure 4-1: Example: GLONASS modulation control diagram The dialog shows the signal components of the satellite navigation signal as func- tional blocks, representing the modulation scheme and the channels used.

  • Page 49: Signal Dynamics

    ® GNSS Production Configuration and Settings R&S SMBV-P101 Satellite Configuration Settings "Secondary Code" Data signal component in the pilot channel of Galileo or BeiDou sig- nals. Remote command: [:SOURce<hw>]:BB:GNPR:SATellite<st>:MCONtrol:SECondary<ch>[: on page 76 STATe] 4.4.5 Signal Dynamics Signal dynamics enables you to configure the signal dynamics. It is especially designed for testing the receiver sensitivity under varying signal dynamics.
  • Page 50 ® GNSS Production Configuration and Settings R&S SMBV-P101 Satellite Configuration Settings "Constant" Generates a constant signal with definable Doppler shift, see Con- stant profile settings. "High Order" Enables Doppler profiles with higher dynamics. There are two predefined profiles, or you can define a specific profile, High-order profile settings.
  • Page 51 ® GNSS Production Configuration and Settings R&S SMBV-P101 Satellite Configuration Settings Initial Doppler Shift ← High-order profile settings Displays the Doppler shift set for predefined high-order profile. Select Predefined Config. > "User Dynamics" to change the value. The value of the parameter "Satellite Configuration" >...

  • Page 52: Navigation Message Configuration

    ® GNSS Production Configuration and Settings R&S SMBV-P101 Navigation Message Configuration 4.5 Navigation Message Configuration To access these settings: 1. Select "Baseband block > Satellite Navigation > GNSS Production...". 2. Select "GNSS Production > Navigation Data > Data Source > Real Navigation Data"...
  • Page 53 ® GNSS Production Configuration and Settings R&S SMBV-P101 Navigation Message Configuration User Manual 1176.9787.02 ─ 05...
  • Page 54 ® GNSS Production Configuration and Settings R&S SMBV-P101 Navigation Message Configuration The provided parameters depend on the GNSS standard the satellite belongs to. SV-ID / Standard......................39 Set To Almanac......................39 GPS, Galileo and BeiDou Common Ephemeris Parameters........39 GPS, BeiDou Ephemeris Parameters................
  • Page 55 ® GNSS Production Configuration and Settings R&S SMBV-P101 Navigation Message Configuration Parameter Description SCPI command Inclination Angle at Reference Time [SOURce<hw>]:BB:GNPR:SVID<ch>: <GNSS>:NMESsage:EPHemeris:IZERo on page 90 Omega Argument of Perigee [SOURce<hw>]:BB:GNPR:SVID<ch>: <GNSS>:NMESsage:EPHemeris:OMEGa on page 91 OMEGA_DOT Rate of Right Ascension [SOURce<hw>]:BB:GNPR:SVID<ch>: <GNSS>:NMESsage:EPHemeris:ODOT...
  • Page 56 ® GNSS Production Configuration and Settings R&S SMBV-P101 Navigation Message Configuration Parameter Description SCPI command IODC (GPS) Issue of Data, Clock [SOURce<hw>]:BB:GNPR:SVID<ch>: <GNSS>:NMESsage:EPHemeris:IODC AODC (BeiDou) Age Of Data Clock on page 89 IODE (GPS) Issue of Data, Ephemeris [SOURce<hw>]:BB:GNPR:SVID<ch>: <GNSS>:NMESsage:EPHemeris:IODE...
  • Page 57 ® GNSS Production Configuration and Settings R&S SMBV-P101 Navigation Message Configuration Table 4-6: Galileo Specific Ephemeris Parameters Parameter Description SCPI command SISA Signal In Space Accuracy [:SOURce<hw>]:BB:GNPR:SVID<ch>: GALileo:NMESsage:EPHemeris:SISA on page 92 IODnav Issue Of Data (Ephemeris and Clock correc- [:SOURce<hw>]:BB:GNPR:SVID<ch>:...
  • Page 58 ® GNSS Production Configuration and Settings R&S SMBV-P101 Navigation Message Configuration Parameter Description SCPI command Age of Time interval between 2 adjacent values of [:SOURce<hw>]:BB:GNPR:SVID<ch>: Ephemeris TOE. It defines hence the age of the current GLONass:NMESsage:EPHemeris:AOEP Page (P1) Glonass Ephemeris page.
  • Page 59 ® GNSS Production Configuration and Settings R&S SMBV-P101 Navigation Message Configuration Parameter Description SCPI command TOE (tb) Displays the time of Ephemeris in the current [:SOURce<hw>]:BB:GNPR:SVID<ch>: day. Also referred to in the standard as the GLONass:NMESsage:EPHemeris:TOE? middle of the Tb-Interval or tb. This parame-...
  • Page 60 ® GNSS Production Configuration and Settings R&S SMBV-P101 Navigation Message Configuration Parameter Description SCPI command YDDOT_n The OY acceleration coordinate of the cur- [:SOURce<hw>]:BB:GNPR:SVID<ch>: rent satellite due to solar and lunar gravita- GLONass:NMESsage:EPHemeris:YDDN tional effects at TOE(tb), i.e. the middle of...
  • Page 61 ® GNSS Production Configuration and Settings R&S SMBV-P101 Navigation Message Configuration Parameter Description SCPI command a_f0 (E1-E5B) SV clock bias correction coefficient (E1,E5b) E1B_DVS Data Validity Satellite Status, transmitted on [:SOURce<hw>]:BB:GNPR:SVID<ch>: E1-B (E1-B GALileo:NMESsage:INAV:E1BDVS on page 95 E5B_DVS Data Validity Satellite Status, transmitted on [:SOURce<hw>]:BB:GNPR:SVID<ch>:...

  • Page 62: Atmospheric Configuration Settings

    ® GNSS Production Configuration and Settings R&S SMBV-P101 Atmospheric Configuration Settings 4.6 Atmospheric Configuration Settings Access: ► Select "Main Dialog > Atmospheric Configuration". The atmospheric configuration comprises the ionospheric navigation parameters, that are what the GNSS satellites are transmitting as ionospheric correction param- eters.

  • Page 63: Trigger/Marker/Clock Settings

    ® GNSS Production Configuration and Settings R&S SMBV-P101 Trigger/Marker/Clock Settings GALILEO Ionospheric Navigation Parameters The GALILEO ionospheric model includes the broadcast coefficients a and a used to compute the Effective Ionization Level Az and the Ionospheric Disturbance Flag, given for five different regions.

  • Page 64: Trigger In

    ® GNSS Production Configuration and Settings R&S SMBV-P101 Trigger/Marker/Clock Settings You can define a marker delay either without restriction, or restricted to the cur- rent range, that means you can modify the settings without restarting signal and marker signal generation.

  • Page 65: Signal Duration

    ® GNSS Production Configuration and Settings R&S SMBV-P101 Trigger/Marker/Clock Settings ● "Retrigger" The signal is generated continuously. A trigger event (internal or external) causes a restart. ● "Armed Auto" The signal is generated only when a trigger event occurs. Then the signal is gener- ated continuously.

  • Page 66: Trigger Source

    ® GNSS Production Configuration and Settings R&S SMBV-P101 Trigger/Marker/Clock Settings Trigger Source Selects trigger source. This setting is effective when a trigger mode other than "Auto" has been selected. ● "Internal" The trigger event is executed by "Execute Trigger". ●...

  • Page 67: Marker Settings

    ® GNSS Production Configuration and Settings R&S SMBV-P101 Trigger/Marker/Clock Settings Remote command: [:SOURce<hw>]:BB:GNPR:TRIGger:EXTernal:SYNChronize:OUTPut on page 102 External Delay Delays the trigger event of the signal from: ● The external trigger source Use this setting to: ● Synchronize the instrument with the device under test (DUT) or other external devi-...
  • Page 68 ® GNSS Production Configuration and Settings R&S SMBV-P101 Trigger/Marker/Clock Settings "1PPS" A marker signal is generated for every start of second. The used timebase is displayed right to the field. The "Pulse Width" is set in the corresponding field. The input is expressed as a number of chips.

  • Page 69: Clock Settings

    ® GNSS Production Configuration and Settings R&S SMBV-P101 Trigger/Marker/Clock Settings "Current Range without Recalculation" Displays the dynamic range within which the delay of the marker sig- nals can be set without restarting the marker and the signal. Move the setting mark to define the delay.

  • Page 70: Global Settings

    ® GNSS Production Configuration and Settings R&S SMBV-P101 Trigger/Marker/Clock Settings Adjusts the instrument's settings required for the selected synchronization mode. Remote command: on page 106 [:SOURce<hw>]:BB:GNPR:CLOCk:SYNChronization:EXECute Clock Source Selects the clock source. ● "Internal" The instrument uses its internal clock reference.

  • Page 71: How To Generate A Gnss Signal For Receiver Tests With Varying Signal Dynamics And Modulation Control

    ® How to Generate a GNSS Signal for Receiver Tests with Varying Signal Dynam- R&S SMBV-P101 ics and Modulation Control 5 How to Generate a GNSS Signal for Receiver Tests with Varying Signal Dynam- ics and Modulation Control The general workflow on...
  • Page 72 ® How to Generate a GNSS Signal for Receiver Tests with Varying Signal Dynam- R&S SMBV-P101 ics and Modulation Control 5. Select "Navigation Data > Time Conversion Configuration" and if required, change the settings. 6. Select "Navigation Data > Satellite Configuration" and: a) Set "Reference Power".

  • Page 73: Remote-Control Commands

    ® Remote-Control Commands R&S SMBV-P101 6 Remote-Control Commands The following commands are required to perform signal generation with the satellite navigation options in a remote environment. We assume that the R&S SMBV has already been set up for remote operation in a network as described in the R&S SMBV documentation.

  • Page 74: Primary Settings

    ® Remote-Control Commands R&S SMBV-P101 Primary Settings ● Time Conversion Configuration................68 ● Satellites Configuration and Satellites Signal Settings........... 71 ● Modulation Control....................76 ● Signal Dyamics....................... 77 ● Power Settings......................80 ● Navigation Message Configuration................. 81 ● Atmospheric Configuration..................100 ●...
  • Page 75 ® Remote-Control Commands R&S SMBV-P101 Primary Settings Parameters: <RfBand> L1 | L2 *RST: Manual operation: "RF Band" on page 20 [:SOURce<hw>]:BB:GNPR:PRFFrequency Sets the "Status Bar > Frequency" display to the resulting frequency. Usage: Event Manual operation: "Update RF Frequency" on page 20 [:SOURce<hw>]:BB:GNPR:SETTing:CATalog?

  • Page 76: Navigation Data

    ® Remote-Control Commands R&S SMBV-P101 Navigation Data [:SOURce<hw>]:BB:GNPR:SETTing:STORe <Filename> Stores the current settings of the specified GNSS standard into the selected file. The directory is set using command MMEM:CDIRectory. Only the file name has to be entered; configurations are stored with the predefined file extensions.
  • Page 77 ® Remote-Control Commands R&S SMBV-P101 Navigation Data Parameters: <Data> ZERO | ONE | PATTern | PN9 | PN11 | PN15 | PN16 | PN20 | PN21 | PN23 | DLISt | RNData | ZNData *RST: RNData Example: [:SOURce<hw>]:BB:GNPR:SATellite<st>:SVID Manual operation: "Data Source"...
  • Page 78 ® Remote-Control Commands R&S SMBV-P101 Navigation Data Manual operation: "Simulation Start Time" on page 22 [:SOURce<hw>]:BB:GNPR:NAVigation:SIMulation:TBASis <SystemTime> Determines the time basis used to enter the simulation start time. Parameters: <SystemTime> UTC | GPS *RST: Manual operation: "Simulation Start Time" on page 22 [:SOURce<hw>]:BB:GNPR:NAVigation:SIMulation:TIME <Hour>, <Minute>,...

  • Page 79: Almanac Configuration

    ® Remote-Control Commands R&S SMBV-P101 Almanac Configuration [:SOURce<hw>]:BB:GNPR:NAVigation:SIMulation:WNUMber <Week> Enters the week number (WN) the navigation signal is generated for. This setting is available for [:SOURce<hw>]:BB:GNPR:NAVigation:DATA RNData|ZNData and [:SOURce<hw>]:BB:GNPR:NAVigation:SIMulation: TBASisGPS. Parameters: <Week> integer Range: 0 to 9999*53 *RST: Manual operation: "Simulation Start Time"...
  • Page 80 ® Remote-Control Commands R&S SMBV-P101 Almanac Configuration ....67 [:SOURce<hw>]:BB:GNPR:NAVigation:ALManac:GLONass:TOAPplicability:TIME? .... 67 [SOURce<hw>]:BB:GNPR:NAVigation:ALManac:<GNSS>:TOAPplicability:TOAWeek ..... 67 [:SOURce<hw>]:BB:GNPR:NAVigation:ALManac:BEIDou:TOAPplicability:TOWeek? ..... 67 [:SOURce<hw>]:BB:GNPR:NAVigation:ALManac:GALileo:TOAPplicability:TOWeek? ....67 [:SOURce<hw>]:BB:GNPR:NAVigation:ALManac:GPS:TOAPplicability:TOWeek? ....68 [SOURce<hw>]:BB:GNPR:NAVigation:ALManac:<GNSS>:TOAPplicability:WNUMber ... 68 [:SOURce<hw>]:BB:GNPR:NAVigation:ALManac:BEIDou:TOAPplicability:WNUMber? ...68 [:SOURce<hw>]:BB:GNPR:NAVigation:ALManac:GALileo:TOAPplicability:WNUMber? ....68 [:SOURce<hw>]:BB:GNPR:NAVigation:ALManac:GPS:TOAPplicability:WNUMber? ........68 [SOURce<hw>]:BB:GNPR:NAVigation:ALManac:<GNSS>:WNUMber ........68 [:SOURce<hw>]:BB:GNPR:NAVigation:ALManac:BEIDou:WNUMber? ......... 68 [:SOURce<hw>]:BB:GNPR:NAVigation:ALManac:GALileo:WNUMber? ........68 [:SOURce<hw>]:BB:GNPR:NAVigation:ALManac:GPS:WNUMber?
  • Page 81 ® Remote-Control Commands R&S SMBV-P101 Almanac Configuration [:SOURce<hw>]:BB:GNPR:NAVigation:ALManac:GALileo:DATE:BEGin? [:SOURce<hw>]:BB:GNPR:NAVigation:ALManac:GPS:DATE:BEGin? Queries the start date of the week span of the selected almanac file for the navigation standard. To select the file, use the command [SOURce<hw>]:BB:GNPR:NAVigation: ALManac:<GNSS>:FILE. Return values: <Year> integer Range: 1980 to 9999 <Month>...
  • Page 82 ® Remote-Control Commands R&S SMBV-P101 Almanac Configuration <Month> integer Range: 1 to 12 <Day> integer Range: 1 to 31 Usage: Query only Manual operation: "Almanac Configuration" on page 24 [:SOURce<hw>]:BB:GNPR:NAVigation:ALManac:GLONass:TOAPplicability: TIME? Queries the start time of applicability of the selected almanac file.

  • Page 83: Time Conversion Configuration

    ® Remote-Control Commands R&S SMBV-P101 Time Conversion Configuration [SOURce<hw>]:BB:GNPR:NAVigation:ALManac:<GNSS>:TOAPplicability: WNUMber [:SOURce<hw>]:BB:GNPR:NAVigation:ALManac:BEIDou:TOAPplicability: WNUMber? [:SOURce<hw>]:BB:GNPR:NAVigation:ALManac:GALileo:TOAPplicability: WNUMber? [:SOURce<hw>]:BB:GNPR:NAVigation:ALManac:GPS:TOAPplicability: WNUMber? Determines the Week Number for which the selected almanac is used for (time of applicability). Return values: <WN> integer Range: 0 to 9999.0*53 *RST:...
  • Page 84 ® Remote-Control Commands R&S SMBV-P101 Time Conversion Configuration ........70 [:SOURce<hw>]:BB:GNPR:NAVigation:TCONversion:GPS:AZERo ........70 [SOURce<hw>]:BB:GNPR:NAVigation:TCONversion:<GNSS>:TOT ........70 [:SOURce<hw>]:BB:GNPR:NAVigation:TCONversion:BEIDou:TOT ........70 [:SOURce<hw>]:BB:GNPR:NAVigation:TCONversion:GALileo:TOT ........70 [:SOURce<hw>]:BB:GNPR:NAVigation:TCONversion:GLONass:TOT ...........70 [:SOURce<hw>]:BB:GNPR:NAVigation:TCONversion:GPS:TOT ........70 [SOURce<hw>]:BB:GNPR:NAVigation:TCONversion:<GNSS>:WNOT ........70 [:SOURce<hw>]:BB:GNPR:NAVigation:TCONversion:BEIDou:WNOT ........70 [:SOURce<hw>]:BB:GNPR:NAVigation:TCONversion:GALileo:WNOT ........70 [:SOURce<hw>]:BB:GNPR:NAVigation:TCONversion:GLONass:WNOT ........70 [:SOURce<hw>]:BB:GNPR:NAVigation:TCONversion:GPS:WNOT ........70 [:SOURce<hw>]:BB:GNPR:NAVigation:TCONversion:LEAP:SEConds ........71...
  • Page 85 ® Remote-Control Commands R&S SMBV-P101 Time Conversion Configuration [:SOURce<hw>]:BB:GNPR:NAVigation:TCONversion:GLONass:AZERo <AZero> [:SOURce<hw>]:BB:GNPR:NAVigation:TCONversion:GPS:AZERo <AZero> Sets the constant term of polynomial, A Parameters: <AZero> integer Range: -2147483648 to 2147483647 *RST: [SOURce<hw>]:BB:GNPR:NAVigation:TCONversion:<GNSS>:TOT [:SOURce<hw>]:BB:GNPR:NAVigation:TCONversion:BEIDou:TOT <Tot> [:SOURce<hw>]:BB:GNPR:NAVigation:TCONversion:GALileo:TOT <Tot> [:SOURce<hw>]:BB:GNPR:NAVigation:TCONversion:GLONass:TOT <Tot> [:SOURce<hw>]:BB:GNPR:NAVigation:TCONversion:GPS:TOT <Tot> Sets the UTC data reference time of week, t Parameters: <Tot>...

  • Page 86: Satellites Configuration And Satellites Signal Settings

    ® Remote-Control Commands R&S SMBV-P101 Satellites Configuration and Satellites Signal Settings [:SOURce<hw>]:BB:GNPR:NAVigation:TCONversion:LEAP:SYNC Synchronizes the leap second according to the simulation time. Usage: Event Manual operation: "Leap Second Configuration" on page 26 6.5 Satellites Configuration and Satellites Signal Settings ..............71 [:SOURce<hw>]:BB:GNPR:SATellite:COUNt?
  • Page 87 ® Remote-Control Commands R&S SMBV-P101 Satellites Configuration and Satellites Signal Settings Parameters: <Svid> integer The available SV IDs depend on the data source: for [:SOURce<hw>]:BB:GNPR:NAVigation:DATAZNData or arbitrary data, any ID can be selected, see "Common Suffixes" on page 58 for [:SOURce<hw>]:BB:GNPR:NAVigation:DATARNData, available are the valid IDs, as listed in the almanac;...
  • Page 88 ® Remote-Control Commands R&S SMBV-P101 Satellites Configuration and Satellites Signal Settings [:SOURce<hw>]:BB:GNPR:SATellite<st>:FNUMber <FrequencyNumber> Sets or queries the frequency number, depending on the used data source. The parameter corresponds to the sub-carrier used to modulate the GLONASS satel- lite. Parameters: <FrequencyNumber> integer...
  • Page 89 ® Remote-Control Commands R&S SMBV-P101 Satellites Configuration and Satellites Signal Settings Return values: <Modulation> BPSK | CBOC *RST: BPSK Usage: Query only Manual operation: "Modulation" on page 30 [:SOURce<hw>]:BB:GNPR:SATellite<st>:ORBit? For BeiDou satellites, queries the orbit type the corresponding satellite is using.
  • Page 90 ® Remote-Control Commands R&S SMBV-P101 Satellites Configuration and Satellites Signal Settings Return values: <ChipRate> float Usage: Query only Manual operation: "Standard Chip Rate" on page 30 [:SOURce<hw>]:BB:GNPR:SATellite<st>:SIGNal? Selects the type of signal the corresponding satellite is using. Return values: <Signal>...

  • Page 91: Modulation Control

    ® Remote-Control Commands R&S SMBV-P101 Modulation Control 6.6 Modulation Control ......76 [:SOURce<hw>]:BB:GNPR:SATellite<st>:MCONtrol:DATA<ch>[:STATe] ..........76 [:SOURce<hw>]:BB:GNPR:SATellite<st>:MCONtrol:DRATe ......76 [:SOURce<hw>]:BB:GNPR:SATellite<st>:MCONtrol:MEANdering[:STATe] ...... 76 [:SOURce<hw>]:BB:GNPR:SATellite<st>:MCONtrol:SECondary<ch>[:STATe] .......77 [:SOURce<hw>]:BB:GNPR:SATellite<st>:MCONtrol:SPReading<ch>[:STATe] ......77 [:SOURce<hw>]:BB:GNPR:SATellite<st>:MCONtrol:TSEQuence[:STATe] [:SOURce<hw>]:BB:GNPR:SATellite<st>:MCONtrol:DATA<ch>[:STATe] <DataSourceState> Disables/enables the data signal component of a satellite navigation signal. Parameters: <DataSourceState> 0 | 1 | OFF | ON...

  • Page 92: Signal Dyamics

    ® Remote-Control Commands R&S SMBV-P101 Signal Dyamics [:SOURce<hw>]:BB:GNPR:SATellite<st>:MCONtrol:SPReading<ch>[:STATe] <SpreadingState> Disables/enables the spreading signal component of a satellite navigation signal. Suffix: <ch> [1]|2 for GLONASS satellites, sets the data or the pilot channel Parameters: <SpreadingState> 0 | 1 | OFF | ON...
  • Page 93 ® Remote-Control Commands R&S SMBV-P101 Signal Dyamics Manual operation: "Max. Acceleration" on page 36 [:SOURce<hw>]:BB:GNPR:SATellite<st>:SDYNamics:CAPeriod <Period> Sets the constant acceleration period. Parameters: <Period> float Range: 0.1 to 10800 Increment: 0.1 *RST: Manual operation: "Const. Acc. Period" on page 36 [:SOURce<hw>]:BB:GNPR:SATellite<st>:SDYNamics:CVPeriod <Period>...
  • Page 94 ® Remote-Control Commands R&S SMBV-P101 Signal Dyamics [:SOURce<hw>]:BB:GNPR:SATellite<st>:SDYNamics:DSHift:UNIT <DopplerShiftUni> Selects the units of the parameter Doppler shift. Parameters: <DopplerShiftUni> HZ | MPS *RST: Manual operation: "Doppler Shift Unit" on page 35 [:SOURce<hw>]:BB:GNPR:SATellite<st>:SDYNamics:IDSHift <InitDopplShift> Sets the doppler shift of the high order profile.

  • Page 95: Power Settings

    ® Remote-Control Commands R&S SMBV-P101 Power Settings [:SOURce<hw>]:BB:GNPR:SATellite<st>:SDYNamics:RPERiod? Queries the time that elapses until the Doppler signal of a high order velocity profile repeats. Return values: <Period> float Range: 0 to 90000 Increment: 0.1 *RST: Usage: Query only Manual operation: "Repetition Period"...

  • Page 96: Navigation Message Configuration

    ® Remote-Control Commands R&S SMBV-P101 Navigation Message Configuration Parameters: <ReferencePower> float Range: -145 to 20 Increment: 0.01 *RST: Manual operation: "Reference Power" on page 28 [:SOURce<hw>]:BB:GNPR:POWer:TOTal? Queries the total power of the GNSS signal. Return values: <Power> float Range: -145 to 30 Increment: 0.01...
  • Page 97 ® Remote-Control Commands R&S SMBV-P101 Navigation Message Configuration ...... 86 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GPS:NMESsage:EPHemeris:CLTMode ......86 [SOURce<hw>]:BB:GNPR:SVID<ch>:<GNSS>:NMESsage:EPHemeris:CRC ......86 [:SOURce<hw>]:BB:GNPR:SVID<ch>:BEIDou:NMESsage:EPHemeris:CRC ......86 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:EPHemeris:CRC ...... 86 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GLONass:NMESsage:EPHemeris:CRC ......86 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GPS:NMESsage:EPHemeris:CRC ......87 [SOURce<hw>]:BB:GNPR:SVID<ch>:<GNSS>:NMESsage:EPHemeris:CRS ......87 [:SOURce<hw>]:BB:GNPR:SVID<ch>:BEIDou:NMESsage:EPHemeris:CRS ......87 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:EPHemeris:CRS ...... 87 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GLONass:NMESsage:EPHemeris:CRS ......87 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GPS:NMESsage:EPHemeris:CRS ......87 [SOURce<hw>]:BB:GNPR:SVID<ch>:<GNSS>:NMESsage:EPHemeris:CUC...
  • Page 98 ® Remote-Control Commands R&S SMBV-P101 Navigation Message Configuration ....90 [SOURce<hw>]:BB:GNPR:SVID<ch>:<GNSS>:NMESsage:EPHemeris:MZERo ..... 90 [:SOURce<hw>]:BB:GNPR:SVID<ch>:BEIDou:NMESsage:EPHemeris:MZERo .....90 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:EPHemeris:MZERo ....90 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GLONass:NMESsage:EPHemeris:MZERo ......90 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GPS:NMESsage:EPHemeris:MZERo ....91 [SOURce<hw>]:BB:GNPR:SVID<ch>:<GNSS>:NMESsage:EPHemeris:NDELta .....91 [:SOURce<hw>]:BB:GNPR:SVID<ch>:BEIDou:NMESsage:EPHemeris:NDELta ....91 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:EPHemeris:NDELta ....91 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GLONass:NMESsage:EPHemeris:NDELta ......91 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GPS:NMESsage:EPHemeris:NDELta ...... 91 [SOURce<hw>]:BB:GNPR:SVID<ch>:<GNSS>:NMESsage:EPHemeris:ODOT .......91 [:SOURce<hw>]:BB:GNPR:SVID<ch>:BEIDou:NMESsage:EPHemeris:ODOT ...... 91 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:EPHemeris:ODOT...
  • Page 99 ® Remote-Control Commands R&S SMBV-P101 Navigation Message Configuration ........95 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:FNAV:K ......95 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:INAV:E1BDVS ......95 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:INAV:E1BHS ......95 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:INAV:E5BDVS ......96 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:INAV:E5BHS ....96 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GLONass:NMESsage:CCORrection:DTAU ......96 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GLONass:NMESsage:CCORrection:EN ....96 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GLONass:NMESsage:CCORrection:GAMN ....97 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GLONass:NMESsage:CCORrection:TAUN ....97 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GLONass:NMESsage:EPHemeris:AOEP ....97 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GLONass:NMESsage:EPHemeris:HEALth ......97 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GLONass:NMESsage:EPHemeris:P ....98...
  • Page 100 ® Remote-Control Commands R&S SMBV-P101 Navigation Message Configuration Parameters: <Af> integer Value range (GPS parameters): a_f2 = -2 to 2 -1; a_f1 = -2 to 2 -1; a_f0 = -2 to 2 Value range (BeiDou parameters): a_f2 = -2 to 2 -1;...
  • Page 101 ® Remote-Control Commands R&S SMBV-P101 Navigation Message Configuration [:SOURce<hw>]:BB:GNPR:SVID<ch>:GLONass:NMESsage:EPHemeris:CIC <Cic> [:SOURce<hw>]:BB:GNPR:SVID<ch>:GPS:NMESsage:EPHemeris:CIC <Cic> Amplitude of the Cosine Harmonic Correction Term to the Angle of Inclination Parameters: <Cic> integer Range: -32768 to 32767 *RST: [SOURce<hw>]:BB:GNPR:SVID<ch>:<GNSS>:NMESsage:EPHemeris:CIS [:SOURce<hw>]:BB:GNPR:SVID<ch>:BEIDou:NMESsage:EPHemeris:CIS <Cis> [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:EPHemeris:CIS <Cis> [:SOURce<hw>]:BB:GNPR:SVID<ch>:GLONass:NMESsage:EPHemeris:CIS <Cis> [:SOURce<hw>]:BB:GNPR:SVID<ch>:GPS:NMESsage:EPHemeris:CIS <Cis>...
  • Page 102 ® Remote-Control Commands R&S SMBV-P101 Navigation Message Configuration Parameters: <Crc> integer Range: -32768 to 32767 *RST: [SOURce<hw>]:BB:GNPR:SVID<ch>:<GNSS>:NMESsage:EPHemeris:CRS [:SOURce<hw>]:BB:GNPR:SVID<ch>:BEIDou:NMESsage:EPHemeris:CRS <Crs> [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:EPHemeris:CRS <Crs> [:SOURce<hw>]:BB:GNPR:SVID<ch>:GLONass:NMESsage:EPHemeris:CRS <Crs> [:SOURce<hw>]:BB:GNPR:SVID<ch>:GPS:NMESsage:EPHemeris:CRS <Crs> Amplitude of the Sine Harmonic Correction Term to the Orbit Radius Parameters: <Crs> integer Range:...
  • Page 103 ® Remote-Control Commands R&S SMBV-P101 Navigation Message Configuration [SOURce<hw>]:BB:GNPR:SVID<ch>:<GNSS>:NMESsage:EPHemeris: ECCentricity [:SOURce<hw>]:BB:GNPR:SVID<ch>:BEIDou:NMESsage:EPHemeris: ECCentricity <Eccentricity> [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:EPHemeris: ECCentricity <Eccentricity> [:SOURce<hw>]:BB:GNPR:SVID<ch>:GLONass:NMESsage:EPHemeris: ECCentricity <Eccentricity> [:SOURce<hw>]:BB:GNPR:SVID<ch>:GPS:NMESsage:EPHemeris:ECCentricity <Eccentricity> Eccentricity Parameters: <Eccentricity> integer Range: 0 to 4294967295 *RST: [:SOURce<hw>]:BB:GNPR:SVID<ch>:GPS:NMESsage:EPHemeris:FIFLag <FiFlag> Indicates the curve-fit interval used by the CS (Control Segment) in determining the...
  • Page 104 ® Remote-Control Commands R&S SMBV-P101 Navigation Message Configuration [:SOURce<hw>]:BB:GNPR:SVID<ch>:GLONass:NMESsage:EPHemeris:IDOT <Idot> [:SOURce<hw>]:BB:GNPR:SVID<ch>:GPS:NMESsage:EPHemeris:IDOT <Idot> Rate of Inclination Angle Parameters: <Idot> integer Range: -8192 to 8191 *RST: [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:EPHemeris:IODA <Ioda> Issue Of Data (Almanacs) Parameters: <Ioda> integer Range: 0 to 15 *RST: Manual operation: "Galileo Ephemeris Parameters"...
  • Page 105 ® Remote-Control Commands R&S SMBV-P101 Navigation Message Configuration Parameters: <IodNav> integer Range: 0 to 1023 *RST: Manual operation: "Galileo Ephemeris Parameters" on page 41 [SOURce<hw>]:BB:GNPR:SVID<ch>:<GNSS>:NMESsage:EPHemeris:IZERo [:SOURce<hw>]:BB:GNPR:SVID<ch>:BEIDou:NMESsage:EPHemeris:IZERo <Izero> [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:EPHemeris:IZERo <Izero> [:SOURce<hw>]:BB:GNPR:SVID<ch>:GLONass:NMESsage:EPHemeris:IZERo <Izero> [:SOURce<hw>]:BB:GNPR:SVID<ch>:GPS:NMESsage:EPHemeris:IZERo <Izero> Inclination Angle at Reference Time Parameters: <Izero>...
  • Page 106 ® Remote-Control Commands R&S SMBV-P101 Navigation Message Configuration Parameters: <MZero> integer Range: -2147483648 to 2147483647 *RST: [SOURce<hw>]:BB:GNPR:SVID<ch>:<GNSS>:NMESsage:EPHemeris:NDELta [:SOURce<hw>]:BB:GNPR:SVID<ch>:BEIDou:NMESsage:EPHemeris:NDELta <NDelta> [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:EPHemeris:NDELta <NDelta> [:SOURce<hw>]:BB:GNPR:SVID<ch>:GLONass:NMESsage:EPHemeris:NDELta <NDelta> [:SOURce<hw>]:BB:GNPR:SVID<ch>:GPS:NMESsage:EPHemeris:NDELta <NDelta> Mean Motion Difference From Computed Value Parameters: <NDelta> integer Range: -32768 to 32767 *RST: [SOURce<hw>]:BB:GNPR:SVID<ch>:<GNSS>:NMESsage:EPHemeris:ODOT [:SOURce<hw>]:BB:GNPR:SVID<ch>:BEIDou:NMESsage:EPHemeris:ODOT...
  • Page 107 ® Remote-Control Commands R&S SMBV-P101 Navigation Message Configuration Parameters: <Omega> integer Range: -2147483648 to 2147483647 *RST: [SOURce<hw>]:BB:GNPR:SVID<ch>:<GNSS>:NMESsage:EPHemeris:OZERo [:SOURce<hw>]:BB:GNPR:SVID<ch>:BEIDou:NMESsage:EPHemeris:OZERo <OZero> [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:EPHemeris:OZERo <OZero> [:SOURce<hw>]:BB:GNPR:SVID<ch>:GLONass:NMESsage:EPHemeris:OZERo <OZero> [:SOURce<hw>]:BB:GNPR:SVID<ch>:GPS:NMESsage:EPHemeris:OZERo <OZero> Longitude of Ascending Node of Orbit Plane at Weekly Epoch Parameters: <OZero> integer Range: -2147483648 to 2147483647 *RST: [:SOURce<hw>]:BB:GNPR:SVID<ch>:GPS:NMESsage:EPHemeris:...
  • Page 108 ® Remote-Control Commands R&S SMBV-P101 Navigation Message Configuration [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:EPHemeris:SQRA <SqrA> [:SOURce<hw>]:BB:GNPR:SVID<ch>:GLONass:NMESsage:EPHemeris:SQRA <SqrA> [:SOURce<hw>]:BB:GNPR:SVID<ch>:GPS:NMESsage:EPHemeris:SQRA <SqrA> Square Root of the Semi-Major Axis Parameters: <SqrA> integer Range: 100000 to 4294967295 *RST: 100000 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GPS:NMESsage:EPHemeris:SVConfig <SvConfig> SV Configurations Parameters: <SvConfig> integer Range: 0 to 15...
  • Page 109 ® Remote-Control Commands R&S SMBV-P101 Navigation Message Configuration [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:FNAV:AF<gr0> <Af> [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:INAV:AF<gr0> <Af> Sets the SV clock drift rate correction coefficients a Suffix: <gr0> 0 = a_f2, 1 = a_f1, 2 = a_f0 Correction parameter name Parameters: <Af> integer Value range for af2: -2^5 ... 2^5-1 Value range for af1: -2^20 ...
  • Page 110 ® Remote-Control Commands R&S SMBV-P101 Navigation Message Configuration [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:FNAV:E5AHS <Hs> Defines the Signal Health Status parameter. Parameters: <Hs> integer Range: 0 to 3 *RST: Manual operation: "Galileo FNAV Parameters" on page 46 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:FNAV:K <K> Sets the F-NAV Almanac Scheduling start index.
  • Page 111 ® Remote-Control Commands R&S SMBV-P101 Navigation Message Configuration Parameters: <Dvs> integer Range: 0 to 1 *RST: Manual operation: "Galileo INAV Parameters" on page 45 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:INAV:E5BHS <Hs> Defines the Signal Health Status parameter. Parameters: <Hs> integer Range: 0 to 3 *RST: Manual operation: "Galileo INAV Parameters"...
  • Page 112 ® Remote-Control Commands R&S SMBV-P101 Navigation Message Configuration Parameters: <GAMMA_n> integer Range: -1024 to 1023 *RST: Manual operation: "GLONASS Clock Correction Parameters" on page 45 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GLONass:NMESsage:CCORrection:TAUN <TAU_n> Defines the SV Clock bias correction coefficient. Parameters: <TAU_n> integer Range: -2097152 to 2097151...
  • Page 113 ® Remote-Control Commands R&S SMBV-P101 Navigation Message Configuration Manual operation: "GLONASS Ephemeris Parameters" on page 42 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GLONass:NMESsage:EPHemeris:SEType <Type> Selects the satellite ephemeris type. Parameters: <Type> GLO | GLOM *RST: GLOM Manual operation: "GLONASS Ephemeris Parameters" on page 42 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GLONass:NMESsage:EPHemeris: TALignment <TbAlign>...
  • Page 114 ® Remote-Control Commands R&S SMBV-P101 Navigation Message Configuration [:SOURce<hw>]:BB:GNPR:SVID<ch>:GLONass:NMESsage:EPHemeris:TOE? Queries the time of Ephemeris in the current day. Return values: <Hour> integer Range: 0 to 23 <Minute> integer Range: 0 to 59 <Second> float Range: 0 to 59 Increment: 1...

  • Page 115: Atmospheric Configuration

    ® Remote-Control Commands R&S SMBV-P101 Atmospheric Configuration [:SOURce<hw>]:BB:GNPR:SVID<ch>:GLONass:NMESsage:EPHemeris:XDN <XDOT_n> [:SOURce<hw>]:BB:GNPR:SVID<ch>:GLONass:NMESsage:EPHemeris:YDN <YDOT_n> [:SOURce<hw>]:BB:GNPR:SVID<ch>:GLONass:NMESsage:EPHemeris:ZDN <ZDOT_n> Sets the OX | OY | OZ velocity coordinate of the current satellite at TOE(tb), i.e. the middle of Tb-Interval Parameters: <ZDOT_n> integer Range: -8388608 to 8388607...

  • Page 116: Trigger Settings

    ® Remote-Control Commands R&S SMBV-P101 Trigger Settings [:SOURce<hw>]:BB:GNPR:ATMospheric:GALileo:IONospheric:AI<ch0> <A_i> Sets the parameters effective Ionization level 1 .. 3 order of the satellite's navigation message. Parameters: <A_i> integer Range: dynamic to dynamic *RST: Manual operation: "GALILEO Ionospheric Navigation Parameters" on page 48 [:SOURce<hw>]:BB:GNPR:ATMospheric:GALileo:IONospheric:SF<ch>...
  • Page 117 ® Remote-Control Commands R&S SMBV-P101 Trigger Settings Manual operation: "Execute Trigger" on page 21 [:SOURce<hw>]:BB:GNPR:TRIGger:EXTernal:SYNChronize:OUTPut <Output> Enables/disables output of the signal synchronous to the external trigger event. Parameters: <Output> 0 | 1 | OFF | ON *RST: Manual operation: "Sync. Output to External Trigger"...

  • Page 118: Marker Settings

    ® Remote-Control Commands R&S SMBV-P101 Marker Settings Parameters: <Delay> float Range: 0 to 65535 Increment: 0.01 *RST: Manual operation: "External Delay" on page 52 [:SOURce<hw>]:BB:GNPR:TRIGger[:EXTernal<ch>]:INHibit <Inhibit> Sets the duration a new trigger event subsequent to triggering is suppressed Parameters: <Inhibit>...
  • Page 119 ® Remote-Control Commands R&S SMBV-P101 Marker Settings Parameters: <Mode> PULSe | PATTern | RATio | PPS | PP2S | TRIGger | DISabled | PPS10 *RST: Manual operation: "Marker Mode" on page 52 [:SOURce<hw>]:BB:GNPR:TRIGger:OUTPut<ch>:ONTime <OnTime> [:SOURce<hw>]:BB:GNPR:TRIGger:OUTPut<ch>:OFFTime <OffTime> Sets the number of chips in a period (ON time + OFF time).
  • Page 120 ® Remote-Control Commands R&S SMBV-P101 Marker Settings [:SOURce<hw>]:BB:GNPR:TRIGger:OUTPut<ch>:PULSe:WIDTh <Width> Sets the Pulse Width for 1PPS, 1PP2S and PPS10 markers. Parameters: <Width> integer Range: 1 to 800 *RST: Manual operation: "Marker Mode" on page 52 [:SOURce<hw>]:BB:GNPR:TRIGger:OUTPut:DELay:FIXed <Fixed> Restricts the marker delay setting range to the dynamic range.

  • Page 121: Clock Settings

    ® Remote-Control Commands R&S SMBV-P101 Clock Settings 6.13 Clock Settings ............... 106 [:SOURce<hw>]:BB:GNPR:CLOCk:MODE ..............106 [:SOURce<hw>]:BB:GNPR:CLOCk:MULTiplier ..............106 [:SOURce<hw>]:BB:GNPR:CLOCk:SOURce ..........106 [:SOURce<hw>]:BB:GNPR:CLOCk:SYNChronization:EXECute ..........107 [:SOURce<hw>]:BB:GNPR:CLOCk:SYNChronization:MODE [:SOURce<hw>]:BB:GNPR:CLOCk:MODE <Mode> Enters the type of externally supplied clock ([:SOURce<hw>]:BB:GNPR:CLOCk: SOURce EXTernal). When MCHip is used, a multiple of the chip clock is supplied via the clock connector and the chip clock is derived internally from this.
  • Page 122 ® Remote-Control Commands R&S SMBV-P101 Clock Settings Usage: Event Manual operation: "Set Synchronization Settings" on page 54 [:SOURce<hw>]:BB:GNPR:CLOCk:SYNChronization:MODE <Mode> Selects the synchronization mode. Parameters: <Mode> NONE | MASTer | SLAVe *RST: NONE Manual operation: "Sync. Mode" on page 54 User Manual 1176.9787.02 ─ 05...

  • Page 123: List Of Commands

    ® List of Commands R&S SMBV-P101 List of Commands [:SOURce<hw>]:BB:GNPR:ATMospheric:BEIDou:IONospheric:ALPHa<ch0>..........100 [:SOURce<hw>]:BB:GNPR:ATMospheric:BEIDou:IONospheric:BETA<ch0>..........100 [:SOURce<hw>]:BB:GNPR:ATMospheric:GALileo:IONospheric:AI<ch0>............ 101 [:SOURce<hw>]:BB:GNPR:ATMospheric:GALileo:IONospheric:SF<ch>............. 101 [:SOURce<hw>]:BB:GNPR:ATMospheric:GPS:IONospheric:ALPHa<ch0>..........100 [:SOURce<hw>]:BB:GNPR:ATMospheric:GPS:IONospheric:BETA<ch0>............100 [:SOURce<hw>]:BB:GNPR:CLOCk:MODE....................106 [:SOURce<hw>]:BB:GNPR:CLOCk:MULTiplier.....................106 [:SOURce<hw>]:BB:GNPR:CLOCk:SOURce....................106 [:SOURce<hw>]:BB:GNPR:CLOCk:SYNChronization:EXECute..............106 [:SOURce<hw>]:BB:GNPR:CLOCk:SYNChronization:MODE...............107 [:SOURce<hw>]:BB:GNPR:LIST:SVID:BEIDou?.................... 64 [:SOURce<hw>]:BB:GNPR:LIST:SVID:GALileo?.................... 64 [:SOURce<hw>]:BB:GNPR:LIST:SVID:GLONass?..................64 [:SOURce<hw>]:BB:GNPR:LIST:SVID:GPS?....................64 [:SOURce<hw>]:BB:GNPR:NAVigation:ALManac:BEIDou:DATE:BEGin?............. 65 [:SOURce<hw>]:BB:GNPR:NAVigation:ALManac:BEIDou:DATE:END?............66 [:SOURce<hw>]:BB:GNPR:NAVigation:ALManac:BEIDou:FILE..............65 [:SOURce<hw>]:BB:GNPR:NAVigation:ALManac:BEIDou:SPAN?..............65 [:SOURce<hw>]:BB:GNPR:NAVigation:ALManac:BEIDou:TOAPplicability:TOWeek?........67 [:SOURce<hw>]:BB:GNPR:NAVigation:ALManac:BEIDou:TOAPplicability:WNUMber?........ 68 [:SOURce<hw>]:BB:GNPR:NAVigation:ALManac:BEIDou:WNUMber?............
  • Page 124 ® List of Commands R&S SMBV-P101 [:SOURce<hw>]:BB:GNPR:NAVigation:TCONversion:BEIDou:AONE............69 [:SOURce<hw>]:BB:GNPR:NAVigation:TCONversion:BEIDou:AZERo............69 [:SOURce<hw>]:BB:GNPR:NAVigation:TCONversion:BEIDou:TOT.............. 70 [:SOURce<hw>]:BB:GNPR:NAVigation:TCONversion:BEIDou:WNOT............70 [:SOURce<hw>]:BB:GNPR:NAVigation:TCONversion:GALileo:AONE............69 [:SOURce<hw>]:BB:GNPR:NAVigation:TCONversion:GALileo:AZERo............69 [:SOURce<hw>]:BB:GNPR:NAVigation:TCONversion:GALileo:TOT.............. 70 [:SOURce<hw>]:BB:GNPR:NAVigation:TCONversion:GALileo:WNOT............70 [:SOURce<hw>]:BB:GNPR:NAVigation:TCONversion:GLONass:AONE............69 [:SOURce<hw>]:BB:GNPR:NAVigation:TCONversion:GLONass:AZERo............70 [:SOURce<hw>]:BB:GNPR:NAVigation:TCONversion:GLONass:TOT............70 [:SOURce<hw>]:BB:GNPR:NAVigation:TCONversion:GLONass:WNOT............70 [:SOURce<hw>]:BB:GNPR:NAVigation:TCONversion:GPS:AONE..............69 [:SOURce<hw>]:BB:GNPR:NAVigation:TCONversion:GPS:AZERo...............70 [:SOURce<hw>]:BB:GNPR:NAVigation:TCONversion:GPS:TOT..............70 [:SOURce<hw>]:BB:GNPR:NAVigation:TCONversion:GPS:WNOT............... 70 [:SOURce<hw>]:BB:GNPR:NAVigation:TCONversion:LEAP:SEConds............70 [:SOURce<hw>]:BB:GNPR:NAVigation:TCONversion:LEAP:SYNC...............71 [:SOURce<hw>]:BB:GNPR:NAVigation:TCONversion:UTCSu:AONE............69 [:SOURce<hw>]:BB:GNPR:NAVigation:TCONversion:UTCSu:AZERo............69 [:SOURce<hw>]:BB:GNPR:NAVigation:TCONversion:UTCSu:DATE?............69 [:SOURce<hw>]:BB:GNPR:POWer:MODE.....................
  • Page 125 ® List of Commands R&S SMBV-P101 [:SOURce<hw>]:BB:GNPR:SATellite<st>:SDYNamics:DSHift:UNIT.............. 79 [:SOURce<hw>]:BB:GNPR:SATellite<st>:SDYNamics:IDSHift...............79 [:SOURce<hw>]:BB:GNPR:SATellite<st>:SDYNamics:JERK:MAX..............79 [:SOURce<hw>]:BB:GNPR:SATellite<st>:SDYNamics:PROFile..............79 [:SOURce<hw>]:BB:GNPR:SATellite<st>:SDYNamics:RPERiod?..............80 [:SOURce<hw>]:BB:GNPR:SATellite<st>:SDYNamics:TOFFset..............80 [:SOURce<hw>]:BB:GNPR:SATellite<st>:SIGNal?..................75 [:SOURce<hw>]:BB:GNPR:SATellite<st>:STANdard?..................75 [:SOURce<hw>]:BB:GNPR:SATellite<st>:STATe................... 75 [:SOURce<hw>]:BB:GNPR:SATellite<st>:SVID....................71 [:SOURce<hw>]:BB:GNPR:SATellite<st>:TSHift.................... 75 [:SOURce<hw>]:BB:GNPR:SETTing:CATalog?....................60 [:SOURce<hw>]:BB:GNPR:SETTing:DELete....................60 [:SOURce<hw>]:BB:GNPR:SETTing:LOAD....................60 [:SOURce<hw>]:BB:GNPR:SETTing:STORe....................61 [:SOURce<hw>]:BB:GNPR:SETTing:STORe:FAST..................61 [:SOURce<hw>]:BB:GNPR:STATe........................59 [:SOURce<hw>]:BB:GNPR:SVID<ch>:BEIDou:NMESsage:CCORrection:AF<gr0>........84 [:SOURce<hw>]:BB:GNPR:SVID<ch>:BEIDou:NMESsage:CCORrection:TGD<gr>........85 [:SOURce<hw>]:BB:GNPR:SVID<ch>:BEIDou:NMESsage:CCORrection:TOC..........85 [:SOURce<hw>]:BB:GNPR:SVID<ch>:BEIDou:NMESsage:EPHemeris:CIC..........85 [:SOURce<hw>]:BB:GNPR:SVID<ch>:BEIDou:NMESsage:EPHemeris:CIS..........86 [:SOURce<hw>]:BB:GNPR:SVID<ch>:BEIDou:NMESsage:EPHemeris:CRC..........86 [:SOURce<hw>]:BB:GNPR:SVID<ch>:BEIDou:NMESsage:EPHemeris:CRS..........
  • Page 126 ® List of Commands R&S SMBV-P101 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:EPHemeris:IODNav.......... 89 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:EPHemeris:IZERo..........90 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:EPHemeris:MZERo........... 90 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:EPHemeris:NDELta...........91 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:EPHemeris:ODOT..........91 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:EPHemeris:OMEGa.......... 91 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:EPHemeris:OZERo........... 92 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:EPHemeris:SISA..........92 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:EPHemeris:SQRA..........93 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:EPHemeris:TOE..........93 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:FNAV:AF<gr0>..........94 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:FNAV:BGD............94 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:FNAV:E5ADVS..........94 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:FNAV:E5AHS............ 95 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:FNAV:K............. 95 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:FNAV:TOC............94 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:INAV:AF<gr0>........... 94 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:INAV:BGD............94 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:INAV:E1BDVS...........95 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:INAV:E1BHS............. 95 [:SOURce<hw>]:BB:GNPR:SVID<ch>:GALileo:NMESsage:INAV:E5BDVS...........95...
