1.

Introduction

1.1.

Features

• microSD card connector
– 2GB microSD card included
– Accessed with SPI interface
• PWM
– LED control
– PWM → Low pass filter → ADC
• ADC
– PWM → Low pass filter → ADC
– Light sensor
• UART
– Loopback interface via pin header
• TWI
– AT30TSE758 temperature sensor with EEPROM
• Xplained Pro hardware identification system
1.2.

Kit Overview

Atmel I/O1 Xplained Pro extension board is a generic extension board for the Xplained Pro platform. It
connects to any Xplained Pro standard extension header on any Xplained Pro MCU board.
The extension board utilizes all functions on the standard Xplained Pro extension header to further
enhance the feature set of Xplained Pro MCU boards.

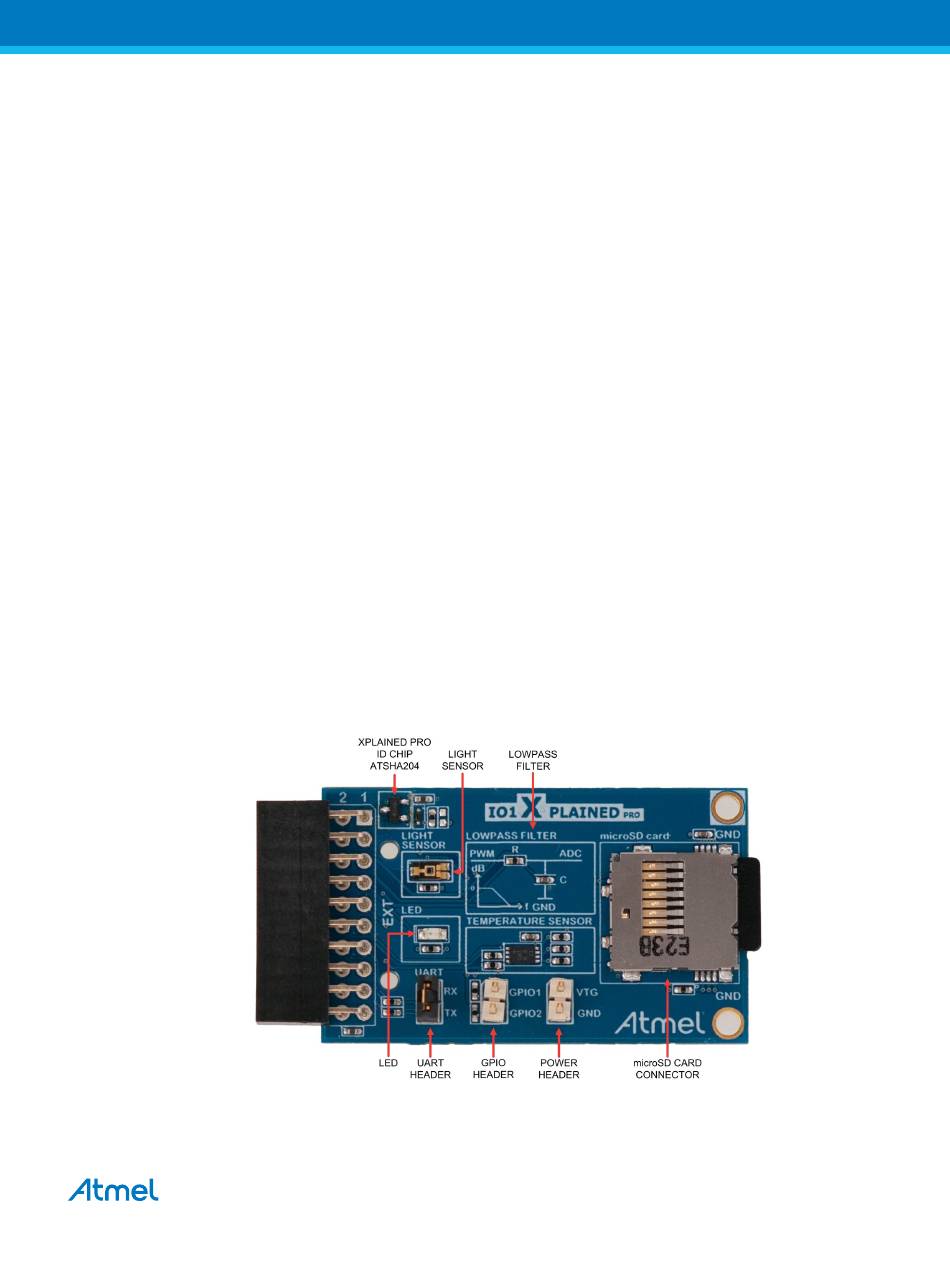

Figure 1-1 I/O1 Xplained Pro Extension Board
