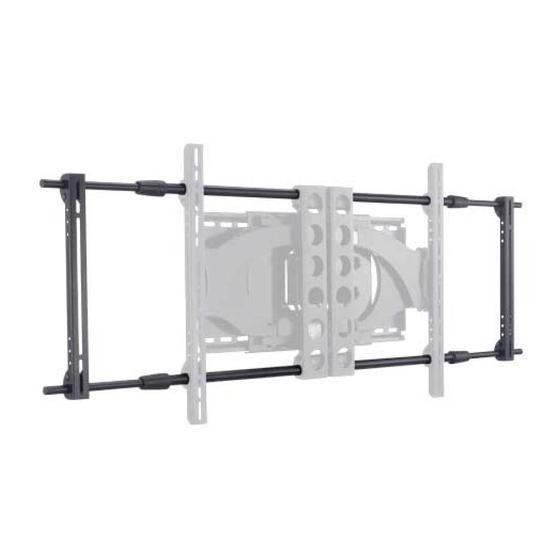

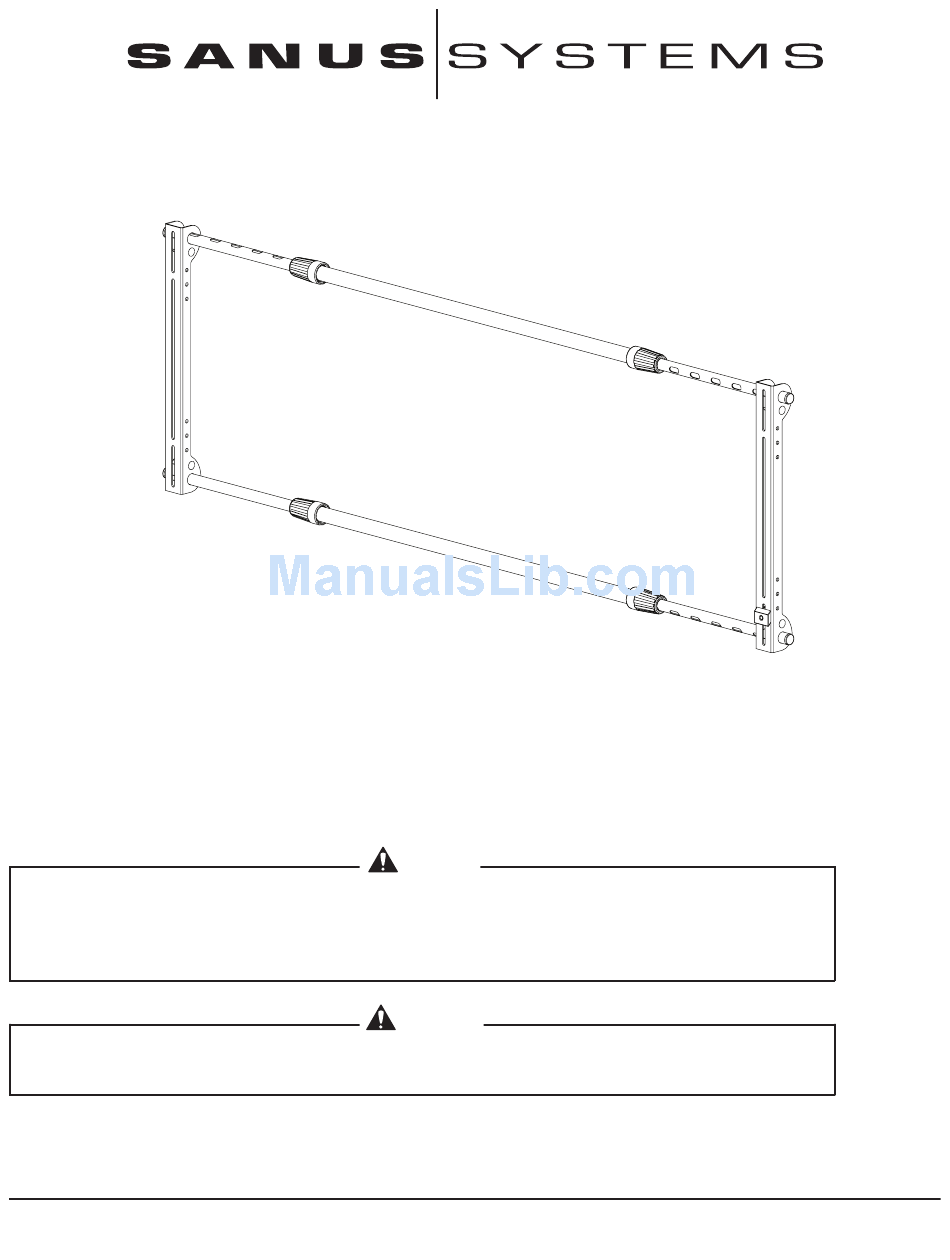

Thank you for choosing the Sanus Systems XAS1A. The XAS1A is designed to mount speakers on each side of a
VMDD26 VisionMount full motion TV mount. The XAS1A will support speakers weighing up to 11 kg (25 lbs.) each.
Do not use this product for any purpose not explicitly specified by Sanus Systems. Improper installation may
cause property damage or personal injury. If you do not understand these directions, or have doubts about
the safety of the installation, contact Sanus Systems Customer Service or call a qualified contractor. Sanus
Systems is not liable for damage or injury caused by incorrect mounting, assembly, or use.
This product contains small items that could be a choking hazard if swallowed. Keep these items away
from young children!
Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 USA
Customer Service: 1-800-359-5520 • info@sanus.com • www.sanus.com
XAS1A
(6901-100148 <01>)
CauTION
warNINg
Advertisement
Related Manuals for Sanus Systems XAS1A
Summary of Contents for Sanus Systems XAS1A
- Page 1 Thank you for choosing the Sanus Systems XAS1A. The XAS1A is designed to mount speakers on each side of a VMDD26 VisionMount full motion TV mount. The XAS1A will support speakers weighing up to 11 kg (25 lbs.) each. Do not use this product for any purpose not explicitly specified by Sanus Systems. Improper installation may cause property damage or personal injury.
-
Page 2: Supplied Parts And Hardware
Supplied Parts and Hardware Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the item to your dealer; contact Sanus Systems Customer Service. Never use damaged parts! [01] x 2 1/4-20 x 2.0 in. - Page 3 If you have purchased a VMDD26 VisionMount™ Full Motion Mount, but have not installed it, begin by following the large VMDD26 installation instructions. Replace Cross Tube Installation with Step 2: Cross Tube Installation of the XAS1A instructions. When completed, refer back to this Instruction manual, starting at Step 3: Install Extension Tubes.
- Page 4 HEAVY! You will need assistance with this step. NOTE If you no longer have your VMDD26 Installation Manual, download one from www.Sanus.com or call Sanus Systems Customer Service. 3: Install Extension Tubes Slide the four extension tubes [03] (felt end first) into the cross tubes [02].
- Page 5 4: Install Threaded Tube Clamp & Clamp Knob Slide the threaded tube clamps [05] onto the extension tubes [03], aligning the notches in the threaded tube clamp and cross tubes [02]. Snap the threaded tube clamps onto the cross tubes. Thread a clamp knob [04] onto each threaded tube clamp [05].
- Page 6 6: attach Speaker Brackets [25] Slide the speaker brackets [01] into the extension tubes [03]. Use the Allen key to tighten the four vise assemblies [04] until the speaker brackets do not slide on the extension tubes. [03] [01] [04] Maximum extension of the cross tubes is 162 cm (64 in.).
- Page 7 7 - 1: attach Speakers using Threaded Fasteners Disconnect the speaker wire from the receiver or amplifier when you route it through the upper or lower extension tubes [03] to avoid damage to the speakers, amplifier, or receiver. 6901-100148 <01> 7: attach Speakers [03] [03]...
- Page 8 [14], [15] Disconnect the speaker wire from the receiver or amplifier when you route it through the upper or lower extension tubes [03] to avoid damage to the speakers, amplifier, or receiver. CSAV, Inc. and its affiliated corporations and subsidiaries (collectively, “CSAV”), intend to make this manual accurate and complete. However, CSAV makes no claim that the information contained herein covers all details, conditions, or variations.
