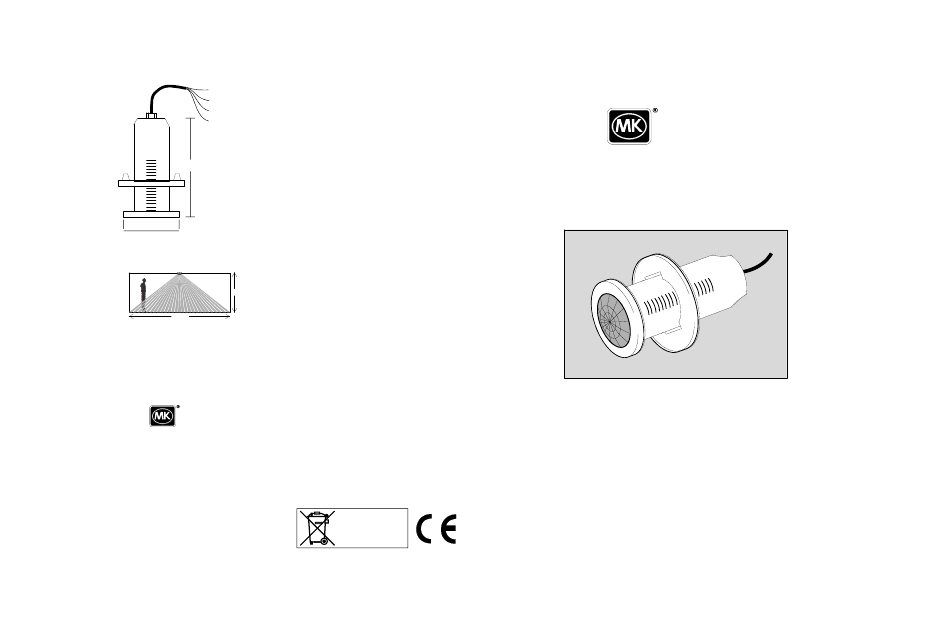

Electrical Connections
K4015
Brown - Live In
Black - Live Out
Blue - Neutral
Green/Yellow - Earth
(no internal connection)
115mm
65mm
Technical Data
MAXIMUM RECOMMENDED MOUNTING HEIGHT: 3.0m
RANGE: Cone-shaped detection pattern, diameter (at floor level) = 2.4 x mounting height
2.4m
6.0m
OFF DELAY: 5 minutes - 96 hours - adjustable (35 minutes max via K4050)
PHOTOCELL: Adjustable 50-5000 lux
OPERATING VOLTAGE: 230V 50Hz (UK & Europe)
PRODUCT RATING & RECOMMENDED CIRCUIT PROTECTION: 10 Amps
MAXIMUM RECOMMENDED LOAD: 6 Amps
COLOUR: White
MATERIAL: Flame retardant ABS
WEIGHT: 70g excluding cable
IP RATING: 4X
MK Electric
The Arnold Centre, Paycocke Road, Basildon,
Essex, SS14 3EA. UK
Technical Help
Tel: +44 (0)1268 563720
Fax: +44 (0)1268 563064
email: mktechnical@honeywell.com
Customer Service
Tel: +44 (0)1268 563000
Fax: 01268 563404
Fax: +44 (0)1268 563365 (International)
email: mkorderenquiries@honeywell.com
web site: www.mkelectric.co.uk
______________________________________________________
Novar ED&S Ltd (A Honeywell Company),
Arlington Business Park, Bracknell, Berkshire, RG12 1EB
All marks in this document identified with a R or TM symbol
adjacent to the mark are Trade Marks of Novar ED&S Ltd.
At the end of their useful life
the packaging and product
should be disposed of via a
suitable recycling centre.
Do not dispose of with normal
household waste.
Do not burn.
50844PL Ed. 1
SENSORS

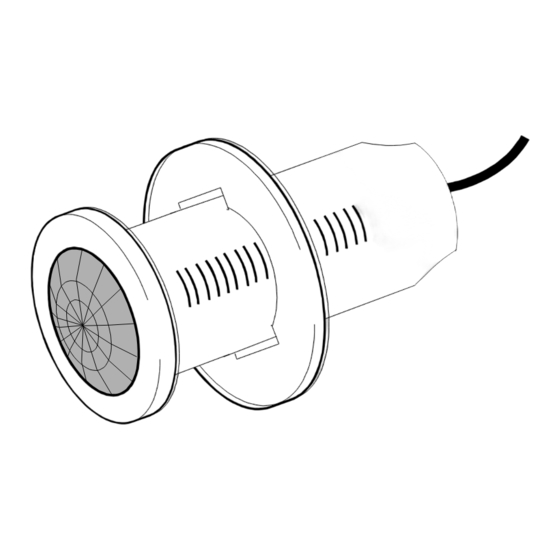

Superior PIR with Photocell
Slim Flush
Installation and Commissioning
Instructions
Note: K4053 (or K4050*) required for commissioning
User override available via K4052 or K4051
Hand-held Controllers
*Some features not available when using K4050
K4015
