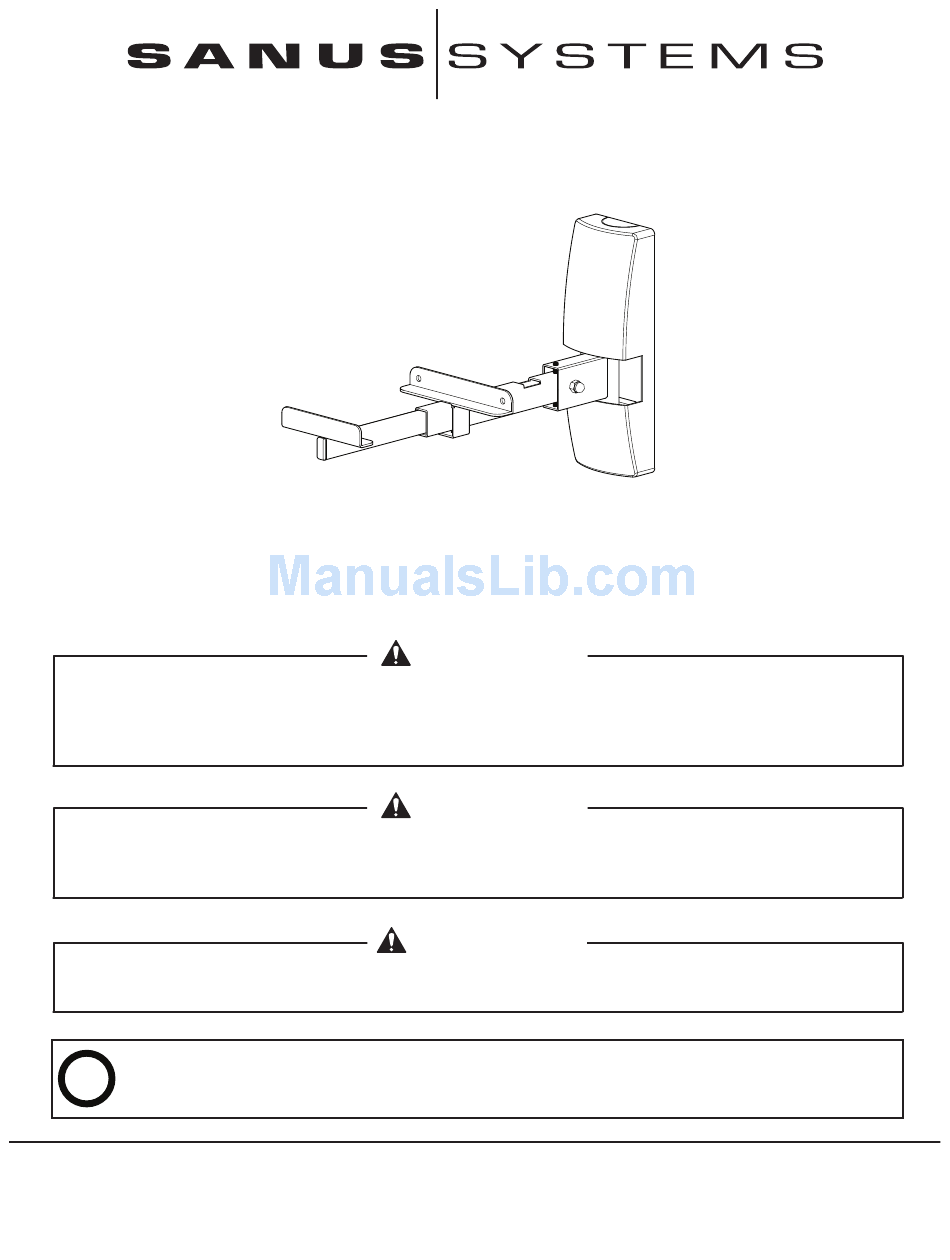

IMPORTaNT SaFETY INSTRuCTIONS - SaVE THESE INSTRuCTIONS

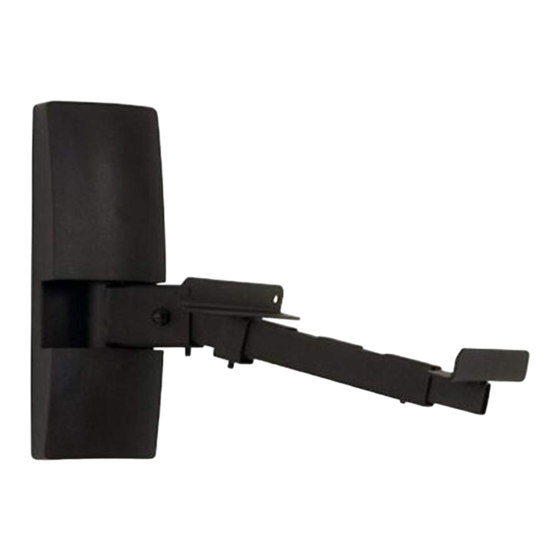

Thank you for choosing the Sanus WMS2 speaker mount. The Sanus WMS2 speaker mount is designed to support a

speaker sized up to 30 cm (12 in.) deep and weighing up to 6.5 kg (15 lbs).

Do not use this product for any purpose not explicitly specified by Sanus Systems. Improper assembly may cause

property damage or personal injury. If you do not understand these directions, or have doubts about the safety

of the assembly, contact Customer Service or call a qualified contractor. Sanus Systems is not responsible for

damage or injury caused by incorrect assembly or use.

This product is designed for use in wood stud walls only! The wall must be capable of supporting up to five times

the weight of the speaker and mount combined. If you have any doubts about the ability of the wall to support

the speaker, contact Sanus Customer Service, or a qualified contractor.

This product contains small items that could be a choking hazard if swallowed. Keep these items away

from young children!

Hardware and procedures for multiple mounting configurations are included. When you see this symbol,

OPT

choose the correct configuration to suit your needs. Not all hardware included will be used.

OPT

Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 USA

WMS2

(6901-100149 <01>)

CauTION

WaRNING

Customer Service: 1-800-359-5520 • 651-484-7988

info@sanus.com • www.sanus.com

Page 1 IMPORTaNT SaFETY INSTRuCTIONS - SaVE THESE INSTRuCTIONS Thank you for choosing the Sanus WMS2 speaker mount. The Sanus WMS2 speaker mount is designed to support a speaker sized up to 30 cm (12 in.) deep and weighing up to 6.5 kg (15 lbs).
Page 2 Supplied Parts and Hardware Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the item to your dealer; contact Customer Service. Never use damaged parts! [01] x 2 [02] x 2 001543.eps 001542.eps 3/8-16...
Page 3 1: attach Plate to Wall 3/16 in. < 16 mm (5/8 in.) 60 mm (2.375 in.) [01] NOTE [09] Do not overtighten the lag bolts [09]. Tighten only until the plate [01] is pulled firmly against the wall. 6901-100149 <01>...
Page 4 2: Install Pivot 3: Install arm [16] [11] [05] [10] [03] [12] 001552.eps [14] [14] [15] [11] 6901-100149 <01>...
Page 5 4: Install Cover [02] 5: Install Foot and Extension 001553.eps [16] [04] [07] [13] [14] 6901-100149 <01> 001554.eps...
Page 6 6: Install Foam Strips and Cap [15] [08] 7: Mount Speaker 001555.eps Milestone AV Technologies, Inc. and its affiliated corporations and subsidiaries (collectively, “Milestone”), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions, or variations. Nor does it provide for every possible contingency in 001556.eps...
