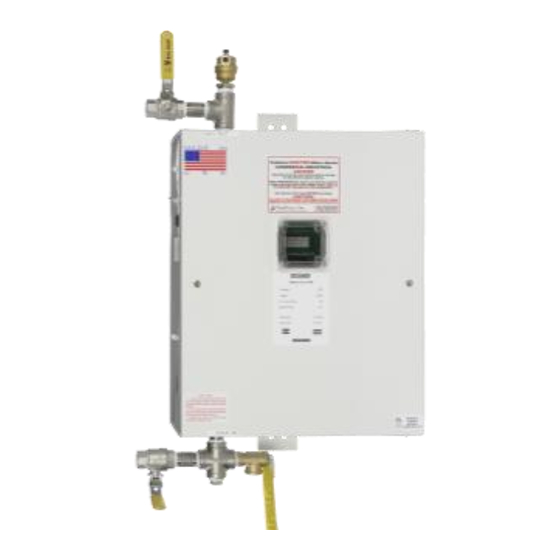

TANKLESS CE 12 KW Information Manual

TANKLESS CE 12 KW Information Manual

Commercial water heaters

Advertisement

Quick Links

800 826 5537
03/24/2017
Model Number:_______________
Serial Number:________________
Information Manual......
Rev # 03.24.17

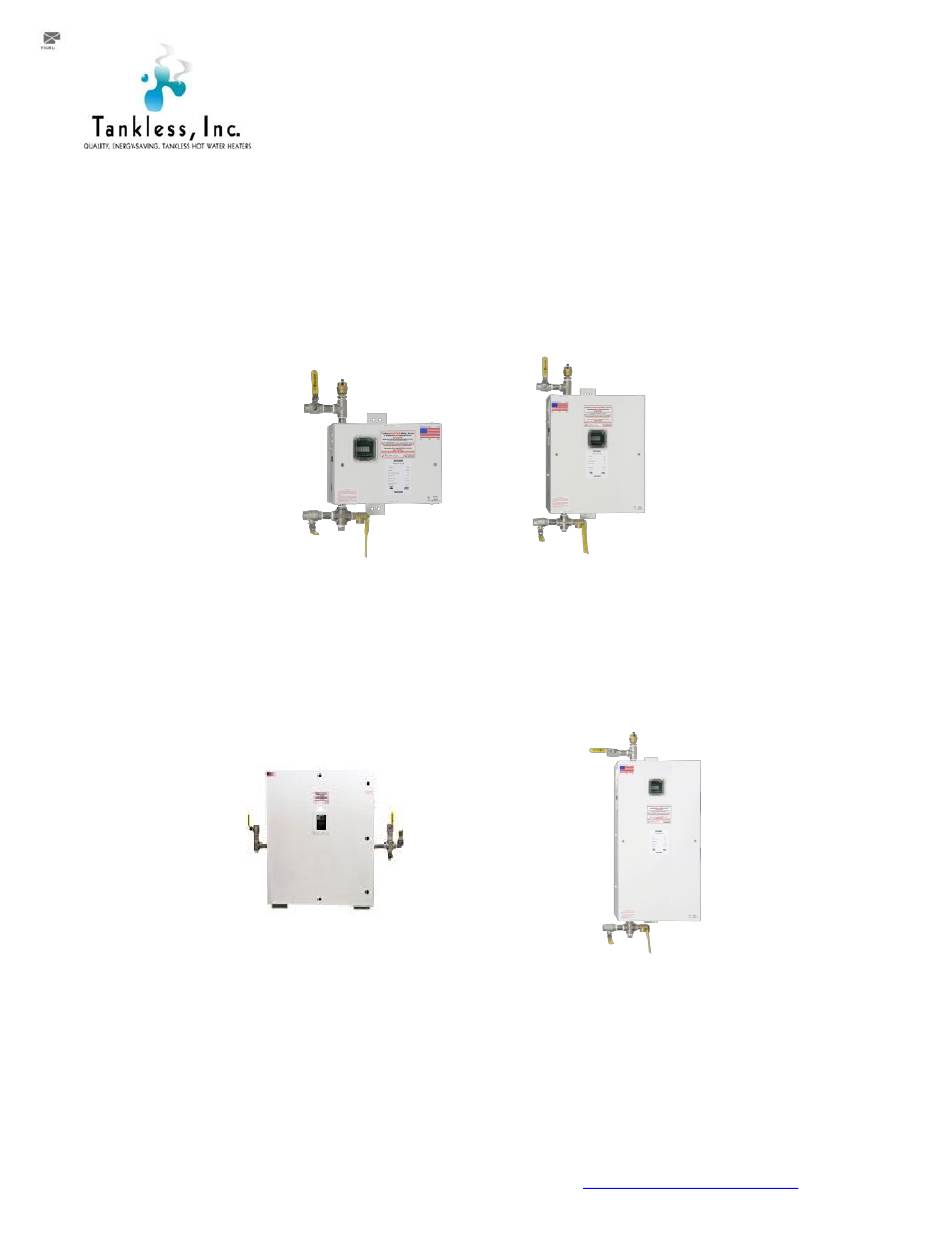

Installation and Troubleshooting Instructions for Electric Tankless Commercial Water Heaters
CE 12 KW, CE 15 KW, CE 18 KW
CE 24 KW CE 27 KW CE 48 KW
CES 12 KW ,CES 15 KW, CES 18 KW
CES 24 KW, CES 27 KW, CES 36 KW
CE 120 KW CE 144 KW or CE 108 KW
CE 72 KW, CE 54 KW, or CE 48 KW
CES 120 KW CES 144 KW or CES 108 KW CES 72 KW, CES 54 KW, or CES 48 KW
FOR MORE DETAILED SCHEMATICS AND WIRING DIAGRAMS VISIT, HOTWATERHEATER.COM
2060 B Whitfield Park Avenue * Sarasota, FL 34243 * 800-826-5537 *
tanklessinc@stiebel-eltron-usa.com
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the CE 12 KW and is the answer not in the manual?

Questions and answers

Summary of Contents for TANKLESS CE 12 KW

  • Page 1 Serial Number:________________ Information Manual…… Rev # 03.24.17 Installation and Troubleshooting Instructions for Electric Tankless Commercial Water Heaters CE 12 KW, CE 15 KW, CE 18 KW CE 24 KW CE 27 KW CE 48 KW CES 12 KW ,CES 15 KW, CES 18 KW...
  • Page 2 INFORMATION MANUAL for Commercial Heaters – Models CE 12 KW CES 12 KW CE 15 KW CES 15 KW CE 18 KW CES 18 KW CE 24 KW CES 24 KW CE 27 KW, CES 27 KW, CERO 27 KW, CE 36 KW CES 36 KW CERO 36 KW CE 48 KW CES 48 KW CE 54 KW, CES 54 KW, CERO 54 KW, CERO 72 KW, CE 72 KW.
  • Page 3 800 826 5537 03/24/2017 How an electronic Heater Works: We have four lines of heaters; electromechanical (C series) and electronic (CE series), electronic (CES), and CERO series. They all heat the fluid as it passes through but they are controlled in different manners depending on the customer’s needs.
  • Page 4 800 826 5537 03/24/2017 Controls Explanation CE , CES and CERO Series models Options for factory software settings include the following items Commercial water heaters Safety shower heaters CE and CERO Maximum temperature: 60 to 185 F 60 to 90 F Initial output setting per customer request 85 F...
  • Page 5 800 826 5537 03/24/2017 The following charts show the full load AMP draw, breakers required and physical size for each of our larger electronic units (engineering chart) and the capabilities of each unit(recovery chart) in terms of temperature rise at a certain flow rate.
  • Page 6 800 826 5537 03/24/2017...
  • Page 7 800 826 5537 03/24/2017 Installation of electronic water heaters . Please review the engineering chart on page 5 for breakers needed and verify the voltage marked on the heater is what you have at your facility. 2. Each unit has a set of brackets or C channel to mount to the floor. Attach the unit to the wall using the brackets supplied with the unit.
  • Page 8 800 826 5537 03/24/2017 Assembly Drawing for CE 12 KW CE 15 KW CE 18 KW CES 12 KW, CES 15 KW, CES 18 KW...
  • Page 9 800 826 5537 03/24/2017 Assembly Drawing for CE 24 KW CE 27 KW or CE 36KW CERO 27 KW and CERO 36 KW CES 24 KW CES 27 KW CES 36 KW...
  • Page 10 800 826 5537 03/24/2017 Assembly Drawing for CE 72 or CE 54 or CE 48 KW CERO 72 KW or CERO 54 KW CES 48 KW CES 54 KW CES 72 KW...
  • Page 11 800 826 5537 03/24/2017 Assembly Drawing for CE 108 KW CE 120 KW or CE 144 KW..CES 108 KW CES 120 KW CES 144 KW...
  • Page 12 800 826 5537 03/24/2017 Trouble shooting for electricians CE and CES Series troubleshooting. Be sure you are a qualified electrician before proceeding. This series of units operates off a flow meter and computer board that turn the units elements on and off. The thermostats in this unit are solely a safety feature to shut the unit down in case of failure.
  • Page 13 800 826 5537 03/24/2017 parts have failed. The fuse is in the fuse enclosure between the triac and the element and is denoted on the picture on page 11, item #16. If the unit is still not heating the fluid as well as you think it should then do the following test. Turn the flow on and the heat up till the board flashes at you like it says ther e is a full load on the unit.
  • Page 14 800 826 5537 03/24/2017...
  • Page 15 800 826 5537 03/24/2017 If the unit is still not working do the following tests before proceeding. Turn off the main power. Determine if the elements ohm to their correct reading… : Ohms Test: Check each element(#4 in the above picture) with an OHMs meter for correct readings. If the elements reads 0 or flickers it is bad and needs to be replaced.
  • Page 16 800 826 5537 03/24/2017 TRIAC REPLACEMENT PROCEDURES 1. You need an allen wrench to loosen the screws that hold the trica to the plate. 2. Remove the three wires. 3. Put the white heat sync paste that came with the tric on the back of the triac. 4.
  • Page 17 800 826 5537 03/24/2017 Check the line voltage and be sure you are receiving the proper voltage across two of the three lines of your three phase heater. If the output temperature is not within 3 degrees you probably have an element that is not working or you have a computer board that is expecting more or less power going to the elements.
