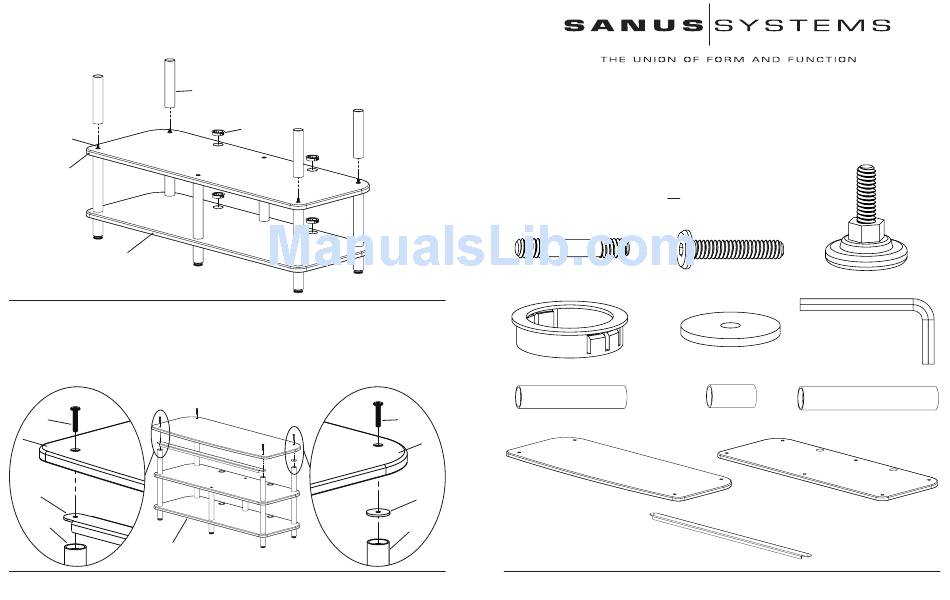

Step 5: Add 7" Pillars
Thread a 7" Pillar (g) onto each exposed Shelf Connector (a). Place a Grommet (d) in each wire management hole in the Bottom and
Middle Shelf (k). See Diagram 5 for assistance.
g
a
k
k

Step 6: Add Top Shelf

To add the Top Shelf (j), insert the front two Top Bolts (b) through the holes in the front of the Top Shelf, the Front Brace (l) and thread
them into the 7" Pillars (g). See Detailed View A for assistance. Insert the back two Top Bolts through the holes in the back of the Top
Shelf, the Spacers (e), and thread them into the 7" Pillars. See Diagram View B for assistance. Tighten each Top Bolt with the Allen Key
(f).
Detailed View A
b
j
l
g
front
Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 5.27.05
Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com
Diagram 5
d
Detailed View B
Diagram 6
Thank you for choosing Accurate Furniture from Sanus Systems!
Safety Warning: If you do not understand these directions, or have any doubts about the safety of the installation, please call a qualified
contractor or contact Sanus at 800.359.5520 or www.sanus.com. Check carefully to make sure that there are no missing or defective
parts. Our customer service representatives can quickly assist you with installation questions and missing or damaged parts. Replace-
ment parts for products purchased through authorized dealers will be shipped directly to you. Never use defective parts. Improper instal-
lation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified by Sanus Systems.
Sanus Systems can not be liable for damage or injury caused by incorrect mounting, incorrect assembly, or incorrect use. Please call
Sanus Systems before returning products to the point of purchase.

Required Tools:

Supplied Parts and Hardware: Some parts not shown as actual size*
(10) Shelf Connector - a
(4) Grommet - d
b
(4) 7" Pillar - g*
j
e
g

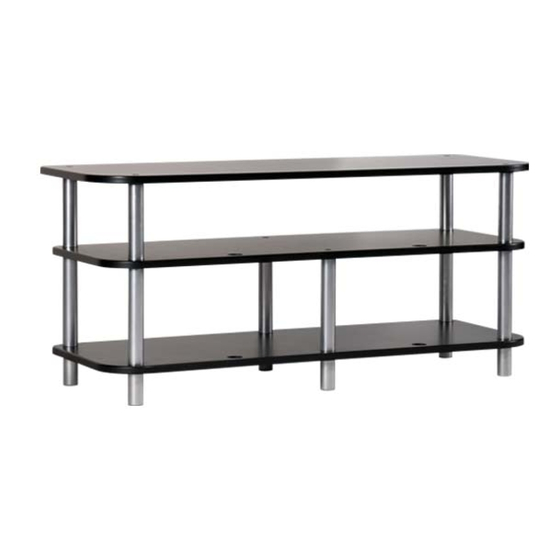

Assembly Instructions for Model: AFV48
(6) Top Bolt - b
(2) Spacer - e
(6) 3" Pillar - h*
(1) Top Shelf - j*
(1) Front Brace - l*
Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 5.27.05
Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com
(6) Foot - c
(1) Allen Key - f
(6) 9" Pillar - i*
(2) Bottom & Middle Shelf - k*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Accurate Furniture AFV48 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sanus Systems Accurate Furniture AFV48

  • Page 1 Never use defective parts. Improper instal- lation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified by Sanus Systems.
  • Page 2 Step 1: Foot Assembly Thread a Foot (c) into each 3” Pillar (h) until tight. Thread a Shelf Connector (a) into the other end of the 3” Pillar until tight. Repeat the process for each remaining 3” Pillar. See Diagram 1 for assistance. Diagram 1 Step 2: Add Bottom Shelf Insert each Foot Assembly through the Bottom Shelf (k) as shown in Diagram 2.
