Assembly Instructions for Model: AFDV

Thank you for choosing the Sanus Systems Model AFVD. The AFVD three

shelf audio stand is designed for basic systems. Every effort has been made to

ensure that your Sanus Systems furniture is perfect. If you have questions or

feel that there is a problem of any kind, please contact us at 800-359-5520 or

at www.sanus.com. We can quickly help with any issues regarding assembly

or missing parts. Replacement parts for Sanus systems products purchased

through authorized dealers will be shipped directly to you.

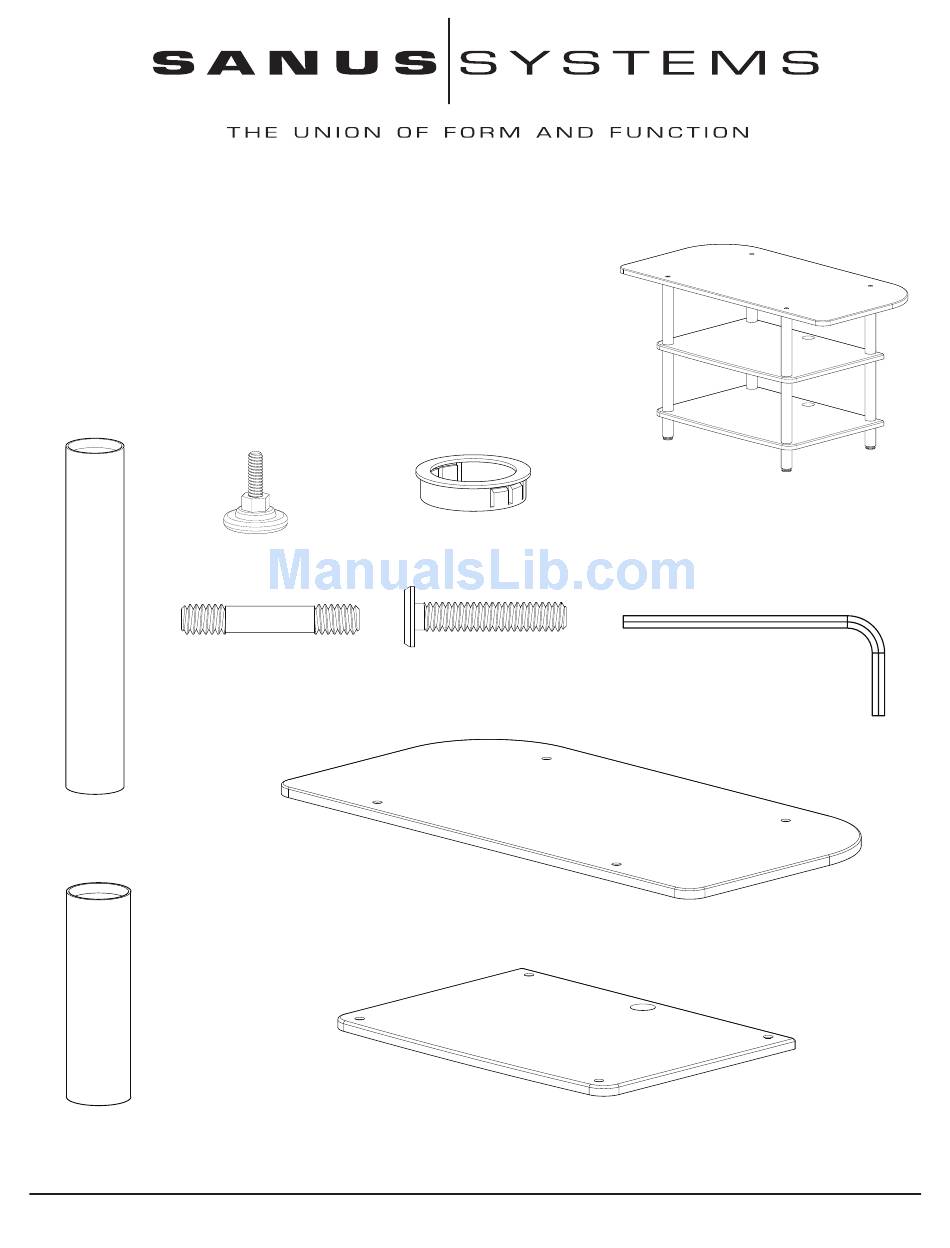

Supplied Parts List:

Shelf Connector - E

9" Pillar - A

Qty. 8

3" Pillar - B

Qty. 4

Sanus Systems

Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com

Wire Hole Bushing - D

Foot Pad - C

Qty. 4

Qty. 8

2221 Hwy 36 West, Saint Paul, MN 55113 1.18.06 (100004)

Qty. 2

Top Bolt - F

Qty. 4

Top Shelf - G

Qty. 1

Lower Shelf - H

Qty. 2

Allen Key - I

Qty. 1

Table of Contents

Do you have a question about the AFDV and is the answer not in the manual?

Page 1 Every effort has been made to ensure that your Sanus Systems furniture is perfect. If you have questions or feel that there is a problem of any kind, please contact us at 800-359-5520 or at www.sanus.com.
Page 2 Step 1 - Assemble the four 3” Pillars Hand thread a Foot Pad (C) into each of the four 3” Pillars (B); then, hand thread one Shelf Connector (E) into each 3” Pillar. Step 2 - Insert four 3” Pillars into Lower Shelf Insert the four 3”...
Page 3 Step 3 - Assemble four 9” Pillars Hand thread one Shelf Connector (E) into four of the 9” Pillars (A). Step 4 - Assemble Lower Shelves Hand thread the 9” Pillars (A) with Shelf Connectors (E) onto the threaded portion of the Leg Assemblies. Place a Shelf (B) onto the four 9’’...
Page 4 Place the Top Shelf (G) on the four 9” Pillars (A); then, using the four Top Bolts (F), secure the Top Shelf to the 9” Pillars. Step 6 - Install Wire Hole Bushings Press a Wire Hole Bushing (D) into each of the holes in the back of the Lower Shelves (H). Sanus Systems Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com Diagram 5 Diagram 6 2221 Hwy 36 West, Saint Paul, MN 55113 1.18.06 (100004)
