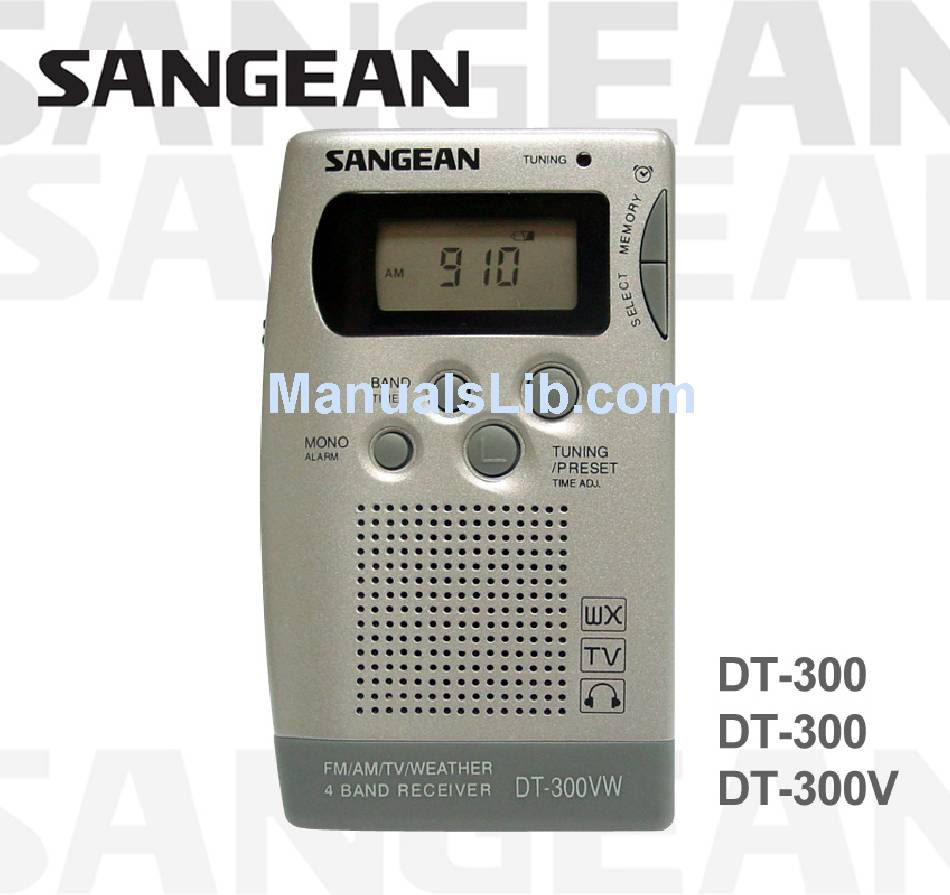

Summary of Contents for Sangean DT-300
-
Page 3: Location Of Controls
Location Of Controls Welcome to SANGEAN World of Listening. To ensure proper operation please familianrize yourself with These instructions before using your new receiver. Location of Controls Volume Control--------------------------------------------------------- LCD Display------------------------------------------------------------ Lock switch------------------------------------------------------------- Tuning LED------------------------------------------------------------- On/Off Button---------------------------------------------------------- Earphone jack----------------------------------------------------------- Speaker On/Off Slector------------------------------------------------ Band Selection Button/Time Set Button------------------------------ Mono / Selection Button / Time (Alarm) Set Button----------------- Battery Compartment--------------------------------------------------... - Page 5 Band Selected/ PM---------------------------------------------------------- Timer / (Alarm)-------------------------------------------------------------- FM Stereo lndicator--------------------------------------------------------- System Lock----------------------------------------------------------------- Low Battery---------------------------------------------------------------- - Standby Set------------------------------------------------------------------ Time /Frequency------------------------------------------------------------ Digit for Memory Slot------------------------------------------------------ Memory Delete-------------------------------------------------------------- Auto Preset----------------------------------------------------------------- Memory Set------------------------------------------------------------------ Select Cursor------------------------------------------------------------ Display Icons...
-
Page 6: Battery Installation
Battery Installation The battery cover is located on the back of the unit. Slide the cover in the direction of the arrow to gain access to the battery compartment insert 2 AAA(UM-4) batteries into the compartment.Make sure that batteries are positioned in accordance with the diagram located below batteries in battery compartment. -
Page 7: Setting Time
Setting Time When batteries are installed for the first time the LCD display time digit will flash indicating that the time needs to be set. The clock can be set with the power off but the lockswitch must be off. To set time press Time Set Button for more then 2 seconds until hour digit flashes. - Page 8 LCD will return to real time and Standby Set icon will appear in display . A buzzer will sound when set time is reached and will continue for at least 3 mimutes or until it is stopped by pressing the Power On/Off Button. Short Term Alarm Set This receiver is equipped with a short term 1-180minute timer.To set timer Press the Alarm Set Button...
-
Page 9: Radio Operation
Antenna/Earphone Use The earphone cord acts as an antenna during reception of FM/TV/Weather Band(DT-300/300V/300VW)channels and should be extended as much as possible to improve sensitivity. Insert the earphone into the earphone jack for earphone operation . When listening with the built-in speaker the enclosed... - Page 10 Volume Control The volume may be adjusted by using the Volume Control Adjustment Tuning the Radio Band Frequency 520-1710kHz/ 522-1629kHz 87.5-108MHz CH.2-13(VHF) (DT-300V/DT-300VW) pigtail antenna is inserted into Antenna Internal-Rotate radio for best reception External-Make sure earphone or pig tail antenna is inserted into earphone jack.
- Page 11 CH.0-9 A.Scan Tuning Turn on the radio by pressing On/Off Button by pressing Band Selection Button Button for more than 1/2 second . The radio will start to scan and will stop at the first active station. Repeating the procedure will start the scan again.The receiver will automatically turn itself off after 90 minutes of operation or you may turn it off at anytime by pressing the On/Off Button B.Manual Tuning...
- Page 12 until the desired station is reached or pressing and holding the Tuning Control until the station is reached. C. Setting Presets Manually Turn on receiver by pressing On/Off Button .Select desired band by pressing Band Selector Button .Tune to the desired station using the Manual or Scan Tuning Method as described above.
- Page 13 station is selected to take its place. When the memory is full for a particular band pressing the Memory Selection Button the positions to flash. In this case,select the desired position. press the Memory Selection Switch and the new station will take its place. D.Selecting Memory Presets Turn on receiver by pressing On/Off Button pressing Band Selector Button...
- Page 14 On/off Button .Select desired band by pressing Band Select or Button Press Memory Button . Memo will flash in display. Press Select Button for move than 2 seconds until auto/memo appears and flashes in display. press memory Button again. The receiver will automatically begin to scan and set memory preset positions.
- Page 15 Note: If the Select Cursor Tuning Control Up/Down Button within the band selected. If the Selector Cursor digits for the memory presets will select the memory presets. G.Deleting Memory Positions If The memory is full or you would like to delete a memoey position select the preset youy would like to delete.Press Memory Button will flash "memo"...
- Page 16 Mono/Stereo Button Monaural or Stereo headphone reception may be selected durning FM reception by alternately pressing the Mono/Stereo Button The Speaker On/OffSwitch must be in the Off Lock Switch To Prevent accidental changing of any of the radio settings move the Look Switch to the locked position.
- Page 17 Specification Type: FM- Stereo (Via earphone) AM- Standard (mono) TV Band (Mono Ch,2-13 VHF) Weather Band (WX) (Mono Ch. 0-9) Earphone jack: 3.5 mm mini-plug 16 or 32 ohm impedance (Stereo) Output Power: 50 mW (10 THD) via built-in speaker Speaker: 1.1inch diameter,4ohm impedance Batteries: 3 volt(AAA/UM-4 size) x 2 Dimension (WxHxD):2 1/4"...
