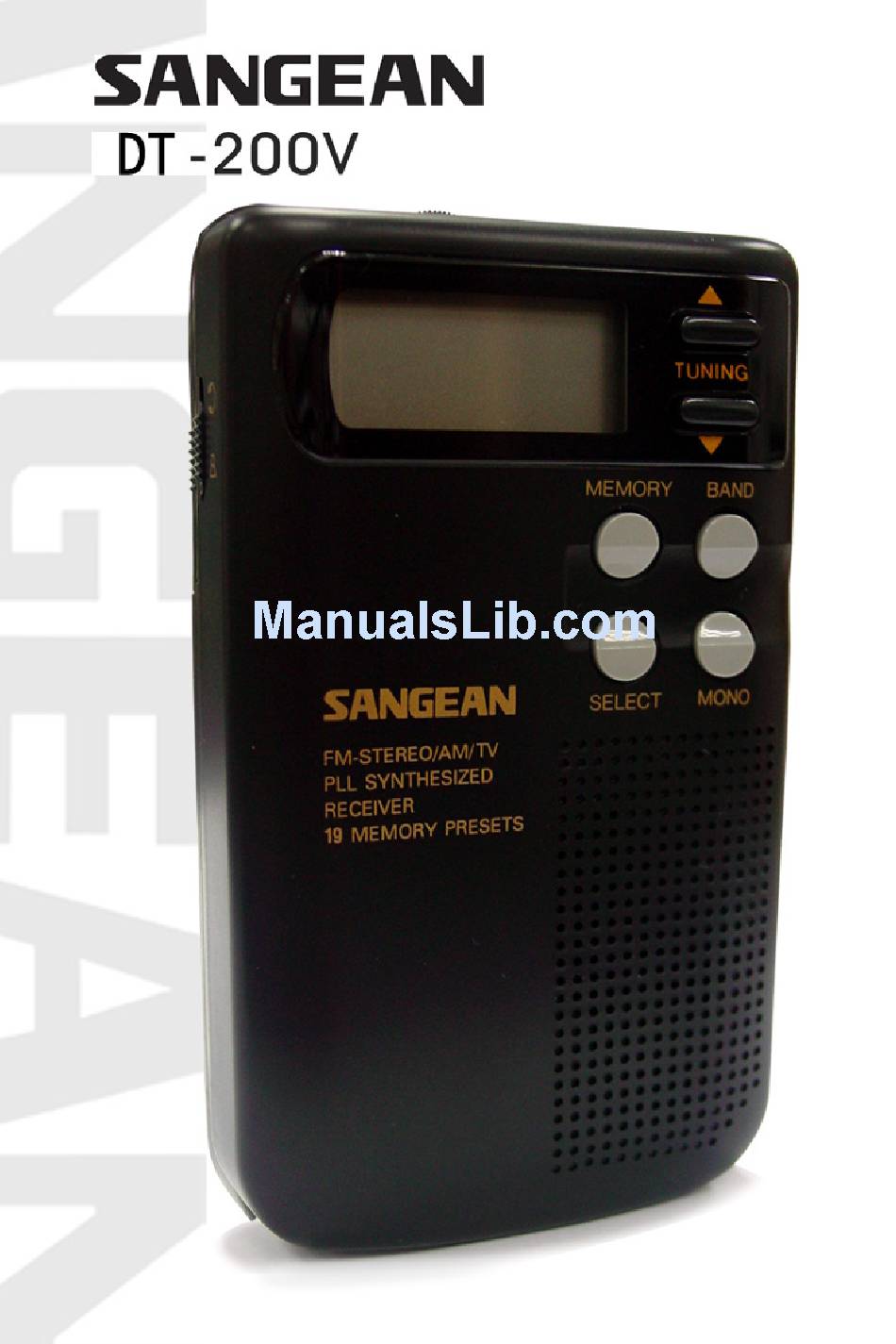

Sangean DT-200V Owner's Manual

Fm-stereo/am/tv pll synthesized receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DT-200V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sangean DT-200V

Summary of Contents for Sangean DT-200V

  • Page 2: Location Of Controls

    LOCATION OF CONTROLS Congratulations and welcome to The SANGEAN WORLD OF LISTENING! To insure proper operation please famililarize Yourself with these instructions before using your New receiver 1 . O n / O f f B u t t o n 2 .

  • Page 5: Battery Installation

    BATTERY INSTALLATION The battery cover is located on the back of the unit. Slide the cover in the direction of the arrow to gain access to the battery compartment(12). Insert 2 AA batteries into the compartment(12). Make sure that the batteries are positioned in accordance with the diagram located below batteries in battery com- partment.

  • Page 6: Volume Control

    ANTENNA/EARPHONE USE The cord connecting the headphones to the re- ceiver acts as an antenna during FM/TV reception and should be extended as much as possible to increase FM/TV sensitivity . Insert the Earphones into the Earphone Jack(3).Abuilt-in Ferrite Ante- nna is provided for AM reception and it is only necessary to rotate the radio for maximum signal strength during AM listening...
  • Page 7 T U N I N G T H E R A D I O BAND FREQUENCY AM 520-1710KHZ Internal/Rotate radio for 87.5-108MHZ External/Make sure Head- ch.2-13(VHF) External/Make sure Head- SCAN TUNNING Turn on the Radion by pressing On/Off Button (1).Select AM,FM or TV Band by pressing Band Selection Button(7) and then press and Hold the Tuning Control(5) or(6) for more than 1/2 second.
  • Page 8 MANUAL TUNING Turn on the Radio by pressing On/Off Button (1). Select AM,FM or TV Band by pressing Band Selection Button (7).Desired station May be selected by either pressing the Tuning Control(5)or(6) intermittently until the desired Station is reached or pressing and holding the Tuning Control until the desired station is Reached.
  • Page 9 In the LCD Display. You may store a total of 19 stations in any mix from any band.Original stations are eliminated when new stations are selected to take their places. MEMORY TUNING (STATION RECALL) Turn on the Radio by pressing On/Off Button (1).

  • Page 10: Lock Switch

    LOCK SWITCH To prevent accidental changing of any o the radio settings move the Lock Switch (13)to its up , locked position( ). To release simply move the switch to its down position. IT IS IMPORTANT TO MAKE SURE LOCK SWITCH IS IN ITS DOWN POSITION WHEN RADIO IS TO BE USED AS RADIO IS COMPLETELY INOPERATIVE UNTIL LOCK SWITCH IS RELEASED .

  • Page 11: Specifications

    SPECIFICATIONS Type: FM-Stereo(Via headphones) AM Standard(mono) TV Band (mono, CH. 2-13VHF) Earphone Jack:3.5mm mini-plug Output Power:60mW(10%THD) Via built-in Speaker:1 inch diameter, 4 ohms impedance External Power: Batteries:3 Volts(AA size)x 2 Dimensions (Wx Hx D): Weight:5.0 ounces approximately without batteries. 32 ohm impedance (stereo) speaker 32 ohm impedance(stereo) Speaker...

  • Page 12: Maintenance

    MAINTENANCE 1.Keep the radio dry. If it does get wet, wipe it immediately. Liquids may contain chemicals that can corrode electronic circuitry. 2.Use and store your radio only in normal temperature environments. High temperature can shorten the life of electronic devices, damage batteries and melt plastic parts.
