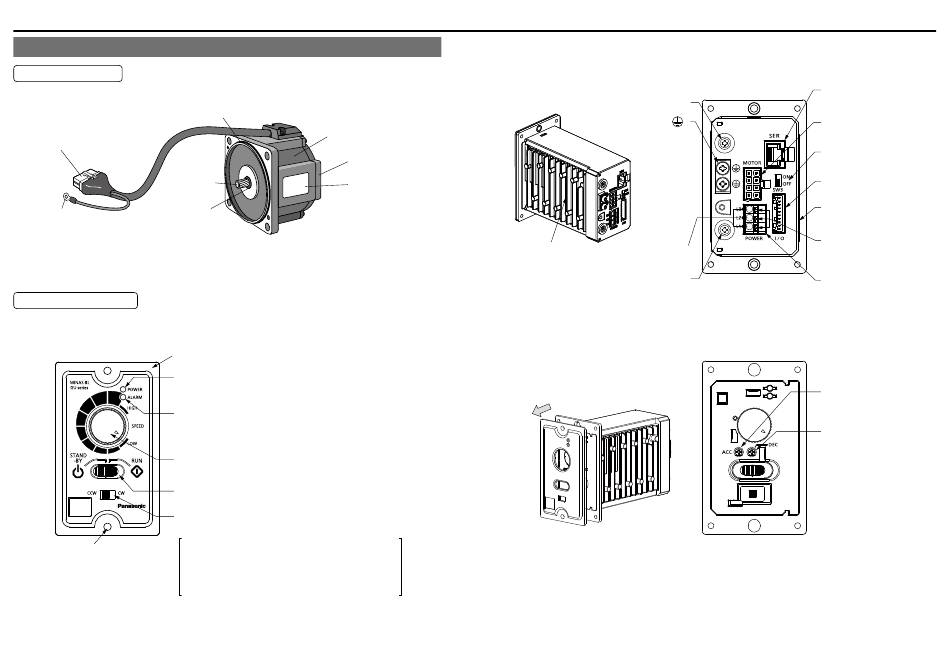

Name of part

Name of part
Brushless motor
Connector for motor cable and
CS signal cable
Output shaft
Oil seal
Ground terminal
Brushless amplifier
[Front view]
Front panel
PowerLED (PWR)
Green: Power ON
AlarmLED (ALM)
Red: Trip*
* Trip means that a protection circuit operates and stops.
Speed setting knob
RUN switch (RUN/STANDBY)
Rotate direction selector switch (CW/CCW)
CW / CCW is the direction of motor shaft rotation.
CW:
Mounting hole (2 places)
clockwise rotation viewed from the motor shaft side
CCW:
counterclockwise rotation viewed from the motor
shaft side
The direction of rotation of the gearhead output shaft
may change. (See page 28)
10
O-ring (not provided on a round shaft model)
Frame
Bracket B
Motor nameplate
Safety precaution label
is affixed to the product.
Do not loosen this screw.
Grounding terminal ( )
2 places
Heat sink
Power supply line
connection hole
Do not loosen this screw.
[Front view without Front panel]
You can remove the front panel by
pulling it while not attaching the
brushless amplifier to the equipment.
[Rear view]
Connector for
communications (SER)
Connector for motor
connection (MOTOR)
I1 input enabled switch
(SW3)
Connector for
control signals (I/O)
Nameplate
(Displayed on the side)
Wire extraction button
Refer to page 19 for how to
operate.
Terminal block for
power input (POWER)
Acceleration time setter
(ACC)
Deceleration time setter
(DEC)
