Page 1: Washing Machine

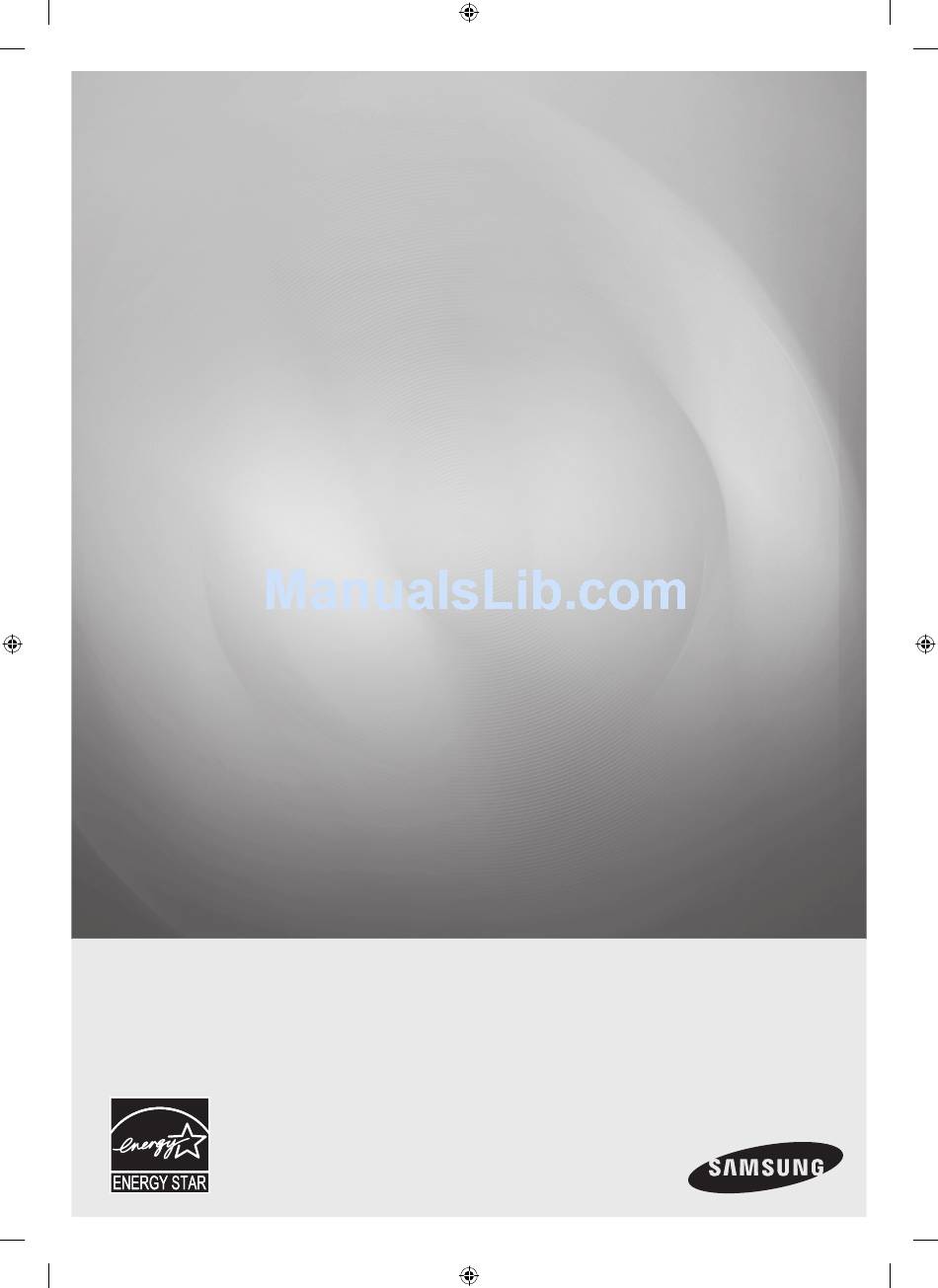

WF419AAW Washing Machine user manual imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register BEST-WF419AAW-02657A_EN.indd 1 2009-02-18 ¿ÀÈÄ 3:26:39... -
Page 2: Features
This Samsung washer performs smoothly at top spin speeds, minimizing noise and vibration. 2. Super capacity Samsung’s extra-large capacity laundry machine can wash a full set of your bedding, a king- size comforter, or up to 26 bath towels in a single load. Since you don’t have to do as many loads, you save time, money, water and energy. - Page 3 It also offers a built-in storage drawer that can hold a 100 oz. bottle of detergent 10. Stacking (Model No : SK-3A1/XAA , SK-4A/XAA , SK-5A/XAA) Samsung washer and dryer can be stacked to maximize usable space. An optional stacking kit is available for purchase from your Samsung retailer.
-
Page 4: Safety Information
Install and store your washer inside, away from exposure to weather. Install and level your washer on a floor that can support its weight. Your washer must be properly grounded. Never plug it into an ungrounded outlet. See page 8 for more information on grounding your washer. - Page 5 Do not reach into the appliance when the tumbler is moving. Do not let children play on or in your washer. The washer door isn’t easily opened from the inside, and a child could be seriously injured if trapped inside.
-
Page 6: Table Of Contents
INSTALLING YOUR WASHER OPERATING INSTRUCTIONS WASHING A LOAD OF LAUNDRY MAINTAINING YOUR WASHER TROUBLESHOOTING 6_ Contents BEST-WF419AAW-02657A_EN.indd 6 Unpacking your washer Overview of your washer BASIC LOCATION REQUIREMENTS Electrical Grounding Water Drain facility Flooring Location consideration Alcove or closet installation... -
Page 7: Installing Your Washer
UNPACKING YOUR WASHER Unpack your washer and inspect it for shipping damage. Make sure you have received all of the items shown below. If your washer was damaged during shipping, or you do not have all of the items, contact 1-800-SAMSUNG(726-7864). -
Page 8: Basic Location Requirements
Or, it may extend the fill time beyond what your washer controls allow, resulting in your washer turning off. A time limit is built into the controls in the event of an internal hose becoming loose and flooding your home. -
Page 9: Drain Facility
Sides – 1 In.(2.5 cm) Rear – 4 In.(10.2 cm) If the washer and dryer are installed together, the closet front must have at least 72 in²(465 cm²) of an unobstructed air opening. Your washer alone does not require a specific air opening. -
Page 10: Important Note To Installer
IMPORTANT NOTE TO INSTALLER Please read the following instructions carefully before installing your washer. These instructions should be retained for future reference. We recommend you hire a professional for installation of this washer. STEP 1 Removing the Shipping Bolts Before using your washer, you must remove the four shipping bolts from the back of the unit. - Page 11 2. Insert a new rubber washer (supplied) into each end of the inlet hoses. Firmly seat the washers in the couplings. 3. Check the inlet hose to ensure a washer is inside each fill hose. Thread the inlet hoses to the HOT and COLD faucet connections.
- Page 12 6. Slide your washer into position. 7. Level your washer by turning the leveling legs in or out as necessary by hand or by using the wrench included with your washer.
-
Page 13: Operating Instructions
The actual time required for a cycle may differ from the estimated time in the display depending on the water pressure, water temperature, detergent, and laundry. 9. Before your washer starts to fill, it will make a series of clicking noises to check the door lock and do a quick drain. -
Page 14: Washing A Load Of Laundry
Rinse + Spin - Use for loads that need rinsing only or to add rinse-added fabric softener to a load. Spin Only - Provides a spin to remove more water. 14_ Washing a load of laundry BEST-WF419AAW-02657A_EN.indd 14 Load Sensing Wash To minimize wrinkling of your laundry, select the perm press cycle. - Page 15 (page 28). Press to pause and restart programs. Press once to turn your washer on, press again to turn your washer off. If the washer is left on for more than 10 minutes without any buttons being touched, the power automatically turns off.
-
Page 16: Child Lock
(Garment+)” light is on. Pushing the Start/Pause button unlocks the door, unless the water is too hot or if there is too much water in your washer. If you are able to unlock the door and wish to continue the wash cycle, close the door and press the Start/Pause button. -
Page 17: Washing Clothes Using The Cycle Selector
Washing clothes using the cycle selector Your new washer makes washing clothes easy, using Samsung’s “Fuzzy Control” automatic control system. When you select a wash program, the machine will set the correct temperature, washing time, and washing speed. 1. Almost no customers will have the washer hooked up via the sink’s tap. -
Page 18: For Activfresh™ Washing
FOR ACTIVFRESH™ WASHING An increased consumer demand for energy-saving products prompted Samsung to develop a system to use silver, widely known for its antimicrobial properties, as a sanitizing agent in your washer. Pure silver atoms have an electron stripped away by electrolysis during the wash and rinse cycles, which releases up to 16 million trillion silver ions that then penetrate deep into the fabric to sanitize clothing (according to U.S. -
Page 19: Detergent Use
DETERGENT USE Your washer is designed to use high efficiency (HE) detergents. • For best cleaning results, use a high efficiency detergents such as Tide HE, Wisk HE, Cheer HE or Gain HE*. High efficiency detergents contain suds suppressors that reduce or eliminate suds. When fewer suds are produced, the load tumbles more efficiently and cleaning is maximized. -
Page 20: Pre Wash Compartment
• Use the softener compartment ONLY for liquid fabric softeners. • DO NOT use a Downy Ball* in the Fabric softener compartment of this washer. It will not add fabric softener at the appropriate time. Use the detergent compartment. Brand names are trademarks of their respective manufacturers. -
Page 21: Maintaining Your Washer
Turn off the water faucets after finishing the day’s washing. This will shut off the water supply to your washer and prevent the unlikely possibility of damage from escaping water. Leave the door open to allow the inside of your washer to dry out. -
Page 22: Cleaning The Debris Filter
8. Replace the filter cover. PRESERVING THE TOP COVER AND THE FRONT FRAME Do not place any heavy or sharp objects or a detergent box on the washer. Keep them on the purchased pedestal or in a separate storage box. -
Page 23: Troubleshooting
Make sure the Detergent Selector dial is in the upper position when using granular detergent. • Make sure your washer is set on a level surface. If the surface is not level, adjust your washer feet to level the appliance. •... - Page 24 This is normal. • While your washer is filling, you may notice just hot and/or just cold water going through the dispenser when cold or warm wash temperatures are selected. This is a normal function of the automatic temperature control feature as your washer determines the temperature of the water.
-
Page 25: Information Codes
INFORMATION CODES Information codes may be displayed to help you better understand what is occurring with your washer. CODE SYMBOL MEANING Unbalanced load prevented your washer from spinning. Door is unlocked when washer is running. Door is open when washer is running. - Page 26 Then, the unit will go back to the operation. When it finishes washing, End and SUdS codes will blink in turn. For any codes not listed above, call 1–800–726–7864 (1–800–SAMSUNG) 26_ troubleshooting BEST-WF419AAW-02657A_EN.indd 26 Restart the cycle.
-
Page 27: Appendix
40°F(4°C) which is too cold for effective cleaning. The water temperature in this situation will need to be adjusted by selecting a warm setting, adding some hot water to the MAX FILL line or using your washer’s heating option, if available. BEST-WF419AAW-02657A_EN.indd 27... -
Page 28: Cycle Chart
EH/C: Extra Hot/Cold EH: Extra High H/C: Hot/Cold H: High W/W: Warm/Warm M: Medium W/C: Warm/Cold L: Low C/C: Cold/Cold NS: No Spin 28_ appendix BEST-WF419AAW-02657A_EN.indd 28 Functions Spin Soil Level Delay Extra Start Rinse • • • • • • •... -
Page 29: Helping The Environment
HELPING THE ENVIRONMENT • Your washer is manufactured from recyclable materials. If you decide to dispose of it, please observe local waste disposal regulations. Cut off the power cord so that the appliance cannot be connected to a power source. Remove the door so that animals and small children cannot get trapped inside the appliance. -
Page 30: Warranty
SAMSUNG may elect to provide transportation of the product to and from an authorized service center. SAMSUNG will repair, replace, or refund this product at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. - Page 31 NO WARRANTY OR GUARANTEE GIVEN BY ANY PERSON, FIRM, OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER...
- Page 32 QUESTIONS OR COMMENTS? Country CALL OR VISIT US ONLINE AT U.S.A 1-800-SAMSUNG(726-7864) www.samsung.com/us MEXICO 01-800-SAMSUNG(726-7864) www.samsung.com/mx Code No. DC68-02657A_EN BEST-WF419AAW-02657A_EN.indd 32 2009-02-18 ¿ÀÈÄ 3:26:52...
