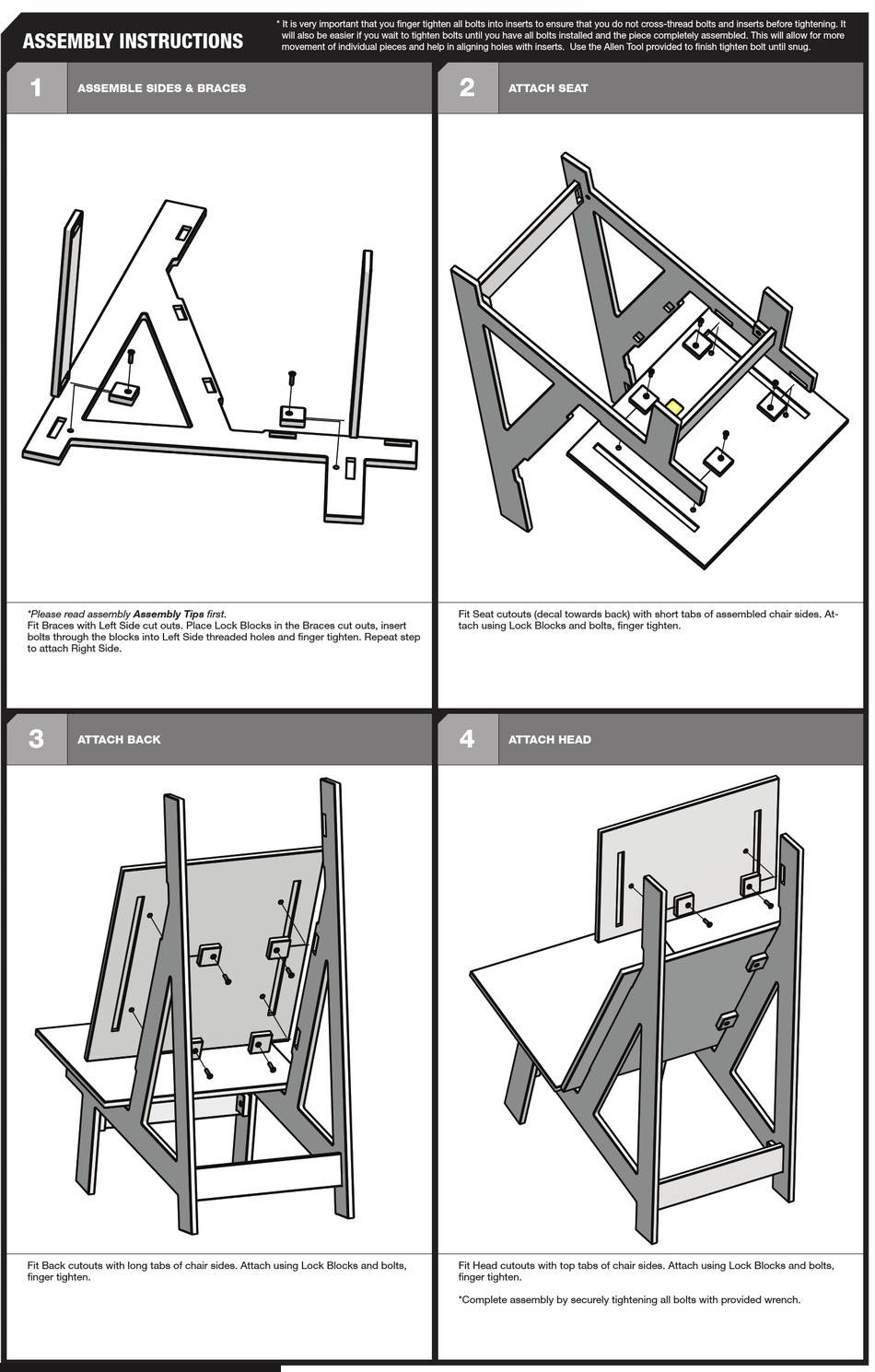

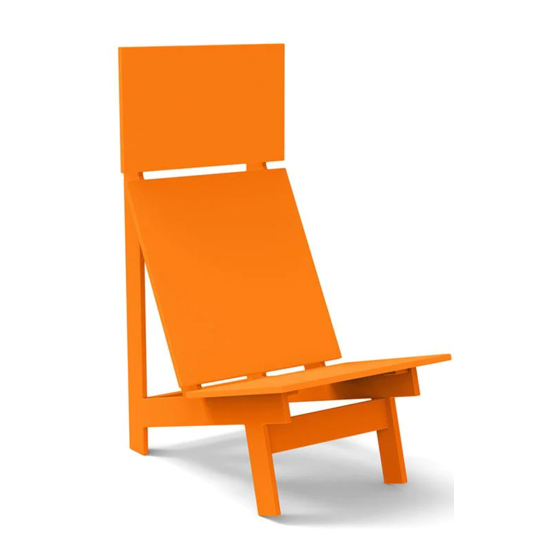

ASSEMBLY INSTRUCTIONS
1
ASSEMBLE SIDES & BRACES
Step 1 and repeat
*Please read assembly Assembly Tips first.
Fit Braces with Left Side cut outs. Place Lock Blocks in the Braces cut outs, insert
bolts through the blocks into Left Side threaded holes and finger tighten. Repeat step
to attach Right Side.
3
ATTACH BACK
Step 3
Step 3
Fit Back cutouts with long tabs of chair sides. Attach using Lock Blocks and bolts,
finger tighten.
* It is very important that you finger tighten all bolts into inserts to ensure that you do not cross-thread bolts and inserts before tightening. It
will also be easier if you wait to tighten bolts until you have all bolts installed and the piece completely assembled. This will allow for more
movement of individual pieces and help in aligning holes with inserts. Use the Allen Tool provided to finish tighten bolt until snug.
Step 1 and repeat
Step 1 and repeat
Step 4
2
ATTACH SEAT
Fit Seat cutouts (decal towards back) with short tabs of assembled chair sides. At-
tach using Lock Blocks and bolts, finger tighten.
4
ATTACH HEAD
Fit Head cutouts with top tabs of chair sides. Attach using Lock Blocks and bolts,
finger tighten.
*Complete assembly by securely tightening all bolts with provided wrench.
Step 4
Step 4
Step 4
Step 2
