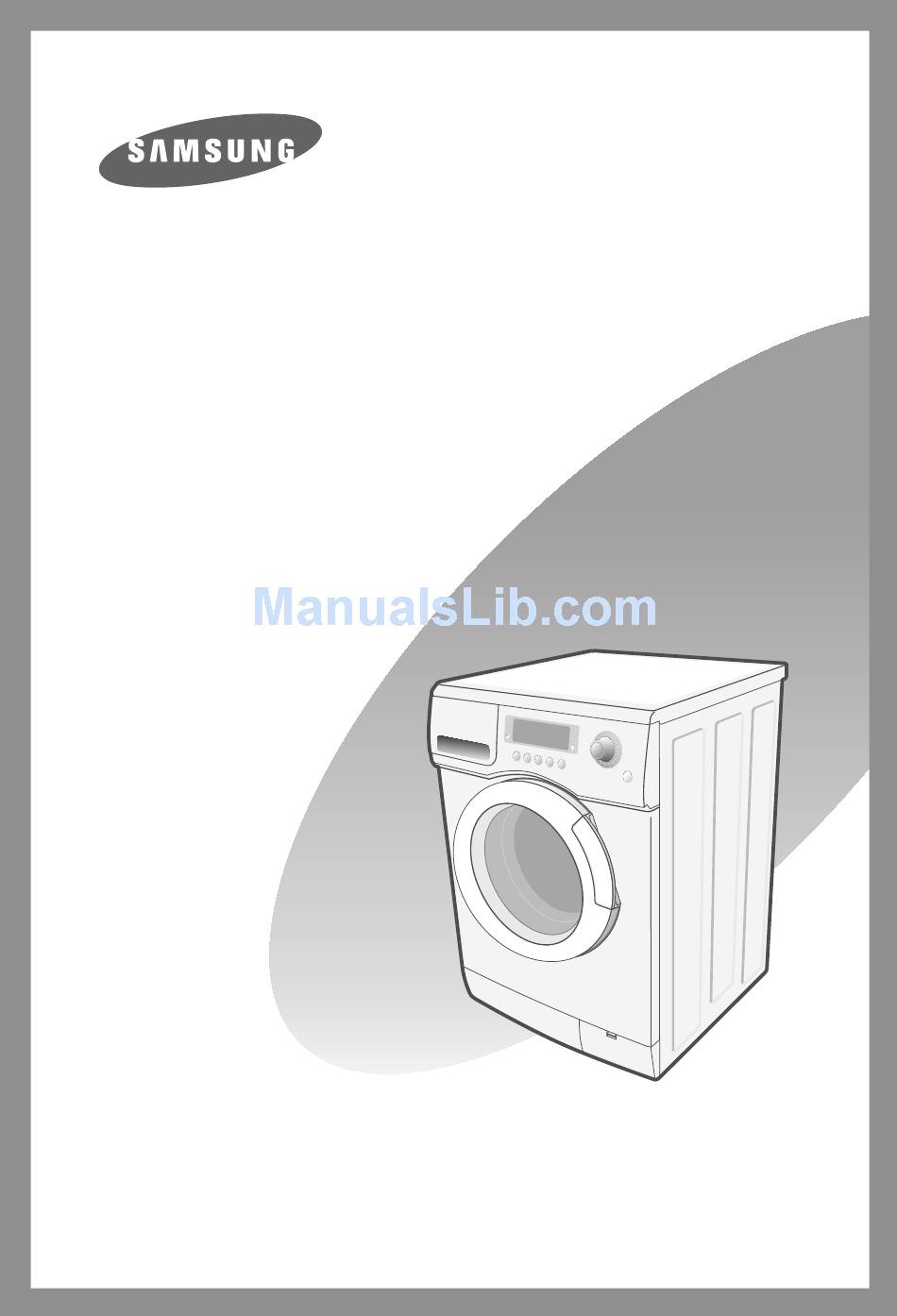

- Page 1 Washing Machine Owner’s Instructions Q1244A(V/T/S) Q1044A(V/T/S) Q844A(V/T/S) Register your product at www.samsung.com/global/register Code No. : DC68-02109N-01-GB...
-
Page 2: Safety Precautions
Safety Precautions Congratulations on your purchase of this Samsung washing machine. These Owner's Instructions contain valuable information on the installation, use, and care of this appliance. Please take the time to read these instructions so that you can take full advantage of the washing machine’s features and enjoy this appliance for many years to come. -
Page 3: Table Of Contents
Specification............21 Table of Contents SAMSUNG Washing Machine Owner’s Instructions 1... -
Page 4: Installing The Washing Machine
Unpack your washing machine and inspect it for shipping damage. Also make sure that you have received all of the items shown below. If the washing machine was damaged during shipping or you do not have all of the items, contact your Samsung dealer immediately. -
Page 5: Selecting A Location
Take each bolt head and pull it through the wide part of the hole. Repeat for each bolt. Fill the holes with the supplied plastic covers. Keep the shipping bolts for future use. SAMSUNG Washing Machine Owner’s Instructions 3 loosen... -
Page 6: Connecting The Water Supply Hose
2. Connect the other end of the hot water supply hose to your sink's hot water faucet and tighten it by hand. 3. Use a Y-piece if you only want to use cold water. 4 SAMSUNG Washing Machine Owner’s Instructions... -
Page 7: Connecting The Water Supply Hose(Option)
60 cm above the ground. ln a drain pipe Samsung recommends that you use a 65 cm high vertical pipe; it must be no shorter than 60 cm and no longer than 90 cm. Connect the water supply hose to the adaptor. -
Page 8: Plugging In The Machine
6 SAMSUNG Washing Machine Owner’s Instructions GREEN AND 13 AMP YELLOW... -
Page 9: Washing A Load Of Laundry
Concentrated or thick fabric softener and conditioner must be diluted with a little water before being poured into the dispenser (prevents the overflow from becoming blocked.) in the (if you desire). (if you desire). SAMSUNG Washing Machine Owner’s Instructions 7... -
Page 10: Overview Of The Control Panel
The laundry remains in the drum without being spun after the final drain Rinse Hold The laundry remains soaking in the final rinse water. Before the laundry can be unloaded, either “Drain” or the “Spin” program must be run. 8 SAMSUNG Washing Machine Owner’s Instructions : no spin, : rinse hold... - Page 11 Press once to turn the washing machine on, press again to turn the washing machine off. If the washing machine power is left on for longer than 10 minutes without any buttons being touched, the power automatically turns off. SAMSUNG Washing Machine Owner’s Instructions 9...
-
Page 12: Washing Clothes Using Fuzzy Logic
Washing a Load of Laundry Washing clothes using Fuzzy Logic Your new washing machine makes washing clothes easy, using Samsung's "Fuzzy Logic" automatic control system. When you select a wash program, the machine will set the correct temperature, washing time, and washing speed. -
Page 13: Washing Clothes Manually
Press the Start/Pause button. The Delay Start indicator will light, and the clock will begin counting down until it reaches your finish time. To cancel Delay Start, press the on again. (On/Off) button, then turn the washing machine SAMSUNG Washing Machine Owner’s Instructions 11... -
Page 14: Washing Tips And Hints
Note: Keep detergents and additives in a safe, dry place out of the reach of children. 12 SAMSUNG Washing Machine Owner’s Instructions Sort laundry into cottons, mixed fibers, synthetics, Load Capacity 7.5 kg... -
Page 15: Maintaining The Washing Machine
Cleaning the exterior Wipe the washing machine surfaces, including the control panel, with a soft cloth and non-abrasive household detergents. Use a soft cloth to dry the surfaces. Do not pour water on the washing machine. SAMSUNG Washing Machine Owner’s Instructions 13... -
Page 16: Cleaning The Detergent Drawer And Recess
Unscrew the filter cap and take it out. Wash any dirt or other material from the filter. Make sure the drain pump propeller behind the filter is not blocked. Replace the filter cap. Replace the filter-cover. 14 SAMSUNG Washing Machine Owner’s Instructions... -
Page 17: Cleaning The Water Hose Mesh Filter
Also clean the inside and outside of the threaded connector. Push the filter back into place. Screw the hose back onto the washing machine. Turn on the faucet and make sure the connections are watertight. SAMSUNG Washing Machine Owner’s Instructions 15... -
Page 18: Troubleshooting
Before contacting After-Sales service: Try to remedy the problem (See "Troubleshooting" on this page). Restart the programme to see if the fault is repeated. If the malfunction persists, call after-sales service and describe the problem. 16 SAMSUNG Washing Machine Owner’s Instructions Solution... -
Page 19: Cautions Of Duvet Course
Cautions in Putting Duvet in the Drum 1. Do not use unnecessary force or too large Duvet. 2. Make sure that a corner or folded part of the duvet directs inwards. Troubleshooting Picture of Being Put Properly SAMSUNG Washing Machine Owner’s Instructions 17... -
Page 20: Programme Chart
3. Consumption in individual homes may differ from the values given in the table due to variations in the pressure and temperature of the water supply, the load and the type of laundry. 18 SAMSUNG Washing Machine Owner’s Instructions Tem (˚C) Spin Speed (MAX) rpm... - Page 21 Tem (˚C) Spin Speed (MAX) rpm Delay Max Q1244A Q1044A Q844A fault 1200 1000 1200 1000 1200 1000 Type of WASH SAMSUNG Washing Machine Owner’s Instructions 19 user option) Electricity Half-Load Water (l) start (kWh) 0.62 1.25 ...
-
Page 22: Appendix
• Do not overload the wall outlet or extension cords. Overloading can result in fire or electric shock. 20 SAMSUNG Washing Machine Owner’s Instructions Can be ironed at 100 ˚C max Do not iron Can be dry cleaned using any solvent... -
Page 23: Protecting The Environment
7.5kg (DRY LAUNDRY) 220V 240V 220V 240V Q1244A MODEL 230V 550W 70 l (STANDARD COURSE) Q1244A MODEL 1200 PAPER PLASTIC SAMSUNG Washing Machine Owner’s Instructions 21 180W 180W 2000W 2400W Q1044A Q844A 500W 430W Q1044A Q844A 1000 2.5 kg 1.0 kg... - Page 24 Manufacturer: SAMSUNG ELECTRONICS CO.,LTD 12th FL, Samsung Main Bldg.,250, 2-Ka, Taepyung-Ro,Seoul Korea TEL: +82 31 200 6772 FAX: +82 31 200 6986 LVD: TUV Product Service GMBH...
