Related Manuals for Samsung B1045A(V/S/C)
Summary of Contents for Samsung B1045A(V/S/C)

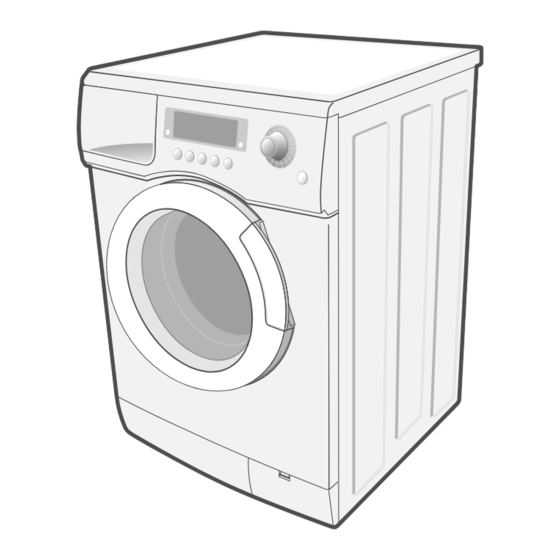

- Page 1 Washing Machine Owner’s Instructions B1445A(V/S/C) B1245A(V/S/C) B1045A(V/S/C) R1245A(V/S/C) R1045A(V/S/C) F1245A(V/S/C) F1045A(V/S/C) Register your product at www.samsung.com/global/register Code No.: DC68-02158R_EN...
-
Page 3: Child Lock
1. Silver Wash - Silver Nano Health System Samsung's silver Nano feature uses silver nano particles to sanitize and disinfect your laundry and your machine's drum. Delicates as well as smelly socks will get odor - free from human sweat at temperature as low as 30 °C. That saves energy and protects color and shape of your clothes. -
Page 4: Safety Precautions
Safety Precautions Congratulations on your purchase of this Samsung washing machine. These Owner's Instructions contain valuable information on the installation, use, and care of this appliance. Please take the time to read these instructions so that you can take full advantage of the washing machine's features and enjoy this appliance for many years to come. -
Page 5: Table Of Contents
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. Table of Contents inside cover ------------------------------------------ ------------------------------------------------ --------------------------------- SAMSUNG Washing Machine Owner’s Instructions... -
Page 6: Lnstalling The Washing Machine
Unpack your washing machine and inspect it for shipping damage. Also make sure that you have received all of the items shown below. If the washing machine was damaged during shipping or you do not have all of the items, contact your Samsung dealer immediately. -
Page 7: Selecting A Location
2. Tighten the locking nut by turning it with the supplied wrench. • Place the washer on a sturdy, flat surface. If the washer is placed on an uneven or weak surface, noise or vibration occurs. (Only a l degrees angle is allowed.) -
Page 8: Connecting The Water Supply Hose
The drain pipe branch must be above the sink siphon so that the end of the hose is at least 60 cm above the ground. ln a drain pipe Samsung recommends that you use a 65 cm high vertical pipe; it must be no shorter than 60 cm and no longer than 90 cm. SAMSUNG Washing Machine Owner’s Instructions... -
Page 9: Plugging In The Machine
Your washing machine should be operated on a separate circuit from other appliances. Failure to do this may cause the circuit breaker to trip or the fuse to blow. SAMSUNG Washing Machine Owner’s Instructions 13 AMP FUSE BROWN WARNING CIRCUITS... -
Page 10: Washing A Load Of Laundry
Press the button repeatedly to cycle through the available delayed start options (from 3 hour to 24 hours in one hour increments). Displayed hours means the time of finished washing-cycle. SAMSUNG Washing Machine Owner’s Instructions , 400, 800, 1200, 1400 rpm , 400, 800, 1000, 1200 rpm... - Page 11 Press once to turn the washing machine on, press again to turn the washing machine off. If the washing machine power is left on for longer than 10 minutes without any buttons being touched, the power automatically turns off. SAMSUNG Washing Machine Owner’s Instructions...
-
Page 12: Washing For The First Time
Caution : Concentrated or thick fabric softener and conditioner must be diluted with a little water before being poured into the dispenser (prevents the overflow from becoming blocked.) SAMSUNG Washing Machine Owner’s Instructions in the (if you desire). (if you desire). -
Page 13: Washing Clothes Using Fuzzy Logic
Washing a Load of Laundry Washing clothes using Fuzzy Logic Your new washing machine makes washing clothes easy, using Samsung's "Fuzzy Logic" automatic control system. When you select a wash program, the machine will set the correct temperature, washing time, and washing speed. -
Page 14: Washing Clothes Manually
3. Press the Start/Pause button. The Delay Start indicator will light, and the clock will begin counting down until it reaches your finish time. 4. To cancel Delay Start, press the on again. SAMSUNG Washing Machine Owner’s Instructions : Rinse Hold. (On/Off) button, then turn the washing machine... -
Page 15: Washing Tips And Hints
R1245A/ B1045A R1045A 6.0 kg 5.2 kg 6.0 kg 5.2 kg 3.0 kg 3.0 kg 2.5 kg 2.0 kg 2.0 kg 1.5 kg SAMSUNG Washing Machine Owner’s Instructions F1245A/ F1045A 4.5 kg 4.5 kg 3.0 kg 2.0 kg 1.5 kg... -
Page 16: Maintaining The Washing Machine
Cleaning the exterior Wipe the washing machine surfaces, including the control panel, with a soft cloth and non-abrasive household detergents. Use a soft cloth to dry the surfaces. Do not pour water on the washing machine. SAMSUNG Washing Machine Owner’s Instructions... -
Page 17: Cleaning The Detergent Drawer And Recess
3. Unscrew the filter cap and take it out. 4. Wash any dirt or other material from the filter. Make sure the drain pump propeller behind the filter is not blocked. Replace the filter cap. 5. Replace the filter-cover. SAMSUNG Washing Machine Owner’s Instructions... -
Page 18: Cleaning The Water Hose Mesh Filter
Also clean the inside and outside of the threaded connector. 4. Push the filter back into place. 5. Screw the hose back onto the washing machine. 6. Turn on the faucet and make sure the connections are watertight. SAMSUNG Washing Machine Owner’s Instructions... -
Page 19: Troubleshooting
1. Try to remedy the problem (See "Troubleshooting" on this page). 2. Restart the programme to see if the fault is repeated. 3. If the malfunction persists, call after-sales service and describe the problem. Troubleshooting SAMSUNG Washing Machine Owner’s Instructions... -
Page 20: Programme Chart
3. Consumption in individual homes may differ from the values given in the table due to variations in the pressure and temperature of the water supply, the load and the type of laundry. SAMSUNG Washing Machine Owner’s Instructions DETERGENT Spin Speed(MAX)rpm (˚C) - Page 21 Programme Chart DETERGENT Spin Speed(MAX)rpm (˚C) AND ADDITIVES Sof- Pre- wash B1445A tener wash 1400 1400 1400 Type of WASH SAMSUNG Washing Machine Owner’s Instructions ( user option) Delay Half start Load B1245A B1045A R1245A R1045A F1245A F1045A 1200 1000 1200...
-
Page 22: Appendix
• Do not overload the wall outlet or extension cords. Overloading can result in fire or electric shock. SAMSUNG Washing Machine Owner’s Instructions Appendix Can be ironed at 100 ˚C max Do not iron... -
Page 23: Protecting The Environment
R1245A, R1045A B1045A 2.5kg 2.1kg 1.0kg 0.9kg B1245A , R1245A, B1445A F1245A 1400 1200 SAMSUNG Washing Machine Owner’s Instructions F1245A, F1045A W598mm × D404mm ×H844mm 48 l 62 kg 4.5 kg (DRY LAUNDRY) F1245A, F1045A 1900W 220V 1800W 2200W 240V... - Page 24 Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. Samsung Electronics U.K. Ltd. 0870 242 0303 www.samsung.com/uk...
