Summary of Contents for Jetson E-POCKET

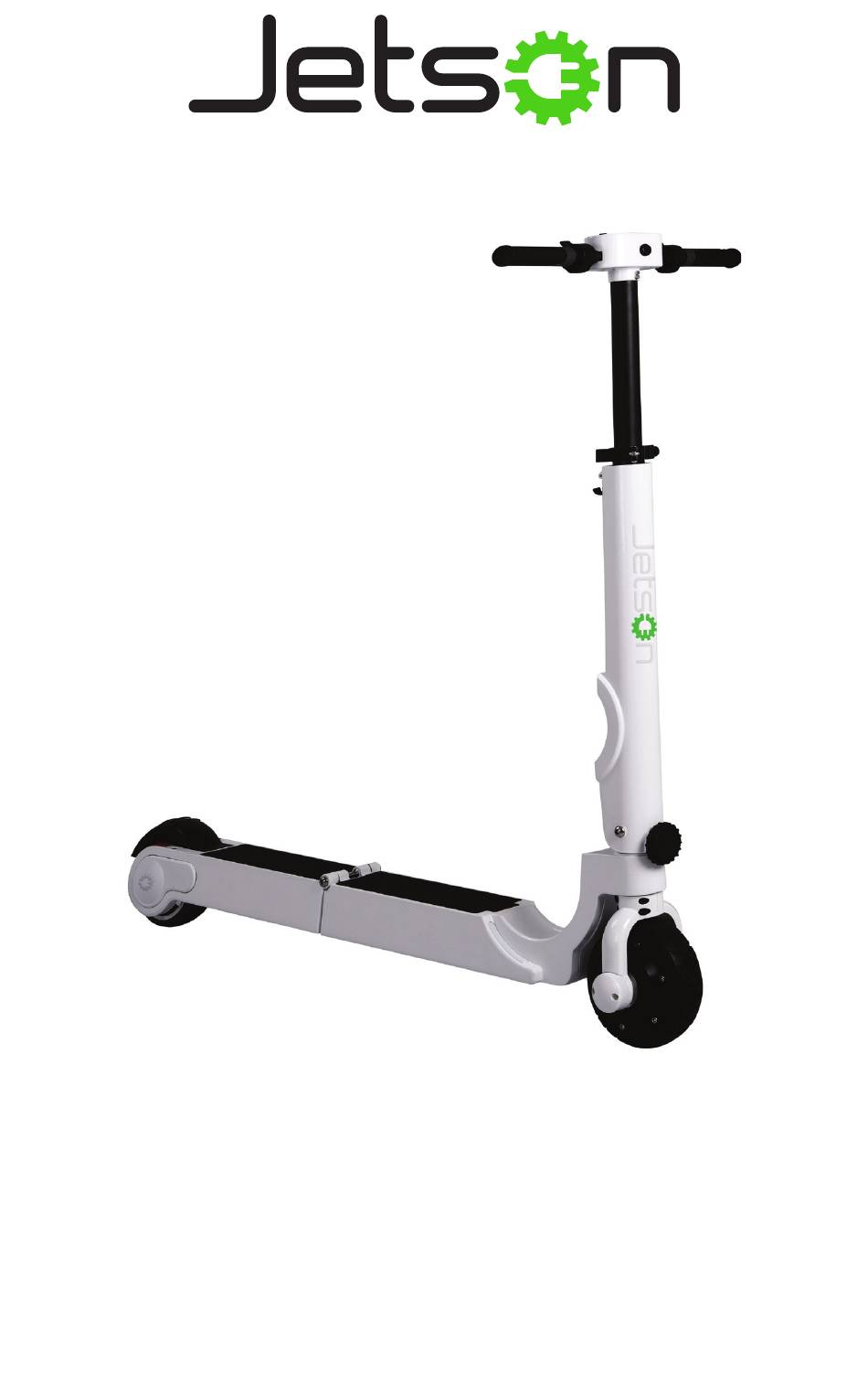

- Page 1 E-POCKET -MANUAL-...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction Included in the Box Features and Specs Unfolding the E-Pocket Folding the E-Pocket Adjusting the Handlebar Operating the E-Pocket Safe Driving Charging the Battery Care and Maintenance Safety Warnings Warranty Product Registration... -
Page 3: Introduction
This product manual can help you understand, use, and maintain your E-Pocket. In order to avoid danger caused by collisions, falls, and loss of control, please use caution and learn how to ride the E-Pocket safely. Jetson and authorized dealers cannot be held liable for injury or damage caused from riding the E-Pocket. -
Page 4: Included In The Box
INCLUDED IN THE BOX 1. Taillight 7. Handlebar 2. Rear Foot Brake 8. Folding Lever 3. Rear Half of Deck 9. Front Tire 4. Front Half of Deck 10. Deck Lights 5. Stem Clip 11. Rear Wheel 6. Stem Clamp... -
Page 5: Features And Specs
1. Thumb Throttle 3. E-Brake 2. Power Button 4. Folding Button FEATURES AND SPECS MODEL: E-POCKET MOTOR TYPE: HUB WHEEL SIZE: 5.5” MOTOR: 200 WATT MAX SPEED: 18 MPH CHARGER: 110-240V MAX RANGE: 20 MILES CHARGE TIME: 2-3 HOURS BATTERY TYPE: LITHIUM ION PRODUCT WEIGHT: 24.2 LBS... -
Page 6: Unfolding The E-Pocket
UNFOLDING THE E-POCKET 1. Release the Stem Clip and lift the Handlebars away from the Deck until the Stem is fully extended. Tighten the Folding Lever at the base of the Stem by turning it clockwise. Make sure the Stem is tight and secure. - Page 7 3. Unfold the Handlebars by lifting both Folding Buttons on the Handlebar. Open the Handles out and away from each other until they lock into place. Lift both Folding Buttons...
-
Page 8: Folding The E-Pocket
FOLDING THE E-POCKET 1. Fold the Handlebars by lifting both Folding Buttons on the Handlebar. Bring the Handles in towards each other until they lock into place. Lift both Folding Buttons 2. First, make sure the kickstand is up. Then, loosen the Folding Lever underneath the Deck and lift the Rear Wheel up, towards the top of the Deck. - Page 9 3. Lower the Handlebar all the way. Then, loosen the Folding Lever at the base of the Stem by turning it counter-clockwise. Do not loosen this Folding Lever all the way, just enough so you can lower the Stem. Lower the Handlebars and Stem down.
-
Page 10: Adjusting The Handlebar
To turn the E-Pocket on, first make sure the Power Switch under the Deck is on. Then, press and hold the Power Button for 3 seconds. To turn the E-Pocket off, first make sure the E-Pocket is not in motion. Then, press and hold the Power Button for 3 seconds. - Page 11 To turn the Lights on, click and hold the Power Button for about 1 second. One click will turn the Lights on. Another click will turn the Lights off. You can also turn the Lights off by turning the E-Pocket off. USING THE THUMB THROTTLE To start riding, press down on the Thumb Throttle.
-
Page 12: Safe Driving
Elbow and Knee Pads: For added protection, always wear elbow and knee pads when riding your E-Pocket, to prevent any serious injuries. Get to know the E-Pocket before riding it. Test your control over it. Make your turns slowly and cautiously, and give yourself stopping distance. It is recommended you practice your first ride on the E-Pocket in an open space with no obstacles in your way. -
Page 13: Charging The Battery
Charging Port when you are done charging. Before your first ride you must fully charge the E-Pocket - charge for 4 hours for the first 3 times you use it. For every ride after, charge your E-Pocket until it is fully charged, and NOT LONGER. -
Page 14: Care And Maintenance
Port CARE AND MAINTENANCE DRIVING RANGE The average range of the E-Pocket is 20 miles. However, a lot of factors will affect how far you can go per charge: • Driving surface: A smooth, flat surface will increase driving distance. - Page 15 Customer Support at 1-(888) 976-9904 or email us at customerservice@jetsonbike.com. STORAGE • If you plan on storing the E-Pocket for a substantial period of time, please make sure you fully charge the battery before storing. The bat- tery should be fully charged once a month after this.
-
Page 16: Safety Warnings
• Do not ride after drinking or taking prescription medication. • Do not carry items when riding. • Prior to each ride, inspect each part of the E-Pocket to ensure it has been maintained correctly and is functioning properly. • Always give way to pedestrians. - Page 17 ADDITIONAL OPERATION CAUTIONS Do not lift the E-Pocket off the ground while it is on and the wheels are in motion. This can result in freely spinning wheels, which may cause injury to yourself or others nearby. Do not jump on or off the E-Pocket, and do not jump while using it.
-
Page 18: Warranty
• Jetson® makes no warranty with respect to products or trade accessories not made by Jetson®, including, but not limited to, motors, tires, wheels, and batteries, such products or trade accessories, such items being subject to the original manufacturer’s warranty, if any. -
Page 19: Product Registration
For myself For my child For my grandchild Gift for someone else (adult) Gift for someone else (child) How did you hear about the Jetson E-Pocket?: ______________________________________________ _____________________________________________________________________________________ Complete this form and mail it to: Attention: Product Registration Jetson Electric Bikes... - Page 20 E-POCKET...
