Summary of Contents for Samsung MAX-VL85

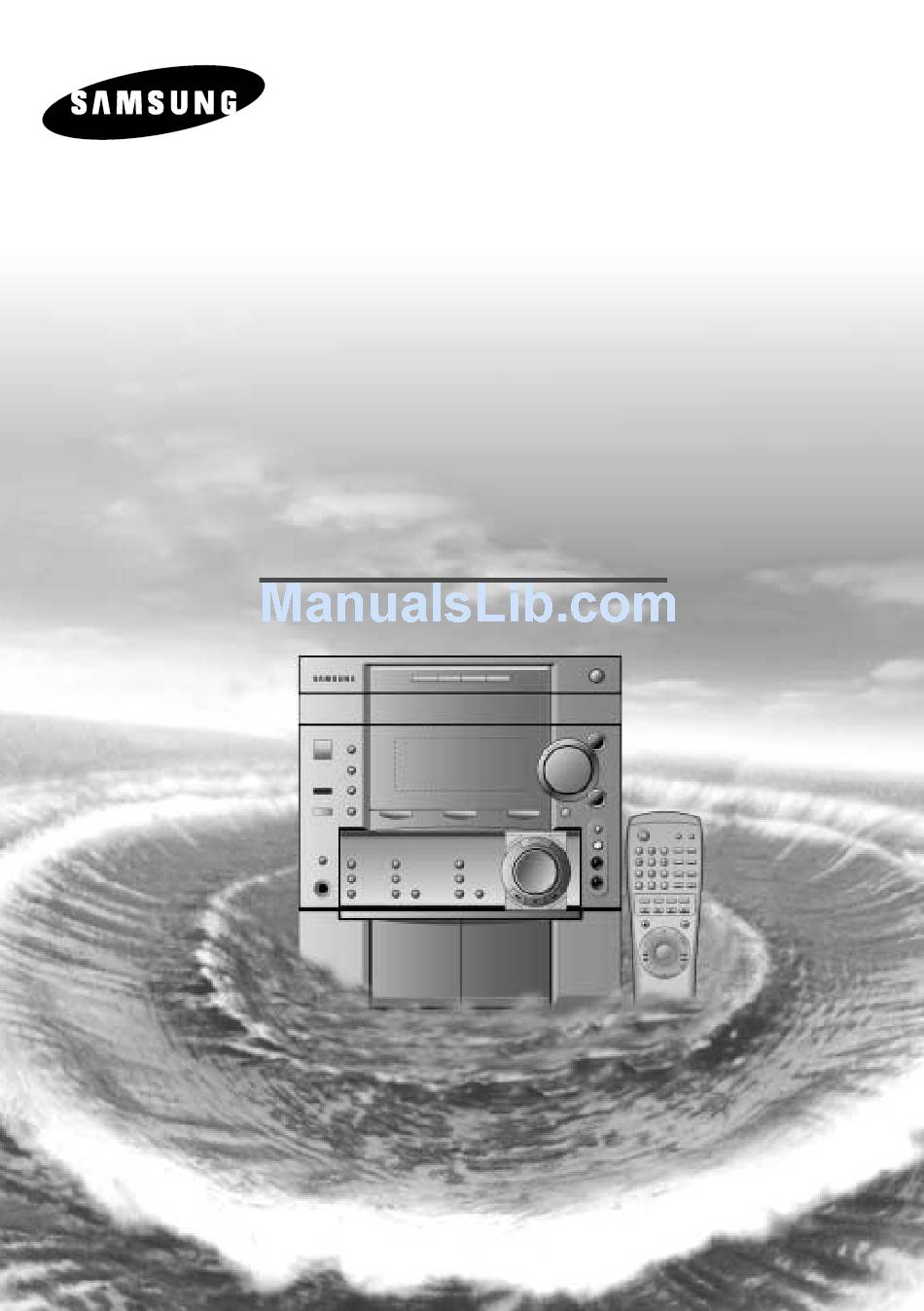

- Page 1 THREE-CD CHANGER VIDEO-CD MINI-COMPACT SYSTEM MP3-CD CD-R/RW PLAYBACK MAX-VL85 Instruction Manual...
-
Page 2: Safety Warnings
Safety Warnings CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LASER CLASE 1 CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE REAR COVER. NO USER SERVICEABLE PARTS INSIDE. -
Page 3: Table Of Contents
Before Contacting the After-Sales Service ... 28 Technical Specifications ... 29 Press Thank you for buying this SAMSUNG mini-compact system. Please take time to read these instructions. They will allow you to operate your system with ease and take full advantage of its features. -
Page 4: Front Panel View
Front Panel View Standby Mute Phones Push Eject Disc Selection buttons Compact Disc Compartment Timer On/Off Timer/Clock On/Standby AI Sleep Demo Program 10. Mono/ST 11. Mute 12. Headphone Jack Connector 13. REC/Pause (PAL/NTSC) 14. Preset/Memory 15. Cassette Deck 1 16. Shuffle 17. -
Page 5: Remote Control
Remote Control 1. On/Standby 2. Digit Buttons 3. Band 4. +10/0 5. Timer On/Off 6. AI Sleep 7. TAPE Rewind 8. TAPE Fast-Forward 9. CD Stop 10. CD Track or Radio Station Search 11. Volume Decrease 12. Tuning Mode 13. Volume Increase 14. -
Page 6: Rear Panel View
Rear Panel View 1. SUBWOOFER Speaker Connector Terminals 2. SW Aerial Connector Terminal (OPTION) 3. AM Aerial Connector Terminal 4. FM Aerial Connector Terminal 5. AUDIO Output Connectors 6. VIDEO Output Connectors 7. Loudspeaker Connector Terminals 8. AUX-Input 9. Voltage Selector (OPTION) SW ANT. -
Page 7: Where To Install Your Mini-Compact System
Where to Install Your Mini-Compact System To take full advantage of your new mini-compact system, ollow these installation instructions before connecting the unit. Install the system on a flat, stable surface. Never place this unit on carpeting. Never place this unit in an outdoor area. Maintain an open space of approximately 6 inches (15 cm) on the sides and rear of the system, for ventilation purposes. -
Page 8: Inserting Remote Control Batteries
Inserting Remote Control Batteries Insert or replace remote control batteries when you: Purchase the mini-compact system Find that the remote control is no longer operating correctly When replacing the batteries, use a new set of batteries and never mix alkaline and manganese batteries. Place your thumb on the position marked compartment cover (rear of the remote control) and push the cover in the direction of the arrow. -
Page 9: Connecting To An External Source
Connecting to an External Source The auxiliary input can be used to take advantage of the sound quality of your mini-compact system when listening to other sources. Examples: A television A video disc player A Hi-Fi stereo video cassette recorder To connect the external source, the source must have an audio output. -
Page 10: Connecting The Am (Mw)/Lw Aerial
Connecting the AM (MW)/LW Aerial The AM aerial (for long and medium waves) can be: Placed on a stable surface Fixed to the wall (you must first remove the base) The AM aerial connector terminals are located on the rear of the system and are marked AM . -
Page 11: Viewing The Various Functions On Your System
Viewing the Various Functions on Your System You can view the various functions available on your system. Press the Demo button. Result: The various functions available are listed in turn on the display. All these functions are described in detail in this booklet. For instructions on how to use them, refer to the appropriate sections. -
Page 12: Loading And Changing Compact Discs
Loading and Changing Compact Discs The CD disc changer can contain up to three 12 cm or 8 cm compact discs without using an adapter. Never force the compact disc carrousel when opening and closing the compartment. Never press down or place objects on the carrousel. Always treat your compact discs with care;... -
Page 13: Selecting A Cd In The Disc Changer
Selecting a CD in the Disc changer The CD function is automatically selected when Disc Skip is pushed. To select a specific disc, press the corresponding Disc (1, 2, 3) button on the front panel or Disc Skip on the remote control, until the required disc indicator flashes. -
Page 14: Searching For A Specific Music Passage On A Cd
Searching for a Specific Music Passage on a CD When listening to a compact disc, you can quickly search for a specific music passage on a track. It is recommended that you turn the volume down before using this function. To search through the tracks... -
Page 15: Programming The Order Of Playback
Programming the Order of Playback You can decide: The order of the track desired to listen The track not desired to listen A maximum of up to 30 order of tracks desired to listen may be programmed. Before selecting the track, the CD player should be stopped. This function may be used simultaneously with the CD Repeat function. -
Page 16: Video Cd Player Playback
Video CD Player Playback In order to playback video VIDEO-CD(‘S), make sure that your unit is connected to your TV set. This unit is designed for playback of video CD(‘S), version 1.1 and 2.0. Only with version 2.0, is it possible to call up the on screen menu function. -
Page 17: When Adjusting Play Speed
When adjusting play speed Turn on the TV and set video mode. Press the Slow button on the remote controller when the play function is on. Voices do not come out when the Slow button is pressed. Slow playing is 1/2, 1/4, 1/8 the normal playing speed. To return to normal operation. -
Page 18: Vcd View Function
VCD VIEW function This function can be used conveniently to search a desired track in a VCD. This function is possible in CD or VCD Ver 1.1 or Ver 2.0menu off mode. When you want to select a track Press the Disc View button in the pause state. Result: "TRACK VIEW"... -
Page 19: Tuner
Searching for and Storing the Radio Stations You can store up to: 15 FM stations OPTION 15 AM stations 15 FM stations 8 AM(MW) stations OPTION 7 LW stations 15 FM stations 5 MW stations OPTION 5 SW1 stations 5 SW2 stations Switch the system on by pressing On/Standby. -
Page 20: Selecting A Stored Station
Selecting a Stored Station You can listen to a stored radio station as follows: Switch the system on by pressing On/Standby. Select the TUNER function by pressing Band on remote control. Select the required frequency band by pressing Band on the remote control or TUNER (Band) again on the front panel. -
Page 21: Tape Deck
Listening to a Cassette Always treat your cassettes with care; refer, if necessary, to the section entitled “Precautions When Using Audio Cassettes” on page 28. Switch the system on by pressing the On/Standby button. Select the TAPE function by pressing TAPE on the front panel. Open either cassette deck 1 or 2 by pushing and releasing the deck cover where Push Eject ( ) is written. -
Page 22: Recording A Radio Program
Recording a Radio Program You can record a radio program of your choice. You can only record on cassettes in Deck 2. You do not need to adjust the volume, as it has no effect on the recording. Switch the system on by pressing On/Standby. Insert a blank cassette in Deck 2. -
Page 23: Selecting The Cassette Playback Mode
Selecting the Cassette Playback Mode Your mini-compact system has three cassette playback modes which enable you to listen to both sides of a cassette automatically. Press Reverse Mode until the appropriate symbol is displayed. When the display indicates... The mini-compact system plays back... One side of the selected cassette and then stops. -
Page 24: Timer Function
Timer Function The timer enables you to switch the system on or off at specific times. Example: You wish to wake up to music every morning. If you no longer want the system to be switched on or off automatically, you must cancel the timer. Before setting the timer, check that the current time is correct. -
Page 25: Cancelling The Timer
Cancelling the Timer After having set the timer, it will start automatically as shown by the TIMER indication on the display. If you no longer wish to use the timer, you must cancel it. You can stop the timer at any time (system on or in standby mode). To... -
Page 26: Setting The System To Switch Off Automatically
Setting the System to Switch off Automatically While listening to a compact disc or a cassette, you can set the system to switch off automatically Example: You wish to go to sleep to music. Press AI Sleep. Result: playback starts and the following indications are displayed: 90 MIN Press AI Sleep one or more times to indicate how long the system should continue playing before it switches off:... -
Page 27: Safety Precautions
Safety Precautions The following diagrams illustrate the precautions to be taken when using or moving your mini-compact system. Disc 1 Disc 2 Disc 3 Disc Change Open/Close Power Surround Standby Timer/ Clock Volume Timer/ On/Off AI Sleep Demo Band Select/ Subwoofer Level TUNER VCD/CD... -
Page 28: Precautions When Using Compact Discs
If the above guidelines do not allow you to solve the problem, take a note of: Then contact your local dealer or SAMSUNG after-sales service. Problem Checks/Explanation • The main lead is not correctly plugged into a wall socket or the wall socket is not switched on. -
Page 29: Technical Specifications
Technical Specifications SAMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice. RADIO LW (OPTION) Usable sensitivity SW (OPTION) Usable sensitivity AM (MW) Signal/noise ratio Usable sensitivity... - Page 30 THIS APPLIANCE IS MANUFACTURED BY: ELECTRONICS A H 6 8 - 0 0 9 4 0 L...
