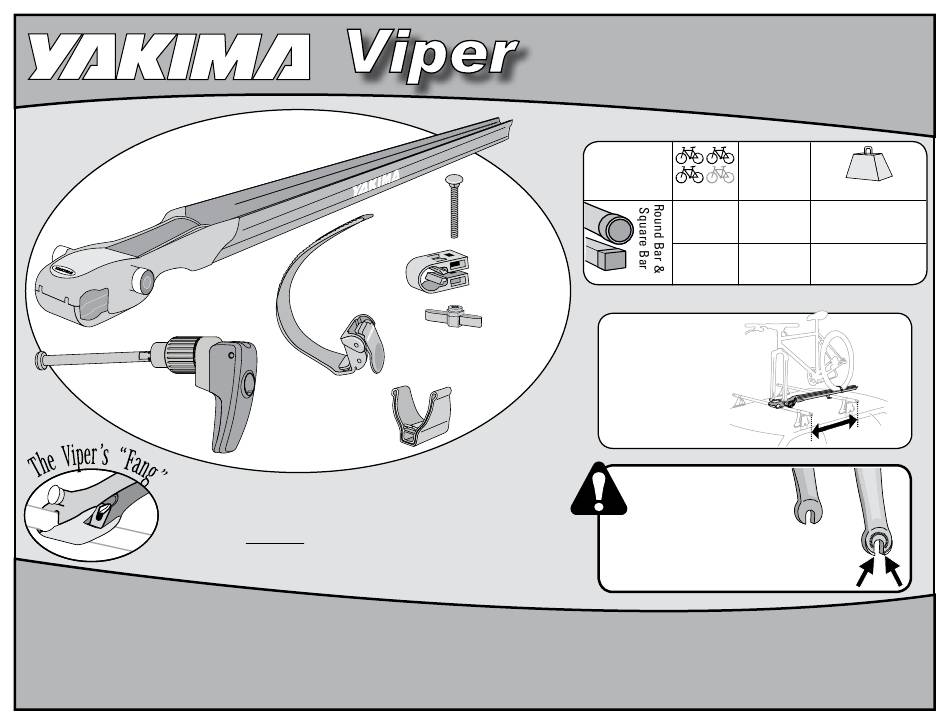

VIPER (1X)
WHEELSTRAP (1X)
LOCKING
SKEWER (1X)
END CAP (1X)
This hidden swiTch
enables safe
mounTing ouTside
The Towers.
Type of
Rack
CARRIAGE
BOLT (1X)
SNAP
AROUND (1X)
HEX KEY (1X)
*CROSSBAR SPREAD
Your crossbar
spread is the
distance between
the crossbars.
Crossbar
Spread*
Load
1 or 2
16" - 42"
16" (41cm) spread =
bikes
41cm - 107cm
30 lbs. (13.6kg) / bike
18" (46cm) spread =
3 or more
18" - 42"
bikes
46cm - 107cm
DO NOT EXCEED RACK WEIGHT LIMITS!
DESIGNED FOR FORKS
WITH SAFETY TABS.
Forks with
OFF-ROAD DRIVING IS
Safety Tabs
NOT RECOMMENDED.
Limits
40 lbs. (18.1) / bike

Advertisement

loading
Need help?

Need help?

Do you have a question about the Viper and is the answer not in the manual?

Questions and answers

Related Manuals for Yakima Viper

Summary of Contents for Yakima Viper

  • Page 1 Type of Crossbar Rack Spread* VIPER (1X) Load Limits 1 or 2 16" - 42" 16" (41cm) spread = CARRIAGE bikes 41cm - 107cm 30 lbs. (13.6kg) / bike BOLT (1X) 18" (46cm) spread = 3 or more 18" - 42"...
  • Page 2 (Large bikes, or short crossbar spreads) Decide where BETWEEN THE TOWERS OUTSIDE THE TOWERS you will position Viper can slide along the bar for Viper can be in a fixed location the Viper along easy repositioning, even when for optimum security when your crossbars.

  • Page 3: Fixed Position

    FIxeD poSItIon: Open lever. Hold the RepoSItIonIng: adjustment knob. Turn Viper can slide along the bar for Viper can be in a fixed location for optimum security when mounted easy repositioning, even when handle clockwise to outside the towers. locked and loaded.
  • Page 4 NOTE: Shaft will turn can move in the mount, open the lever bike is not loaded vertically. and tighten the adjustment knob more. with adjustment knob. Lock the Viper. Secure the rear wheel. Pull the strap SOME BIKE WHEELS MAY CLOSE THE STRAP.

  • Page 5: Before Driving Away

    Tighten the hex key on the rear crossbar. and could • if Viper is mounted between the towers, and has been repositioned along the result in crossbar, remember to close the red cover, and tighten the hex key again. damage to your vehicle •...
